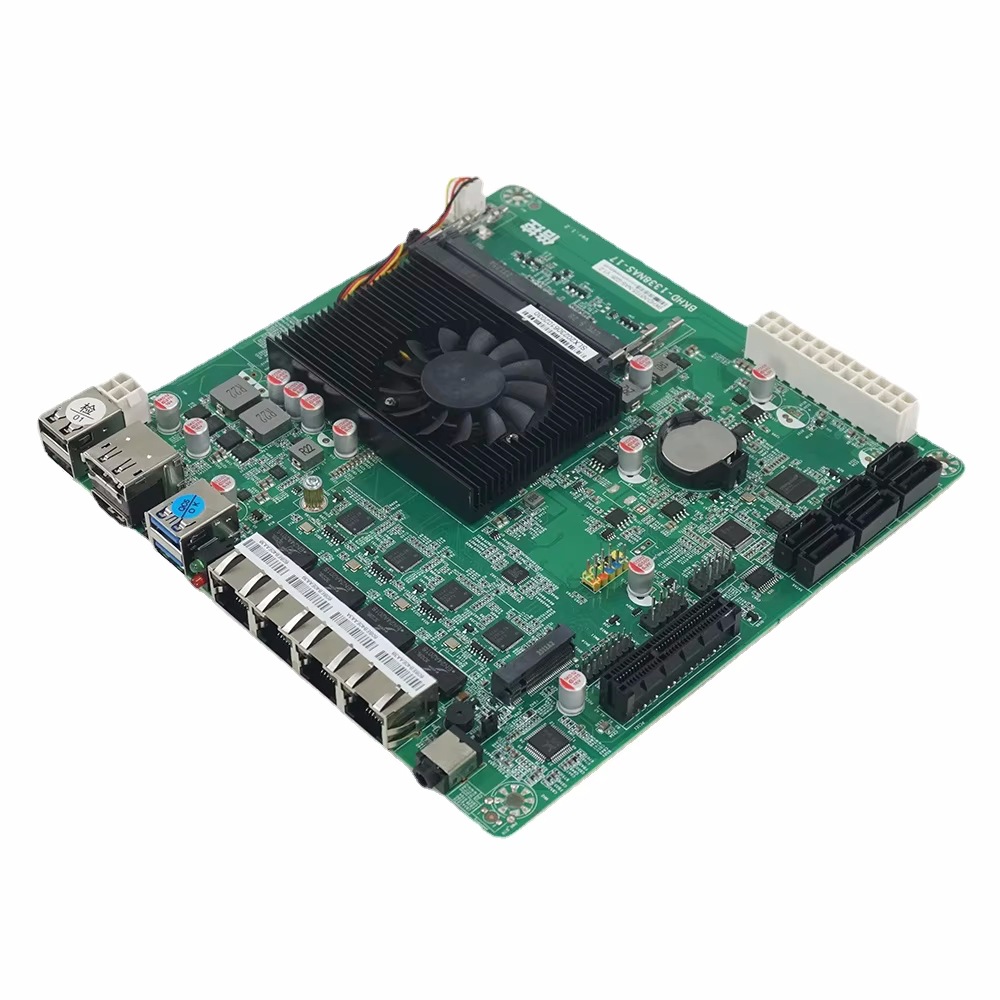

⚫ Intel® Processor N-series N100

⚫ 1*DDR5 SODIMM,4800MHz ,16GB

⚫ 4*Intel I226 2.5G Lan

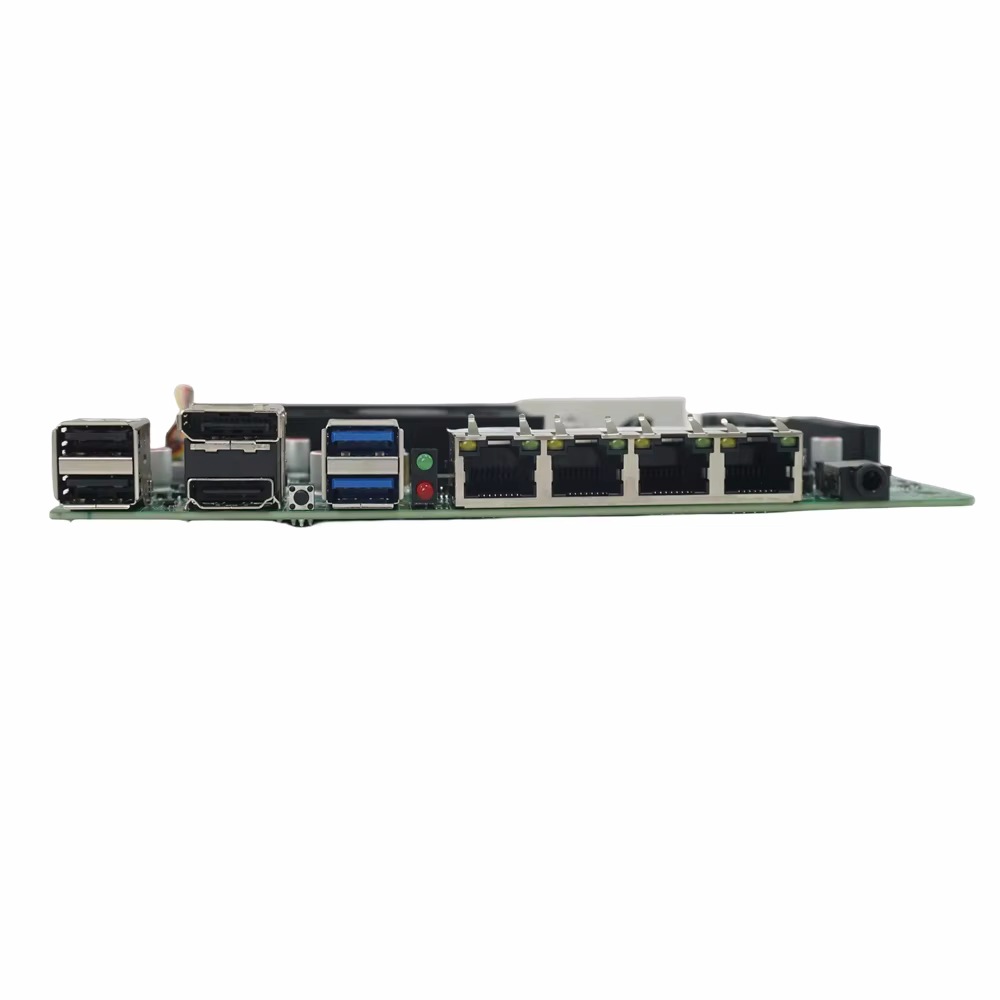

⚫ 1*DP+1*HDMI,2*USB3.0+6*USB2.0

⚫ 1*M2_SSD NVME/ NGFF+1*M.2_NVME

⚫ 1*PCIE1X+6*SATA

Specification

CPU:Processor N-series N100 processor

BIOS:AMI 128Mb BIOS,ACPI supported, Supports Power on startup

Memory:1*DDR5 SODIMM up to 16GB

Graphics controller: CPU integration

DP :1*DP interface

HD:1*HD interface

Multi-display support:Support DP+ HD synchronous or asynchronous dual display output

SATA:6*SATA, 6Gb/s

Storage:M2_ SSD  1*M2_ SSD NVME/NGFF+1*M.2_ NVME

Network:RJ45 4*i226 2.5G adaptive network port

Audio:Line Out ALC897 chip, Line out Mic 2-in-1 interface

USB3.0:External 2*USB3.0

USB2.0:External 2*USB2.0, built-in 4*USB2.0

Serial port:RS232 1*COM

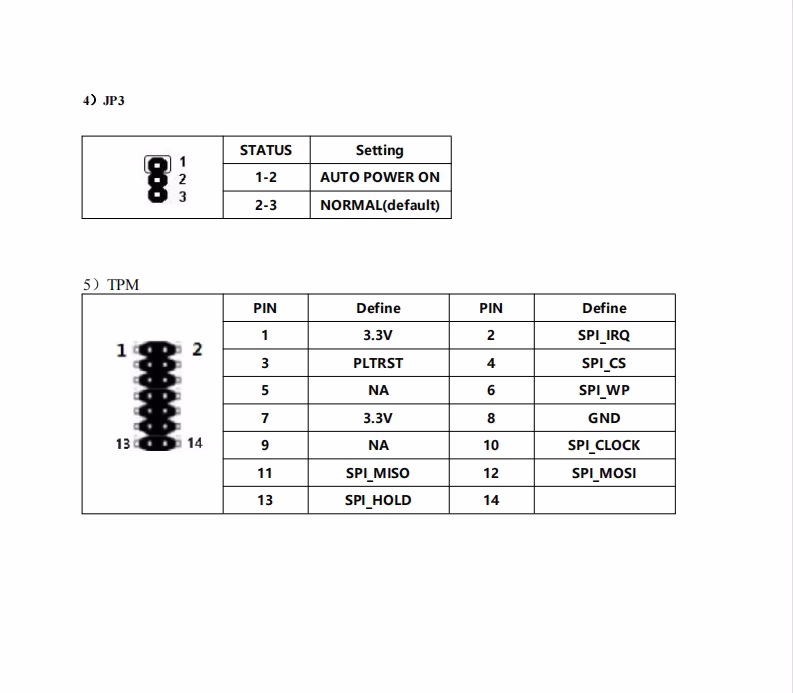

Hardware encryption: TPM TPM2.0 hardware encryption (pin header)

Watchdog: Supports 4~255 seconds watchdog timer

Voltage : Support +12V, 3.3V, 5V, CPU Vcore, DDR Power voltage detection

Temperature:Support CPU temperature detection

Fan:Supports CPU fan speed detection and intelligent fan control

Power supply:ATX  24PIN+ 4PIN ATX power supply

Operating temperature:-20~60 degrees Celsius

Storage temperature: -20~60 degrees Celsius

Working humidity:0~90% RH, relative humidity without condensation

Storage humidity: 0~90% RH, relative humidity without condensation

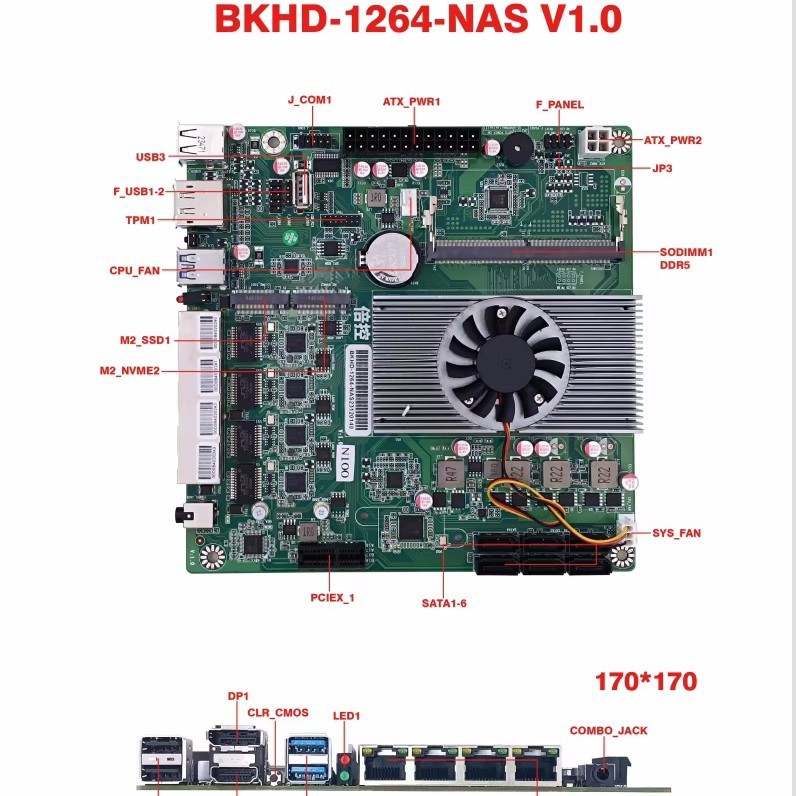

PCB specifications: Board size MINI-ITX (170*170mm)
