*1/2.9" HD CMOS Sensor, 5.0MP horizontal resolution.
*With OSD menu, can adjust the white balance, languages, brightness and so on.

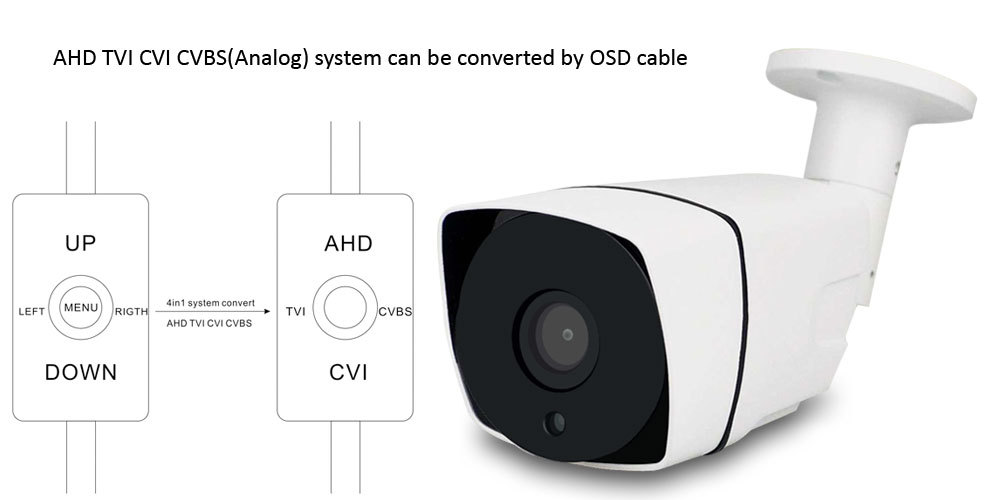

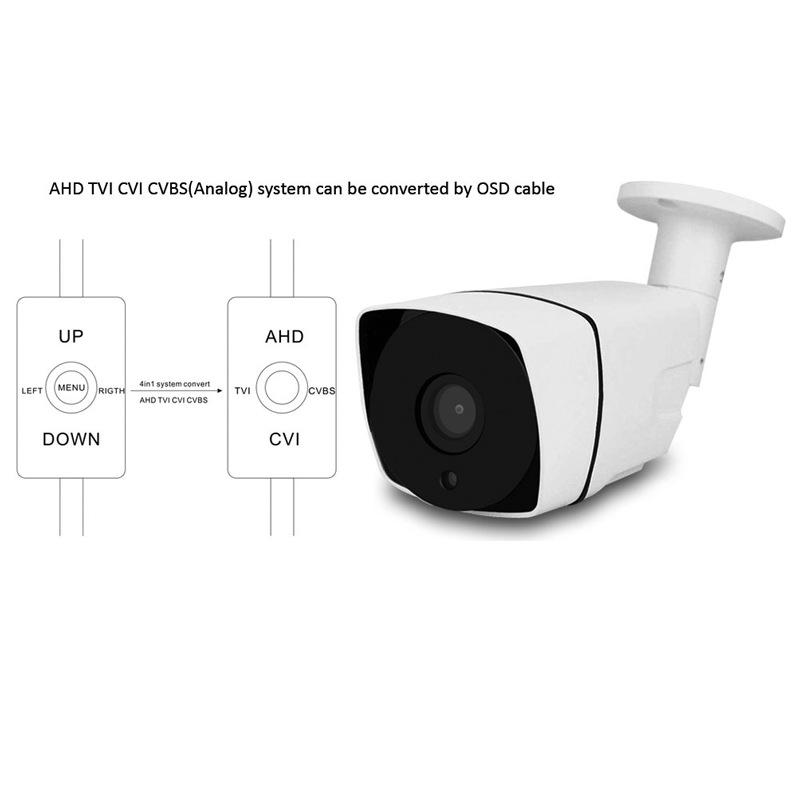

*PAL System and NTSC System can be converted to each other by OSD menu.
*Support AHD TVI CVI CVBS(Analog) system.
*3.6mm lens with 36pcs infrared lamps, night vision distance up to 35m.
*IR-CUT double filter. Auto switch between day and night, restoring clear true color.
*There is no distortion in the intake landscape, the picture has no shadow.
*Plug and play use and installation.
*High quality metal material shell, long service life.
*IP66 waterproof grade, can be used both indoor and outdoor places
|
Camera
|
|
Image Sensor
|
1/2.9’’ 5.0 megapixel (2560*1920) CMOS
|
|
Effective Pixels
|
2560*1920
|
|
Electronic Shutter
|
1/50s~1/100,000s
|
|
Video Frame Rate
|
PAL: 25fps@5MP 25fps@4MP; NTSC: 30fps@5MP
|
|
Synchronization
|
Internal/External
|
|
Min. Illumination
|
[email protected](AGC ON), 0Lux IR on
|
|
Video Output
|
1 CH BNC AHD high definition video output
|
| OSD Menu |
| EXposure |
Shutter/AGC/Brightness/DWDR |
| Backlight Mode |
OFF/Backlight/HSBLC |
| B/W |
ATW/AWC-SET/Indoor/Outdoor/Manual |
| D/N Mode |
EXT（Default）/AUTO/COLOR/B/W |
| DNR |
2DNR |
| Special |
Mirror/LIVE DPC/Language |
| Adjust |
Sharpness/Display Screen/Edge DPC/Output Mode |
| Exit |
SAVE&END/Reset/Not Save |
| Language |
CHN1/CHN2/GER/FRA/ITA/SPA/POL/RUS/POR/NED/TUR/JAP/ENG |
|
Video Output
|
1 CH BNC AHD high definition video output
|
|
Camera Features
|
|
LEDs
|
36*Φ5
|
|
IR Distance
|
15-35m IR view
|
|
Day/ Night
|
Auto(ICR) / Color / B/W
|
|
Noise Reduction
|
2D
|
|
Lens
|
|
Focal Length
|
3.6 mm fixed lens, 6mm/8mm optional
|
|
Mount Type
|
M12
|
|
General
|
|
Power Supply
|
DC12V±20% (not include)
|
|
Power Consumption
|
Max 2.5W
|
|
Working Environment
|
-30°C~+60°C / Less than 95%RH (no condensation)
|
|
Transmission Distance
|
Over 500m via 75-3 coaxial cable
|
|
Ingress Protection
|
IP66
|
|
|
|
