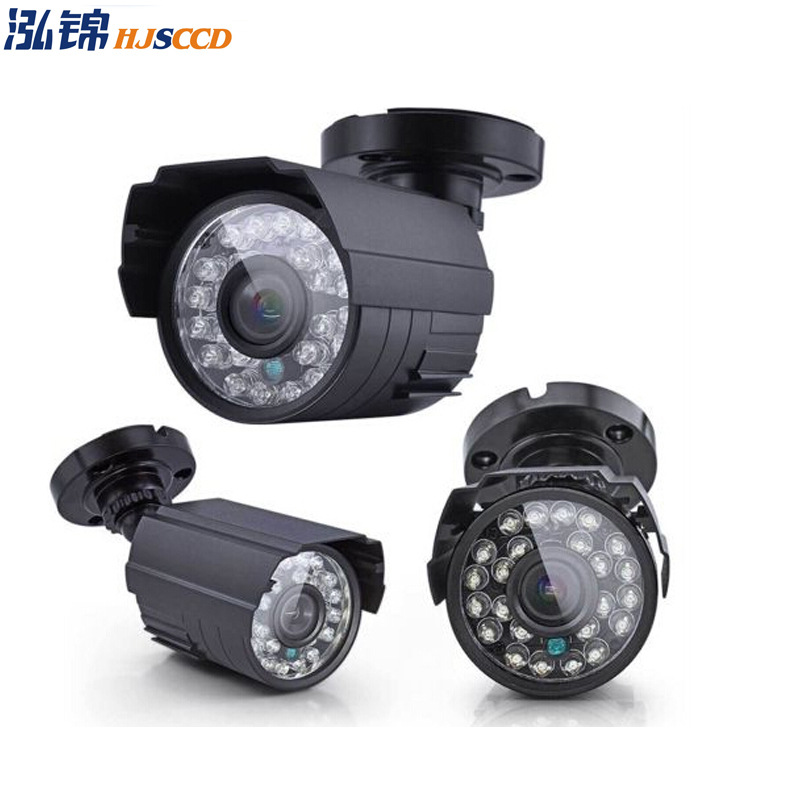

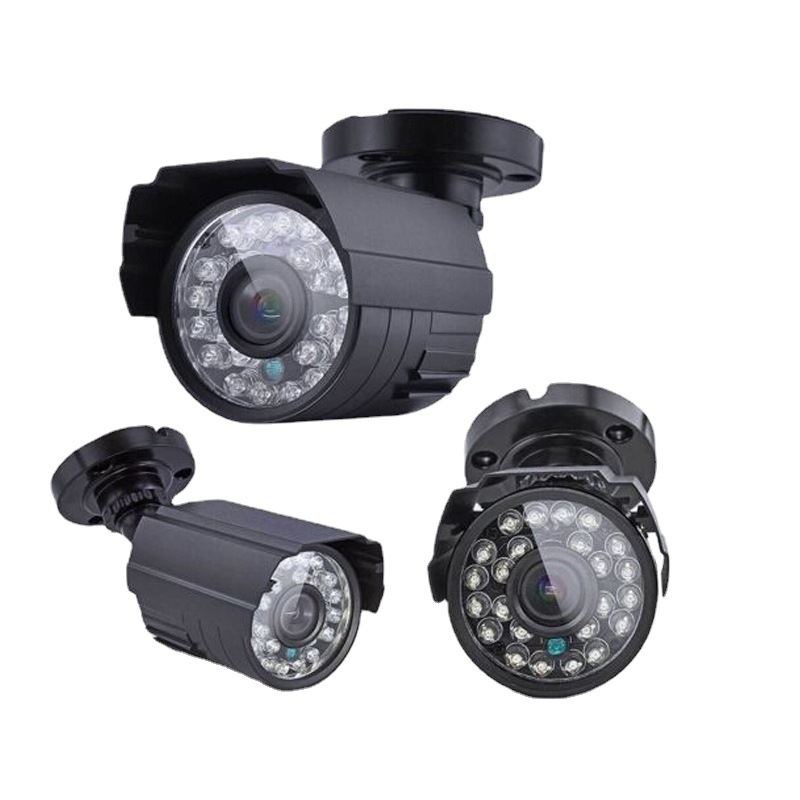

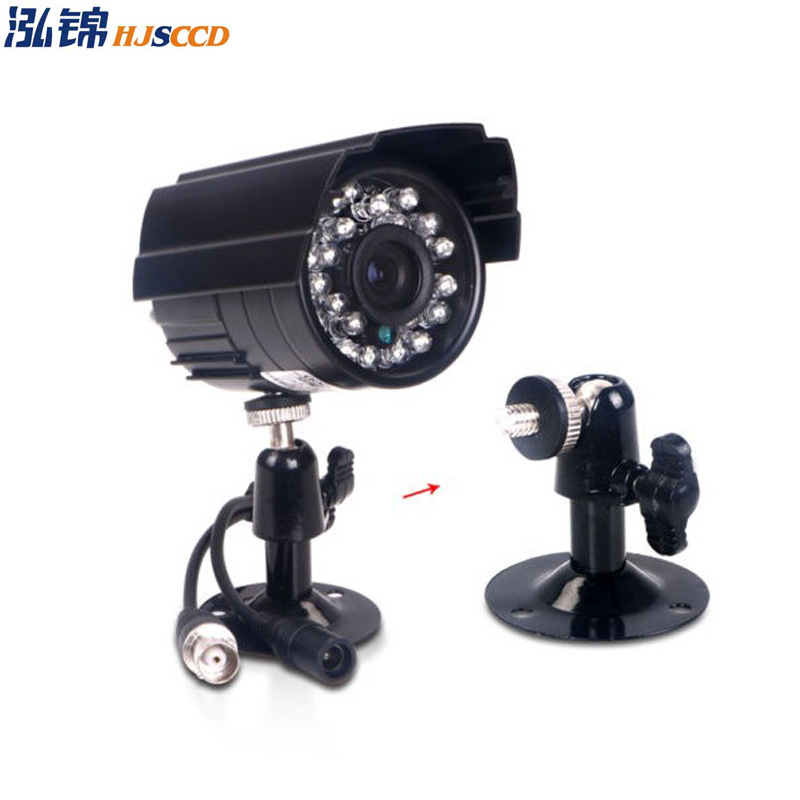

Cámara AHD AHD / TVI / CVI / CVBS Cuatro en uno Cámara de vigilancia Cámara de CCTV
Código: WB-241220-409
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Marca | Hjscc / hongjin |
| Material | Metal |
| Modelo | HJ-AHD101 |
| Especificaciones | 3.6MM,6MM,8MM |
| Claridad horizontal | 1920 |
| Tipo | Cámara infrarroja |
Mostrar más
Descripcion
◆1/3 CMOS OV2710 1080p高清图像传感器,有效分辨率达1920*1080，OSD支持12国语言；
◆AHD 1080P输出，带数字宽动态、透雾功能，强光抑制/移动侦测/隐私遮蔽，2D/3D降噪等功能；
◆使用Nextchip 2441H_2.0 DSP，支持OSD切换功能(镜像、彩色/黑白，PAL/NTSC)；
◆双滤光片切换，日夜效果还原度高，OSD切换多种日夜模式，边缘亮度补偿/锐度调节；
◆OSP抗氧化PCB，电源视频双防雷（8KV）设计
成像器件 1/3 CMOS OV 2710
图像分辨率 1920(H)*1080(V)
图像像素 2 M pixels
系统制式 PAL/NTSC（OSD切换）
日夜模式 外部控制(默认)/自动/彩色/黑白（OSD切换）
信噪比 ≥80dB
最低照度 0.01LUX
背光补偿(BLC) AUTO
自动电子快门(AES) AUTO/ 1/5
0（1/60）-1/100,000sec
自动白平衡(AWB) AUTO
IR控制输入电压 DC 3V-8V
OSD语言(12国) 英语/简中/繁中/德语/法语/意大利语/西班牙语/波兰语/俄语/葡萄牙语/荷兰语/土耳其语
视频输出 AHD Video(1080P)
视频录像占用空间 1H≈ 990 MB
工作电压 DC12V/107mA ±5mA(宽电压9V-18V)
工作环境 -20℃ --- 50℃
US$ 12.50
>=1 pcs
1. Especificaciones:
3.6MM
6MM
8MM
1.Compra mínima de US$ 6,000 con productos combinados.
2.Mas cantidad, mejor precio.
