| Marca | Hjscc / hongjin |
| Uso | Adecuado para carreteras, almacenes, aparcamientos subterráneos, bares, tuberías, gasolineras y otros entornos con poca luz o sin luz. |
| Modelo | HJ-KIT1004T |
| Especificaciones | 4CH Kit 2.0MP |
| Tipo | Sistema de monitoreo de circuito cerrado |

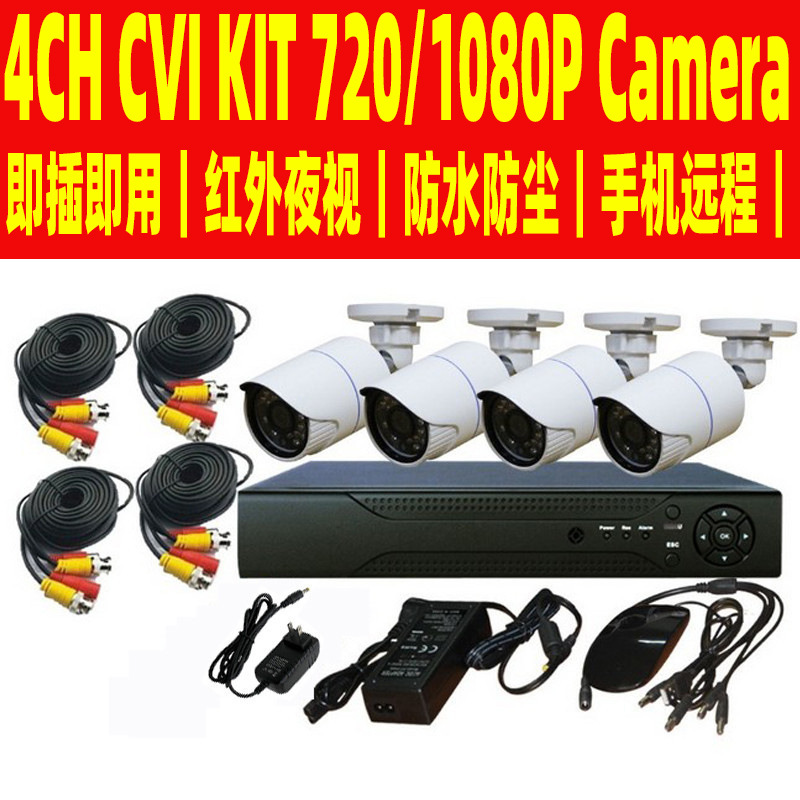

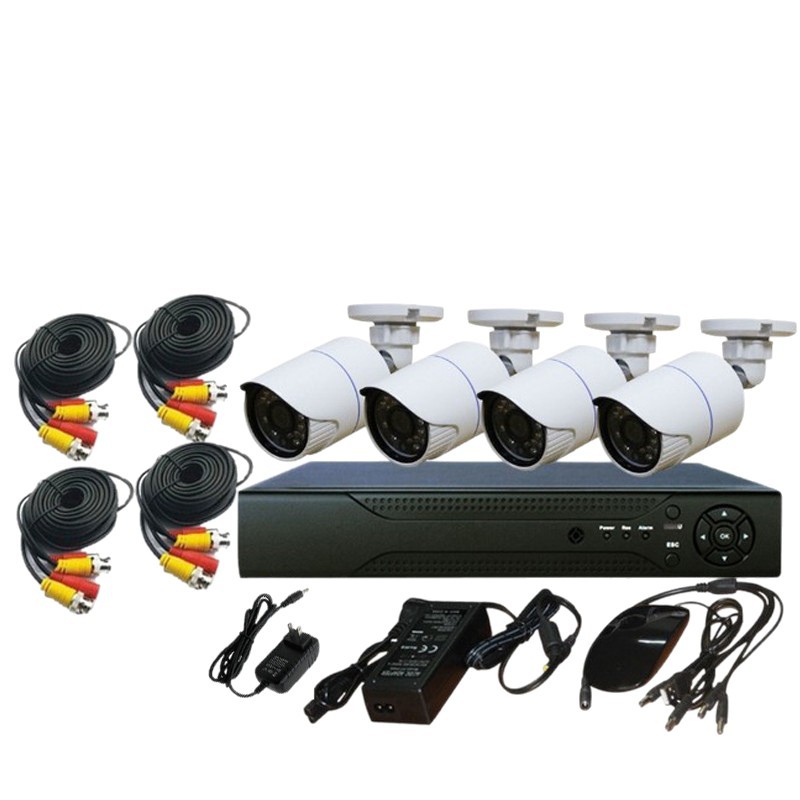

♦1pcs 4-ch 720P AHD DVR with adaptor
♦4pcs Matel indoor Cameras (24pcs leds, 3.6mm HD 3MP Lens)
♦4pcs 10m cables
♦1pc 4A power supply(for camera)
♦1pc 1 to 4 power-split cable
♦1pc mouse
|
型号： |
设备参数 |
HCVR5104H |
HCVR5108H |
|
系统 |
主处理器 |
工业级嵌入式微处理器 |
|
|
操作系统 |
嵌入式LINUX操作系统 |
||
|
视频参数 |
图像编码标准 |
H.264 |
|
|
编码分辨率 |
720P/D1/HD1/2CIF/CIF/QCIF |
||
|
视频帧率 |
PAL:1~25帧/秒；NTSC：1~30帧/秒 |
||
|
视频码率 |
1536Kbps-6144Kbps，可自定义，默认4096Kbps |
||
|
码流类型 |
视频流/复合流 |
||
|
双码流 |
支持 |
||
|
音频参数 |
编码标准 |
G.711A、G.711U、PCM |
|
|
音频采样率 |
8KHz，16Bit |
||
|
音频码率 |
64Kbps |
||
|
视频接口 |
模拟视频输入 |
4路，BNC接口 |
8路，BNC接口 |
|
网络视频输入 |
|
||
|
视频输出 |
1路VGA输出，1路HDMI同源输出，HDMI/ VGA视频同时输出 |
||
|
环通输出 |
无 |
||
|
矩阵输出 |
无 |
||
|
音频接口 |
音频输入 |
1路RCA音频输入 |
|
|
音频输出 |
1路RCA音频输出 |
||
|
语音对讲输入 |
与音频输入、输出复用 |
||
|
录像管理 |
录像方式 |
自动录像、手动录像、动态检测录像、报警录像 |
|
|
录像回放 |
最大支持4路回放 |
最大支持8路回放 |
|
|
备份方式 |
支持硬盘、刻录机、U盘和网络备份 |
||
|
报警 |
报警输入 |
无 |
|
|
报警输出 |
无 |
||
|
硬盘 |
硬盘接口 |
支持1个SATA接口，无eSATA接口 |
|
|
单盘容量 |
4TB |
||
|
通讯接口 |
网络 |
1个RJ45接口, 100M以太网接口 |
|
|
通讯 |
1个标准485接口 |
||
|
USB |
2个USB接口 |
||
|
其他 |
电源 |
DC12V |
|
|
功耗 |
<15W(不含硬盘) |
||
|
工作温度 |
-10℃－＋55℃ |
||
|
工作湿度 |
10%~90% |
||
|

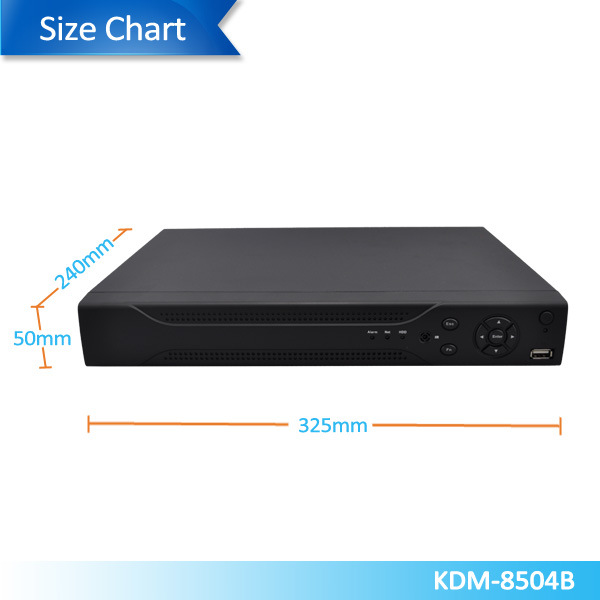

尺 寸 |
325mm×245mm×45mm |
||
|
重 量 |
根据实测确定 |
||
|
安装方式 |
台式安装 |
||
