| Marca | Hjscc / hongjin |
| Modelo | HJ-KIT1016 |
| Especificaciones | Conjunto de monitoreo de 16 rutas |
| Tipo | Sistema de videovigilancia |

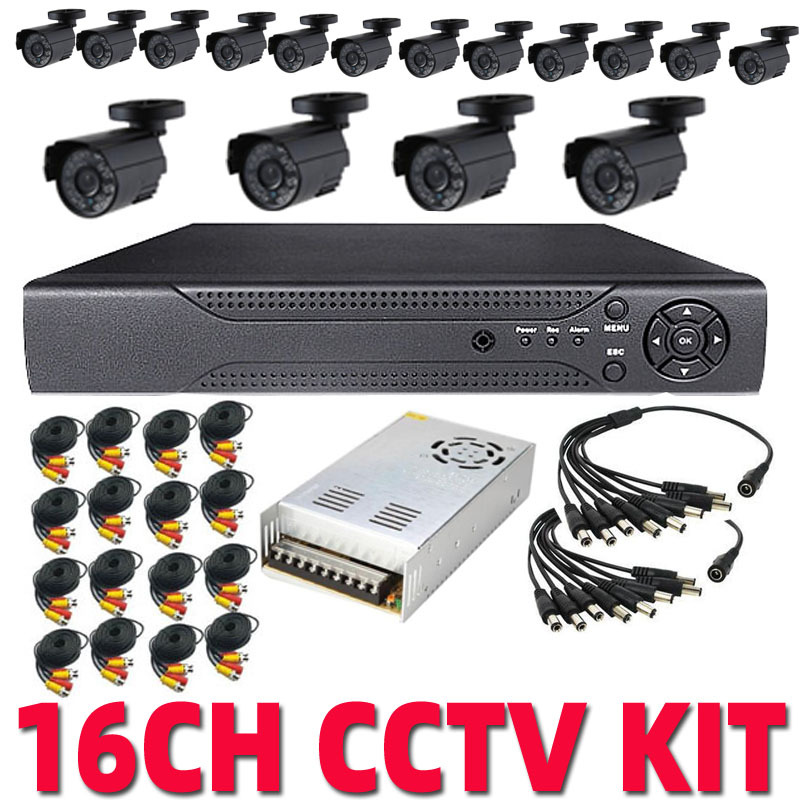

16CH H.264 960H/D1 DVR
16 Channel H.264 Pentaplex DVR with VGA
Video Input/Outpu t: BNC 16CH / BAN 1CH
Audio Input/Output : RCA 1CH / RCA 1CH
Video Compression: H.264
Display Frame Rate: NTSC:120fps/ PAL:100fps,Recording Frame Rate:120fps / PAL:100fps
Pentaplex Function: Live View, Video Recording, Playback, Backup, Control & Network Monitoring
1 RJ-45 Ethernet connector, Static, Dynamic IP and DDNS , Support Internet Explorer and special client software
Remote Control, PTZ, RS485
1 SATA Hard Disk interface
Support remote view by Mobile phone, I-Pad, I-Phone, etc...
Support IE browser centralized monitoring and CMS Software for multiple DVR (up to 36 cameras view per screen),
per screen can monitoring and playback from multiple DVR images,
Thorough solve most of the DVR can only manage a single DVR,
as well as monitoring and playback can not be a problem at the same time.
Camera Specification:
|
Video Resolution |
1000TVL |
|
Lens |
3.6mm |
|
Mini Illumination |
0 Lux(IR ON) |
|
Image Sensor |
1/3" CMOS with IR-CUT |
|
White Balance |
Auto |
|
Electronic Shutter |
Auto: PAL 1/50-1/100,000Sec;NTSC 1/60-1/100,000Sec |
|
S/N Ratio |
More than 50dB (AGC OFF) |
|
IR Distance |
20M |
|
Infrared LEDs |
24 Units (Ø5mm) |
|
IR Status |
Under 10 Lux By CDS |
|
IR Power On |
CDS Auto Control |
|
Gamma Correction |
0.45 |
|
Video Out |
1.0Vp-p, 75Ω |
|
Scanning System |
PAL:725 Lines, 50 Field/Sec;NTSC:715 Lines, 60 Field/Sec |
|
Operation Temperature |
-10-- +50 RH95% Max |
|
Storage Temperature |
-20-- +60 RH95% Max |
|
Current |
300mA |
|
Power Source |
DC12V (+/-10%) |
|
Water Resistance |
IP66 |
