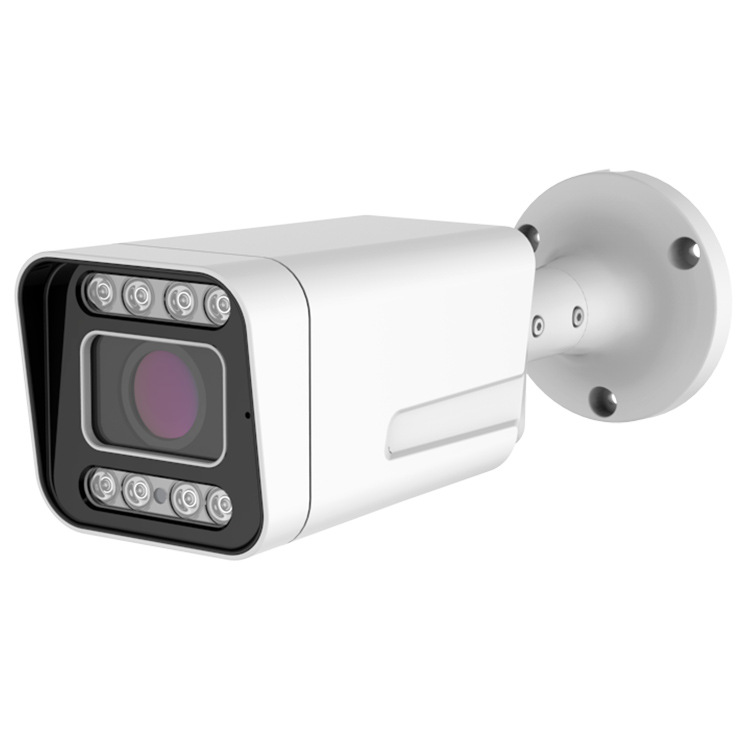

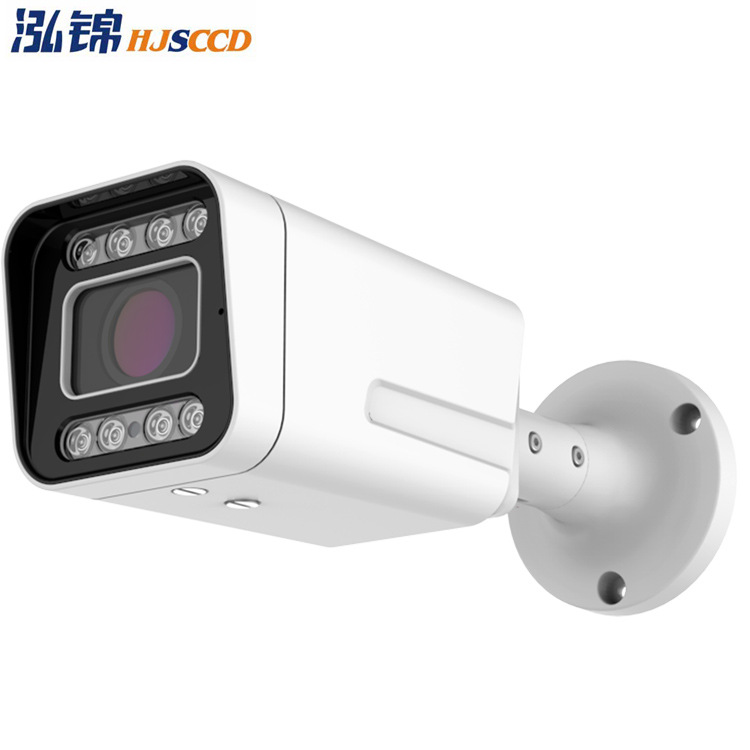

Cámara de color completo AHD2.8-12mm cámara de enfoque de cámara coaxial cámara de vigilancia
Codigo: WB-241220-441
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Origen | Guangdong |
| Marca | Hjscc / hongjin |
| Temperatura de trabajo | -40℃~70℃ |
| Tensión de alimentación | 12V |
| Entorno de uso | Universal en interiores y exteriores |
| Tamaño | 1/2.8 |
Mostrar más
Descripcion
- AHD-H, 1080P Output optional
- 2.8~12mm Vari-Focal Lens optional
- 1080P Analog HD Video
- 1/2.8'' CMOS Image Sensor
- Up to 300meters transmission distance
- Day/Night Mode Auto-Switch30meters IR distance
- IP66 Waterproof Metal Casing
- Compatible with traditional analog camera
- DC 12V Power Supply
|
Camera |
Image Sensor |
1/2.8" Sony Progressive CMOS Sensor |
|
Resolution |
1080P(1920*1080) 25/30fps |
|
|
Signal System |
PAL/NTSC |
|
|
Min. Illumination |
0.01Lux @ (F1.2,AGC ON), 0Lux with IR on |
|
|
Shutter Time |
1/50s to 1/100,000s(PAL),1/60s to 1/100,000s(NTSC) |
|
|
Lens |
2.8~12mm Fixed-Focal Lens |
|
|
Lens Mount |
M12/CS |
|
|
Day&Night |
Electronic |
|
|
Signal Type |
AHD-H, AHD-L, 960H |
|
|
Synchronization |
Internal Synchronization |
|
|
Video Output |
1Vp-p Composite Output(75Ω/BNC) |
|
|
S/N Ratio |
>58Db |
|
|
General |
Operating Conditions |
-10℃~60℃, Humidity 90% or less (non-condensing) |
|
Power Supply |
DC12V±10% |
|
|
Power Consumption |
5W MAX |
|
|
Weather Proof |
IP66 |
|
|
IR Range |
30Meters |
|
|
Dimension (mm) |
|
|
|
Weight |
|
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 28.30 - 32.18
>=1 pcs
1. Especificaciones:
HJ-HD2MP03
HJ-HD5MP08
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
