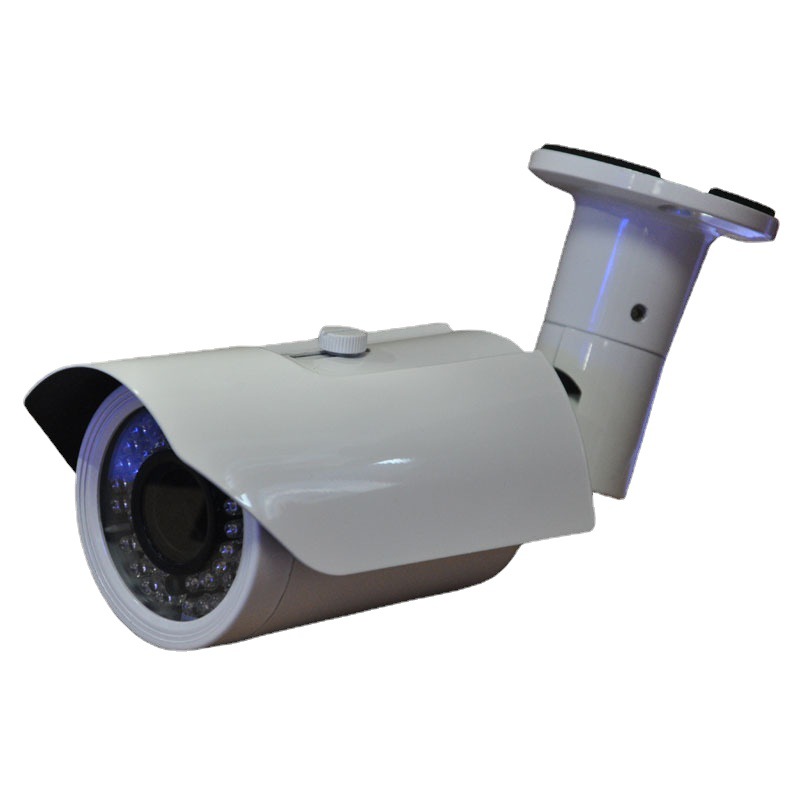

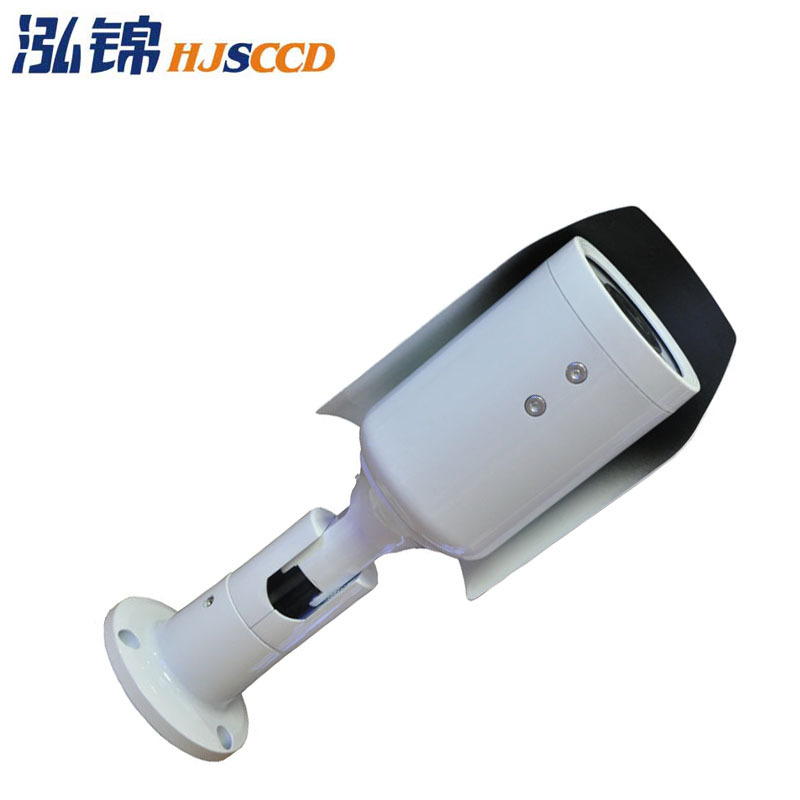

2.8 - 12mm cámara de enfoque manual coaxial analógica cámara de vigilancia transfronteriza CCTV camera2MP
Código: WB-241220-477
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Marca | HJSCCD |
| Temperatura de trabajo | -25~60℃ |
| Tensión de alimentación | DC12 |
| Material | Metal |
| Modelo | 2.8-12MM |
| Distancia de iluminación de la luz infrarroja | 50 |
Mostrar más
Descripcion
Features:
*1/3" 2Megapixel CMOS ( IMX322+2441H)
*OSD Menu, control over coaxial cable
*Support 30fps@1080p, 960P,30fps@720P,50fps@720P,60fps@720P
*High speed, long distance real-time transmission
*Over 500m via 75-3 coaxial cable Transmission
*Full HD and standard definition switch
*Day/Night(ICR), AWB, AGC, BLC, 3D-DNR
*Intelligent IR
*Compatible with normal 960H analog output
| Specification | |
| Model No. | HJ-AHD2/P |
| Image Sensor | 1/3" 2Megapixel CMOS ( IMX322+2441H) |
| TV System | PAL / NTSC |
| Effective Pixels | 1920(H)×1080(V) |
| Mini. Illumination | 0.01Lux@(F1.2,AGC ON),0 Lux with IR |
| Electronic Shutter | 1/25s~1/100,000s |
| Video standard | AHD standard definition |
| LED & IR Distance | 42 IR LED Max IR View Distance 40M |
| Day&Night | ICR |
| Video Output | 1-channel BNC AHD high definition video output, can be switch to normal analog output. |
| OSD Menu | Support |
| Menu control | AUTO/BLC |
| AWB | |
| AUTO/ B/W/COLOR | |
| 3D Noise Reduction | |
| D-WDR, Demist function | |
| sharpness/contrast/ saturation/ lightness | |
| Transmission Distance | Over 500m via 75-3 coaxial cable |
| Working Environment | -30°C~+60°C / Less than 95%RH (no condensation) |
| Power Supply | DC 12V±10% |
| Lens | 2.8-12mm varifocal lens |
| Operating Temperature | -10℃ to +50℃, RH 80% Max |
| Storage temperature | -20℃ to +60℃, RH 90% Max |
| Storage temperature | -20℃ to +60℃, RH 90% Max |
| Weight(Net) | 680g |
US$ 27.50
>=1 pcs
1. Especificaciones:
2.8-12MM
1.Compra mínima de US$ 6,000 con productos combinados.
2.Mas cantidad, mejor precio.
