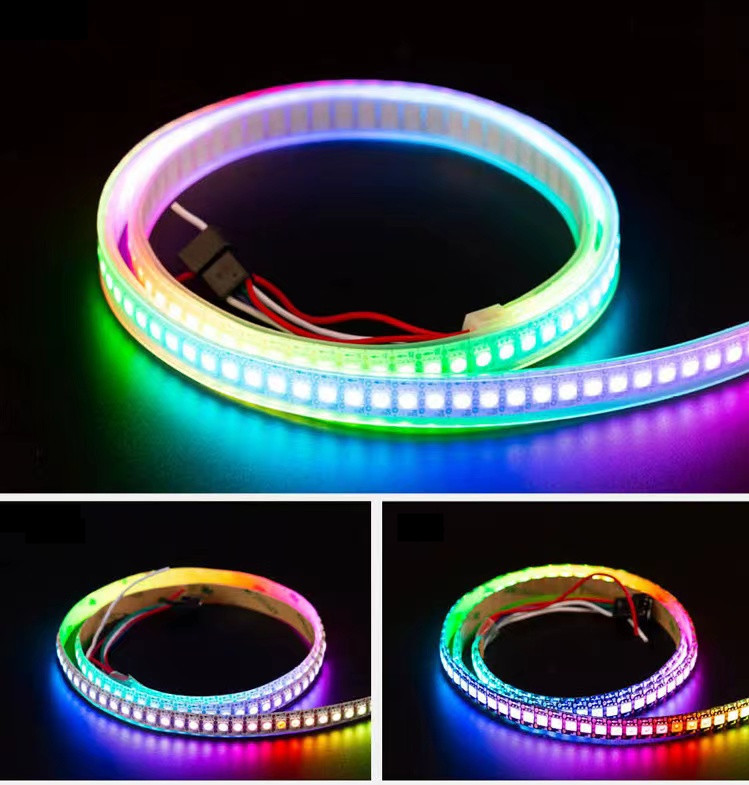

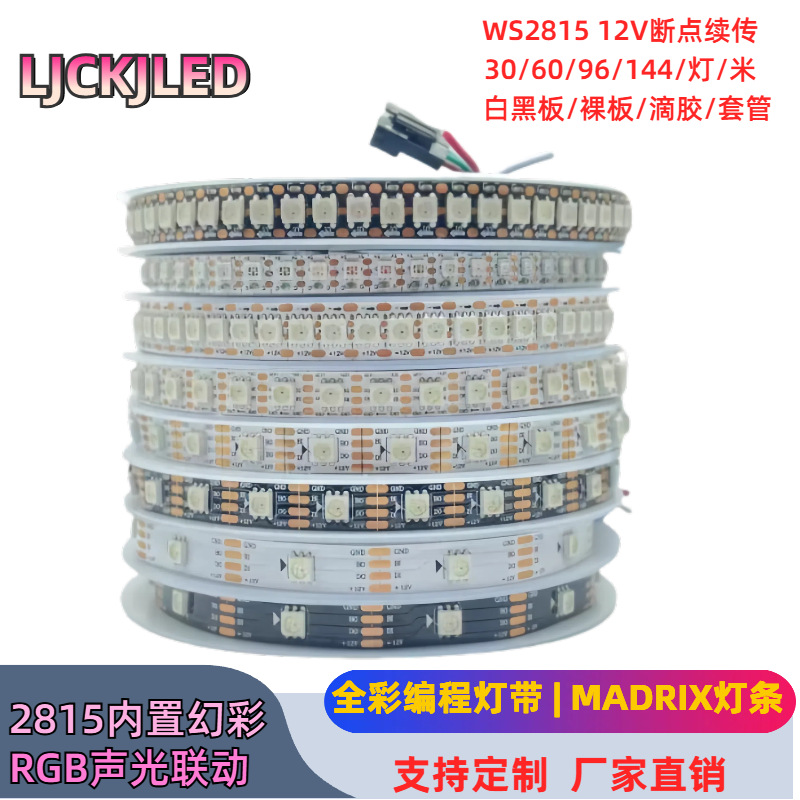

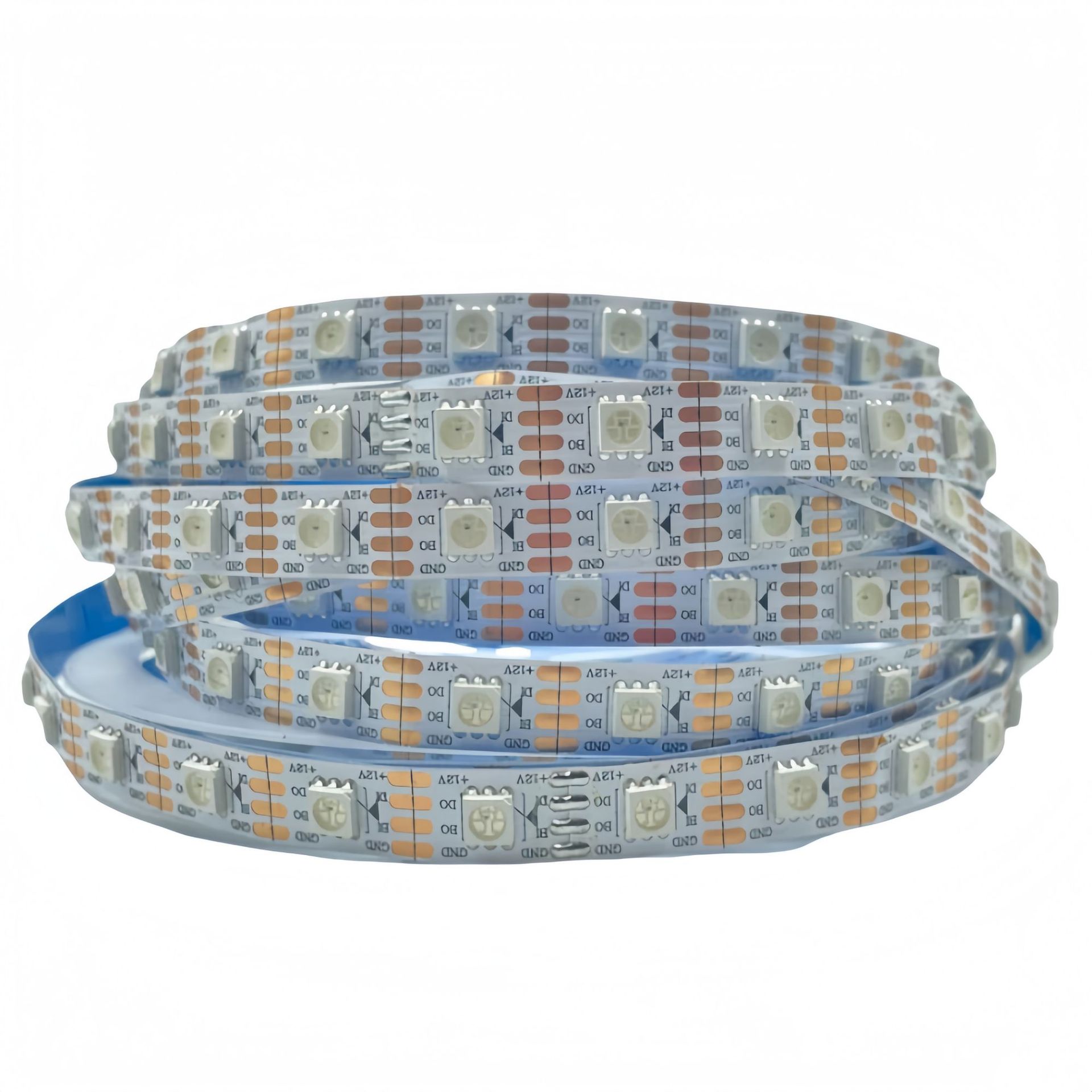

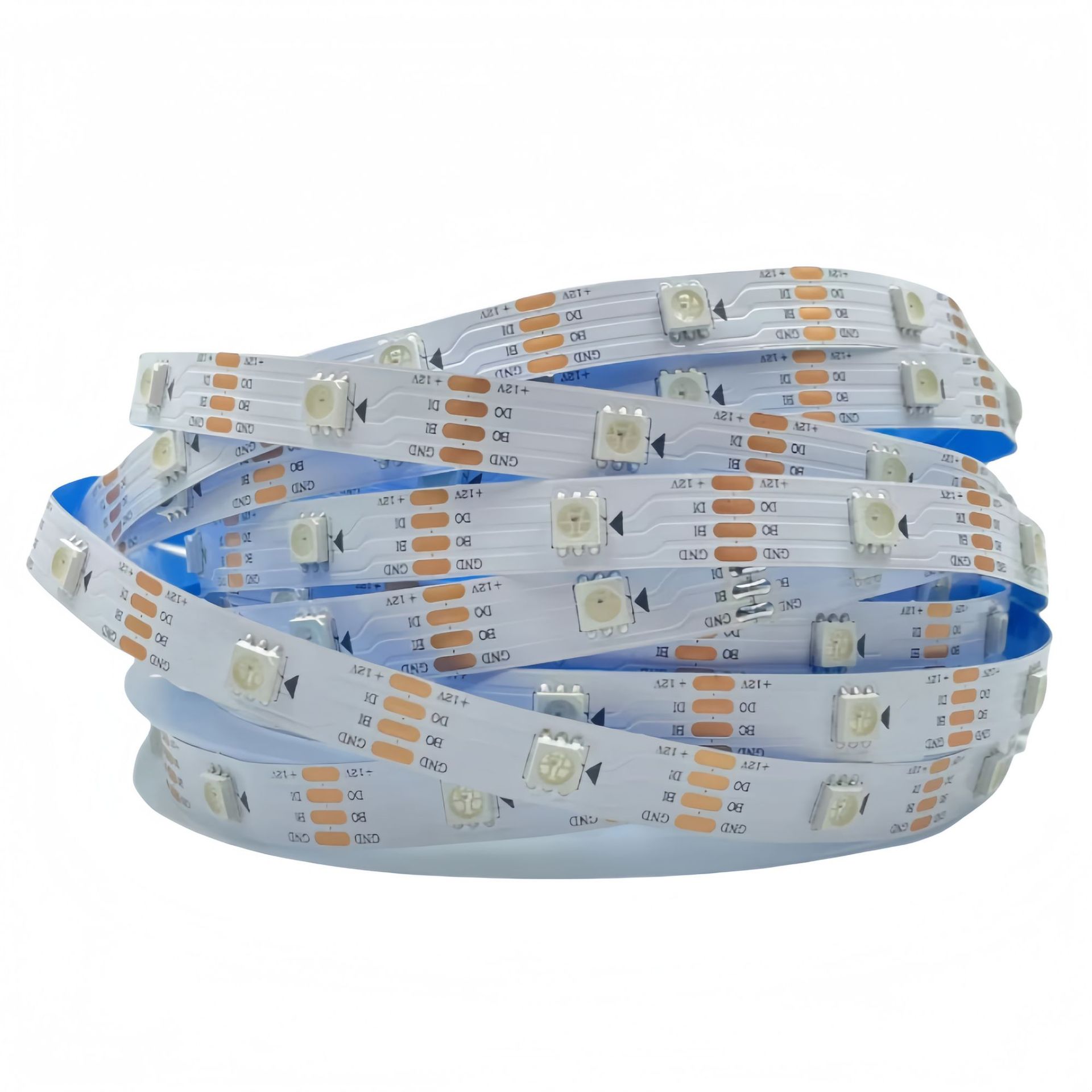

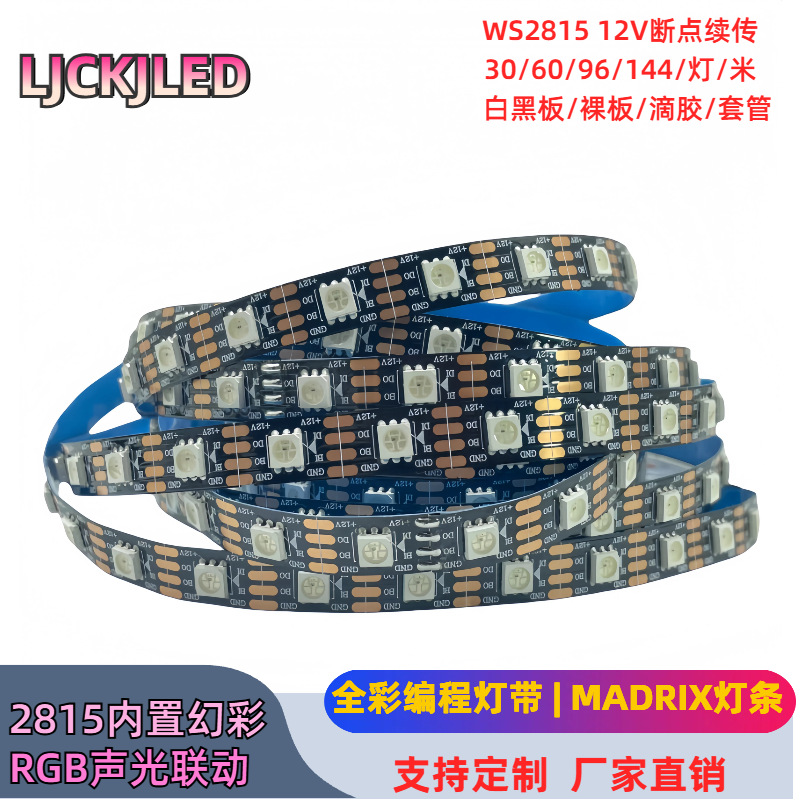

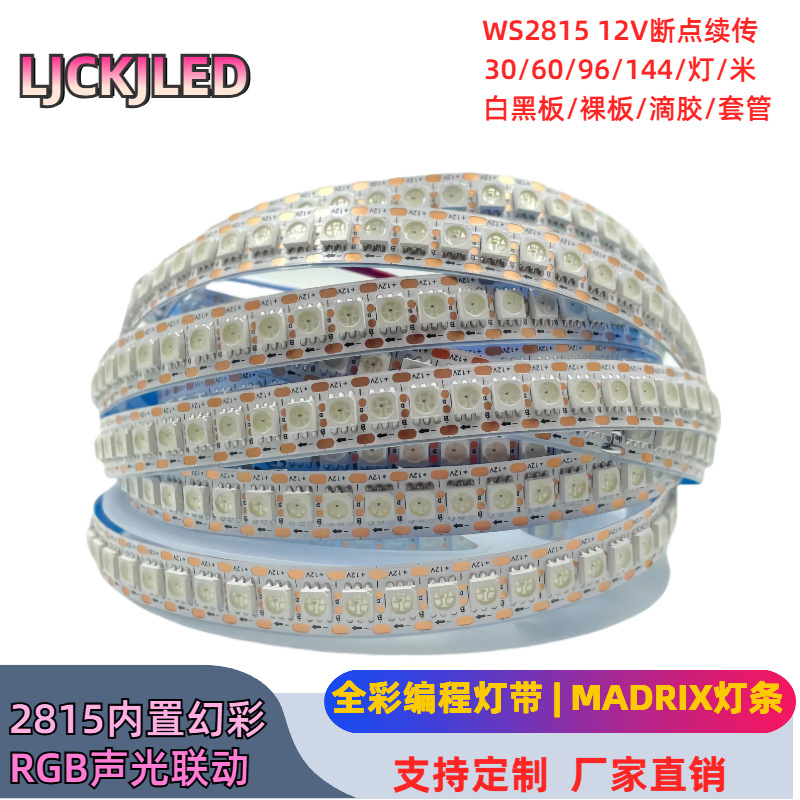

12V integrado IC lámpara de diapositiva ws2815 color RGB corredor LED barra de luz autoadhesiva 6096 punto de interrupción de la luz
Código: WB-250409-519
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Potencia | Consulta al servicio al cliente |
| Modelo | Barras de luz de color slide incorporadas |
| Una sola perla de luz liuming | 20 |
| Si hay patentes | No |
| Se puede ajustar la luz | Sí. |
| Certificación | ce |
Mostrar más
Descripcion
30/60/96/144灯每米，12V幻彩灯带必须搭配全彩控制器和12V电源供电，不可以直接接12V变压器
产品参数
重要提示:灯带一定要是DC12V供电,且配全彩控制器使用!
产品型号: 5050RGB-2815-12V 光源: SMD 5050 LED

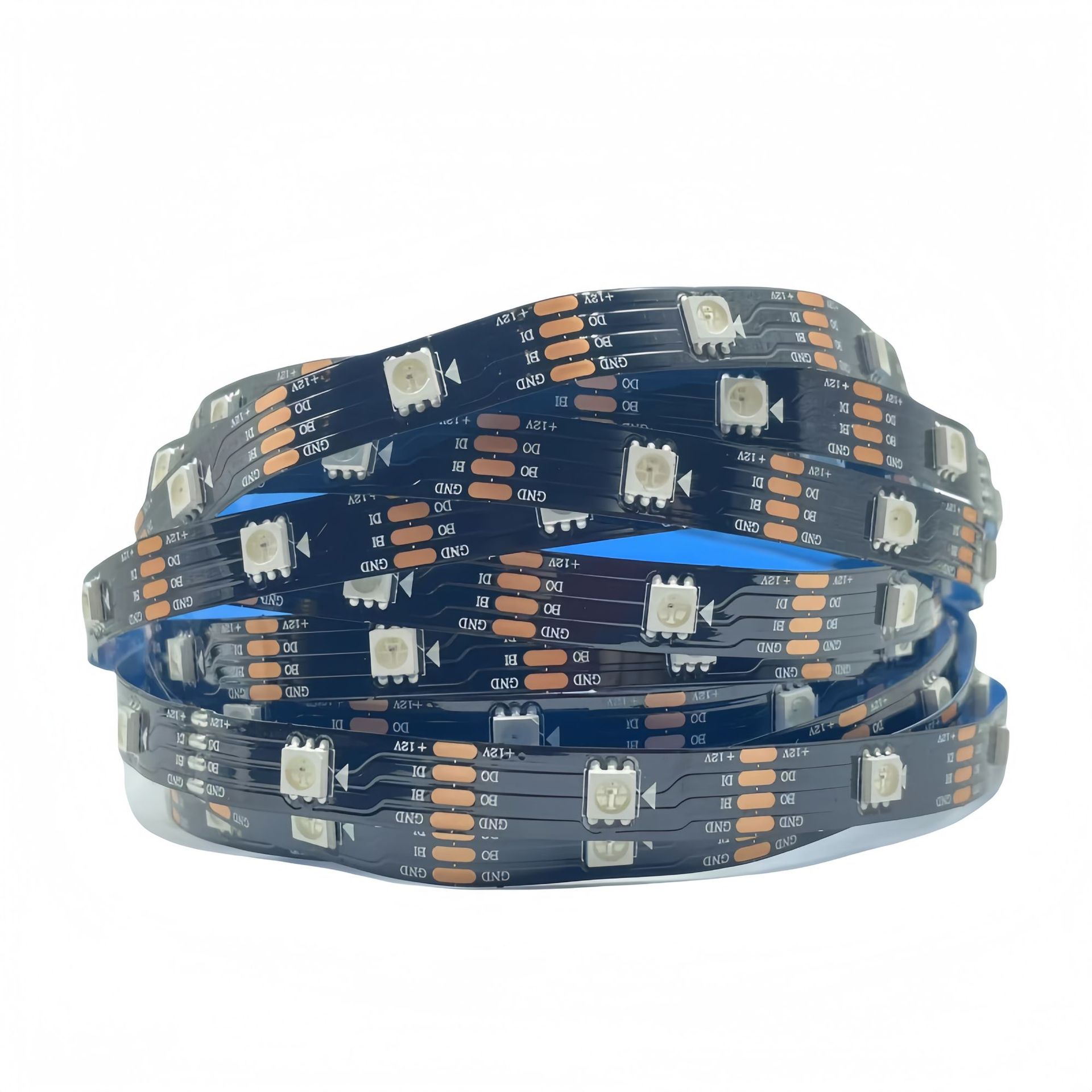

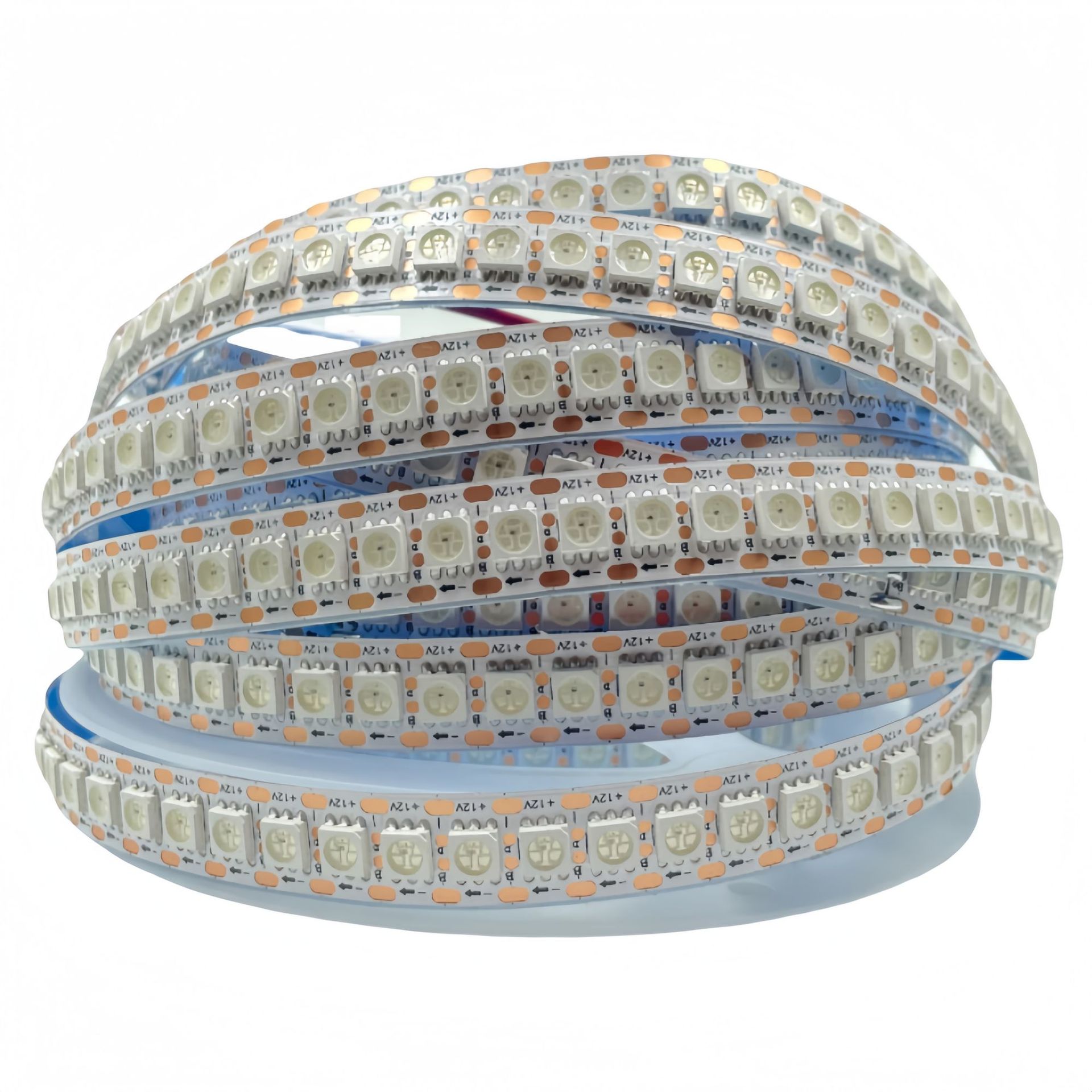

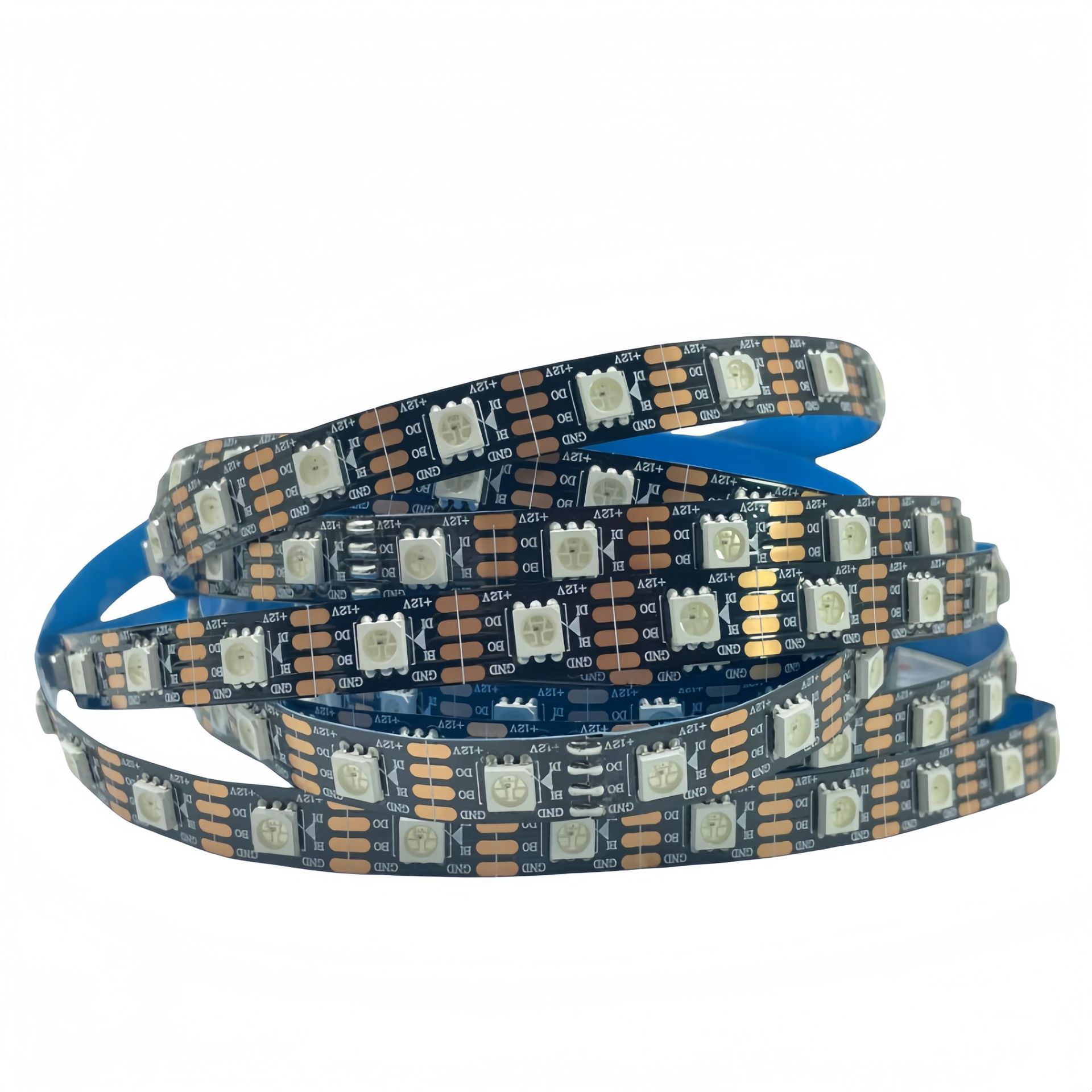

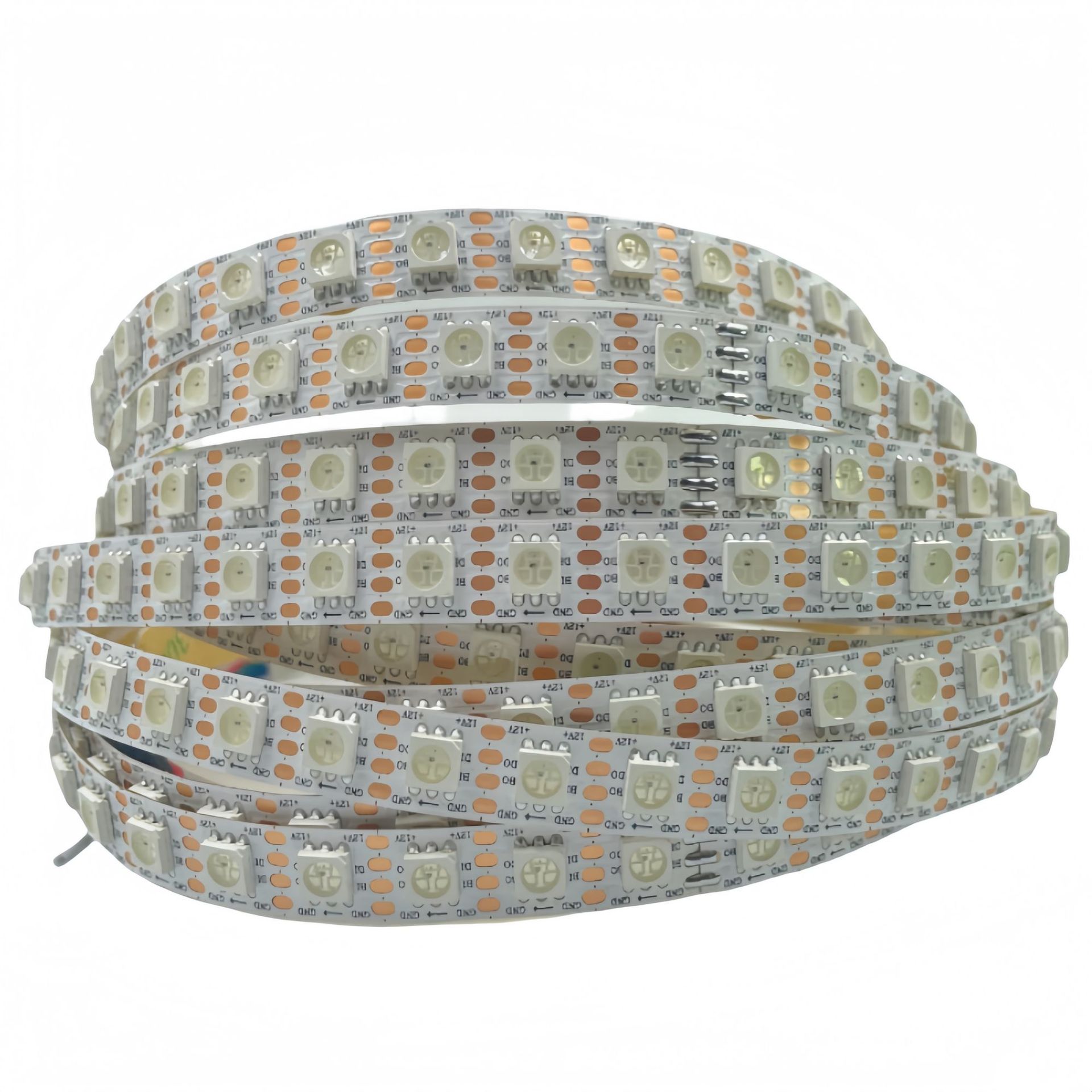

功耗: 每颗灯珠最大0.24W 板材: FPCB黑/白软板

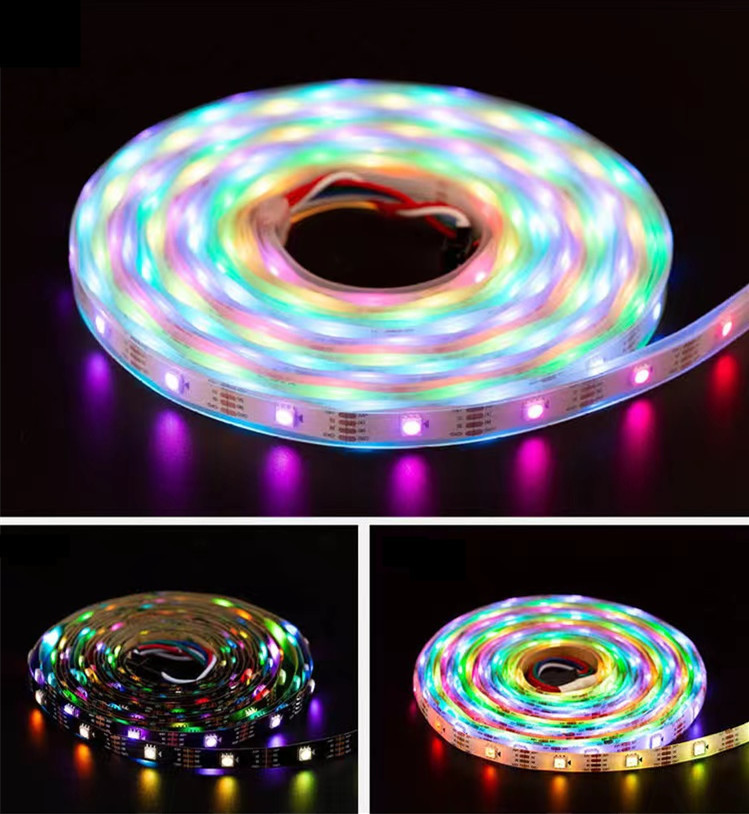

发光颜色:全彩RGB,梦幻色彩变幻 IC型号: WS2815
工作电压: DC12V 发光角度:180°
控制方式: 外控 工作温度: -15至50°
灯带厚度:裸板2mm/滴胶3mm/套管4mm
灯带宽度:裸版、滴胶:10mm(144灯是12mm)/套管12mm(144灯是14mm) IC类型:5050RGB(内置ICWS2815)批发请咨询客服~像素:30灯/30段、60灯/60段、144灯144段(每米)灰度等级:256级，(1颗灯珠一个IC=1个像素点)
裁剪尺寸:每颗灯珠都可裁剪(30灯:33mm/60灯:16mm/144灯:7mm)

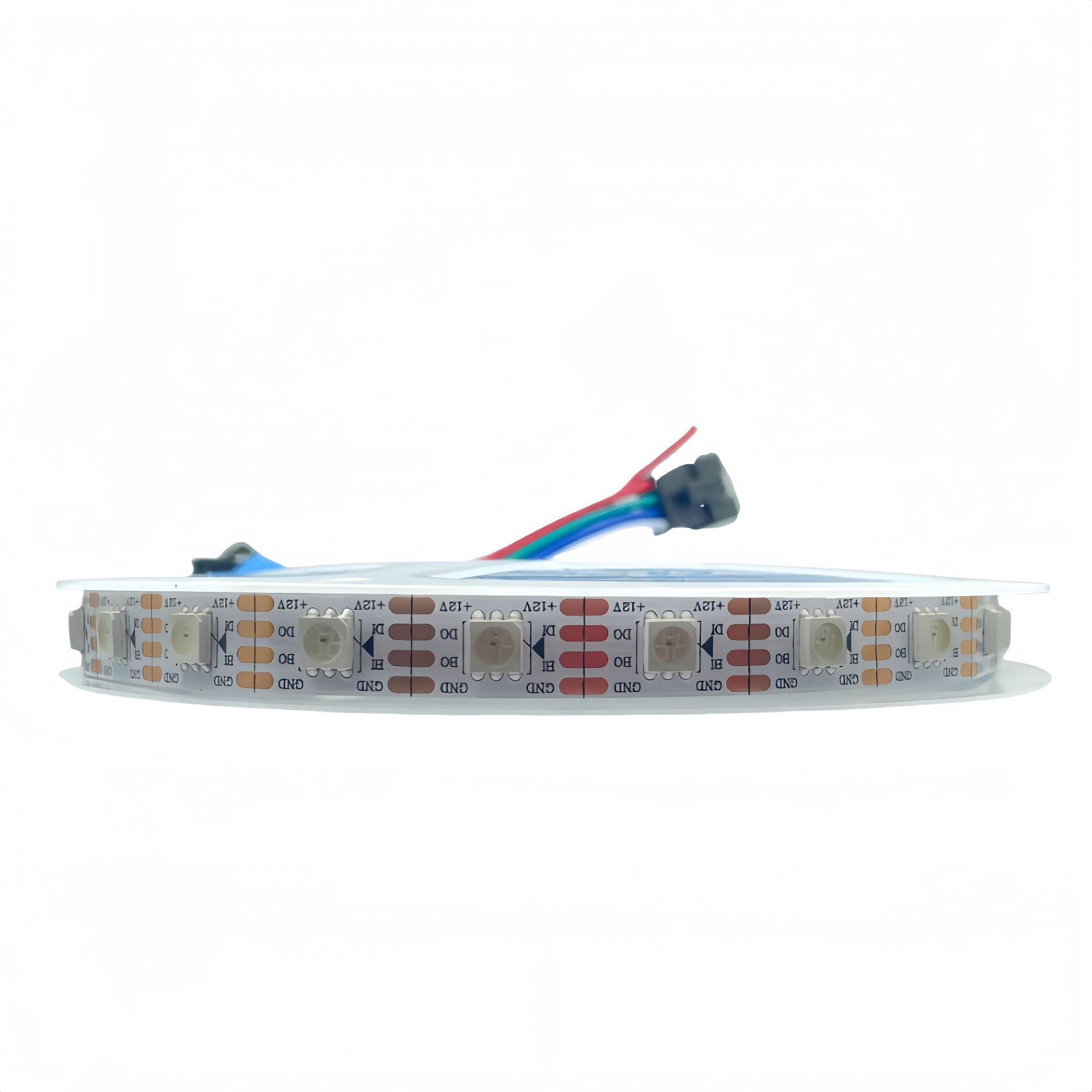

出线方式:4pin端子头和2根电源线(5米灯带标准接线)
红色:电源正极(12v+)/白色:电源负极(12v-)/蓝色:数据BI/绿色:数据DI
(多出来的两根线是备用电源线,红色:12v正极VCC/黑色:12V负极GND)特别提醒:4pin端子头(1米至4米只有输入端接头，不含备用电源线，如需备用电源线下单可联系客服备注)
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 1.616 - US$ 8.894
>=5 pzs

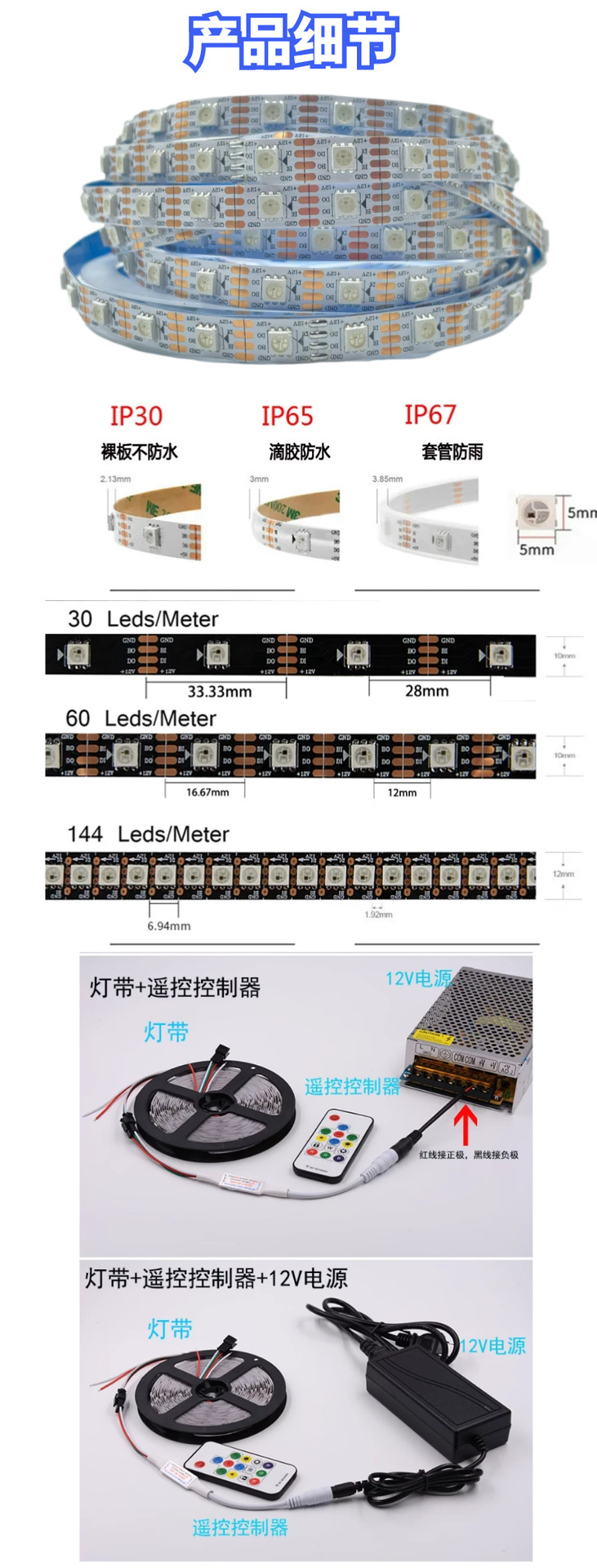

1. Especificaciones del producto:
Placa desnuda [IP20]
[IP65]
El manguito [IP67]
2. Temperatura de color:
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
