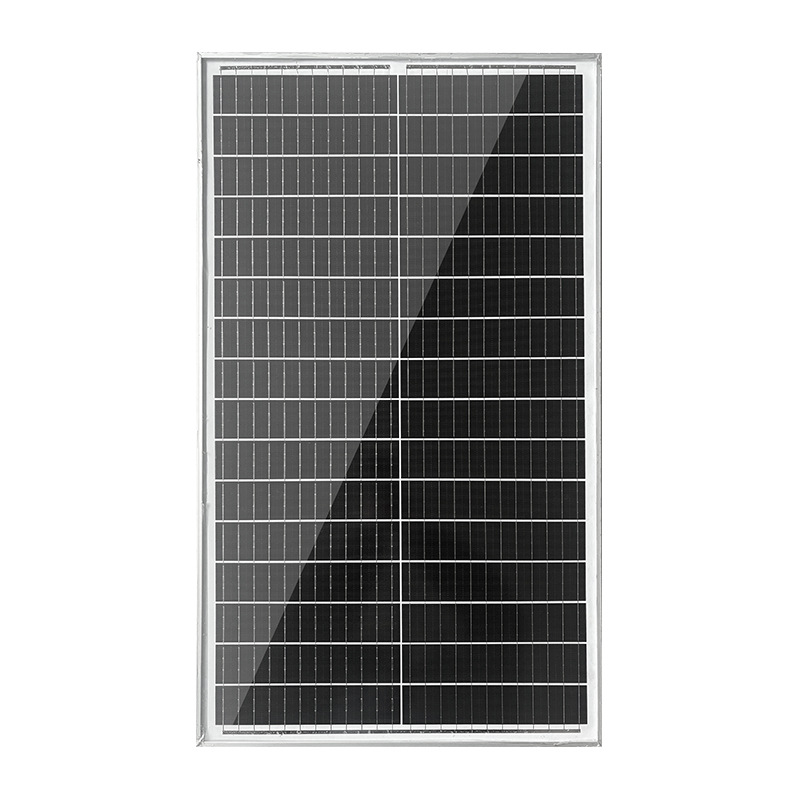

Suministro Transfronterizo de Paneles Solares de Silicio Monocristalino de 50w, Módulos Fotovoltaicos, Paneles Solares, Paneles Solares Fotovoltaicos de 18v
Código: WB-250528-2430
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Tipo | Componentes monocristalinos |
| Voltaje de funcionamiento | 18.4 |
| Tipo de batería | Paneles solares, componentes |
| Modelo | XHGD-50W |
| Marca | Xinhaosolar/Xinhao Sunshine |
| Corriente de cortocircuito | 2.86A |
Mostrar más
Descripcion
产品参数详情

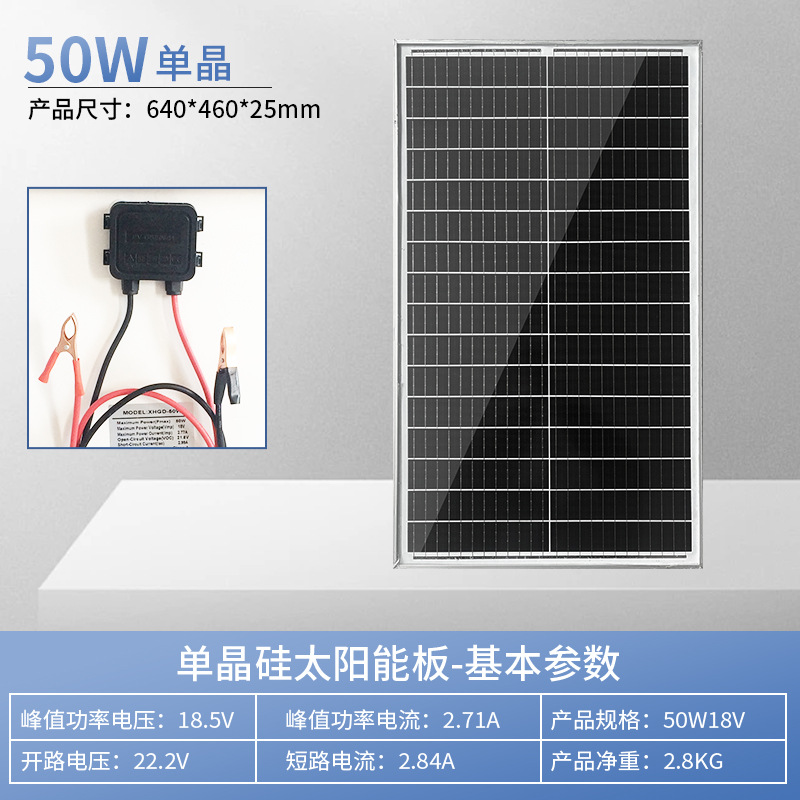

| Module Type | XHGD-50W |
| Peak power(Pmax) | 50W |
| MPP voltage(Vmp) | 18.4V |
| MPP current(Imp) | 2.72A |
| Open circuit voltage(Voc) | 22V |
| Short circuit current(Isc) | 2.87A |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |
| Dimensions | 640*460*25mm |
| No. of Cells | 32PCS(2*16) |
| Weight | 2.9kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP54 |
| Output Cables | 2*1.5㎟*1m |
| Connectors | |
| Box Size | 66*15.5*48 |
| Packing Type | 5PCS/CTN |
|
weight |
16kg/CTN |
182电池部分组件尺寸
工厂生产环境及设备流程
VI测试仪
层压机
小功率串焊机
多栅自动串焊机
叠层流水线
EL测试台
自动划片机
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 11.319
100-499 pcs
US$ 10.996
500-1999 pcs
US$ 10.511
>=2000 pcs
1. Modelo:
XHGD-50W
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
