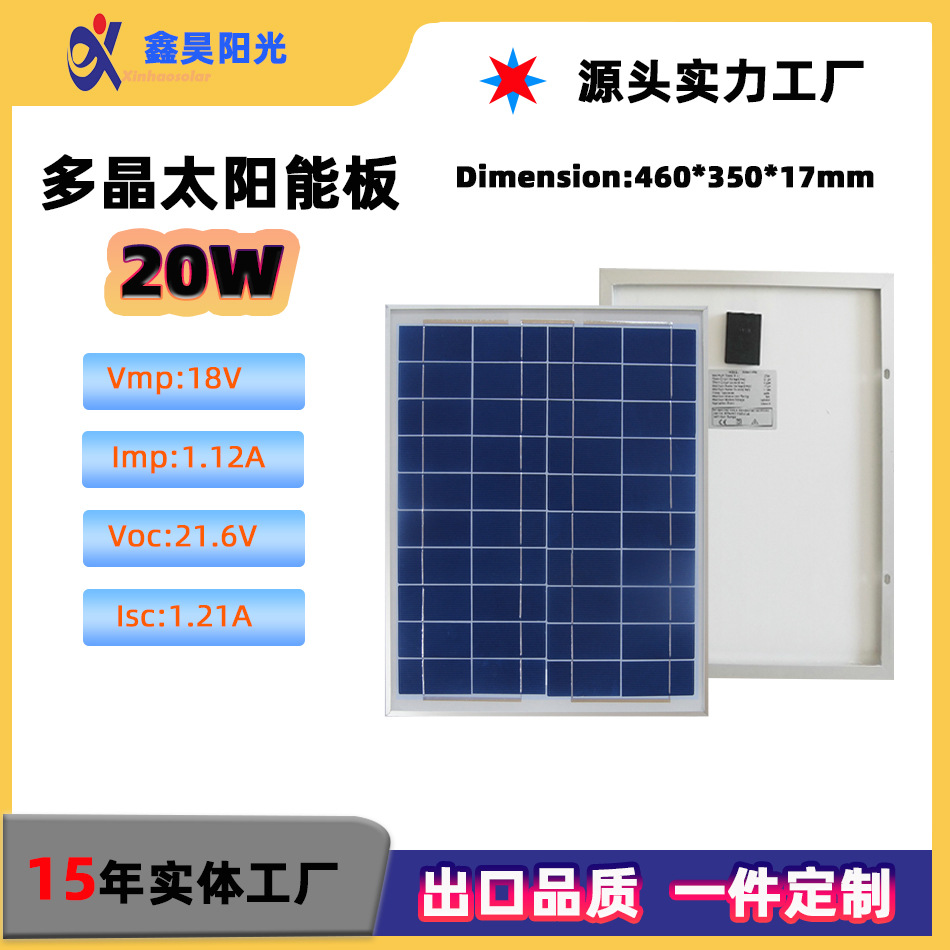

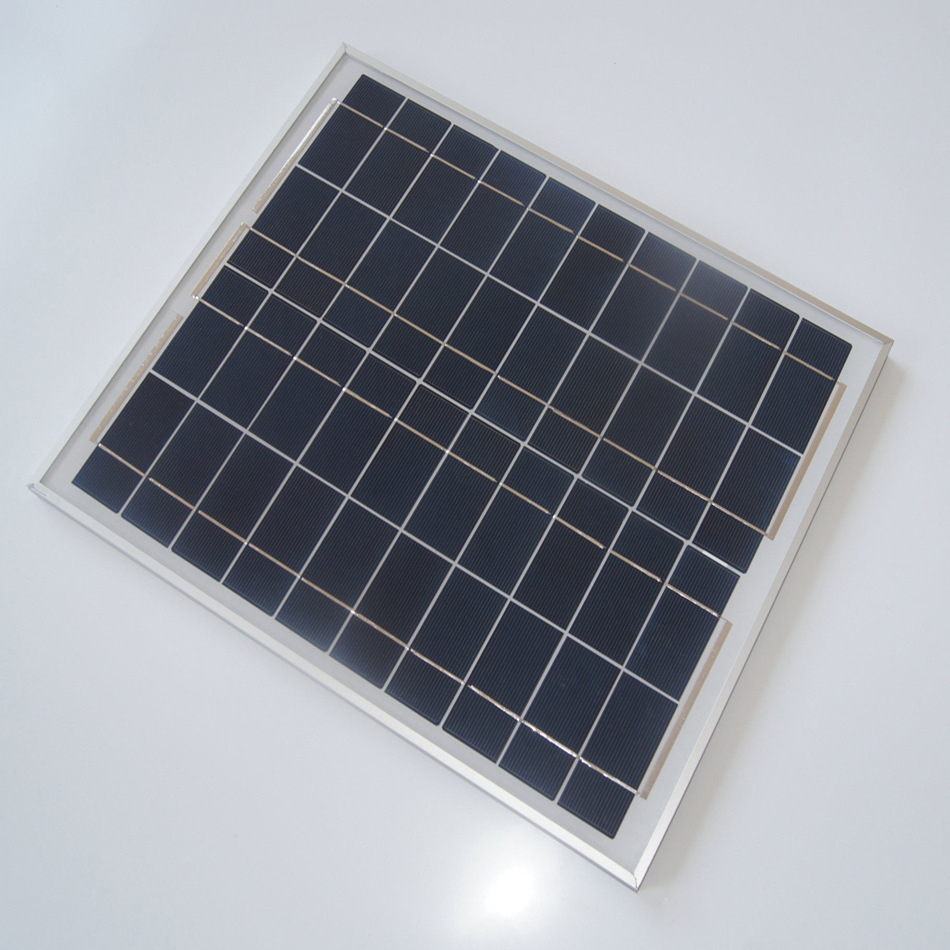

Panel solar policristalino 20W18V Panel de 12V Módulo fotovoltaico Oferta especial Suministro puntual Fuente de alimentación recargable
Código: WB-250528-2713
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Modelo | XHGD-P20W |
| Marca | Xinhao Sunshine |
| Ya sea para importar | No importado |
| Certificación de producto | ce |
Descripcion
产品参数详情
| Module Type | XHGD-20W |
| Peak power(Pmax) | 20W |
| MPP voltage(Vmp) | 18V |
| MPP current(Imp) | 1.11A |
| Open circuit voltage(Voc) | 21.6V |
| Short circuit current(Isc) | 1.19A |
| Module efficiency | 16.8% |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |

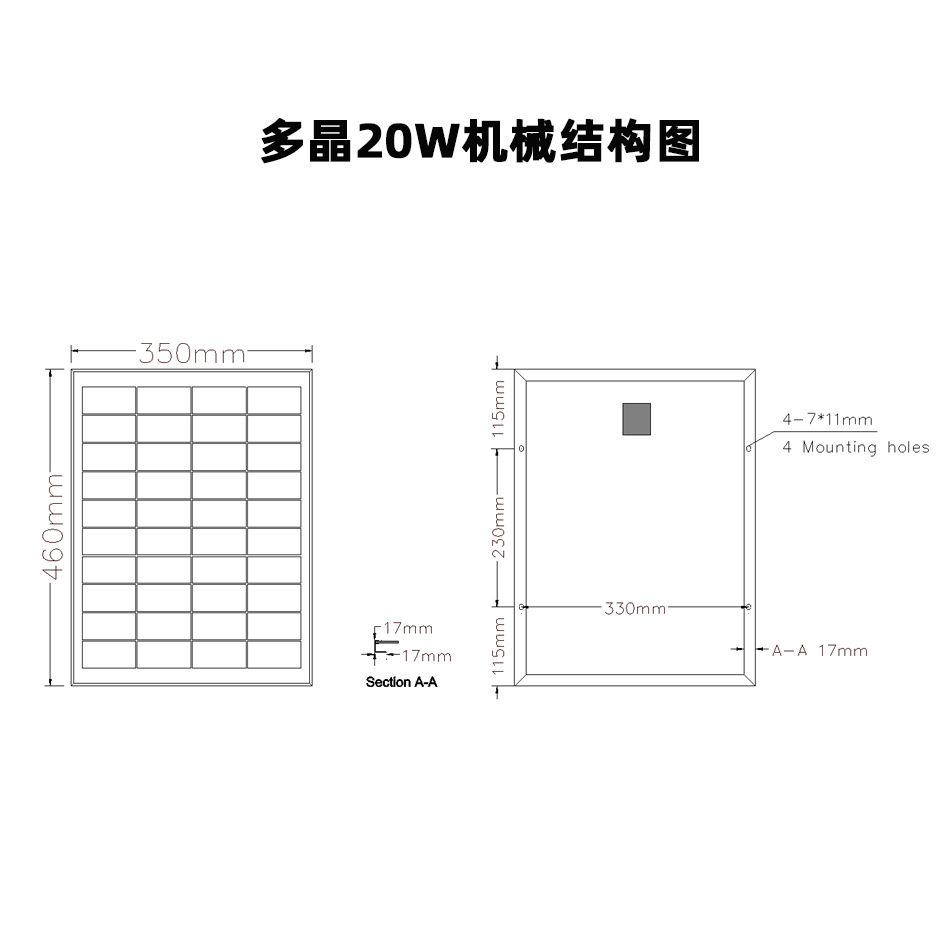

| Dimensions | 460*350*17mm |
| No. of Cells | 36PCS(4*9) |
| Weight | 1.7kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 2*0.75㎟*1m |
| Connectors | Fish CLIP |
| Box Size | 48*27*37cm |
| Packing Type | 10PCS/CTN |
| weight | 18kg/CTN |
182电池部分组件尺寸
工厂生产环境及设备流程
VI测试仪
层压机
小功率串焊机
多栅自动串焊机
叠层流水线
EL测试台
自动划片机
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 10.51
>=1 pcs
1. Modelo:
XHGD-P20W
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
