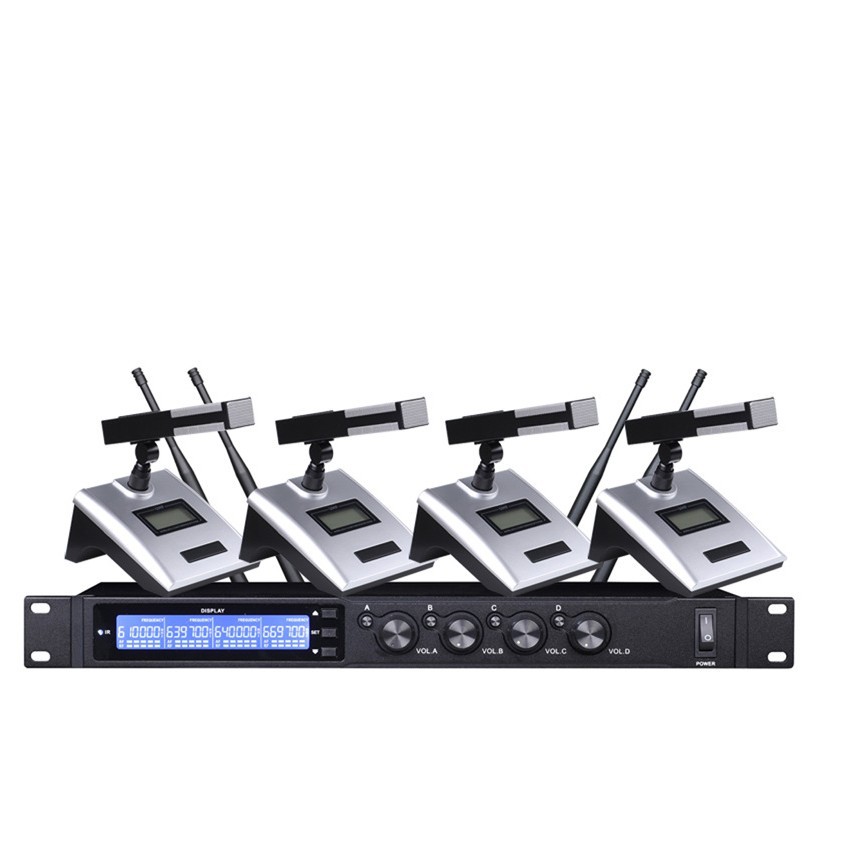

接收机技术参数 Receiver Specifications
载波频率范围 Frequency Range 610-670MHz
频道总数 Total Channels 200CH
频率响应 Frequency Response 40Hz-18kHz
有效使用距离 Distance 50meters
频率间隔 Frequency Interval 250KHz
频带宽度 Bandwidth 60MHz
载波稳定度 Stability ±5PPm ≦10KHz
假象干扰比 Image Interference Ratio >80dB
信号噪声比 Signal To Noise Ratio >105dB
灵敏度 Sensitivity -105dBm
总失真率 T.H.D <0.5%@1Khz
音频输出阻抗 Audio Output Impedance 2.2KΩ
音频输出准位 Audio Output Level -12dB
功能显示方式 Function Display LCD
电源供应 Power Supply 12V DC,1000mA
输出插头形式 The Output Plog Of 1 XLR Balanced Socker Unbalance TRS○6.3mm Socket
发射器技术参数 Transmitter Specifications
载波频率范围 Frequency Range 610-670MHz
频道总数 Total Channels 200CH
频带宽度 Bandwidth 60MHz
频率间隔 Frequency Interval 250KHz
动态范围 Dynamic Range >110dB
载波误差 Frequency sSabitity ±5PPm ≦10KHz
调变偏移度 Modulation Deviation Range 50KHz
副谐波 Sub-harmonic <-60dBc
射频射出功率 Rf Output Power 30mW
电源消耗 Power Consumption [email protected]×2
功能显示方式 Funtion Display LCD
电源供应 Power Supply UM3,AAA1.5v×2
1.四通道200个频点可调

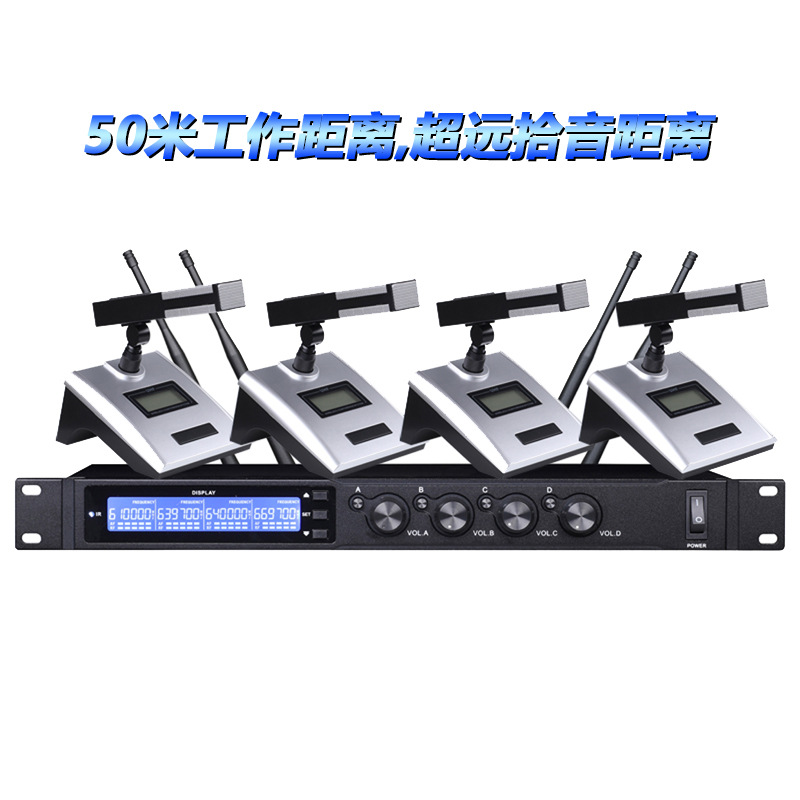

2.50米工作距离
3.原装进口芯片，人声原音输出
4.超远拾音距离
5.发射器可以混搭使用
6.内置3组叠机编组，轻松叠机使用
