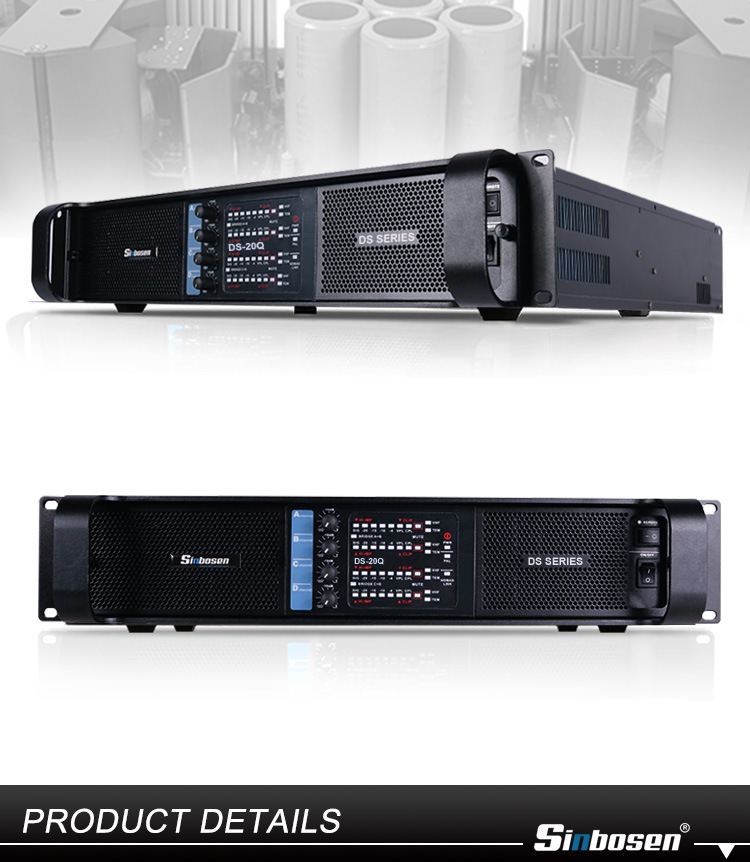

Amplificador de Potencia Profesional de 20Q, Amplificador de Cuatro Canales de Alta Potencia con Subwoofer Dual de 18 Pulgadas y 2350W para Uso en Bares
Código: WB-251023-3155
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Material de Shell | Aleación de aluminio |
| Marca | Aoyue |
| Canal | 4 canales |
| Ángulo de cobertura | 60x90 |
| Rango de frecuencia | 20Hz-34KHz |
| modelo | DP-20Q |
Mostrar más
Descripcion
产品介绍

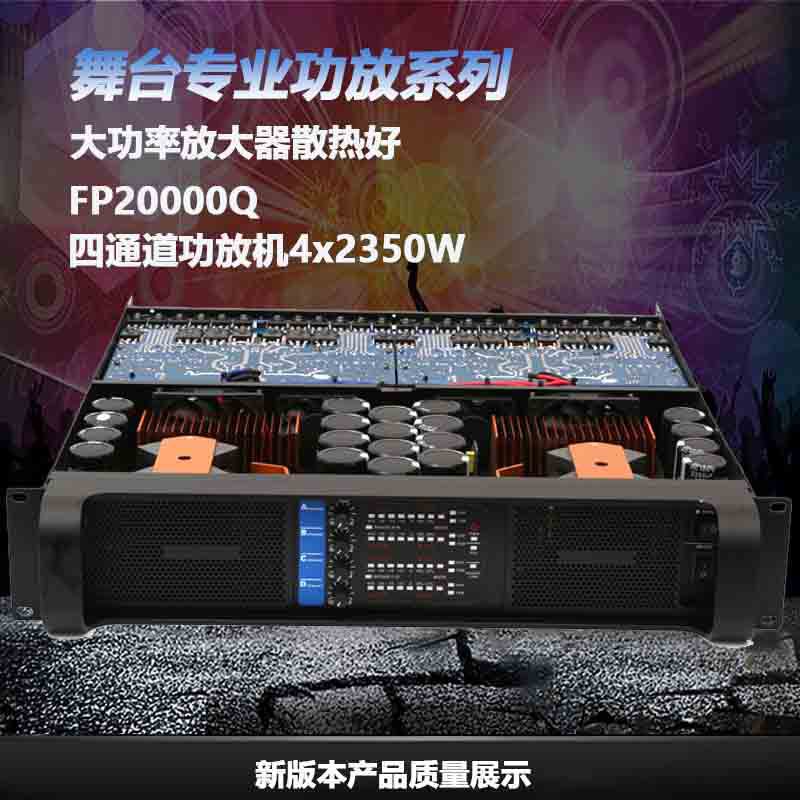

FP系列是一款高性能的开关电源功放，结构紧凑、合理；每个通道都具备独立可调的峰值输出电压，使放大器可以非常方便地驱动不同功率大小的扬声器；智能保护电路提供先进的技术来保护内部线路和连接的负载，可以在极端条件下保护放大器和扬声器。适用于大型演出、场馆、商务高级娱乐会所等场所。

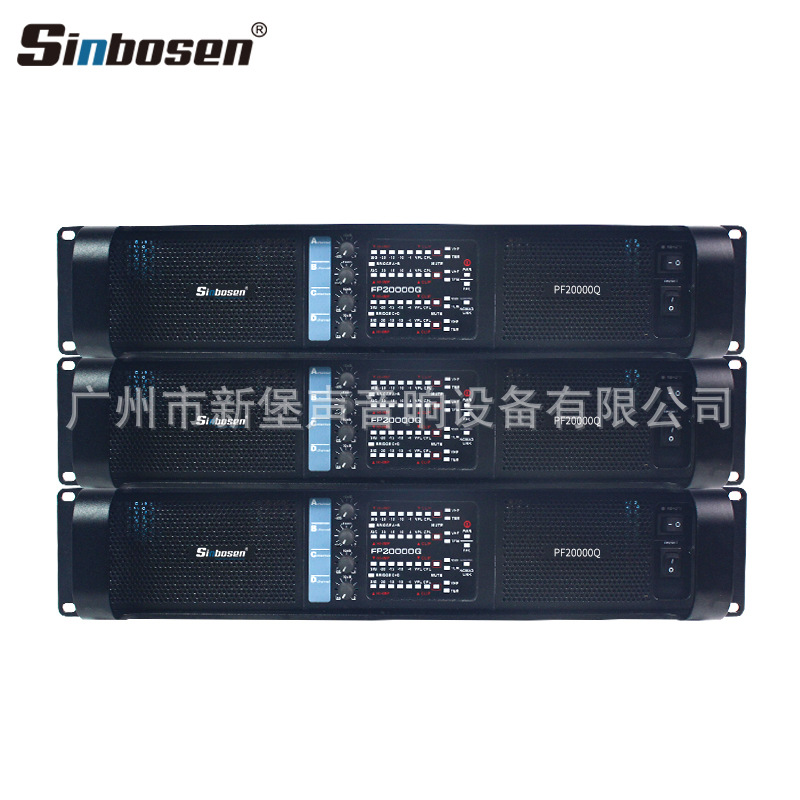

FP20000Q 技术参数
8Ω立体声功率：4X2350W
4Ω立体声功率：4X4000W
2Ω立体声功率：4X4500W
8Ω桥接功率：2X8000W
4Ω桥接功率：2X9000W
频率响应(+0/-0.3dB,1W/8Ω)：20Hz-34KHz
总谐波失真 20 Hz-20 kHz 1W：<0.1%
信噪比：>112dB
通道分离度(串音)1 kHz：>70dB

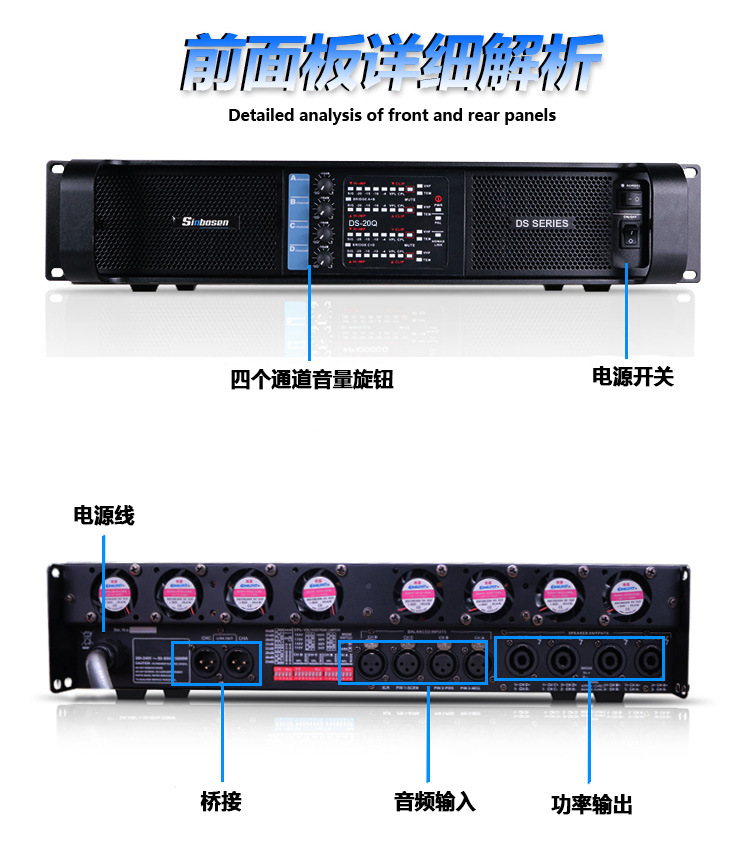

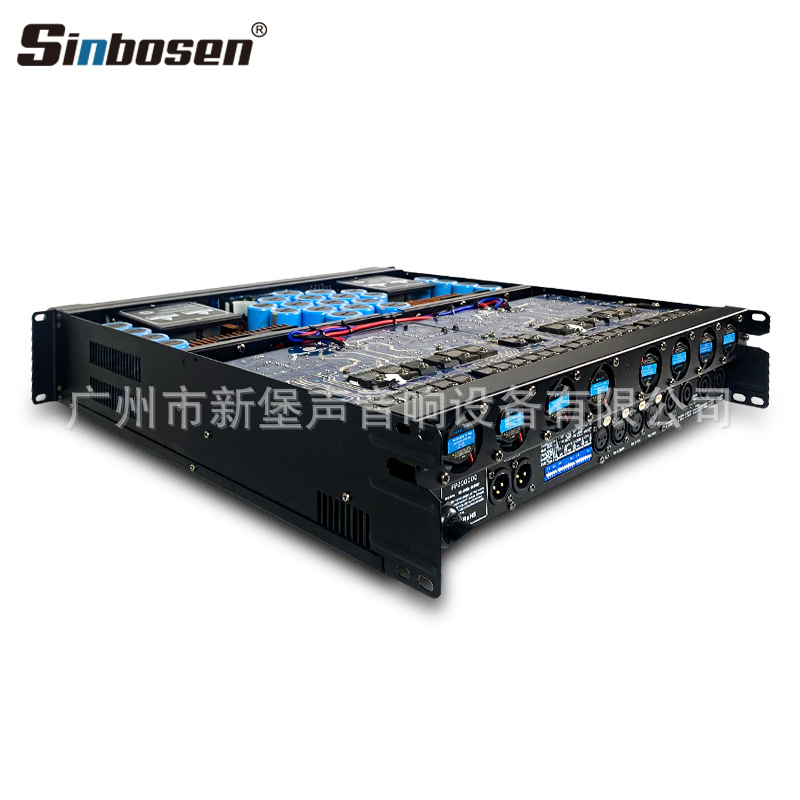

输入连接器：XLR母
输出连接器：Speakon座
输入阻抗：20KΩ平衡
电平调节：前板电位器, 从负无穷到0dB

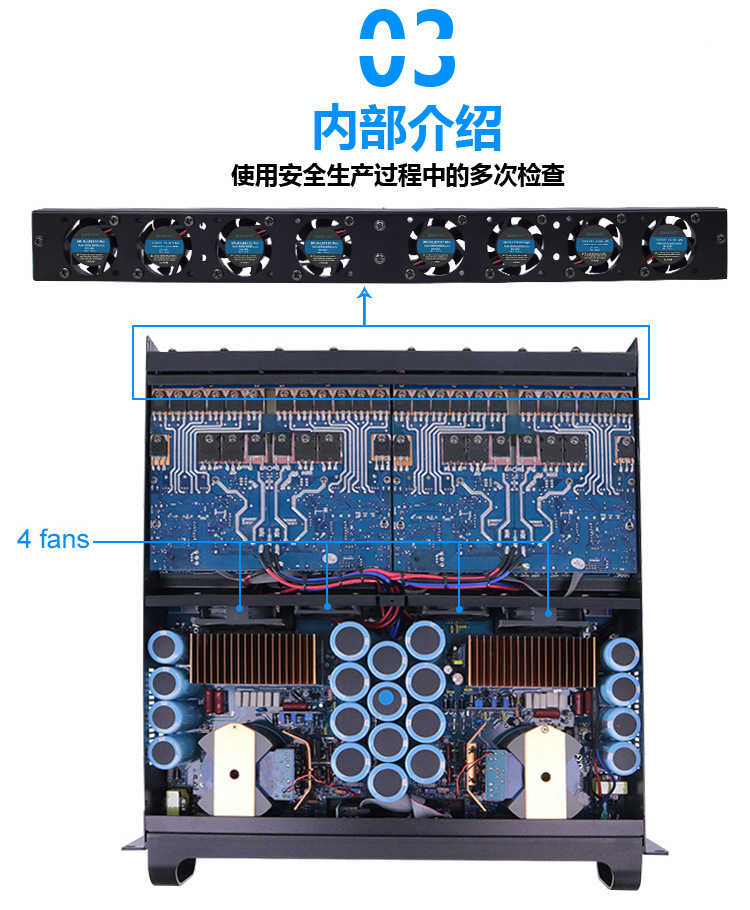

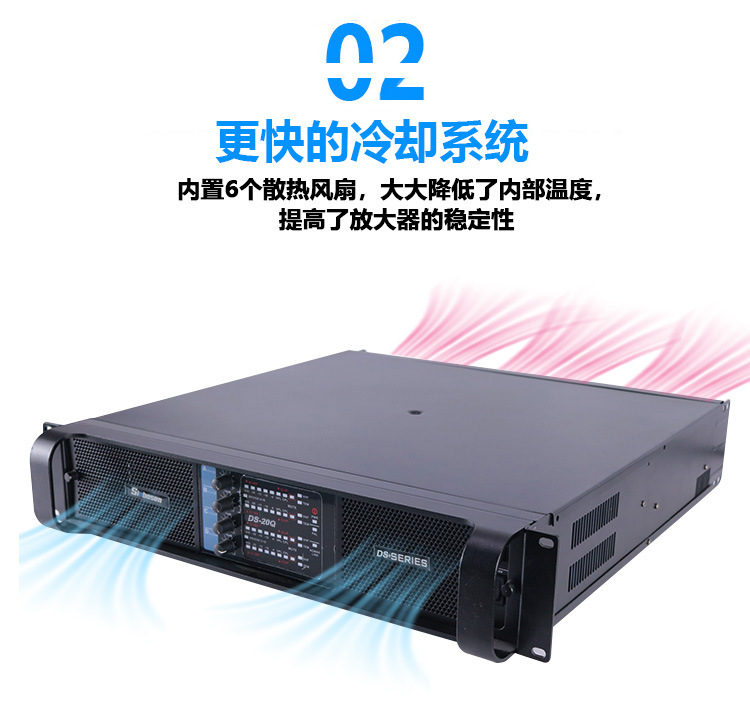

冷却方式：无级调速风扇，气流由前到后

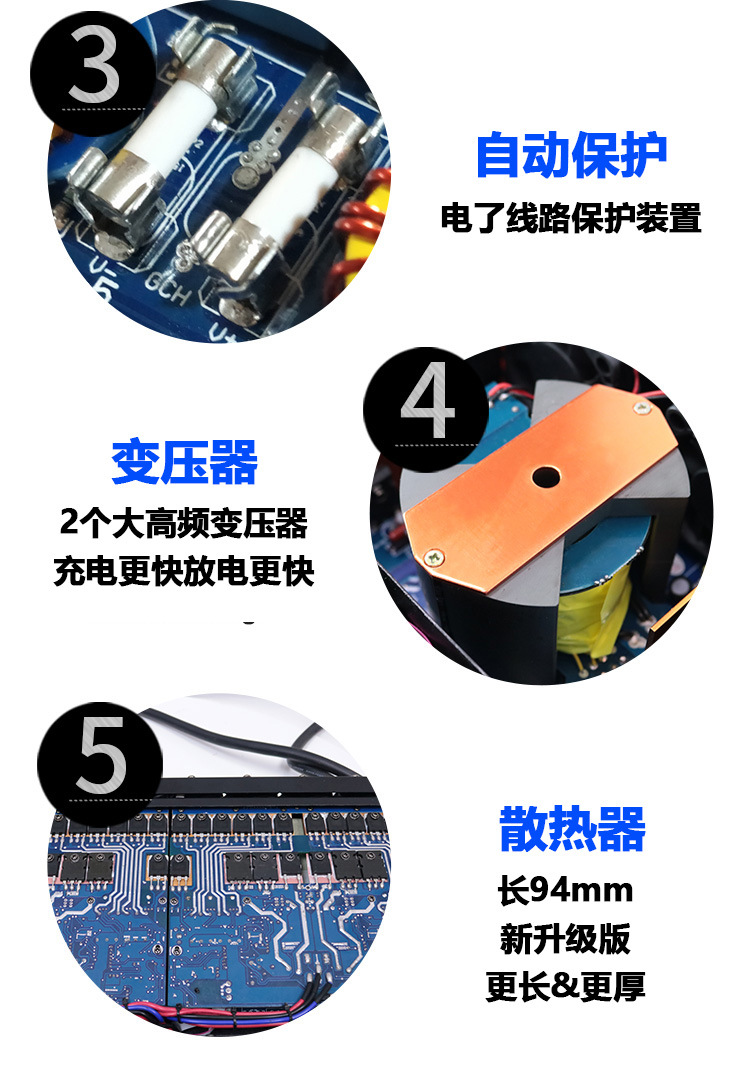

功放保护方式：短路、断路、直流电压、过热、射频、超低频保护
电源规格：交流220V(±10%) 50-60Hz
机箱尺寸(高*宽*长)：90mmX510mm×480mm
包装尺寸(高*宽*长)：580×180×560mm
净重：16.8kg
毛重：18kg
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 850.00
1-9 pcs
US$ 816.666
>=10 pcs
1. modelo:
DP-20Q
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
