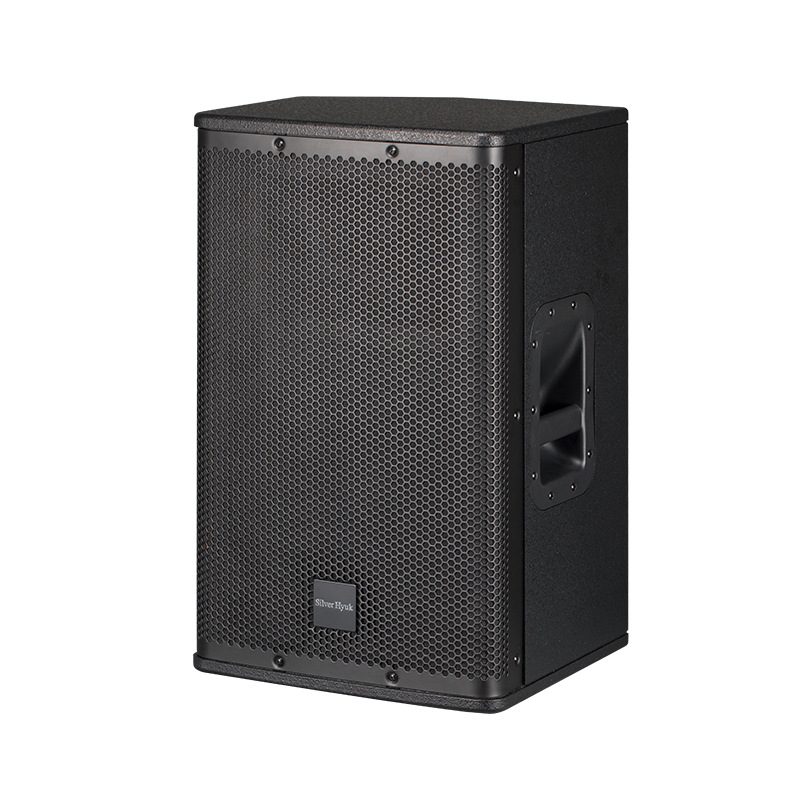

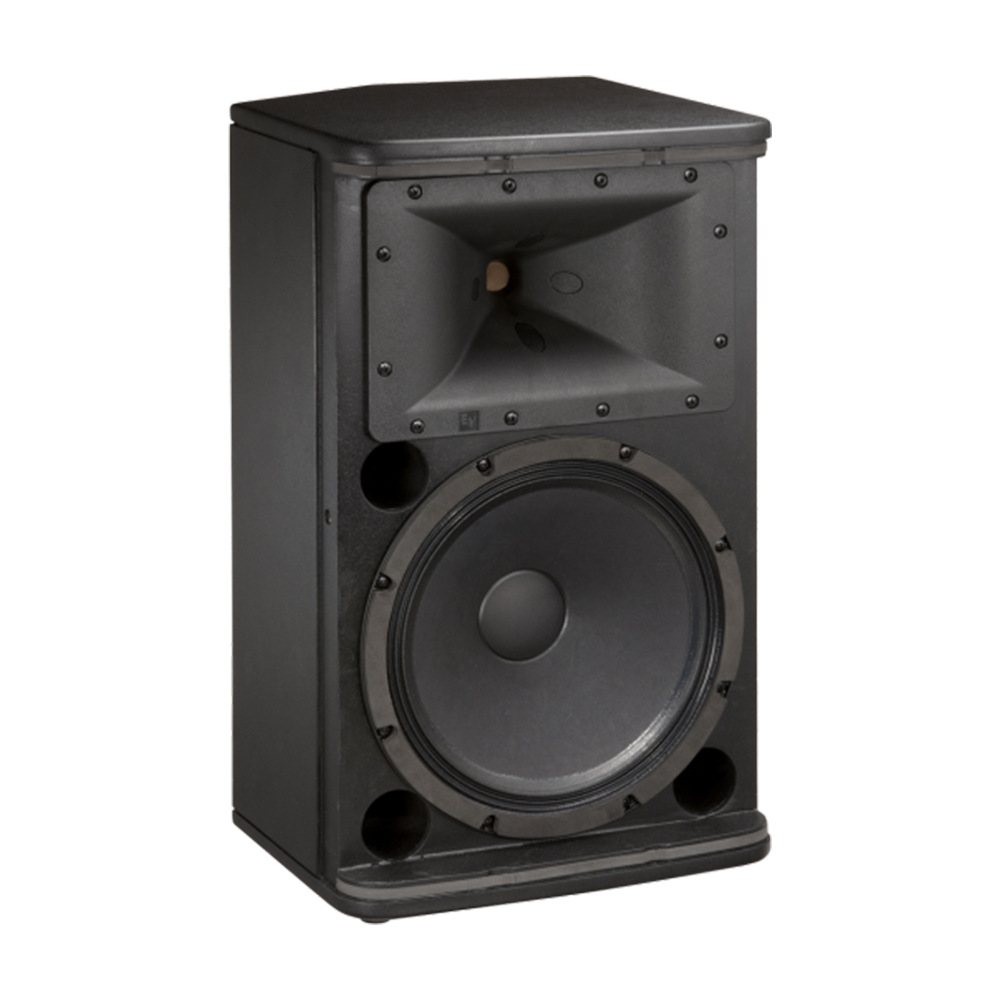

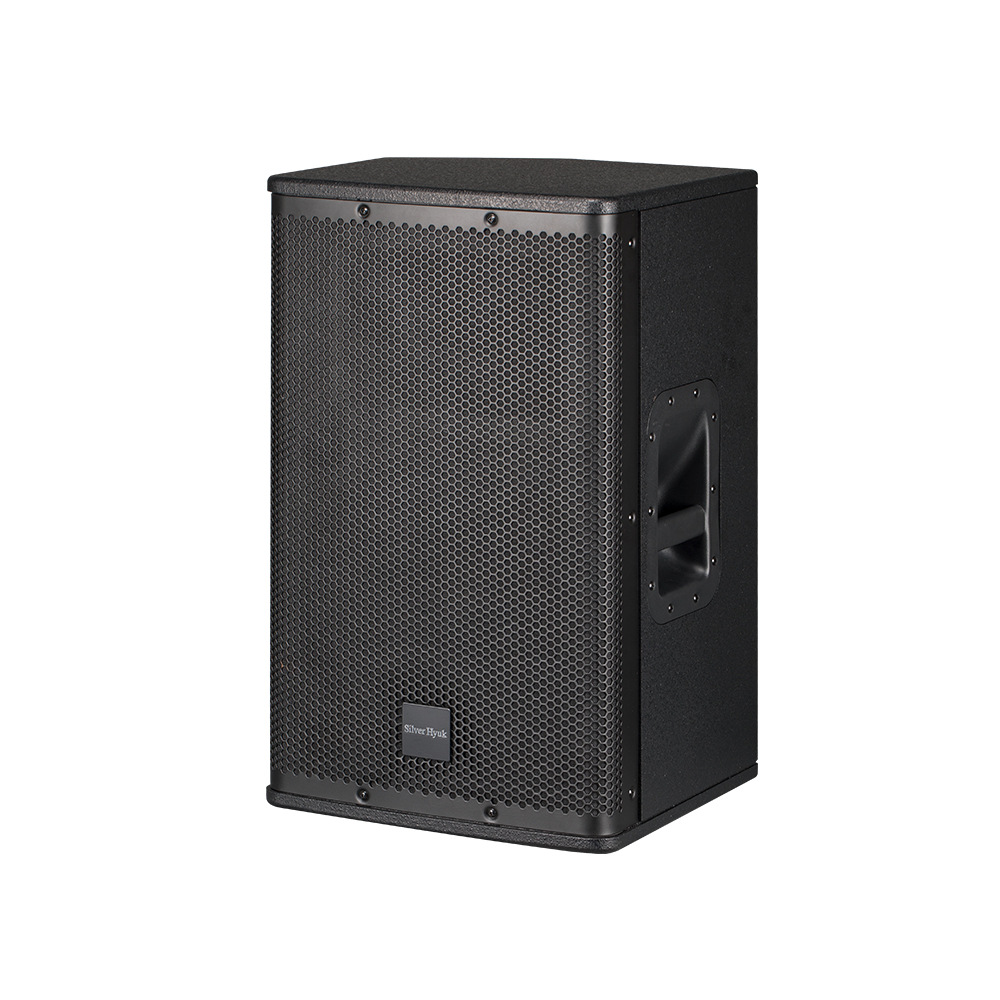

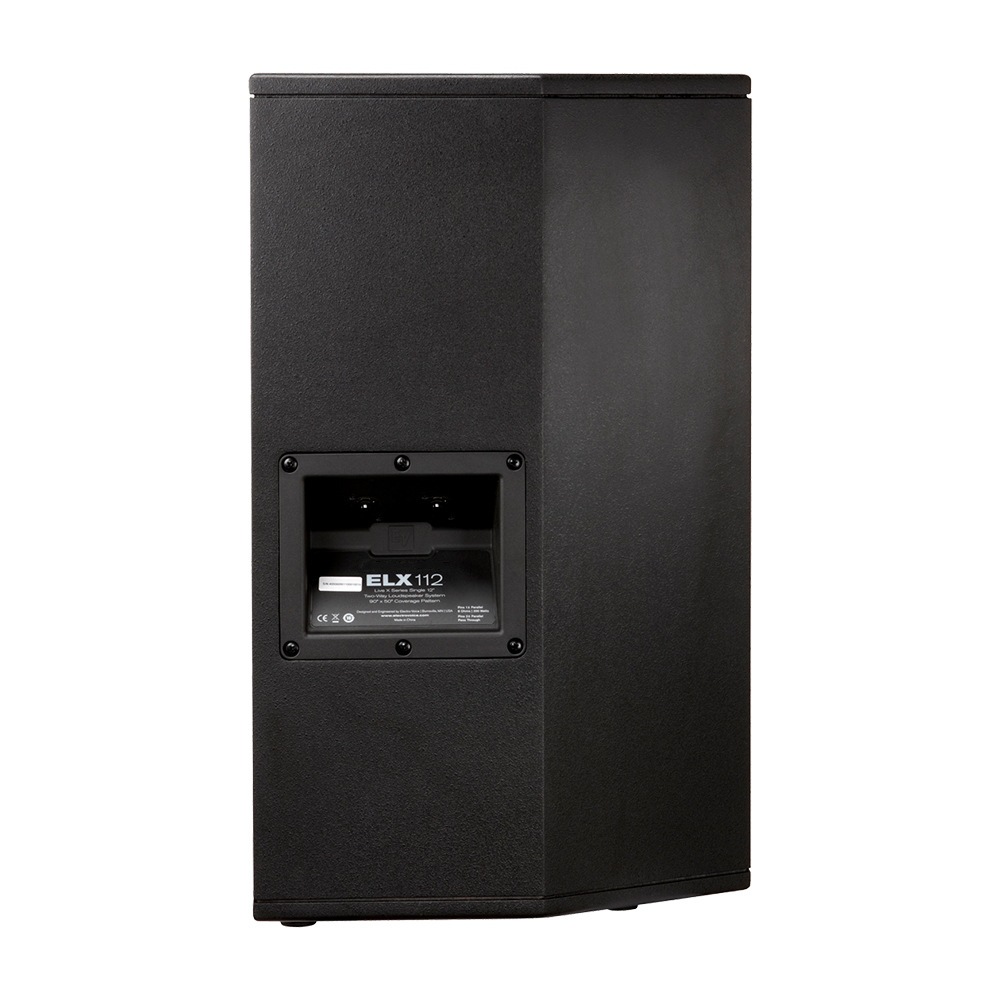

The versatile ELX112 loudspeaker is a compact, powerful choice with real stage presence, for sound reinforcement and stage monitoring applications.

Compact power for sound reinforcement and stage monitoring

EVS-12K woofer

1.5-inch DH-1K titanium HF compression driver

55 Hz – 20 kHz frequency range

90° x 50° coverage-pattern waveguide

60° Monitor Angle

94 dB SPL sensitivity; 132 dB max SPL

Power handling: 250 W continuous, 1000 W peak

Braced 15mm plywood enclosure

Pole mount or stack with Live X Subwoofers

Black textured finish



Freq. Response (-3 dB):    82 Hz - 18 kHz

Freq. Range (-10 dB):    55 Hz - 20 kHz

Axial Sensitivity:        94 dB

Max. Measured SPL³:    132 dB

Recommended HP Freq.:45 Hz

Coverage (Horiz. x Vert.):90°x 50°

Power Handling:    250W Continuous, 1000W Peak

LF Transducer(s):    (1) EVS-12K, 305mm (12") Woofer

HF Transducer:    DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver

Crossover Frequency:2.1 kHz

Nominal Impedance:8 Ohms

Minimum Impedance:7.0 Ohms

Connectors:        Dual NL4

Enclosure Material:    9-ply, 15mm Plywood, Internally Braced, with Texured Paint

Grille:              18GA Steel with Black Powdercoat

Dimensions (H x W x D):607mm x 362mm x 340mm (23.89' x 14.25" x 13.41")

Net Weight:        16.0 kg (35.2 lbs)

Shipping Weight:    19.9 kg (43.8 lbs)

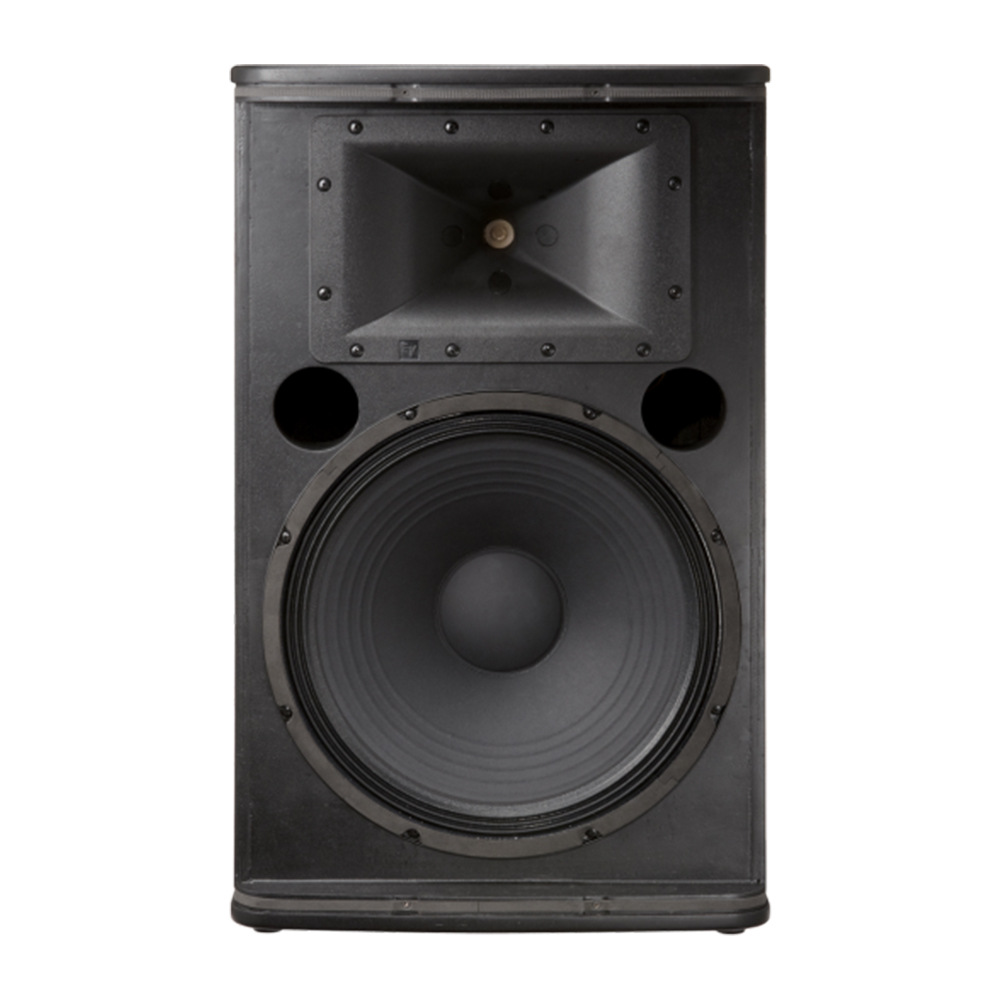

A powerful step up from the ELX112, the ELX115 features a 15” woofer that delivers extended low-frequency response for bigger sound in larger rooms.



More power, fuller sound for larger rooms

EVS-15K woofer

1.5-inch DH-1K titanium HF compression driver

50 Hz – 20 kHz frequency range

90° x 50° coverage-pattern waveguide

60° Monitor Angle

134 dB max SPL

Power handling: 400 W continuous, 1600 W peak

Braced 15mm plywood enclosure

Pole mount or stack with Live X Subwoofers

Black textured finish



Freq. Response (-3 dB):    75 Hz - 18 kHz¹

Freq. Range (-10 dB):    50 Hz - 20 kHz¹

Axial Sensitivity:        95 dB

Max. Measured SPL³:    134 dB

Recommended HP Freq:    40 Hz

Coverage (Horiz. x Vert.):    90° x 50°

Power Handling:        400W Continuous, 1600W Peak

LF Transducer(s):        (1) EVS-15K, 381mm (15") Woofer

HF Transducer:        DH-1K, 39mm (1.5") Titanium Diaphragm Compression Driver

Crossover Frequency:    1.7 kHz

Nominal Impedance:    8 Ohms

Minimum Impedance:    7.4 Ohms

Connectors:           Dual NL4

Enclosure Material:        9-ply, 15mm Plywood, Internally Braced, with Texured Paint

Grille:                18GA Steel with Black Powdercoat

Dimensions (H x W x D):  708mm x 432mm x 382mm (27.89" x 17.02 x 15.05"),

Net Weight:            21.9 kg (48.2 lbs)

Shipping Weight:        26.6 kg (58.6 lbs)

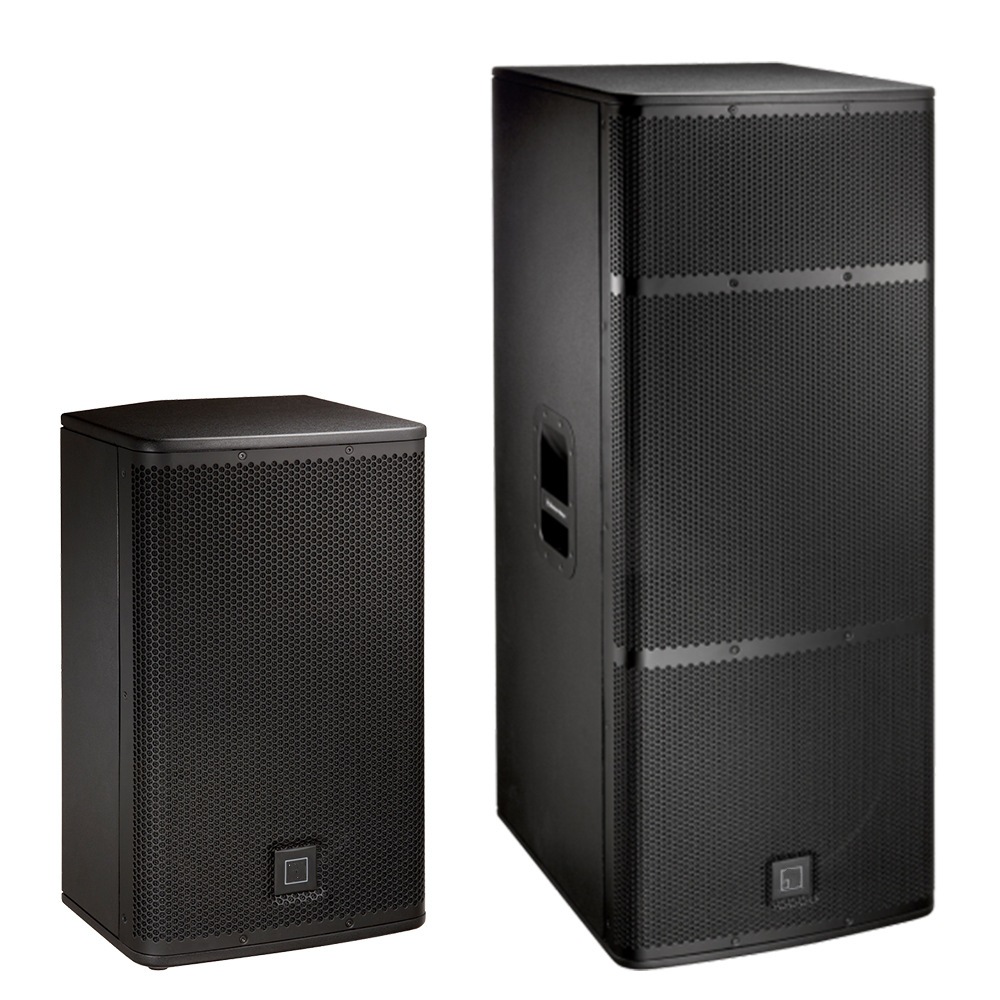

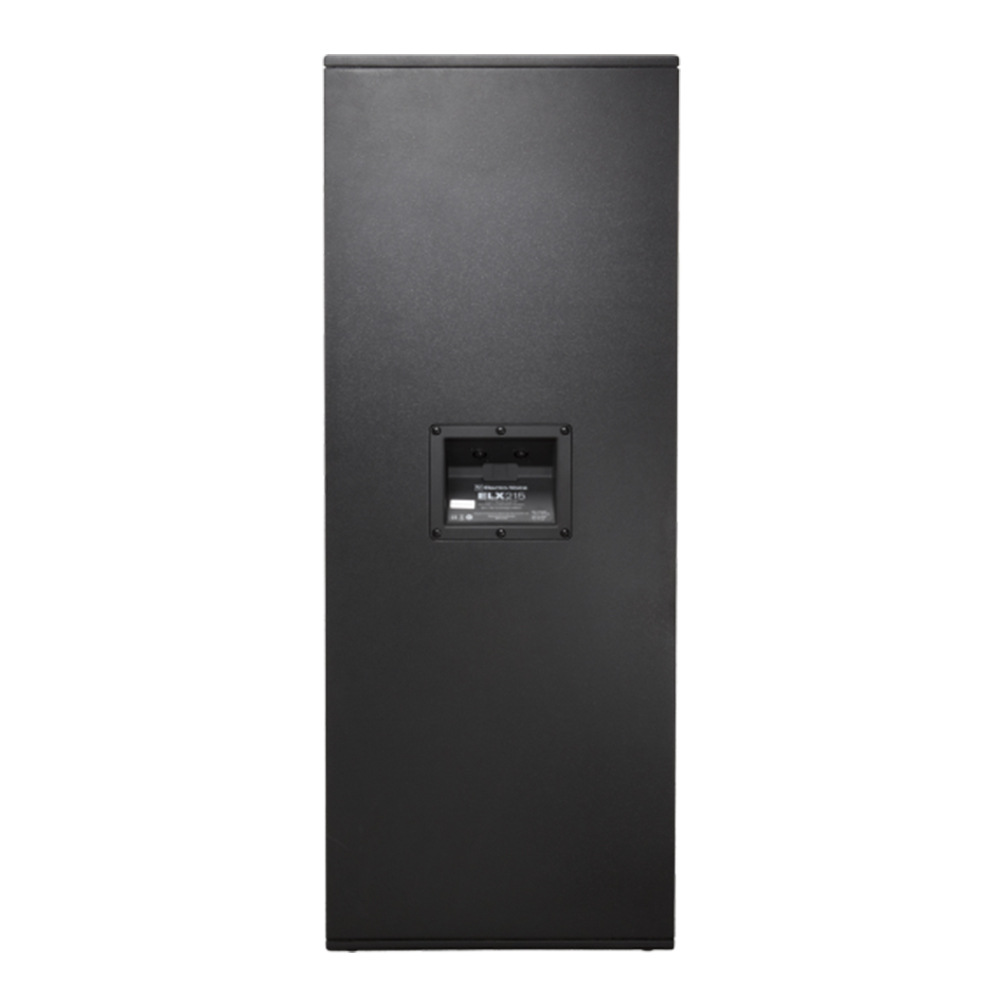

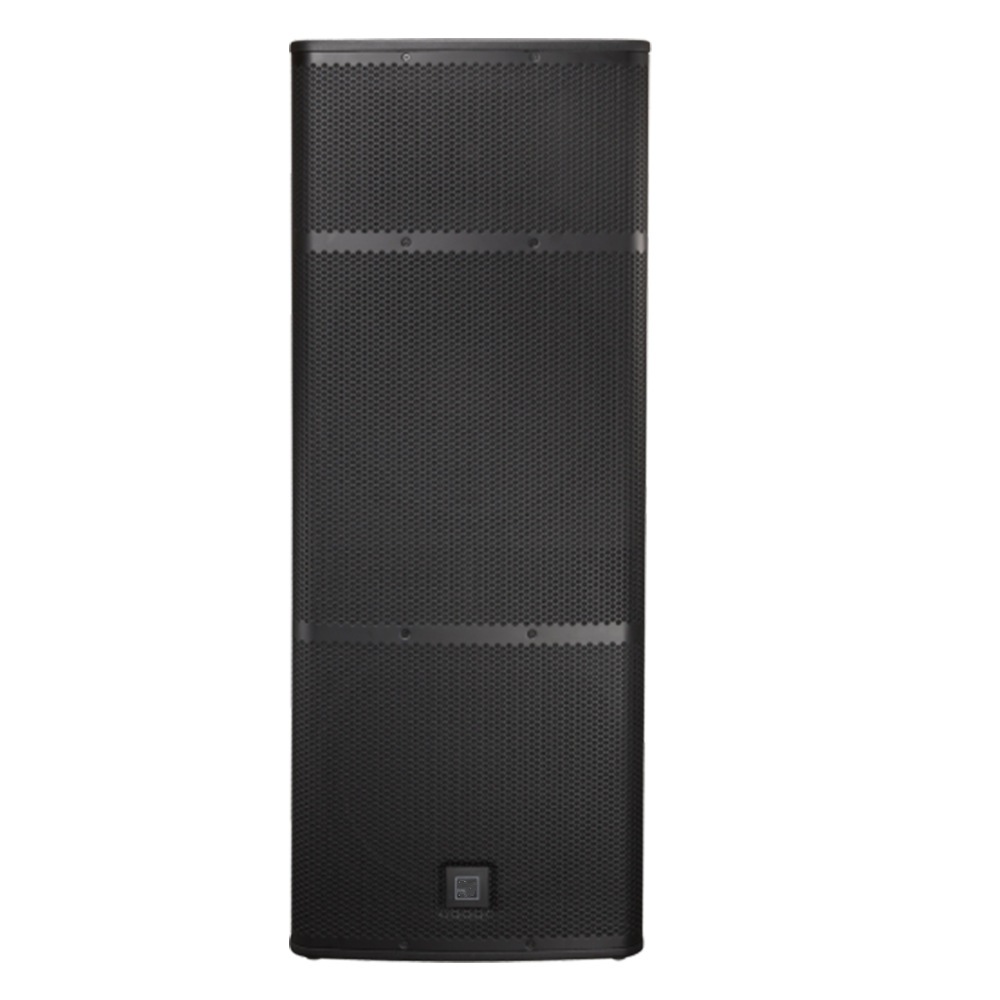

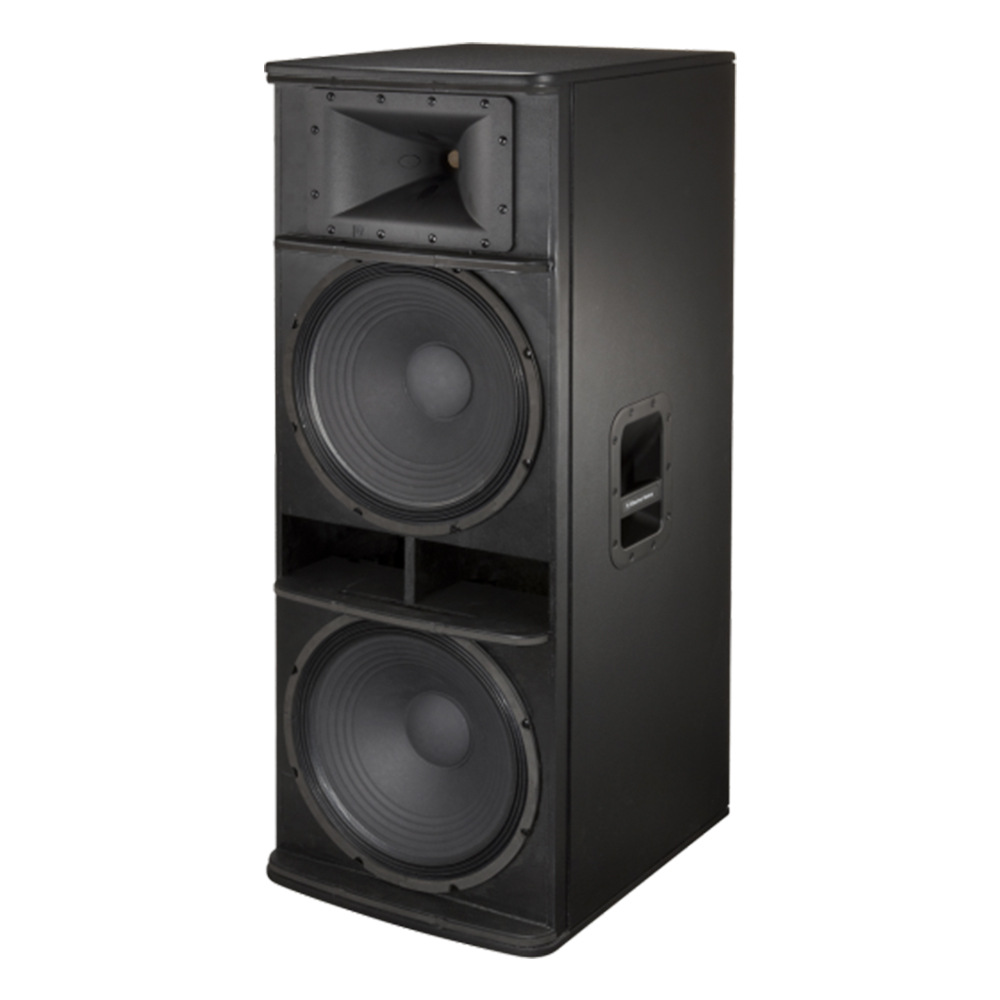

This twin woofer configuration delivers real low-end punch — ideal for applications that demand high volume output and an ultra-wide frequency response from a single cabinet.



High-volume punch and ultra-wide frequency response

Ideal for mains

Two EVS-15K woofers for extended LF

1.75-inch DH-1K titanium HF compression driver

38 Hz – 20 kHz frequency range

90° x 50° coverage-pattern waveguide

137 dB max SPL

Power handling: 600 W continuous, 2400 W peak

Braced 15mm plywood enclosure

Black textured finish Dual 15-inch two-way full-range loudspeaker



Freq. Response (-3 dB):62 Hz - 18 kHz¹

Freq. Range (-10 dB):38 Hz - 20 kHz¹

Axial Sensitivity:96 dB

Max. Measured SPL³:137 dB

Recommended HP Freq: 35 Hz

Coverage (Horiz. x Vert.):  90° x 50°

Power Handling:600W Continuous, 2400W Peak

LF Transducer(s):2 x 15" woofers

HF Transducer:1" compression drivers, 1.75" voice coil

Crossover Frequency:1.7 kHz

Nominal Impedance:4 Ohms

Minimum Impedance:3.7 Ohms

Connectors:Dual NL4

Enclosure Material:9-ply, 15mm Plywood, Internally Braced, with Texured Paint

Grille:18GA Steel with Black Powdercoat

Dimensions (H x W x D):1154mm x 432mm x 501mm (45.44" x 17.02" x 19.73")

Net Weight:40.7 kg (89.6 lbs)

Shipping Weight:48.4 kg (106.6 lbs)

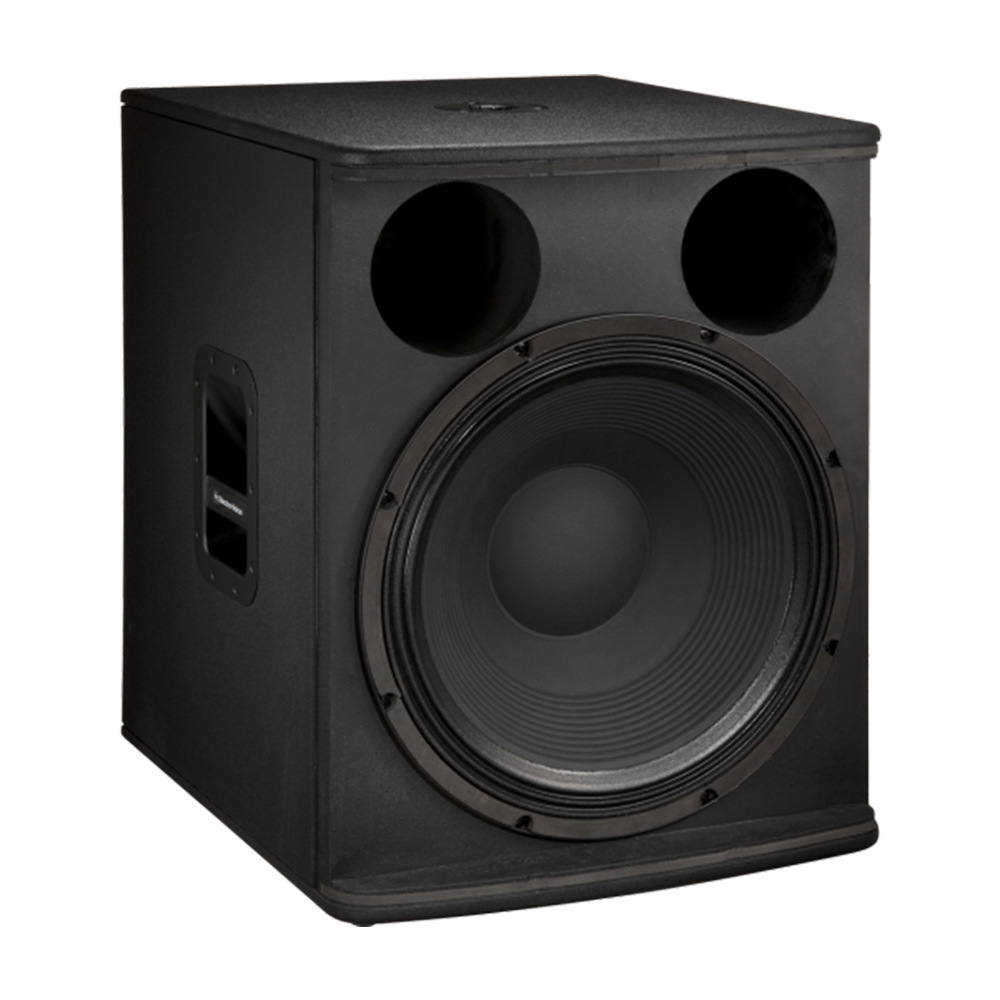

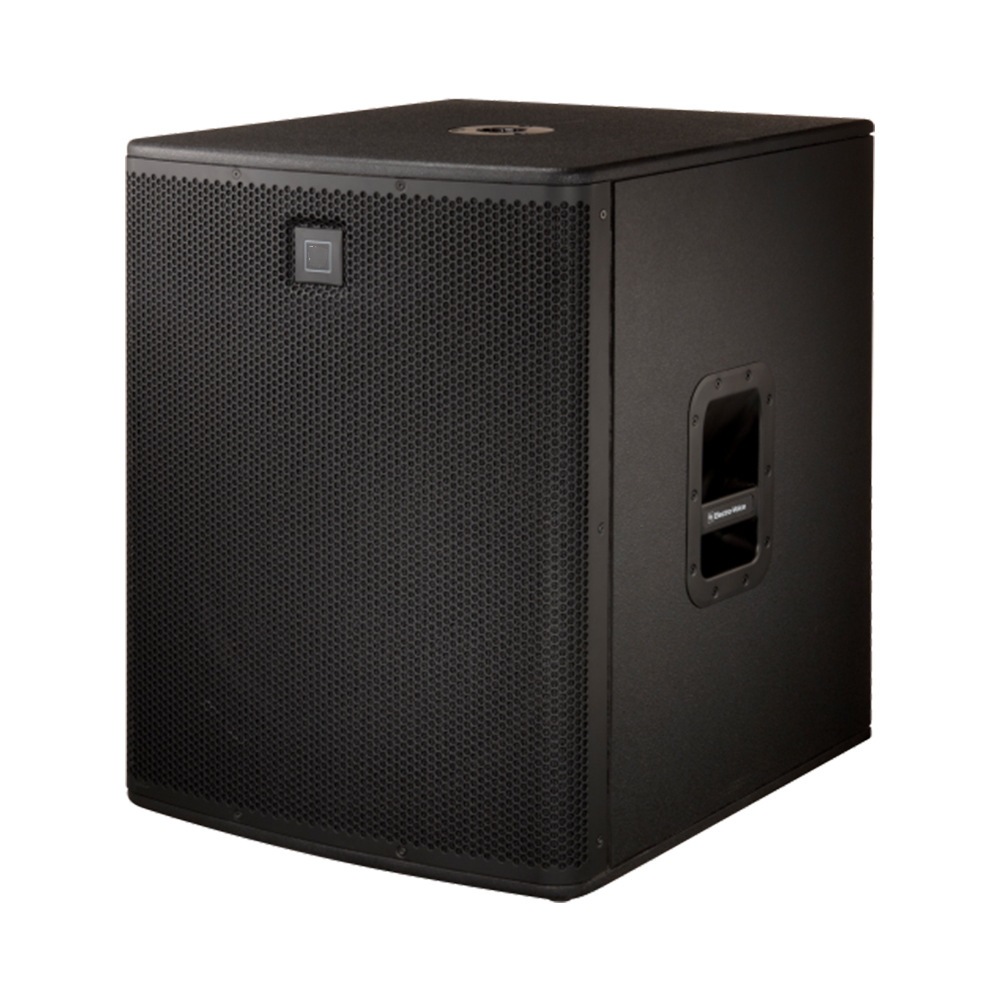

Optimized for performance with the ELX112 and ELX115, the ELX118 adds a full, deep, low-frequency punch that you can hear and feel.







Supplemental bass for ELX112 or ELX115



EVS-18K woofer for extended LF



35 Hz – 200 Hz frequency range



134 dB max SPL



Power handling: 400 W continuous, 1600 W peak



Braced 15mm plywood enclosure



Stack or pole-mount full-range boxes



Black textured finish







Freq. Response (-3 dB):50 Hz - 100 Hz²



Freq. Range (-10 dB):35 Hz - 200 Hz²



Axial Sensitivity:96 dB



Max. Measured SPL³:134 dB



Recommended HP Freq:30 Hz



Coverage (Horiz. x Vert.):Omnidirectional



Power Handling:400W Continuous, 1600W Peak



LF Transducer(s):(1) EVS-18K, 457mm (18") Woofer



Nominal Impedance:8 Ohms



Minimum Impedance:6.7 Ohms



Connectors:Dual NL4



Enclosure Material:9-ply, 15mm Plywood, Internally Braced, with Texured Paint



Grille:18GA Steel with Black Powdercoat



Dimensions(H x W x D): 661mm x 507mm x 574mm (26.02" x 19.98" x 22.60")



Net Weight:30.6 kg (67.4 lbs)



Shipping Weight:37.2 kg (81.9 lbs)



Accessories:ASP-1, Steel Subwoofer Stand
