| Servicio post-venta | Tienda tres paquetes |
| Tipo de amplificador de potencia | Amplificador AV |
| Si la exportación transfronteriza está disponible exclusivamente | Sí |
| Canal | 4-canal |
| Si APP es compatible | No apoyado |
| Resolución | 0 |

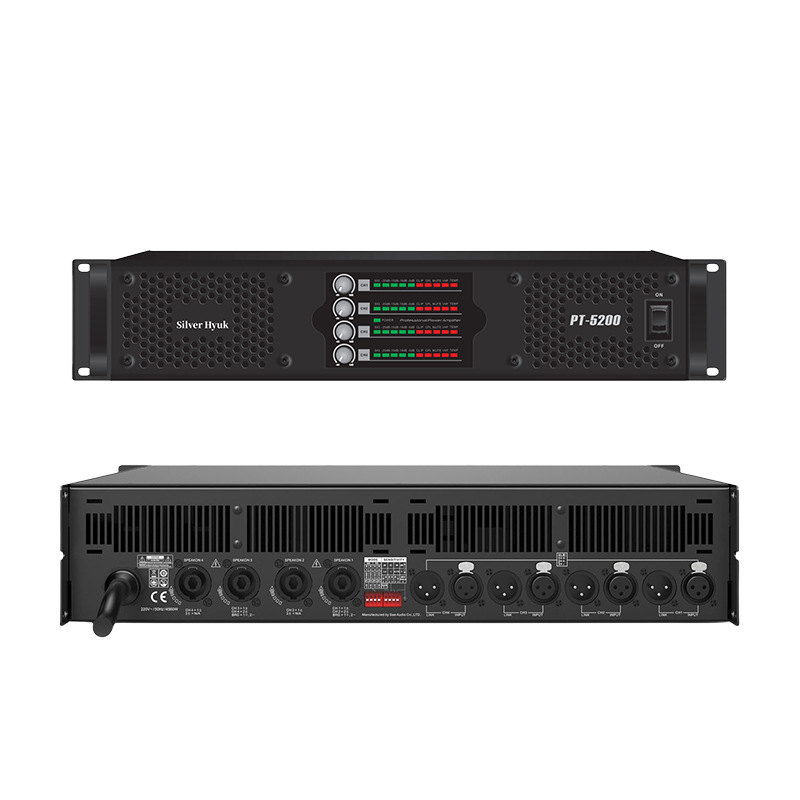

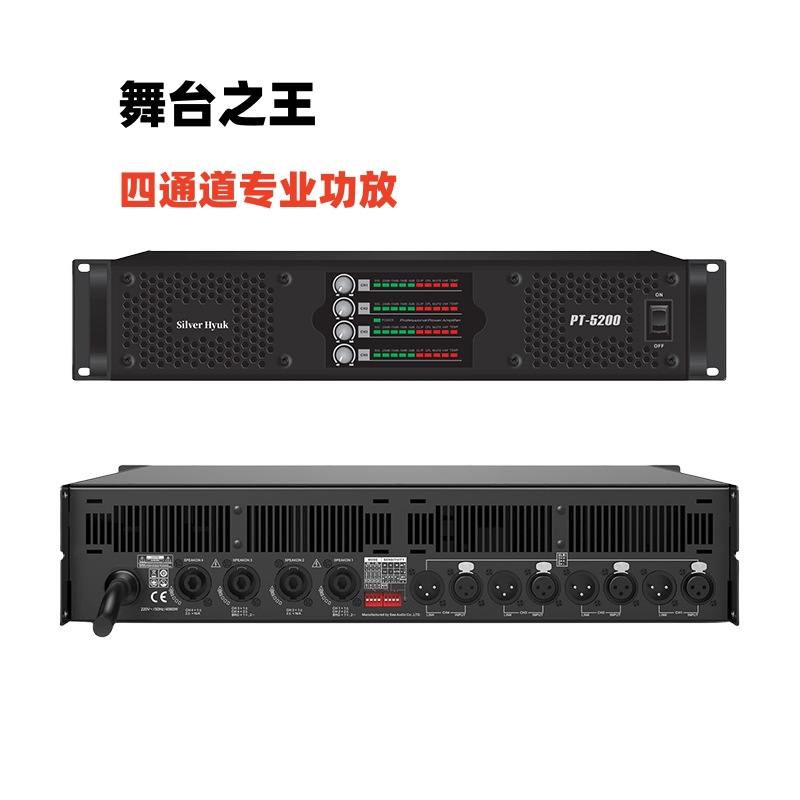

PT系类是高级酒吧和高级商演的首选。PT-5200是四通道开关电源类功放产品。功放行业先进的技术，使得拥有两个机架单元功放的PT-5200能够输出巨大的功率密度，让客户得到真实力量的音效体验（每个通道2500W@2）.稳压开关电源和高效的Class I™功放模块的应用，是PT-5200成为在世界巡回扩音应用中四通道中音响的标杆。
特点：
R-SMPS稳压式开关电源，在供电电源极不稳定的情况下，都能为最佳音效提供强劲的电源供应保证
高灵敏度的CMRR平衡输入增强噪声抑制，有效阻止哪怕是最轻微的信号干扰
采用顶尖电子配件，稳定耐用的同时还能达到最好音质要求
在2Ω负载连续全动力运作下仍能保持最大稳定度
从前向后的散热排风系统设计，确保设备长时间，高可靠性能运行和使用

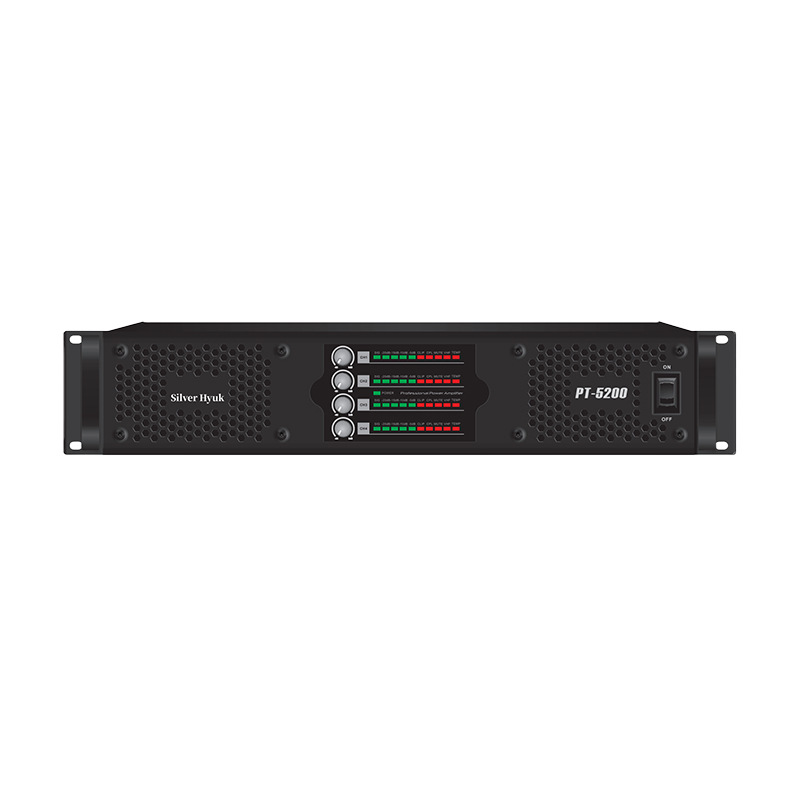

前面板独立通道有温度，保护、VHF和削峰灯警示
前面板独立通道有电源指示灯和-5dB/-10dB/-15dB/-20dB信号灯指示灯
前面板有桥接和并接指示灯

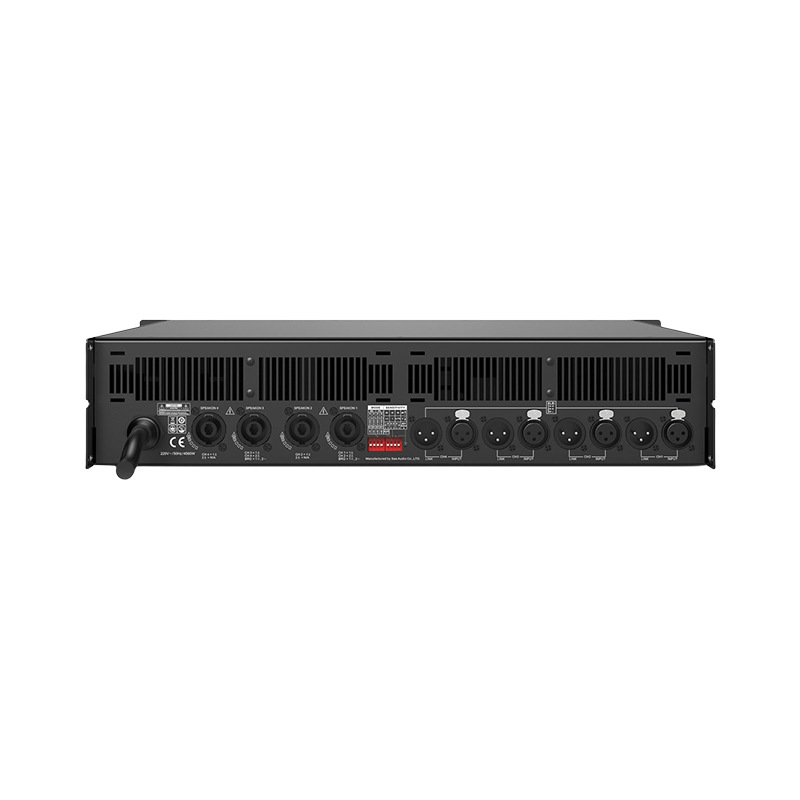

后面板有XLR输入插座和链接插座
后面板有SpeakON NL4输出插座
后面板有立体声，并接，桥接三种模式开关
后面板有0.775V/1V/1.4V/38dB/32dB/26dB灵敏度选择开关
娱乐派对房.中高端KTV，中大型酒吧，清吧，餐吧，中大型演出，宴会厅，多功能厅等政企项目等应用
参数
立体声输出功率8Ω： 4×1300W
立体声输出功率4Ω: 4×2100W
立体声输出功率2Ω: 4×2500W
桥接输出功率8Ω： 2×4200W
桥接输出功率4Ω： 2×5000W
频率响应： 20Hz-20KHz,+/-1.5dB
总谐波失真： <0.05%
信噪比： ≥80dB
阻尼系数： >800
输入灵敏度： 0.775v/1v/1.4v/38dB/32dB/26dB
输入阻抗（平衡/不平衡）：20KΩ/10KΩ
电压增益（8Ω时）： 42.3dB
保护功能： 软启动、直流、VHF、短路 、过载、削峰/失真压限、峰值电流限制、过热、开机音量渐大
产品尺寸（毫米）： 483×448×89
产品包装尺寸： 595 x 565 x 170
净重： 15.7kg
