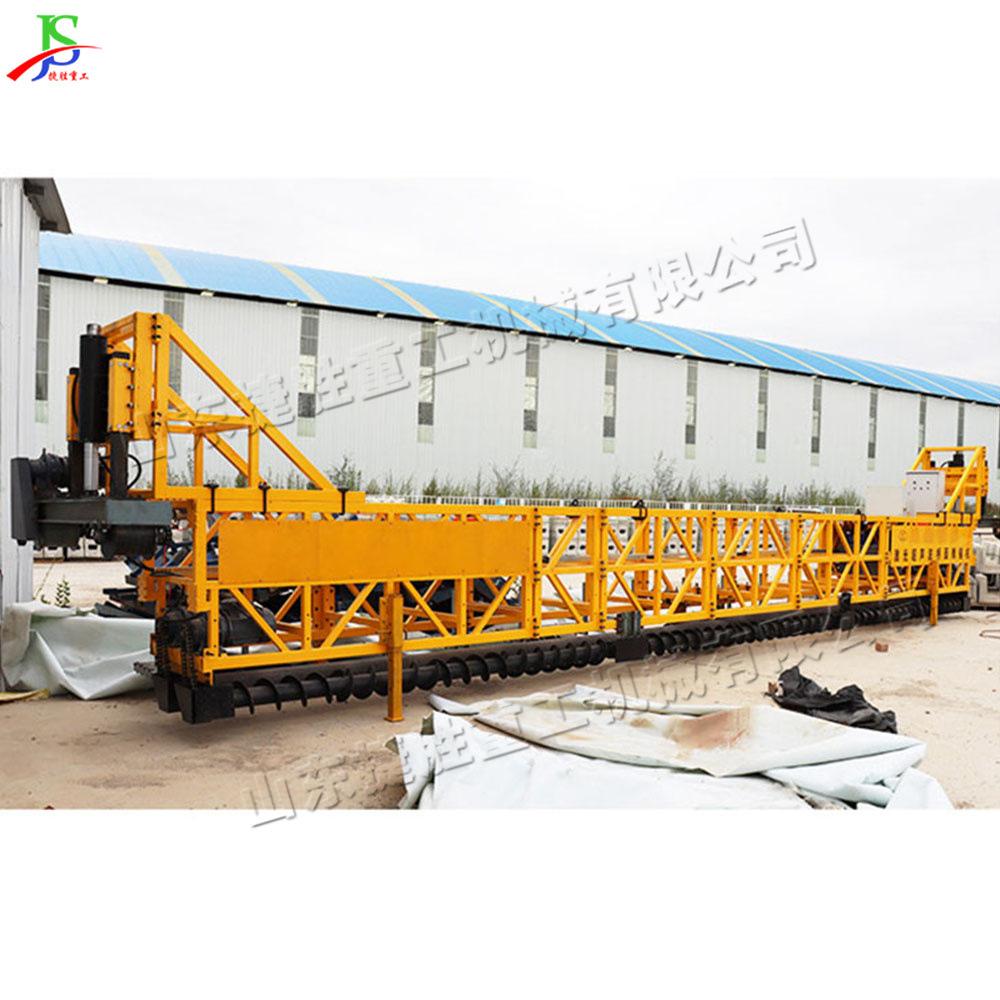

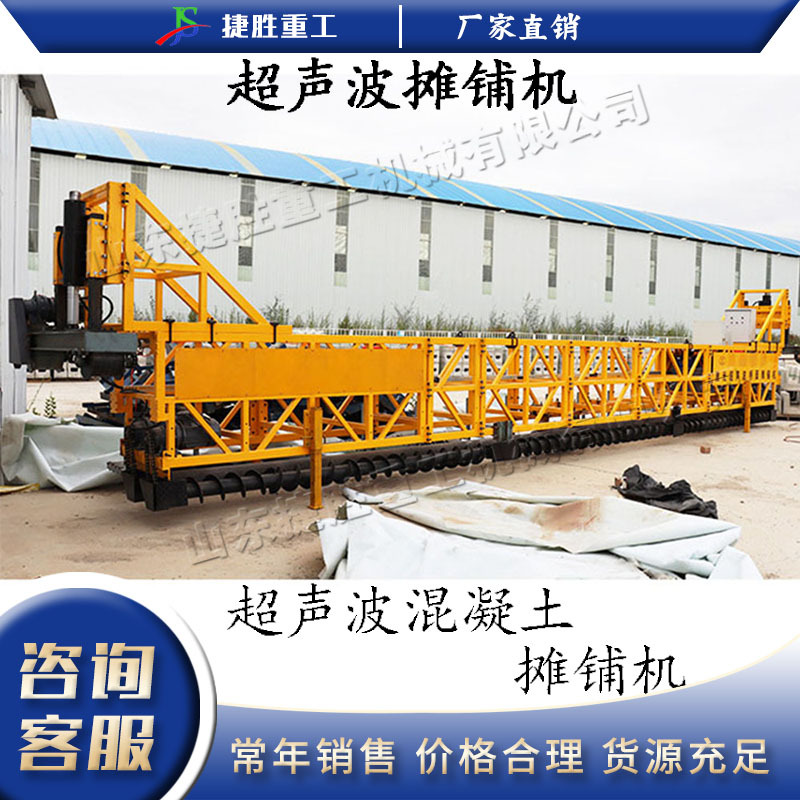

激光超 声波桥面摊铺机主要用于桥面公路基层和路面的各种材料的摊铺。桥面摊铺机是解决桥面平整度、提高机械化摊铺能力、加 快施工进度的机械。
超 声波校平系统介绍：主机行进过程中容易因行走轨道高低落差而造成混凝土摊铺面不平整，在行走轨道有落差时，超 声波传导器接收调整幅度信号并及时传给电控系统来调整单侧或两侧升降主油缸来保证桥面平整度。
工作原理：超 声波控制为超 声波传导器在平整钢丝上行走，整平辊和振动辊都分别单独加装变频器，以控制整平辊和摊铺机行进速度一致，辊轴后侧加装刮板并附着振动器，在框架两侧安装超 声波传导器，并在护栏两侧加装平衡钢丝并找平，传导器平衡杆在平衡钢丝上行走，平衡钢丝的平整度就是桥面的平整度。
|
摊铺宽度 |
11米/15米 |
摊铺厚度 |
100-500mm |
|
行走速度 |
0-12m/min |
机器重量 |
5000-6000KG |
|
行走功率 |
3KW-6ji*2台 |
整平功率 |
5.5KW-6ji*2台 |
|
振动功率 |
7.5KW-6ji*2台 |
液压动力站功率 |
4KW*2台 |
|
控制方式 |
智能电控 |
校平方式 |
超 声波传导 |
|
清洗机功率 |
2.2KW |
水箱容积 |
500L |
|
行走纠正 |
单独电控纠正 |
升降纠正 |
单独液压纠正 |
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个地区，并从德国、英国、法国进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
