Compra al por mayor onlinemás de 10W+ productospedido mínimo: US$ 2,000 Compra al por mayor onlinemás de 10W+ productospedido mínimo: US$ 2,000
| Número de artículo | -- |
| Tipo | Máquina de producción de bolas de acero |
| Marca | Victoria Checa |
| Uso | Máquina de producción de bolas de acero |
| Potencia del motor | 3.7 |
| Modelo | Rutina |

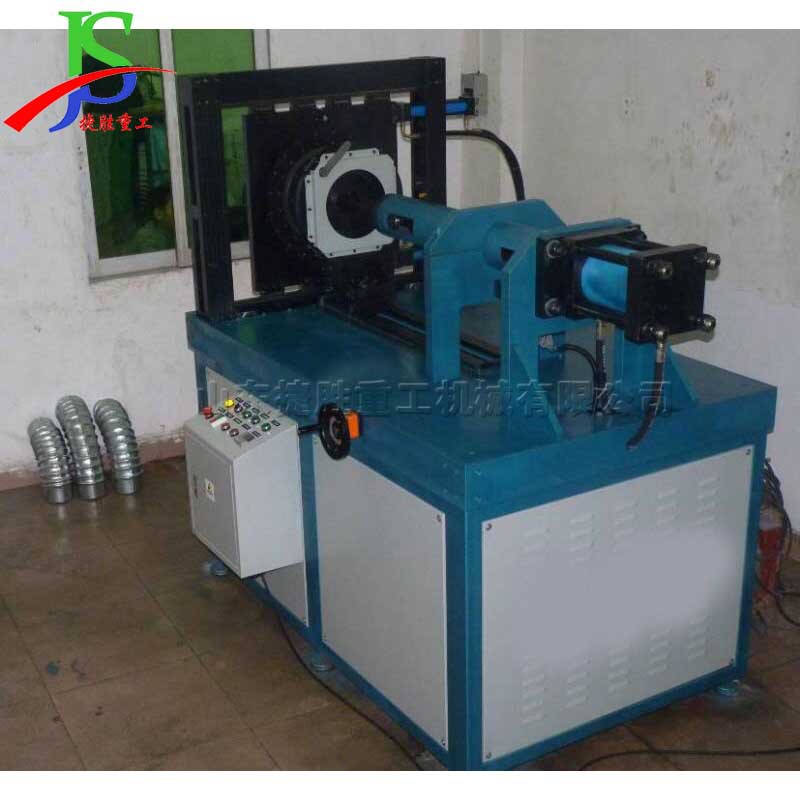

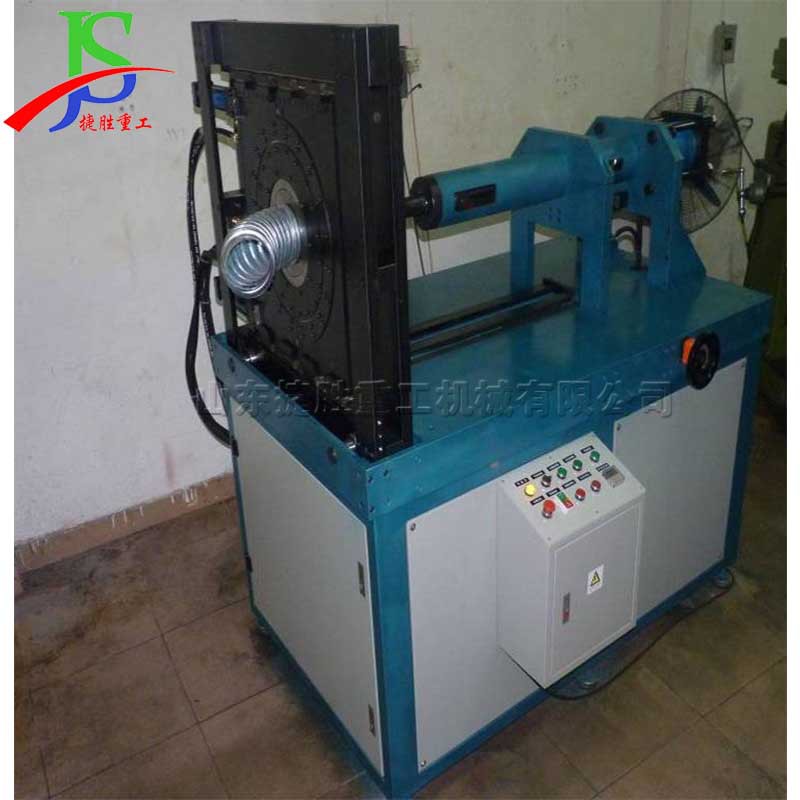

本不锈钢管打波机用于民用烟筒/通风管道/厨房洁具拐弯处的弯头的制作，制作出的弯头为涨筋弯头，此弯头可以任意折弯角度，0-180都可以任意弯出。弯头直径范围可由75-400mm内有客户自由选择，更换不同直径需更换磨具即可
|
型 号 |
100-400型 |
100-600型 |
|
加工板厚 |
0.5mm-1.0mm(镀锌板） 0.5mm-0.8mm(不锈钢） |
0.5mm-1.0mm（镀锌板） 0.5mm-0.8mm(不锈钢） |
|
管径范围 |
φ100mm-φ400mm |
φ100mm-φ600mm |
|
电机功率 |
3.7kw |
7.5kw |
|
成型速度 |
（φ100-φ250）2-3mins/件 |
（φ400-φ600）6-8mins/件 |
|
|
（φ300-φ400）4-6mins/件 |
|
|
额定电压 |
380v/50HZ/3PH |
380v/50HZ/3PH |
|
设备尺寸 |
1950MM*1300MM*1700MM |
2200MM*1400MM*1800MM |
|
重 量 |
1000Kg |
1200Kg |
|
模 具 |
100,125,150,175,200,250,300,350,400 |
100,125,150,175,200, 250,300,350,400,450, 500,550,600 |
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个地区，并从德国、英国、法国进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
