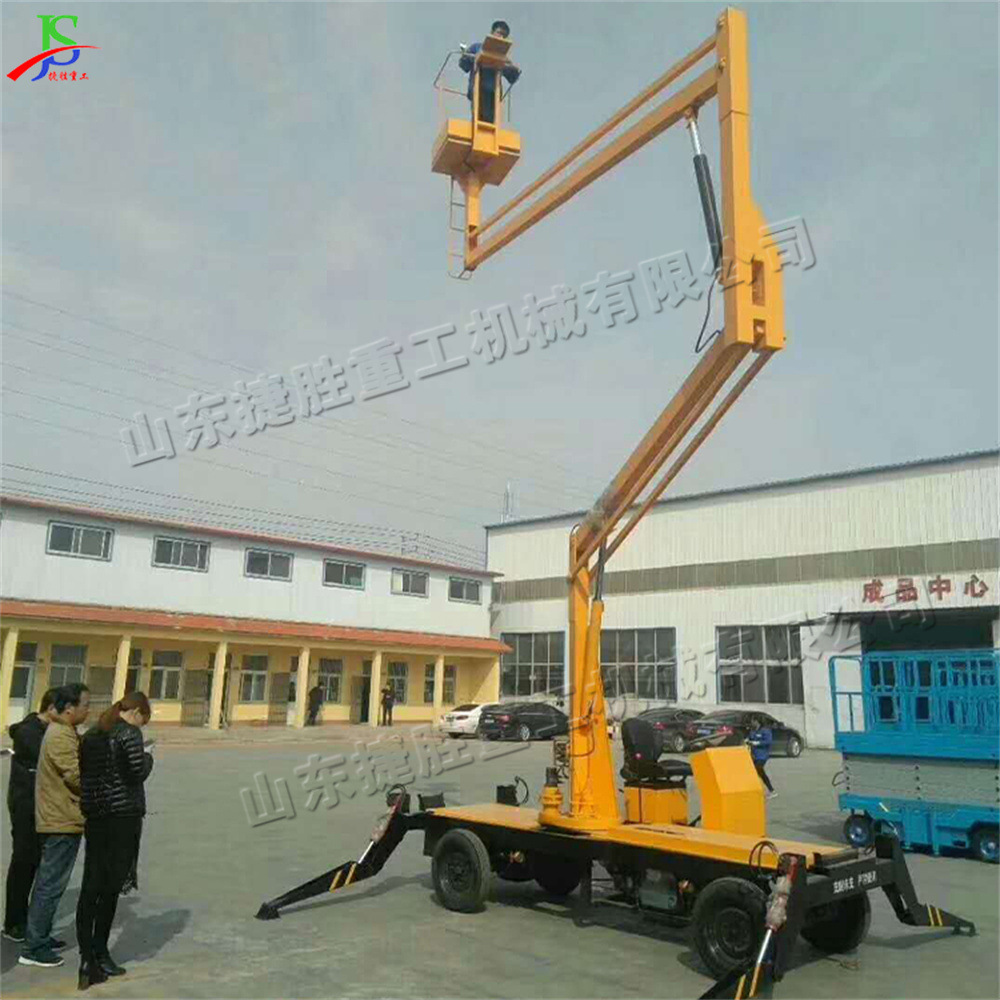

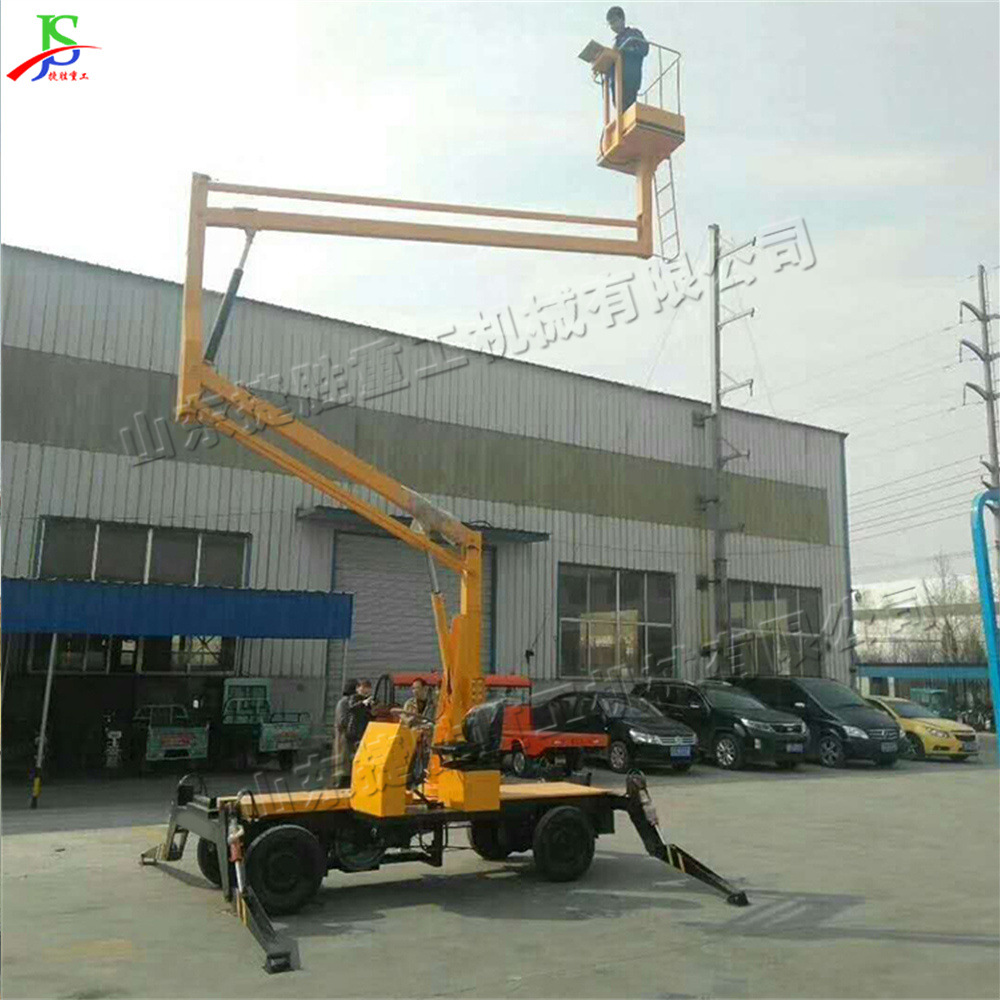

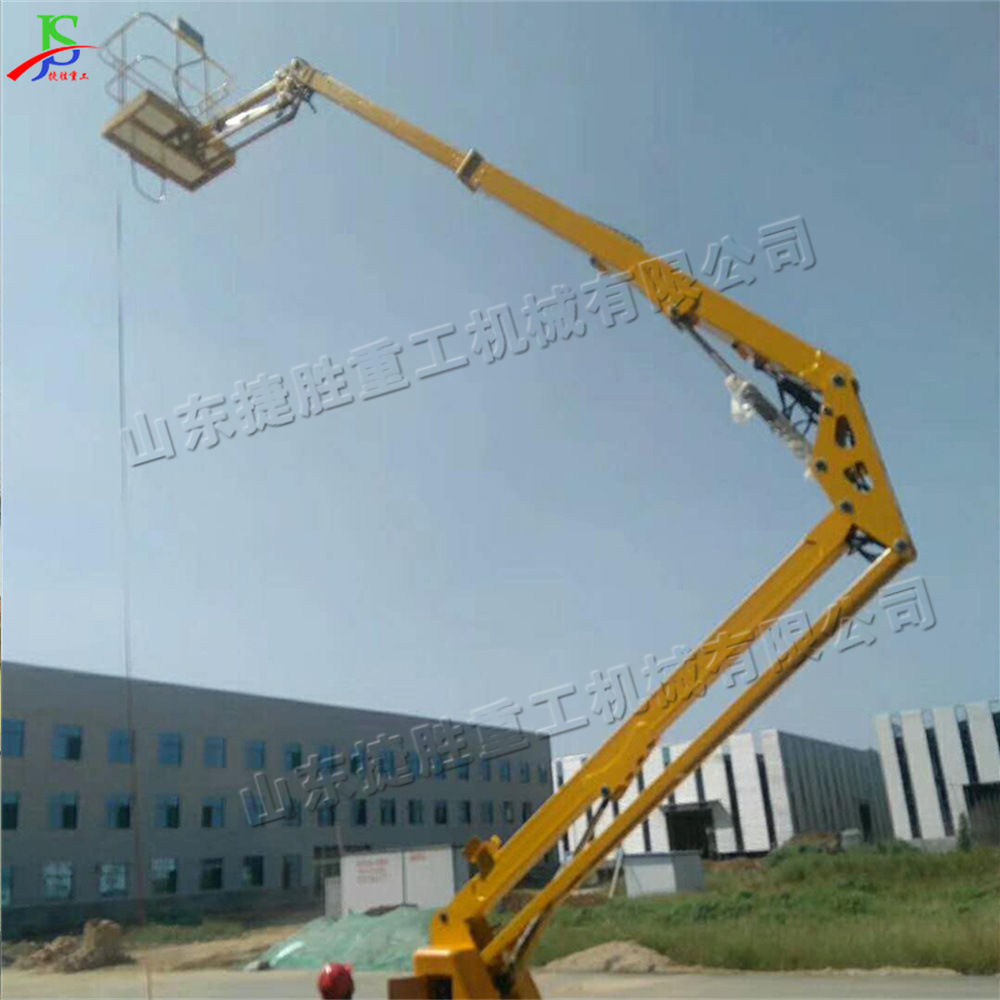

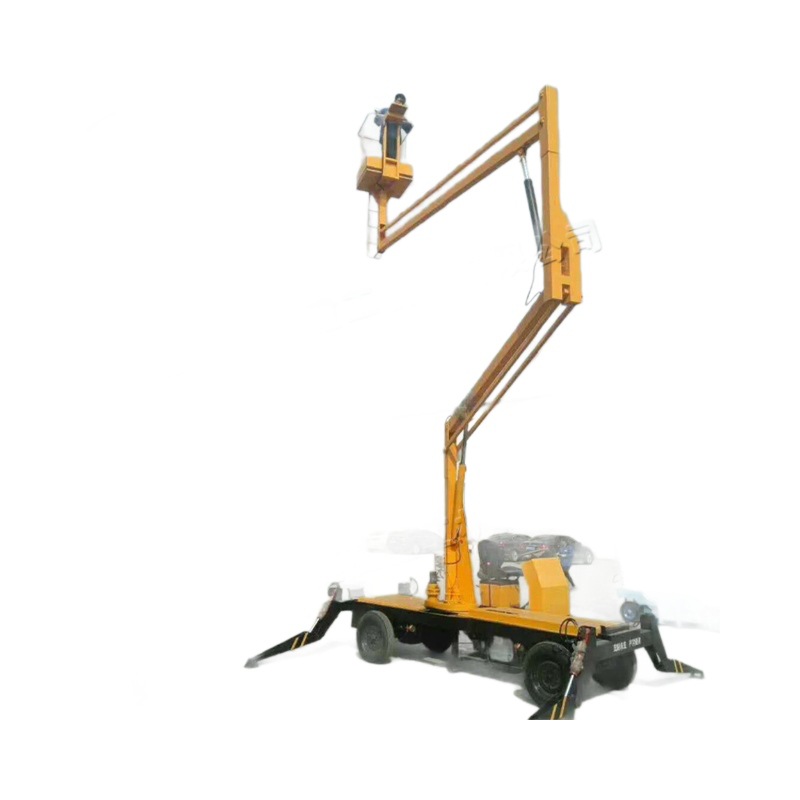

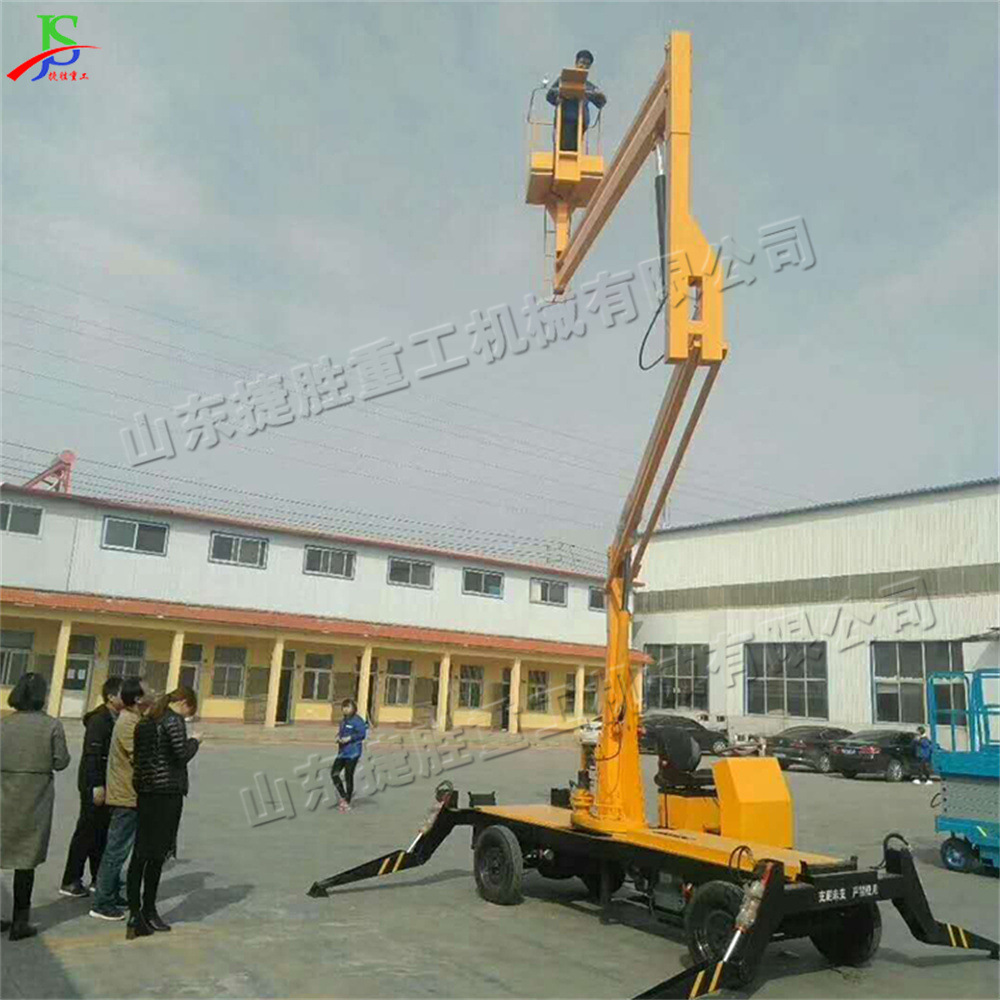

曲臂式升降平台是用于高空作业的升降设备，可跨越障碍进行高空作业，平台升降到任何位置时，均可边行走边作业，结构紧凑，转向灵活，其地盘的宽度可保证设备进入狭窄的通道及拥挤的工作区域。备用动力装置，可操作工作平台复位，方便的运输方式，可被牵引到任何地方。易于识别的操作面板，多重的机械，电气及液压保护，先进的一体化的液压电器集成系统。可跨越障碍进行高空作业，平台升降到任何位置时，均可边行走边作业，结构紧凑，转向灵活，其地盘的宽度可保证设备进入狭窄的通道及拥挤的工作区域。备用动力装置，可操作工作平台复位，方便的运输方式，可被牵引到任何地方。易于识别的操作面板，多重的机械，电气及液压保护，先进的一体化的液压电器集成系统。
|
型号曲臂 |
外形尺寸MM |
平台高度 |
载重 |
作业半径 |
自重 |
行走速度 |
|
10 |
4000*1700*2700 |
8米 |
180KG |
3米 |
1500KG |
15-30KM/H |
|
12 |
4000*1700*2700 |
10.5米 |
180KG |
3.4米 |
1600KG |
15-30KM/H |
|
14 |
4800*2100*3050 |
12米 |
180KG |
4米 |
1800KG |
15-30KM/H |
|
15 |
5100*2200*3300 |
13.5米 |
180KG |
4.2米 |
1900KG |
15-30KM/H |
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个地区，并从德国、英国、法国进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
