产品简介

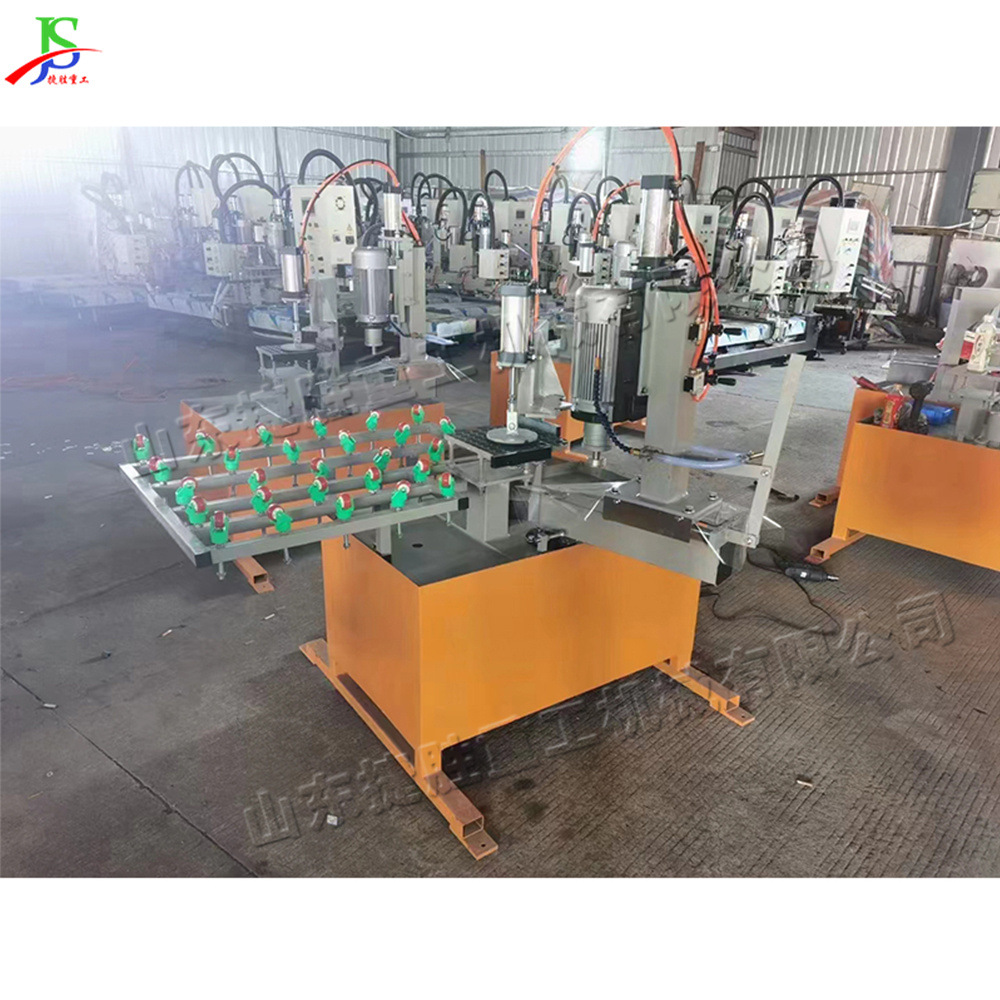

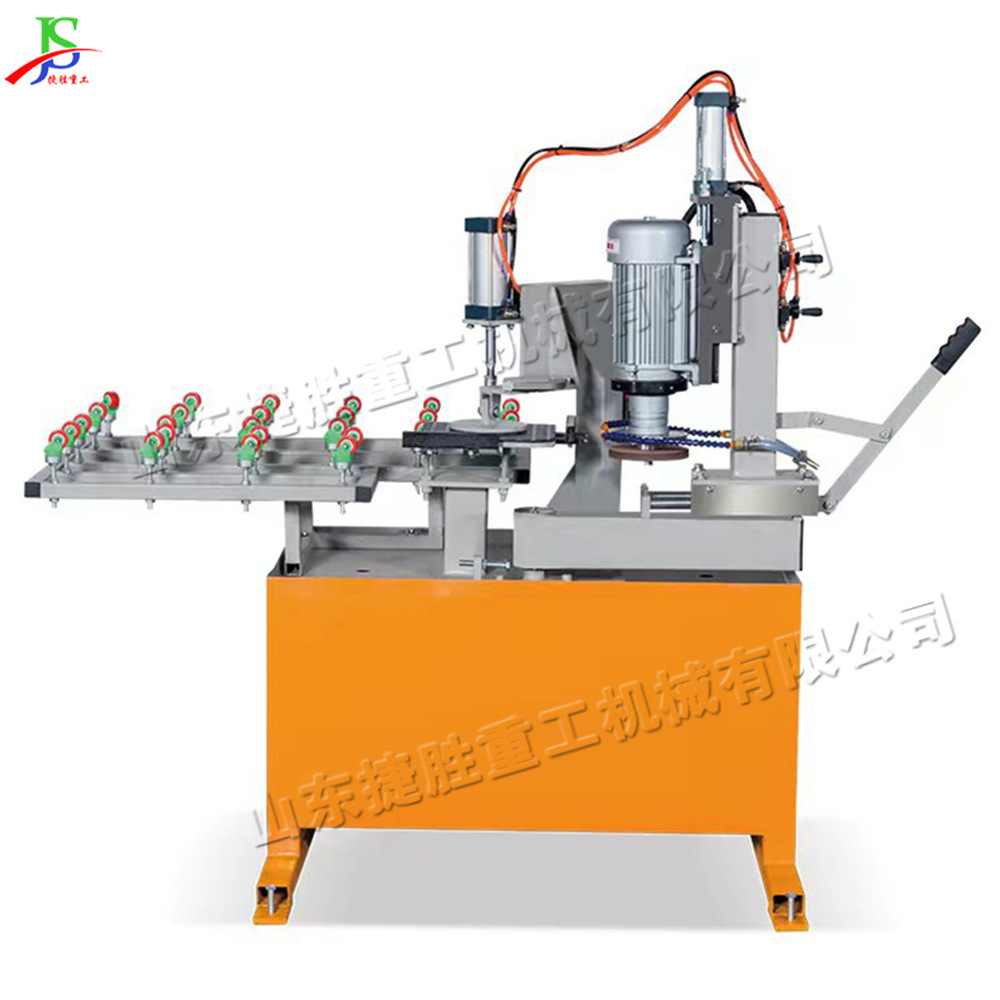

单头玻璃倒角机采用气动吸盘固定玻璃，可将玻璃直角修成圆边、方边等，可以手动升降磨头，可以更换磨头，进行粗磨、抛光。升级靠磨 磨具款，让使用靠磨定，角度精/准，调试方便快捷。操作简单，易懂。

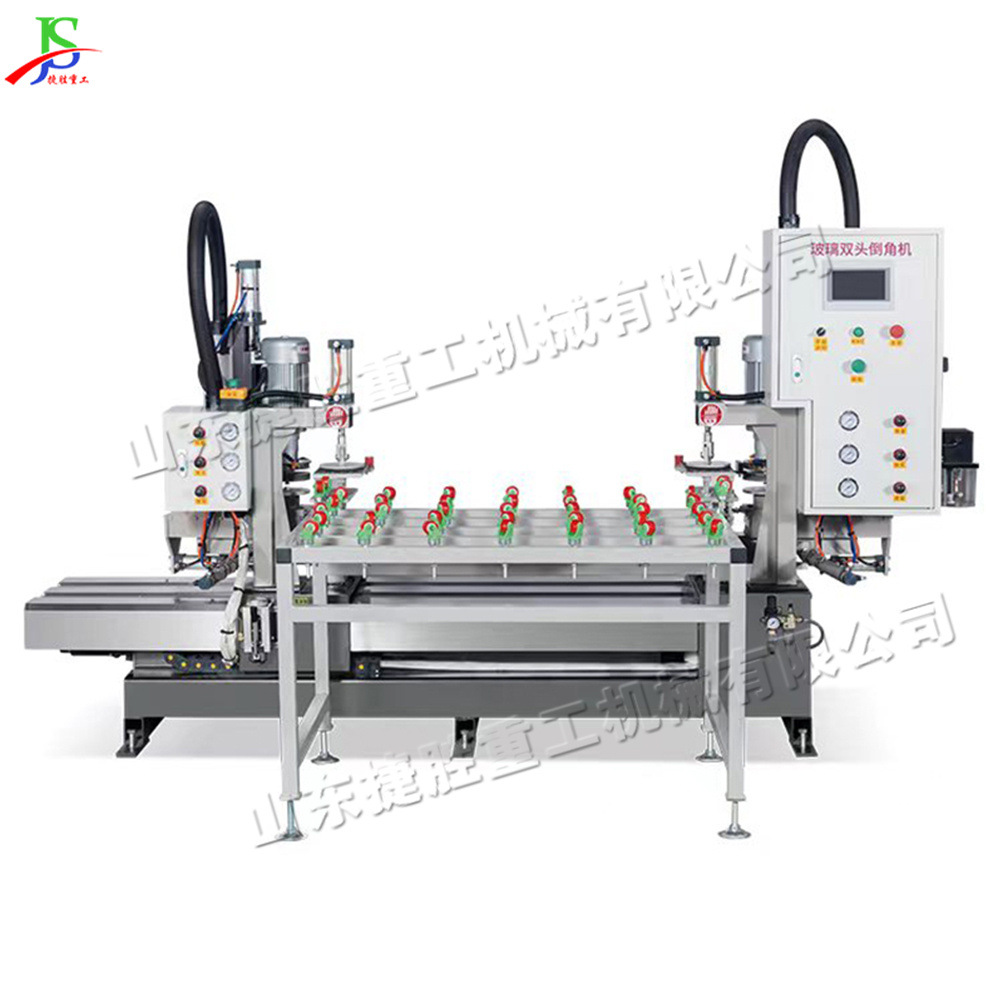

QLD1200 型气动双头倒角机，是在单头倒角机的基础上改进的优良设备根据数控编程，用气动装置可以实现粗磨抛光一体完成的设备，R 角的大小可以从 10~50mm 可更换角度磨具，在岩板家具、岩板茶几的加工上广泛应用。本控制系统采用 PLC 编程组合为控制系统，采用电柜控制。输入电源为三相交流电压，电压为380V 50HZ,和电磁阀电路为DC24V;以 PLC 显示屏操作画面，操作简单方便。
|
项目 |
单头玻璃倒角机 |
双头玻璃倒角机（1200型） |
|
电压 |
380V/50HZ |
380V/50HZ |
|
功率 |
2.2kw |
5kw |
|
加工玻璃厚度 |
3-15mm |
3-15mm |
|
zui小玻璃加工 |
300*300mm |
400mm*200MM |
|
zui大玻璃加工 |
800*1500mm |
宽度1200mm |
|
加工玻璃倒圆角半径R角 |
R5-R50mm |
R10-R50MM |
|
外形尺寸 |
长1200*宽1200*高1700mm |
2800*1200*1680mm |
|
重量 |
200KG |
1200kg |
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个和地区，并从德国、英国、法国等进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
