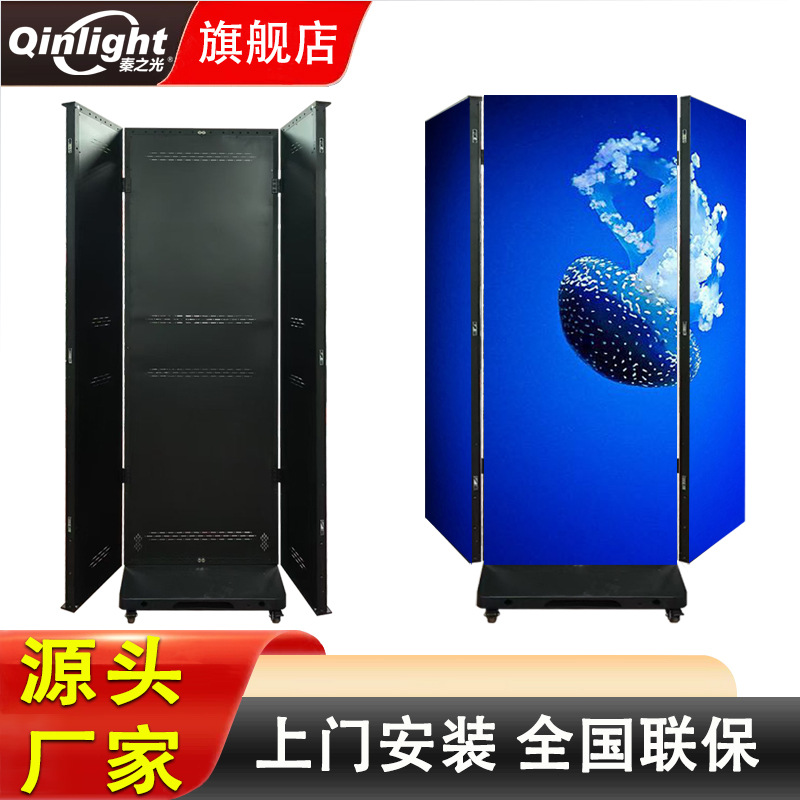

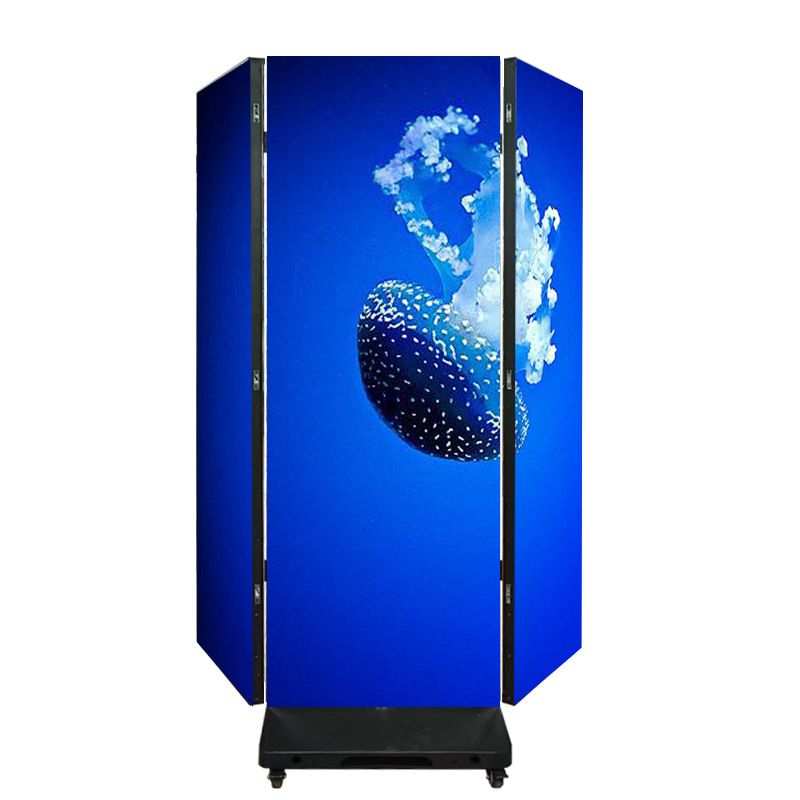

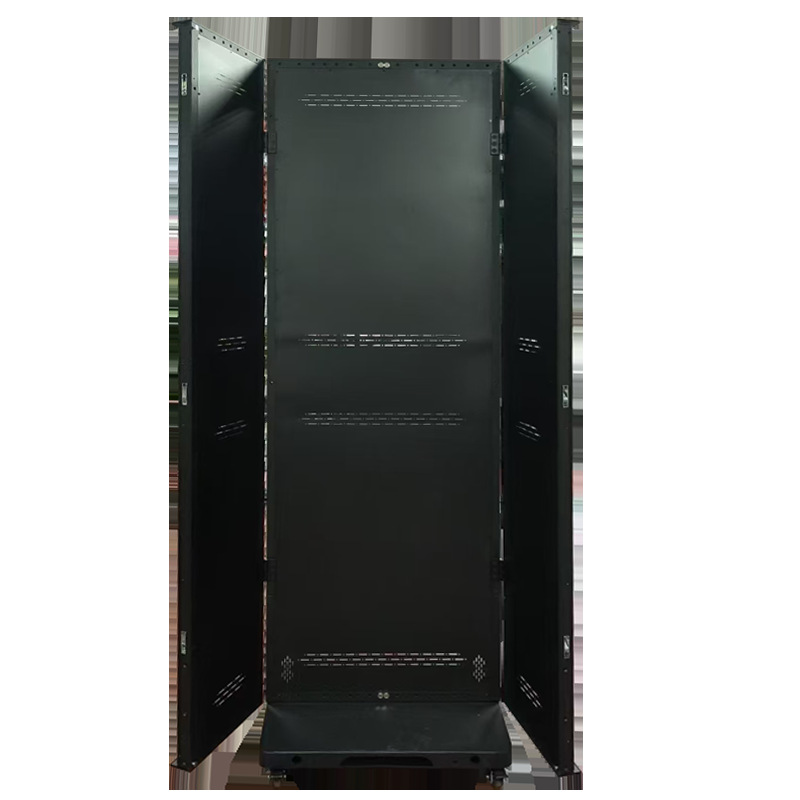

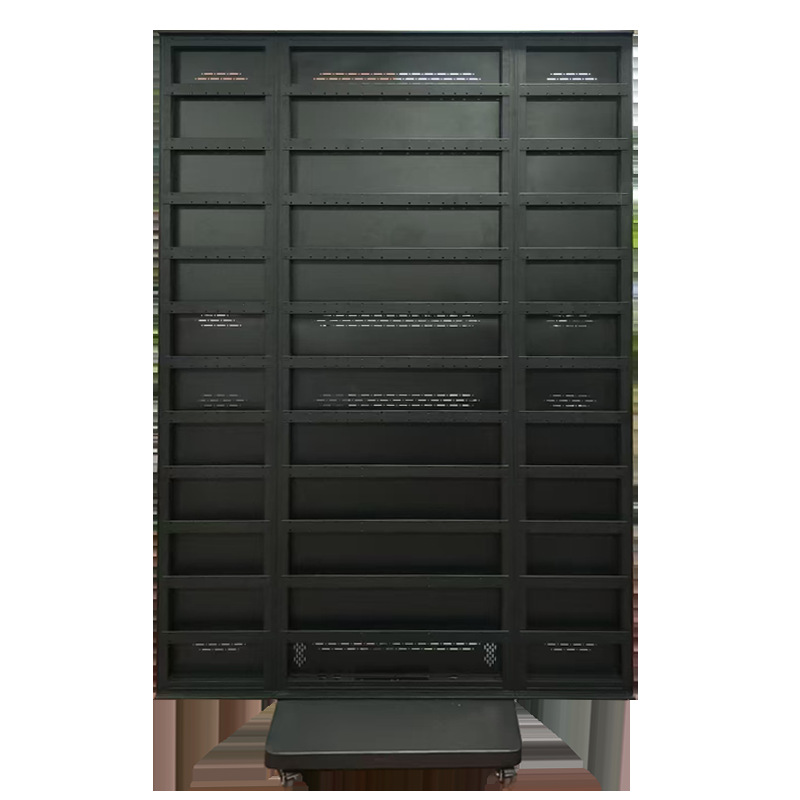

Pantalla de doble cara triple plegable para publicidad móvil Pantalla de cartel LED mantenimiento frontal Pantalla de pantalla LED plegable ultrafina independiente
Código: WB-260613-235
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Resolución | 3840x1920 |
| Origen | Shenzhen |
| Número de artículo | 01 |
| Marca | QZG |
| Tamaño desplegado | 1920*1280 |
| Tamaño del módulo | 320*160 |
Mostrar más
Descripcion
模组参数
Unit Module
项目 Item 参数 Parameter
产品型号 Model Number QZG-P2.5-64S
模组尺寸 Module size 320mm*160mm
物理点间距 Pixel pitch 2.5mm
物理密度 Pixels Density 426797点/m2
发光点颜色 Pixel configuration 1R1G1B
LED封装 Package mode SMD 3IN1 -1010
模组分别率 Pixel resolution 256dots(W)*128dots(H)
模组最大功耗 Max Power 15W
模组厚度 Module thickness 10.75mm
模组重量 Weight 0.55KG
驱动方式 Drive type 恒流驱动Constant drive
扫描方式 Scan mode 1/64扫描 1/16scan
接口方式 Port type HUB75E
白平衡亮度 Brightness of white balance ≥600cd/㎡
室内LED全彩显示屏的详细参数
以下是关于P1.25P1.53P1.86P2P2.5P3室内海报LED显示屏镜子屏广告机的一些详细参数，这些参数可以帮助您更好地了解该产品的性能和技术规格。
像素间距和物理密度
- 像素间距：1.25/1.53/1.86/P2/P2.5/P3/P4/P5mm
- 物理密度：128*64点
显示规格
- 屏体分辨率：不同供应商提供的分辨率有所不同，例如64×64点或者128×256点
- 显示基色：全彩
- 像素组成：1R1G1B（即每个像素由一个红色、一个绿色和一个蓝色发光二极管组成）
- 可视角度：水平140度，垂直140度
- 可视距离：4～160m或者3.91-100m
亮度和色温
- 白平衡亮度：≥1000cd/m²或者800cd/m²
- 色温：6500k-9500k可调
电气规格
- 工作电压：220V±10%和110V±10%可选
- 平均功耗：300～440W/m²或者280W/m²
- 最大功率：≤500W/㎡
控制系统
- 控制主机：台机商务电脑，建议使用双核CPU，具有PCI插槽
- 控制方式：同步或异步控制
- 刷新频率：≥2000帧/m
其他参数
- 使用寿命：100000小时
- 产品重量：6Kg/m²
- 存储温度：-40-85℃
- 工作温度：-20-60℃
安装方式

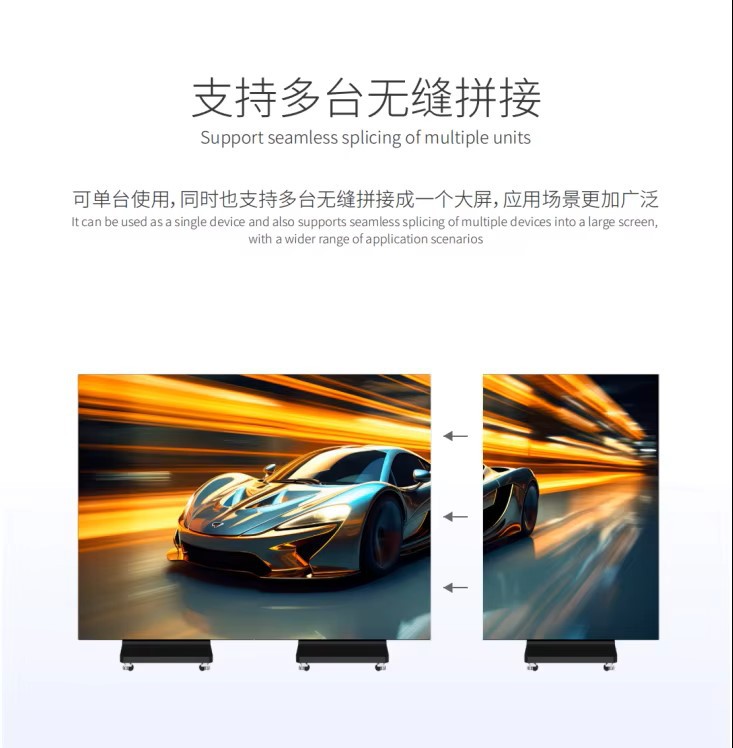

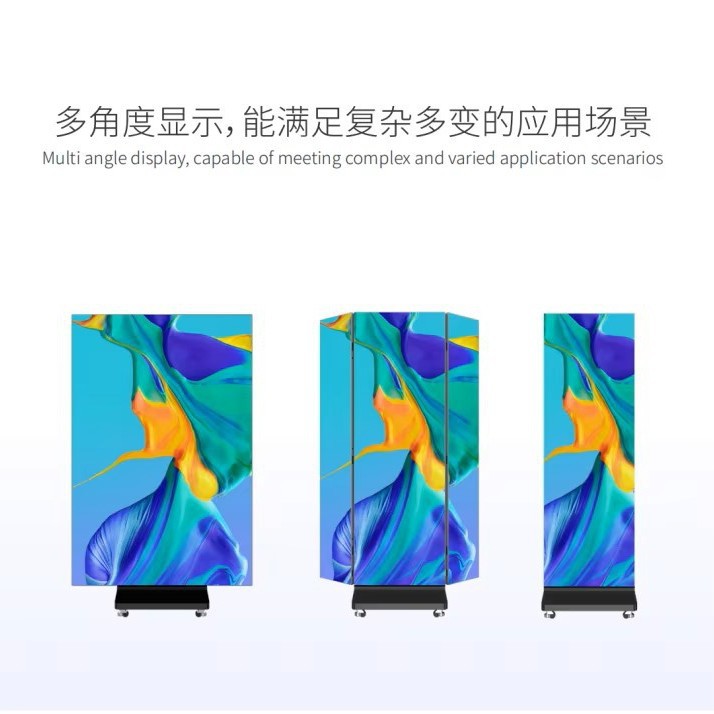

室内LED海报屏一般采用多种安装方式有拼接，展开，合并等方式。
US$ 166.667
>=1 pcs
1. Especificaciones:
Personalizado
1920 * 640 Depósito
1.Compra mínima de US$ 6,000 con productos combinados.
2.Mas cantidad, mejor precio.
