Lexia-3 Interface works with both for Citroen and for Peugeot.
1.It is compatible with most of Citroen and Peugeot cars from 1995.
2. it supports read identitication. read taut codes. clear tault codes. auto-scan etc. New version supports tor Peugeot 307
Lexia-3 lexia3 V48 for Citroen / Peugeot Diagnostic PP2000 V25 XS Evolution with Diagbox V9.85 Software Support for Peugeot 307
Top 7 Reasons to Get Lexia3 XS Evolution with Original Chip
1. Update: Bv CD
2. Support Multi-Language: English, German, French, Japanese, Russian, Spanish, Portuguese, Swedish, Turkish, Dutch, Polish, Italian, Hungary.
Greek. Czech
3. It works for both for Citroen and for Peugeot. Now support for Peugeot 307!
4. Version: Lexia3 V48, PP2000 V25, Diagbox V9.85

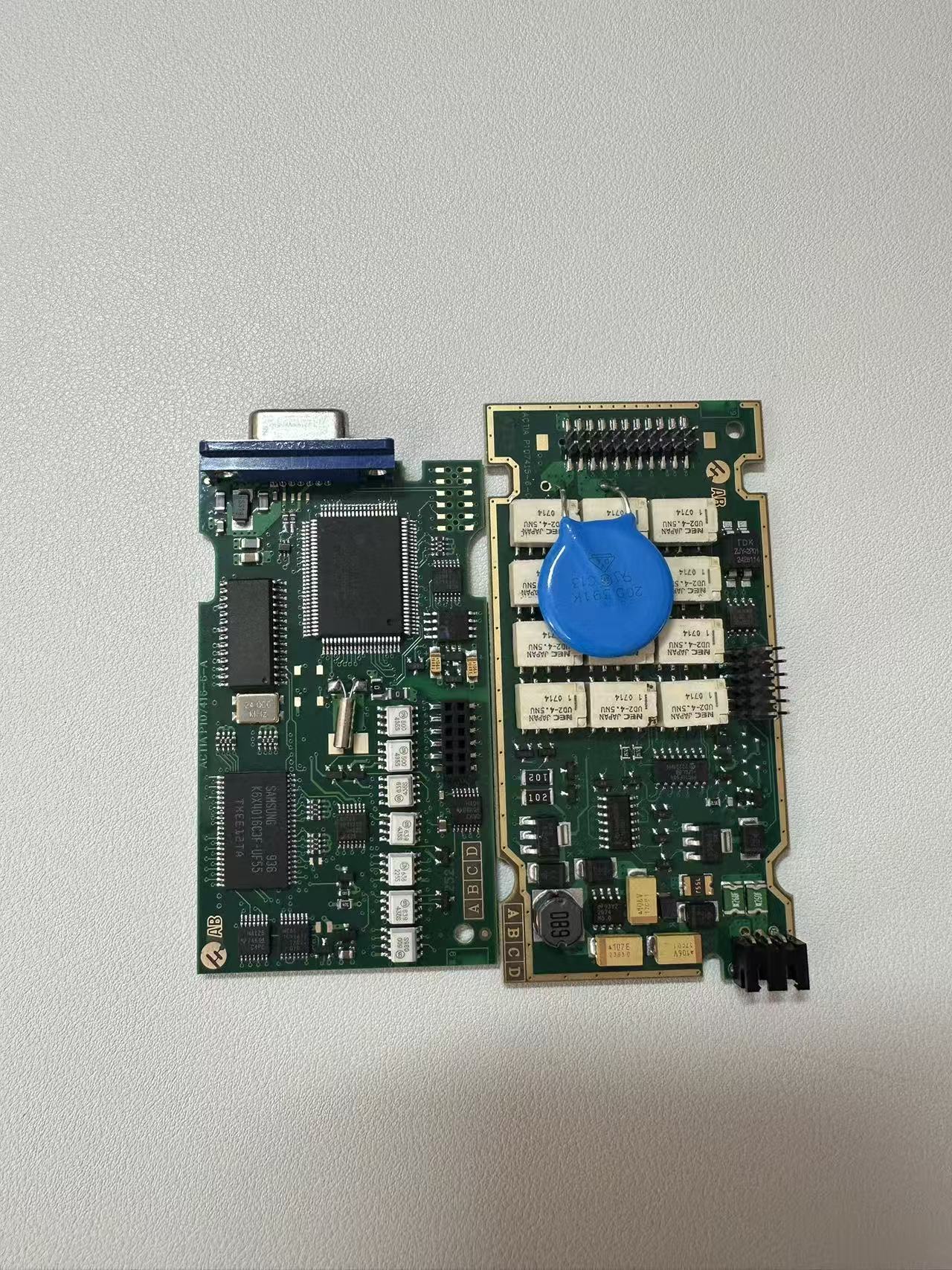

•. LexIa-3 POB edae is golden with full chips. Double PCB has /pcs optocouplers. which are new
6. lexia-3 relavs are 12pcs. which are 4 5V. it is more stable
7. PP2000 have 2pcs Optocouplers
Hardware and Software Requirements
Software requires at least Intel Celeron / Pentium III 400 MHz, 128 MB RAM, 50MB free HDD space and USB 1.1 port (USB 2.0 recommended) anc
Microsoft Windows 98 SR2 / 2000 / XP with the atest service pack installed
Please setup the software according to the requirements to hardware and software. Otherwise it will fail to setup and bring you much trouble Better to install the software on the computer with Windows < svstem.
Better to close the Anti-virus software on your computer. Because the Anti-virus may recognize it as a type of virus, it will clear off all the software on the CD.
LEXIA-3/PP2000 Function:
Unlike other universa car scanner tools which onlv read tault codes: this software performs nearlv ALL the functions like the origina deale
diagnostic tool. Our diagnostic interface contains K-Line multiplexor, CAN-BUS interfaces and SAE 1850 bus (both PWM and VPW
1 Read Identification
Displays complete identification of control unit, e.g. part number, software/hardware version, manufacturer, etc...
2. Read Fault Codes
Displays all stored and pending fault codes with complete description (e.g. "Rail pressure - too low pressure")
Program supports report printing or copy to clipboard
3 Clear Fault Codes
this tunction clears a stored taut codes and other diagnostic intormation
4. Auto-Scan (Complete Car Scan/Test)
Detects all ECUs (electronic control units) installed in car and reads all diagnostic fault codes
§ Measured Values
Program displays live Data like Engine Speed. Battery voltage. Oxygen Sensor. Coolant Temperature. etc. Values can be displaved in graph. C values at once, or full listing (all measured values). Logging to file is also supported, which allows offline analysis
6. Actuator Test
Actuator test activates particular actuator (e.g. turn on fuel pump, lock/unlock wheel, lock/unlock doors, cut off fuel, etc...)

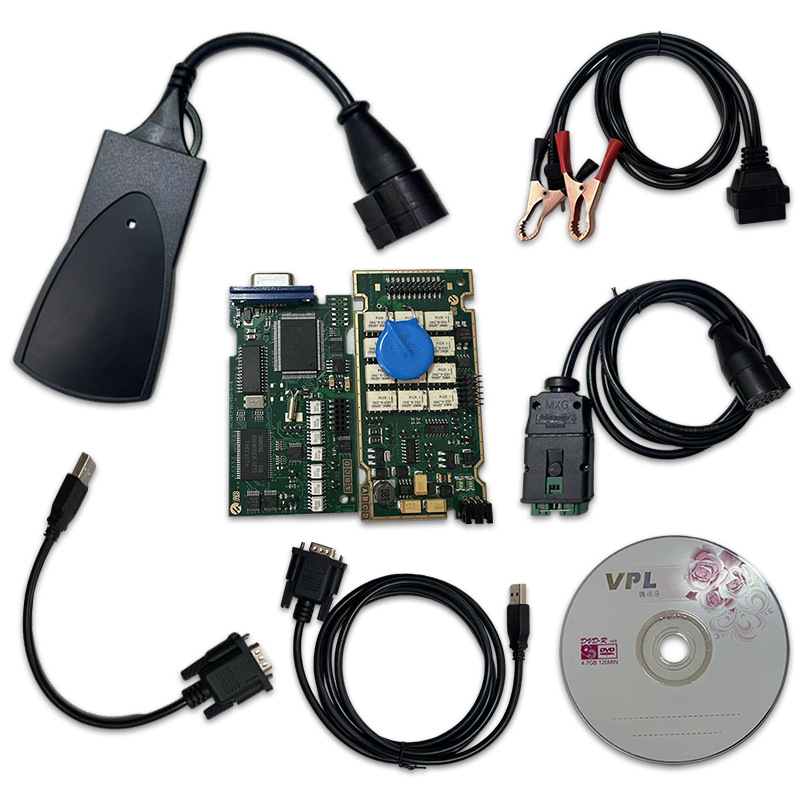

LEXIA-3/PP2000 Package List:

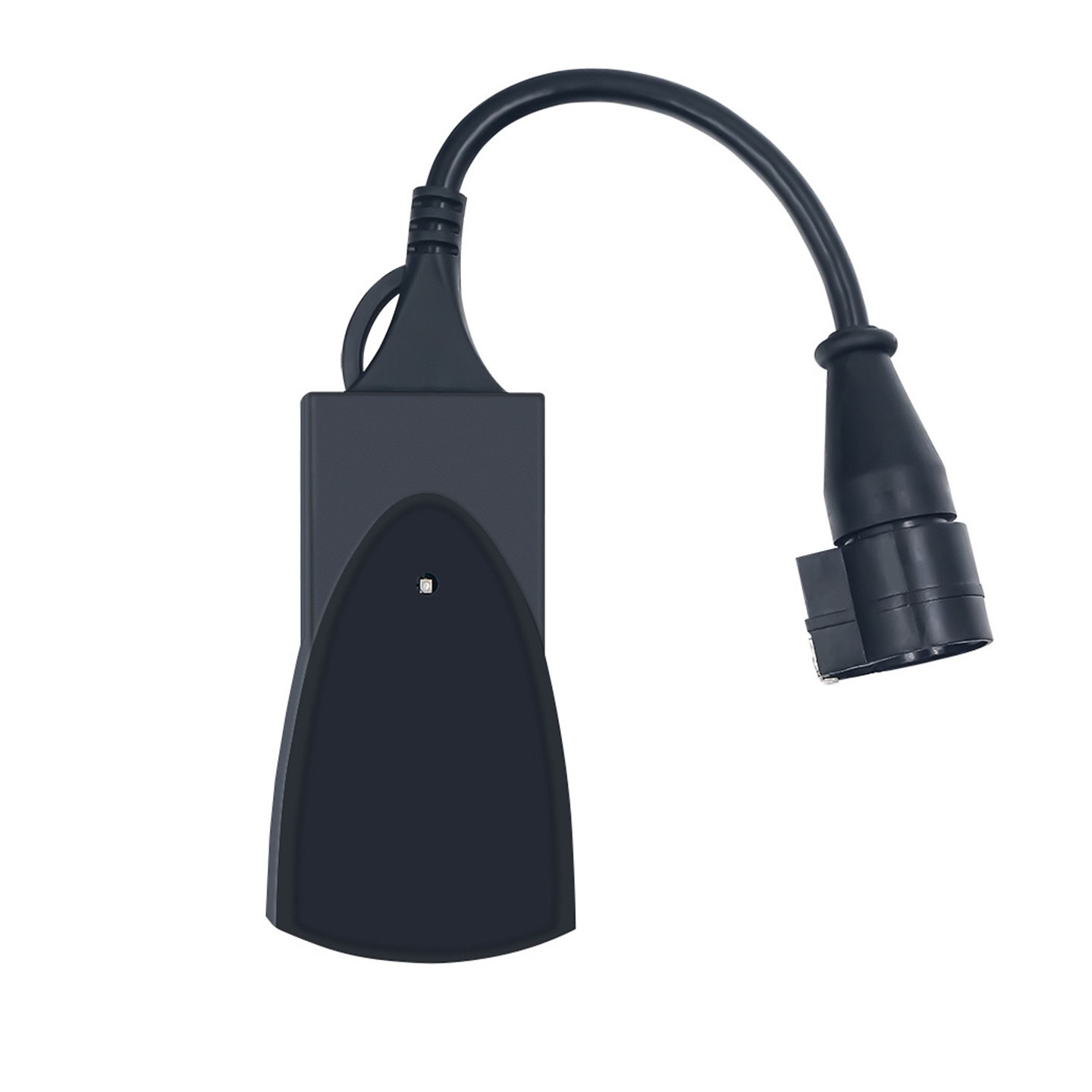

1pc x Main unit with extension OBD2 cable

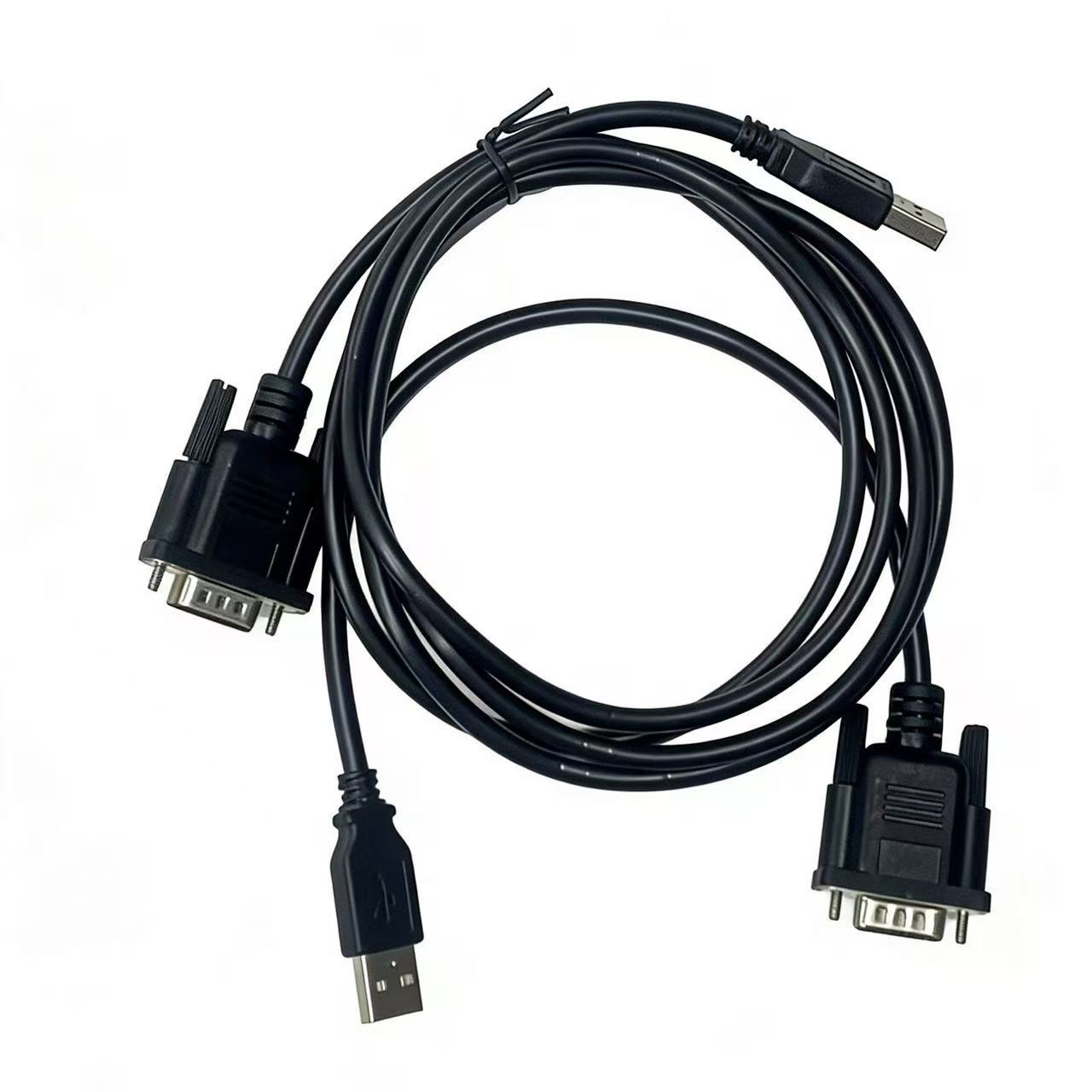

1pc x Long 9pin to USB cable
1pc x Short 9pin to USB cable

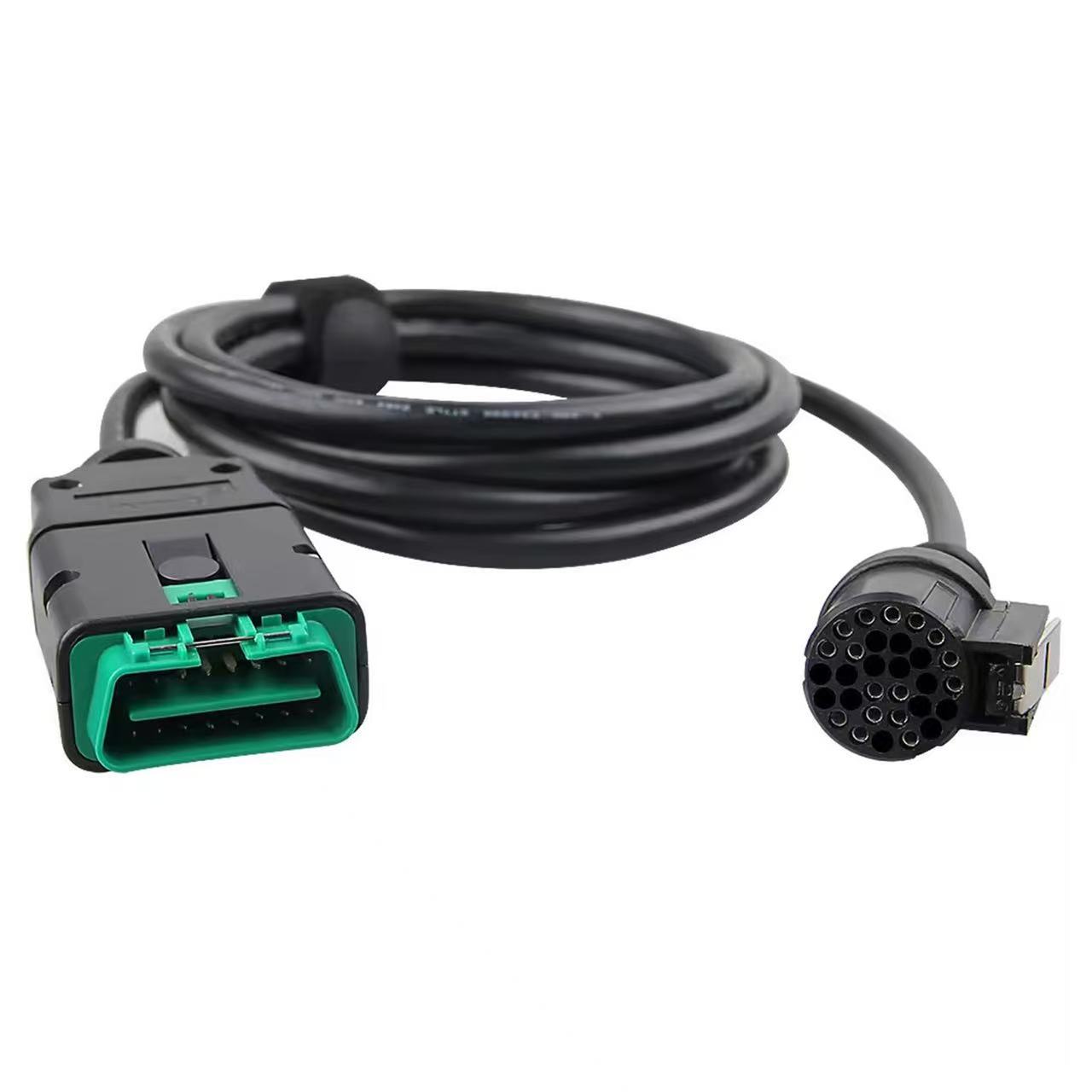

1pc x OBD2 cable
1 pc x Instruction for Installation and Activation DVD for PP2000
