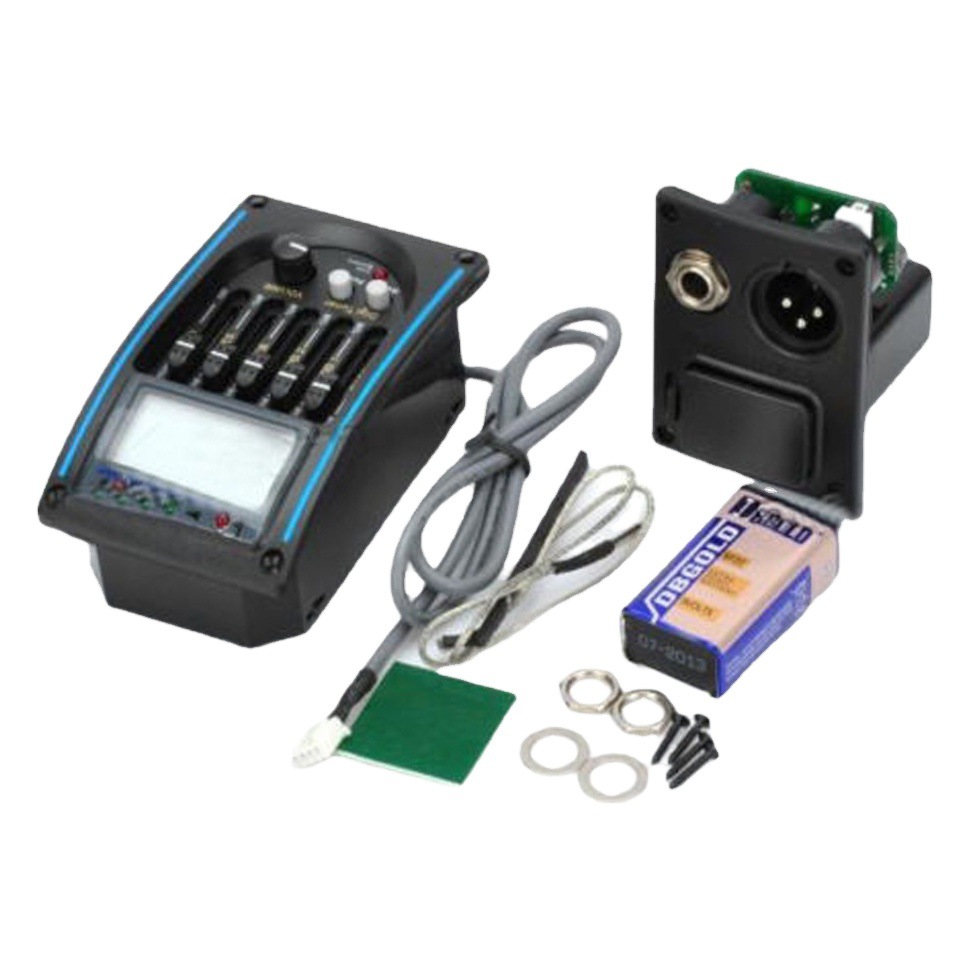

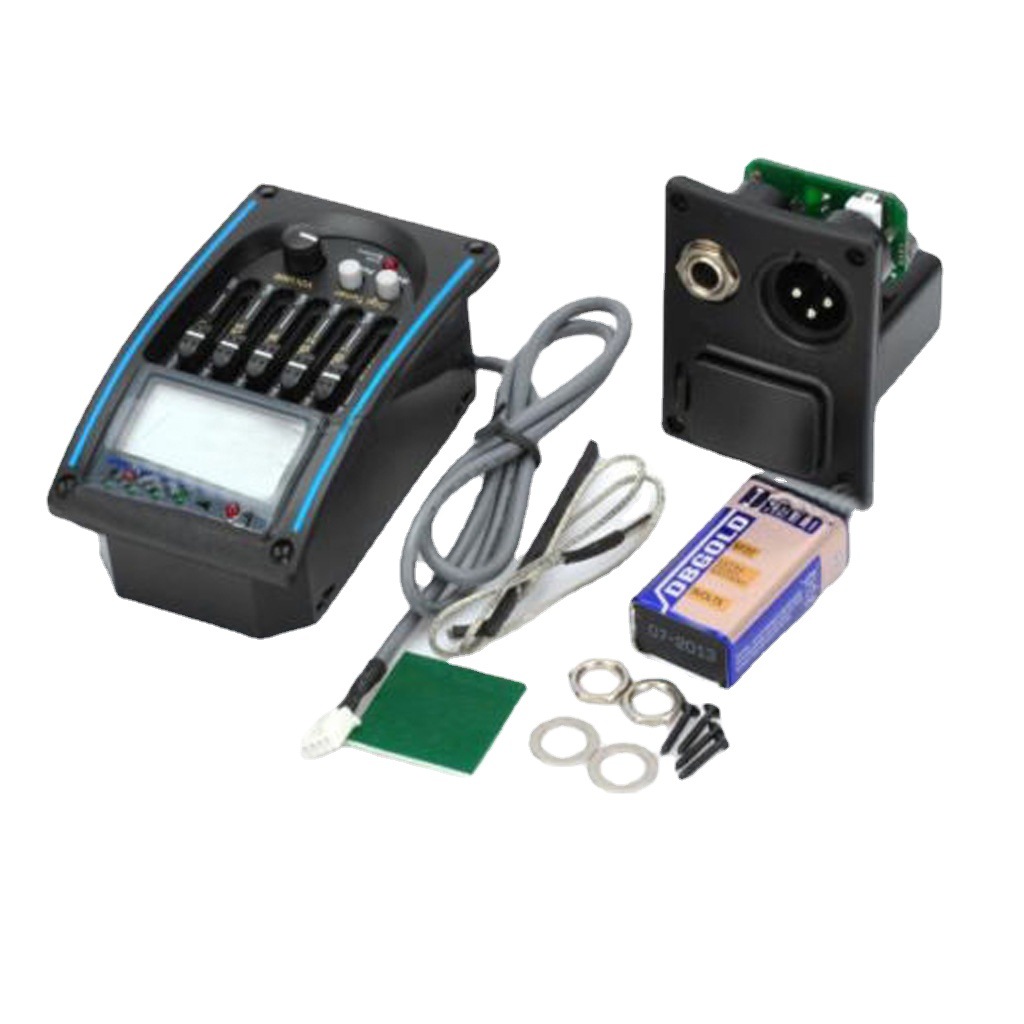

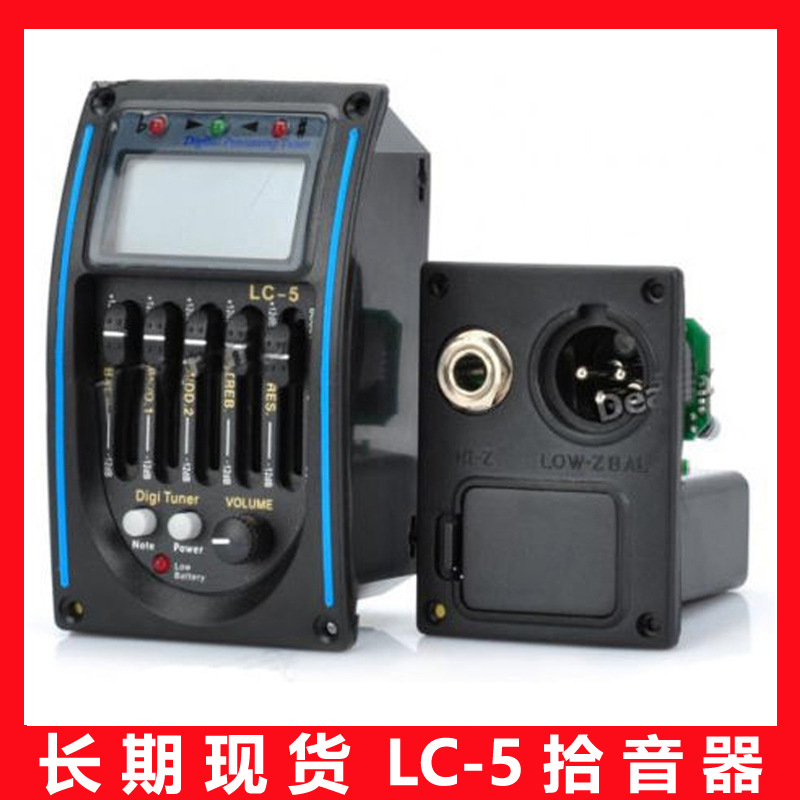

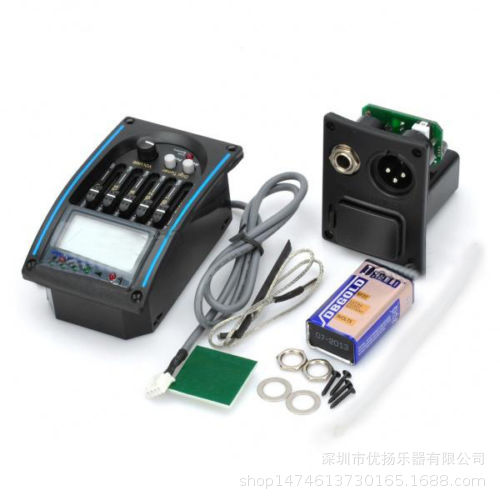

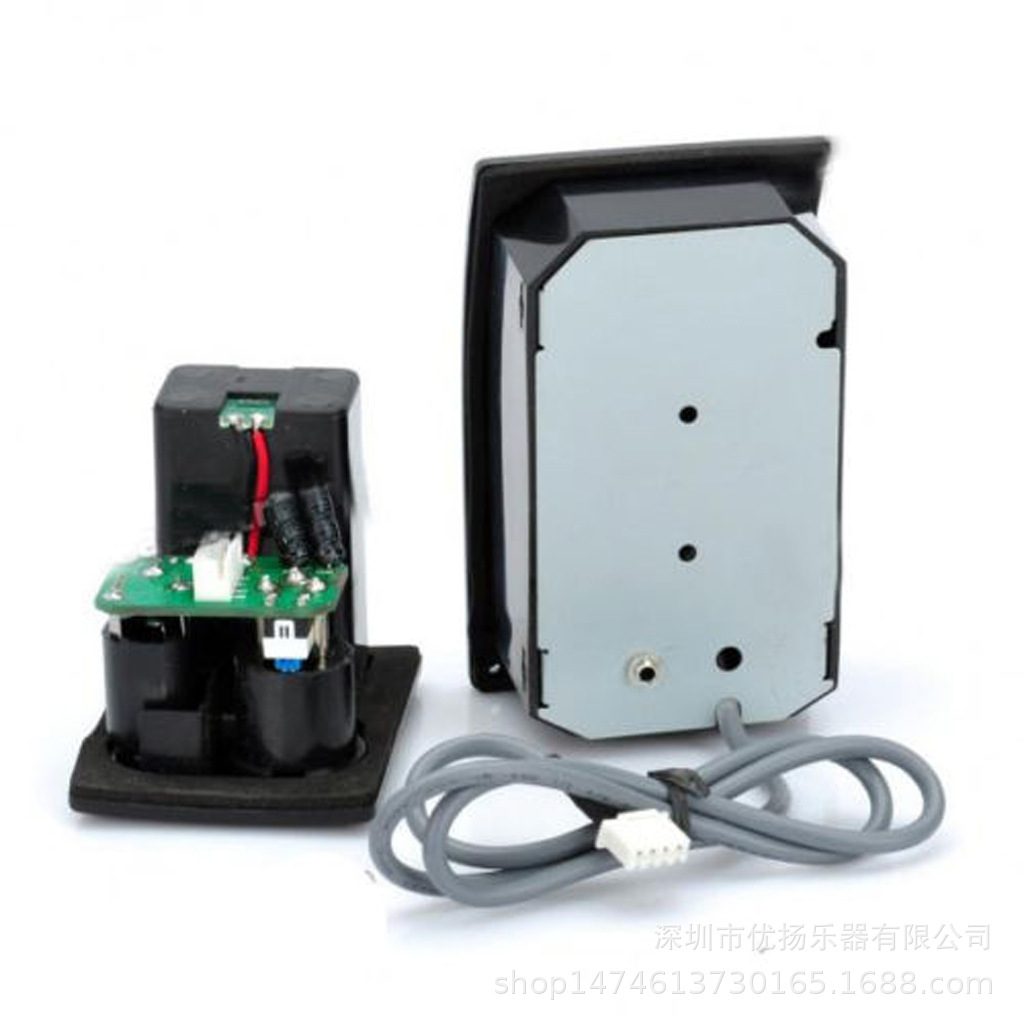

吉他拾音器EQ , Guitar equalizer 电箱拾音器 均衡器调音器 LC-5

• 品名：木吉他拾音器

  型号：LC-5 5段均衡EQ 带调音功能

  规格：5段带液晶屏

  原理：通过压电条拾取琴桥振动，9V电源驱动，传入主机，通过主机电路板信号放大，输出至音箱。本拾音器为主动拾音器。

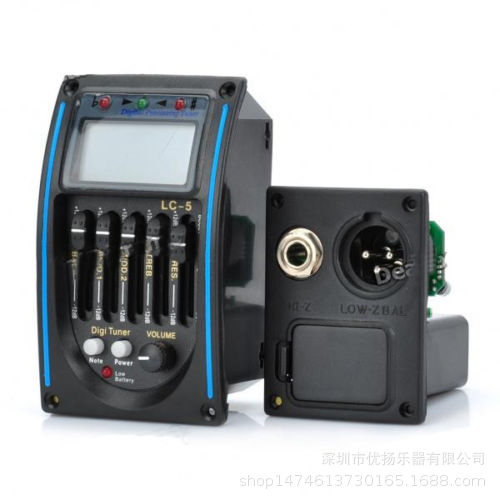

• 调节：5段均衡 高/中/低/音效 及音量控制 校音功能 定音调节
• 是否需要电池：需要

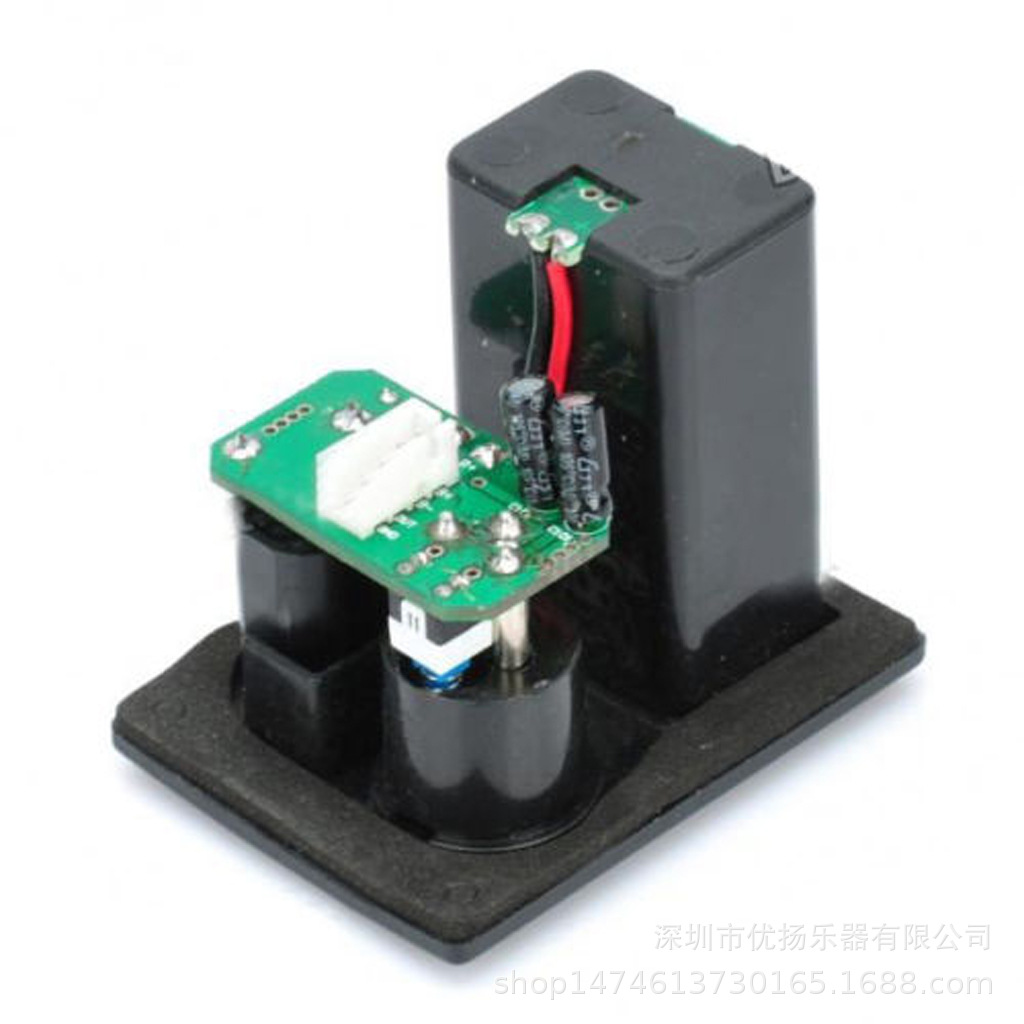

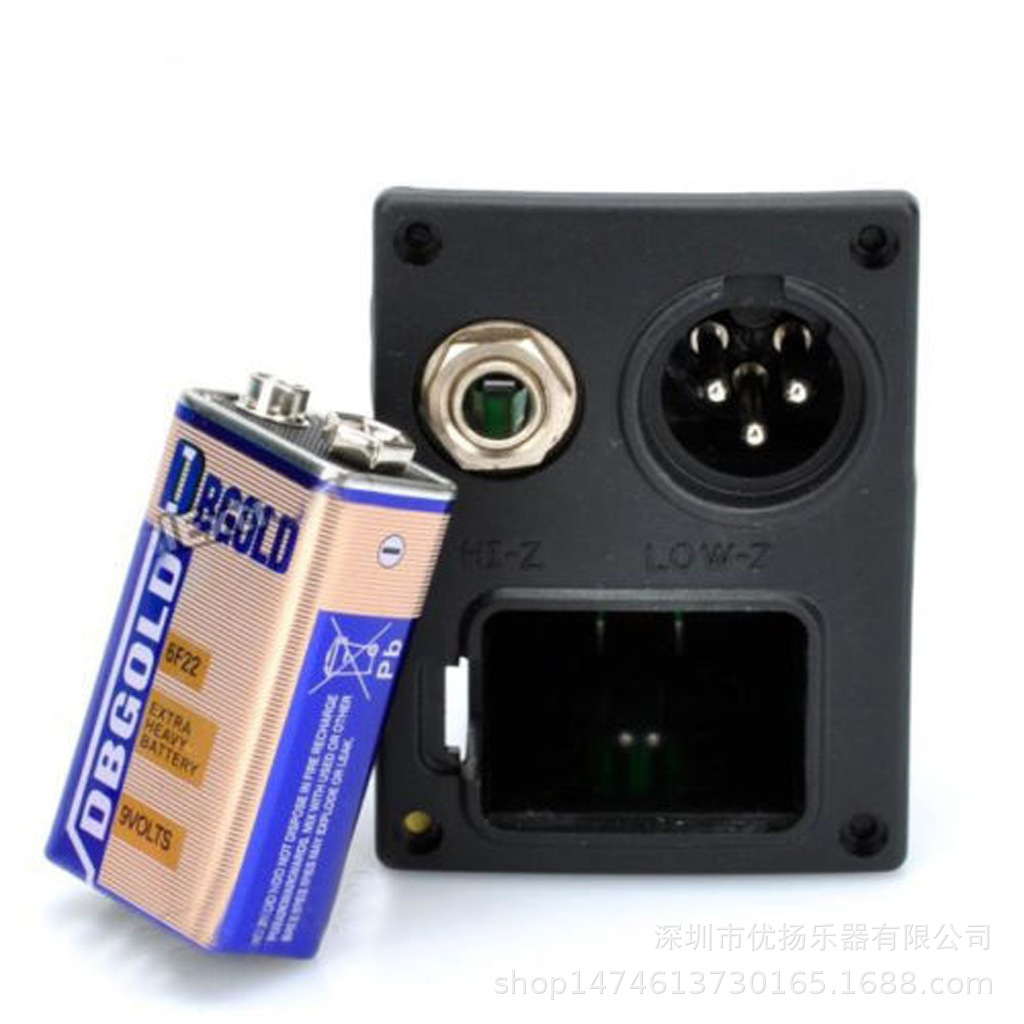

• 输出：6.5音频头输出/卡农输出口 直接接音箱
• 安装：吉他侧面开孔，安装
• 尺寸：长9.8CM 宽5.5CM
• 备注：此价格不含电池。含电池另外联系客服。

Features:
1. New and high quality
2. Professional guitar and bass tuner

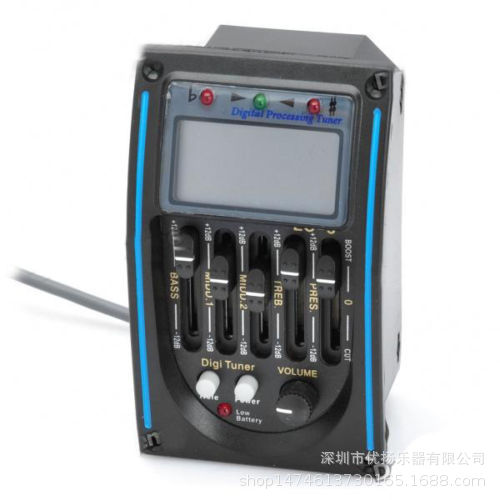

3. LCD display
4. Powered by 6F22 9V battery
5. Low battery check LED
6. Auto or manual tuning mode

Specifications:
1. Frequency Response: 20Hz~20KHz
2. Control Range: Bass: ±12dB at 60Hz
                 Middle: ±12dB at 500Hz
                 Middle 2: ±12dB at 1.2KHz
                 Treble: ±12dB at 3KHz
                 Presence: ±12dB at 8KHz
                 Mid2. Control: 600Hz~2KHz
3. Tuning note: Chromatic/Guitar Mode
4. Chromatic & Guitar Tuning Mode(7B/6E/5A/4D/3G/2B/1E)
5. Pick-up: Piezo Ceramic Pick-up
6. Dimension: 4.06" x 2.48"
7. Weight:200g
