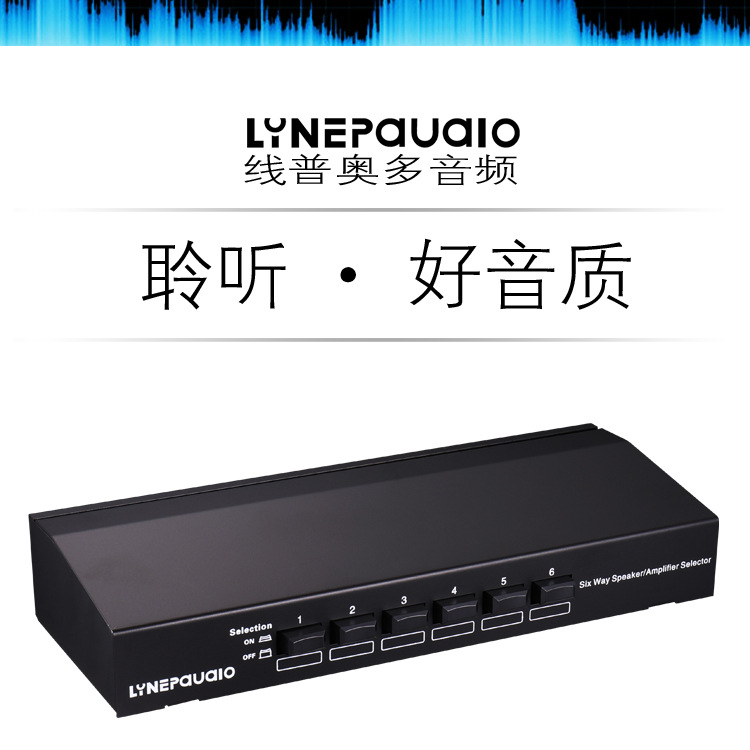

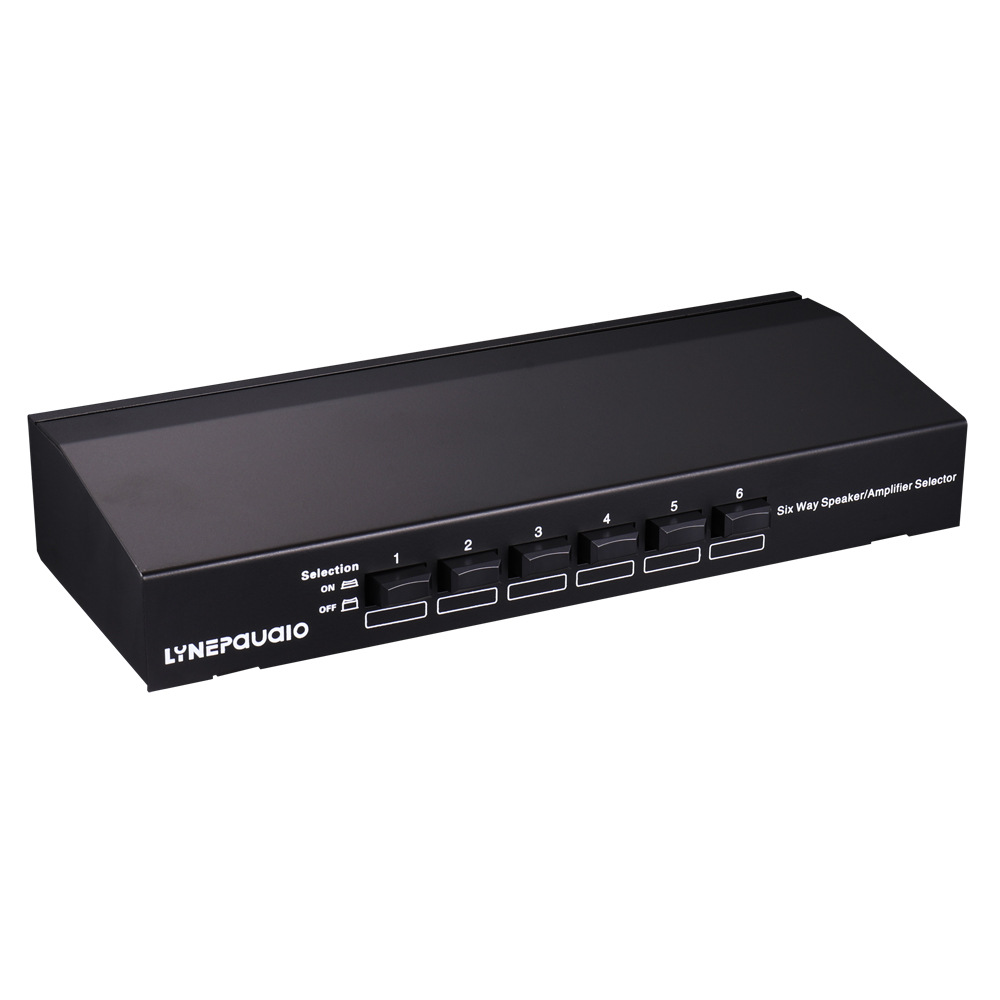

B898六路立体声扬声器/放大器比较器双向选择开关切换器

6个端口立体声扬声器选择器放大器开关切换器

该扬声器切换器允许用户将多对扬声器连接到单个立体声接收器或放大器，或者反过来连接到单个扬声器对的多个放大器/接收器。

该装置具有方便的按扣式端子，可接受多达12 AWG扬声器线。

 [注意]：此扬声器开关不允许同时选择多个扬声器对。一次只能选择单对输出。

这种扬声器选择也可以以相反的方式使用，想象有多个放大器与一个扬声器对连接用于设置。由于每个立体声放大器具有其自身的声音特性，因此用户可以将不同的功率放大器连接到该开关，然后输出到相同的扬声器对。

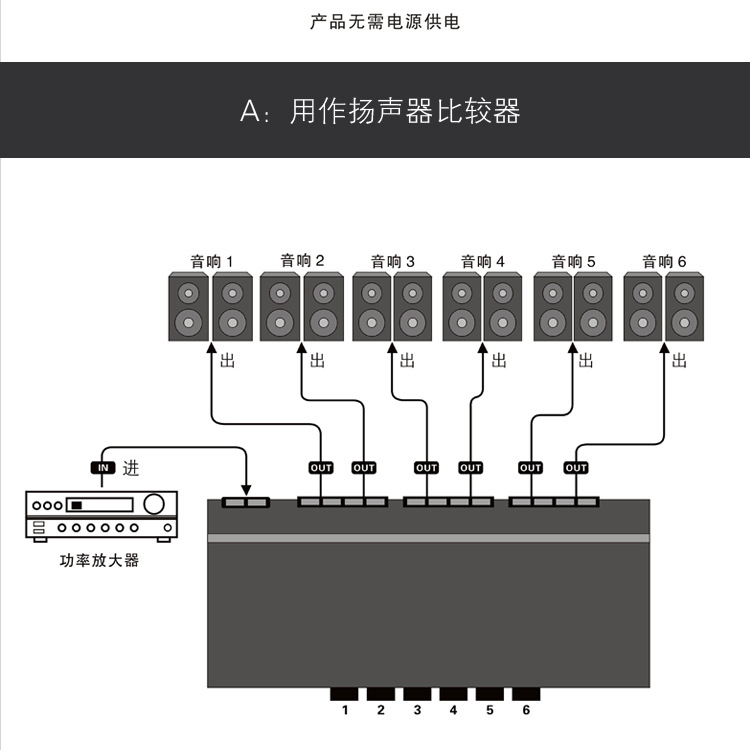

将多个扬声器连接到一个音频放大器/接收器作为扬声器一次可以选择一对扬声器。

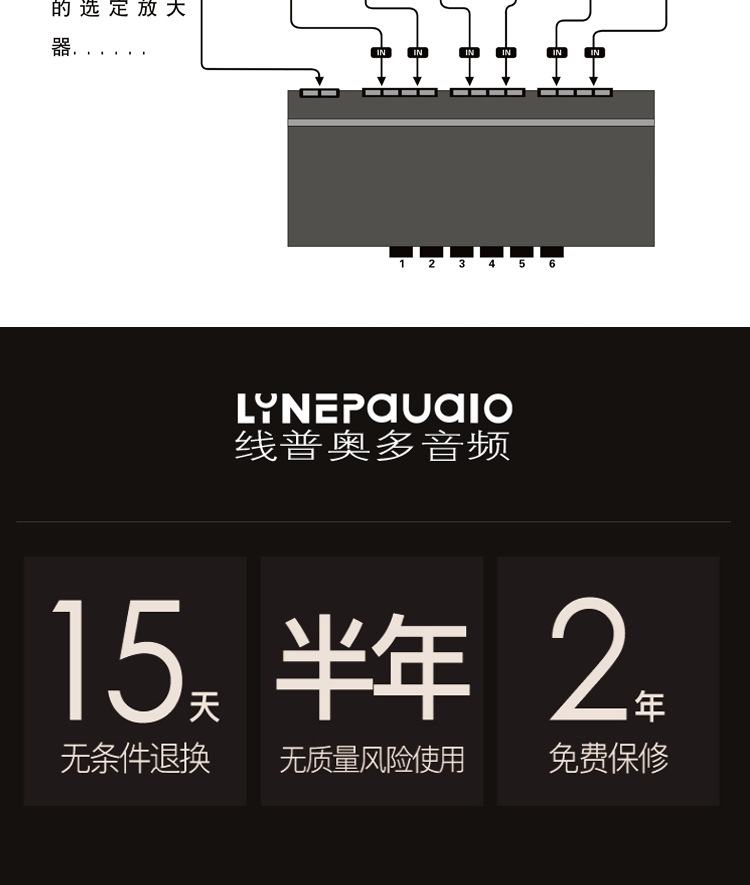

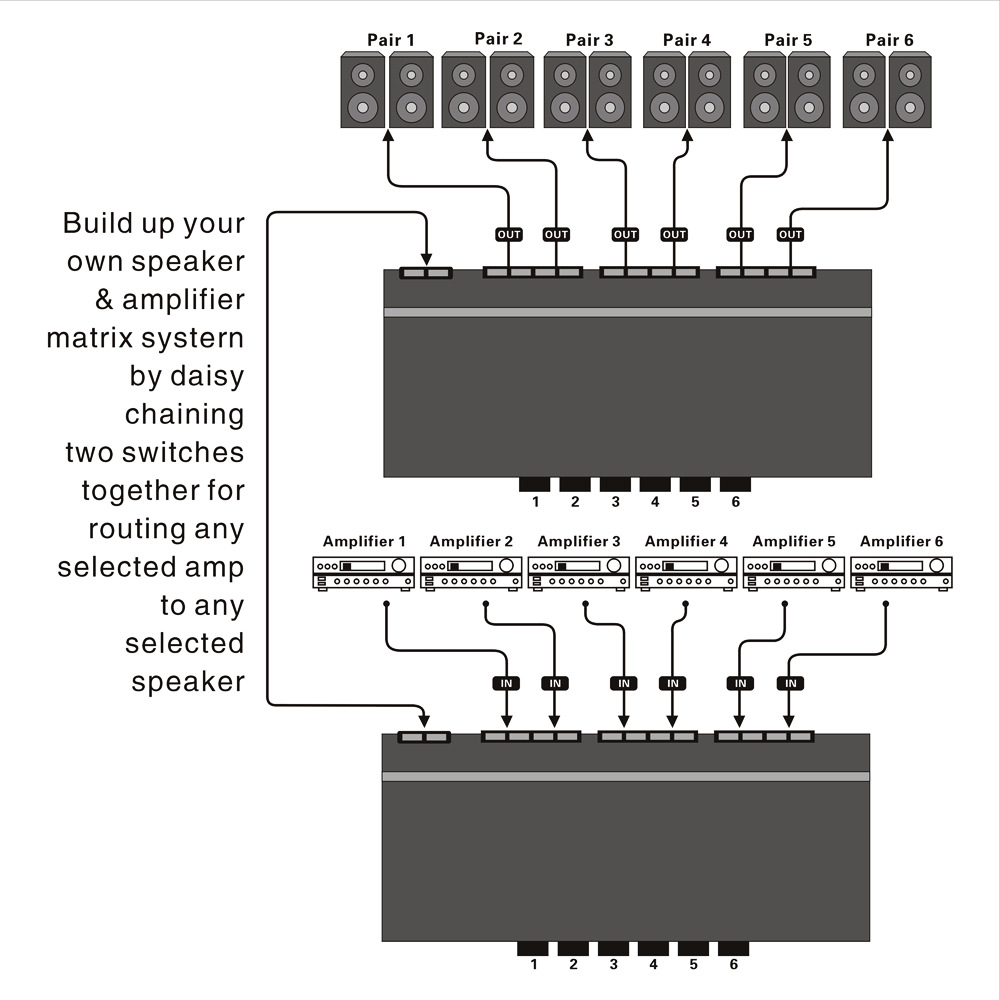

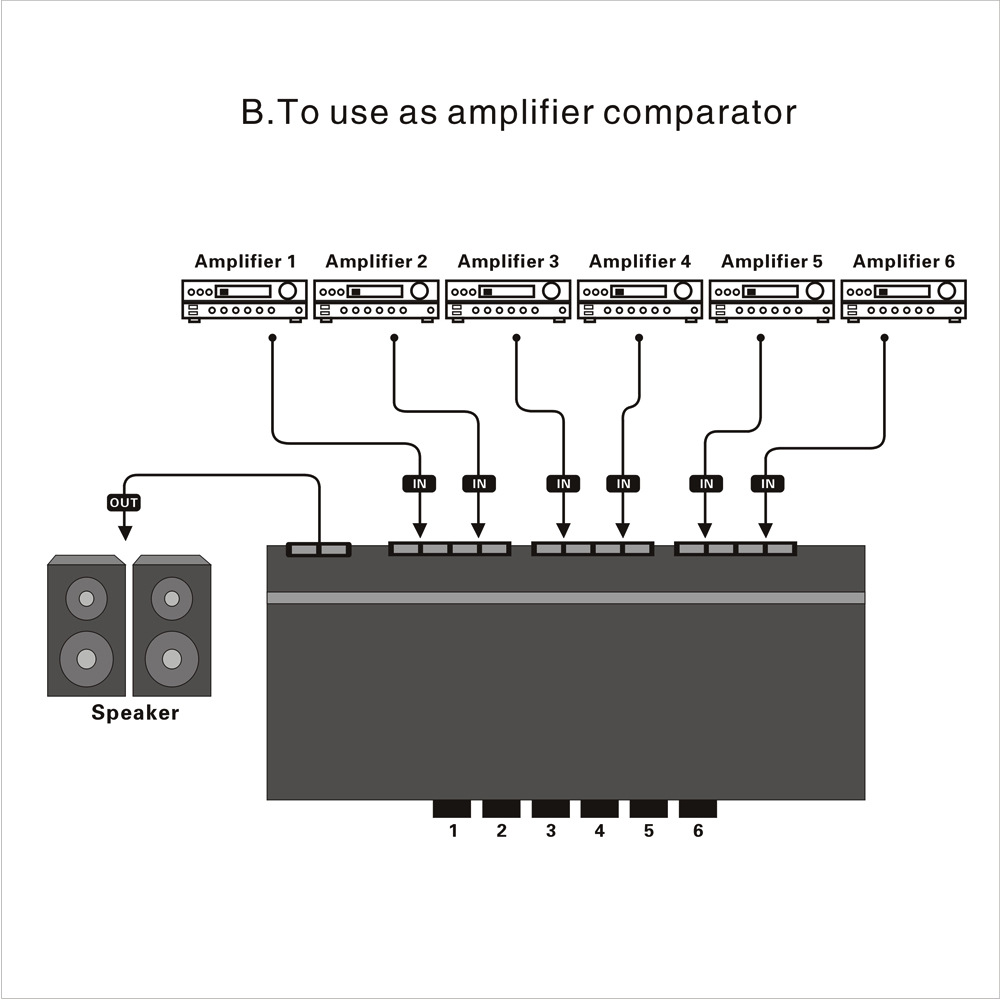

将多个放大器/接收器连接到一对扬声器作为放大器选择一次可以选择一个放大器/接收器。

高电流放大器保护电路允许连接多达6对扬声器，而不会损坏放大器。保护电路可安全地保护未选择的放大器或扬声器。

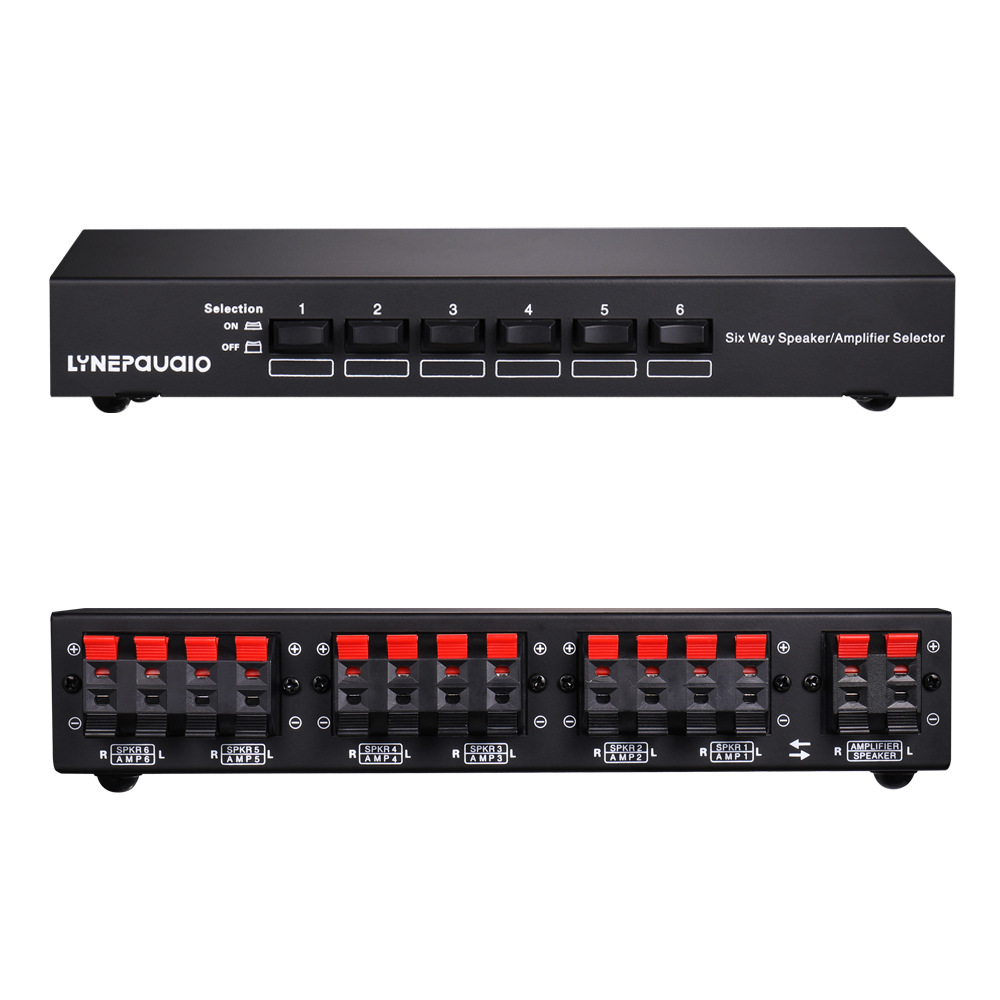

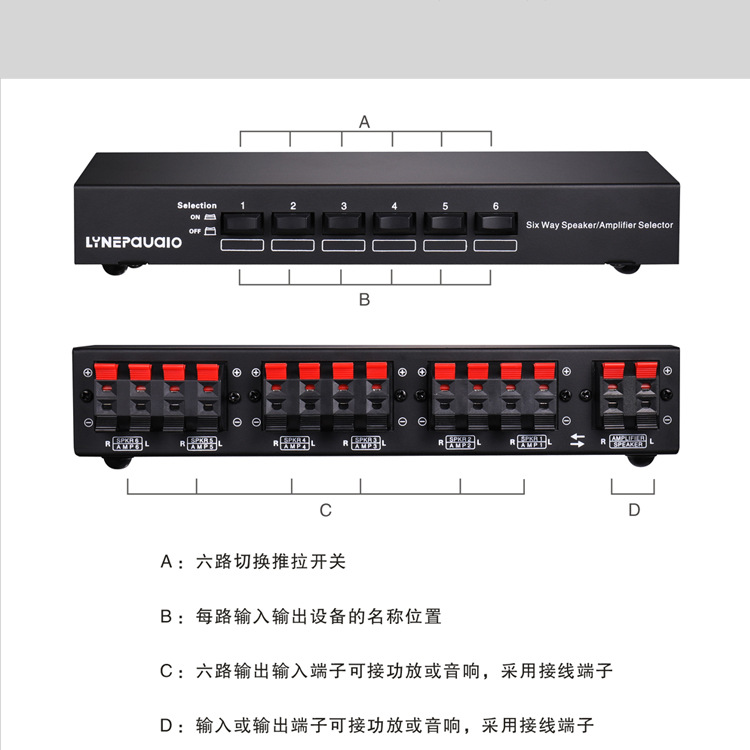

通过前面板上的手动按钮进行每次选择。独立的左/右声道接地路径，可与所有立体声放大器兼容。

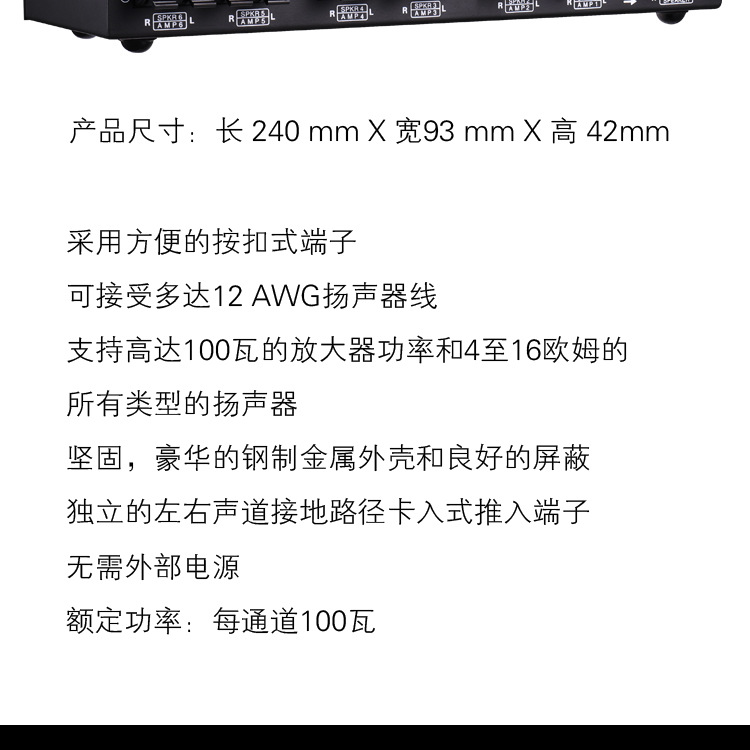

产品规格参数：

采用方便的按扣式端子，可接受多达12 AWG扬声器线。

支持高达100瓦的放大器功率和4至16欧姆的所有类型的扬声器。

坚固，豪华的钢制金属外壳和良好的屏蔽。

独立的左右声道接地路径卡入式推入端子。

无需外部电源。

额定功率：每通道100瓦。

产品净重：0.66 kg

产品包装后重量： 0.81 kg

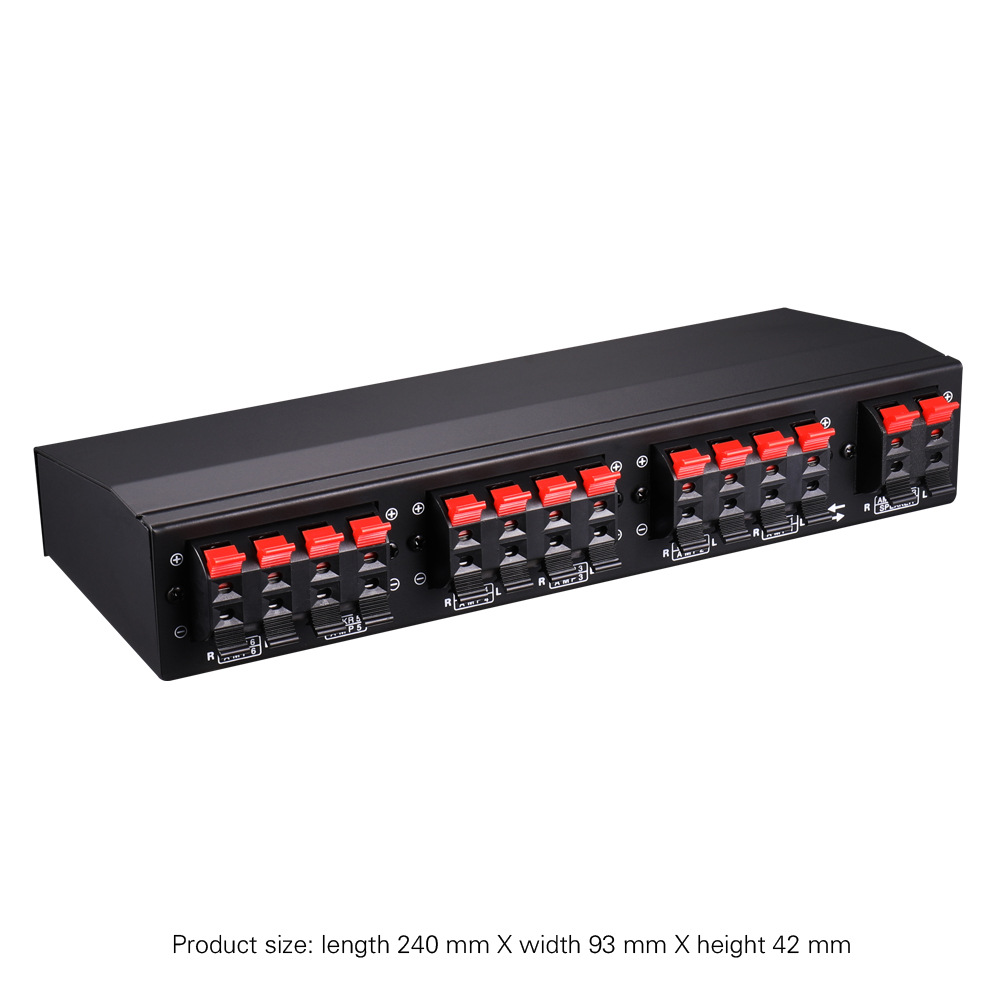

产品尺寸：长240 mm X宽93 mm X高42mm

包装尺寸：长260 mm X宽185 mm X高65 mm

套件清单:

1 X双向放大器开关选择器扬声器开关切换器

以下是跨境电商上架资料-----------------------------------------------------

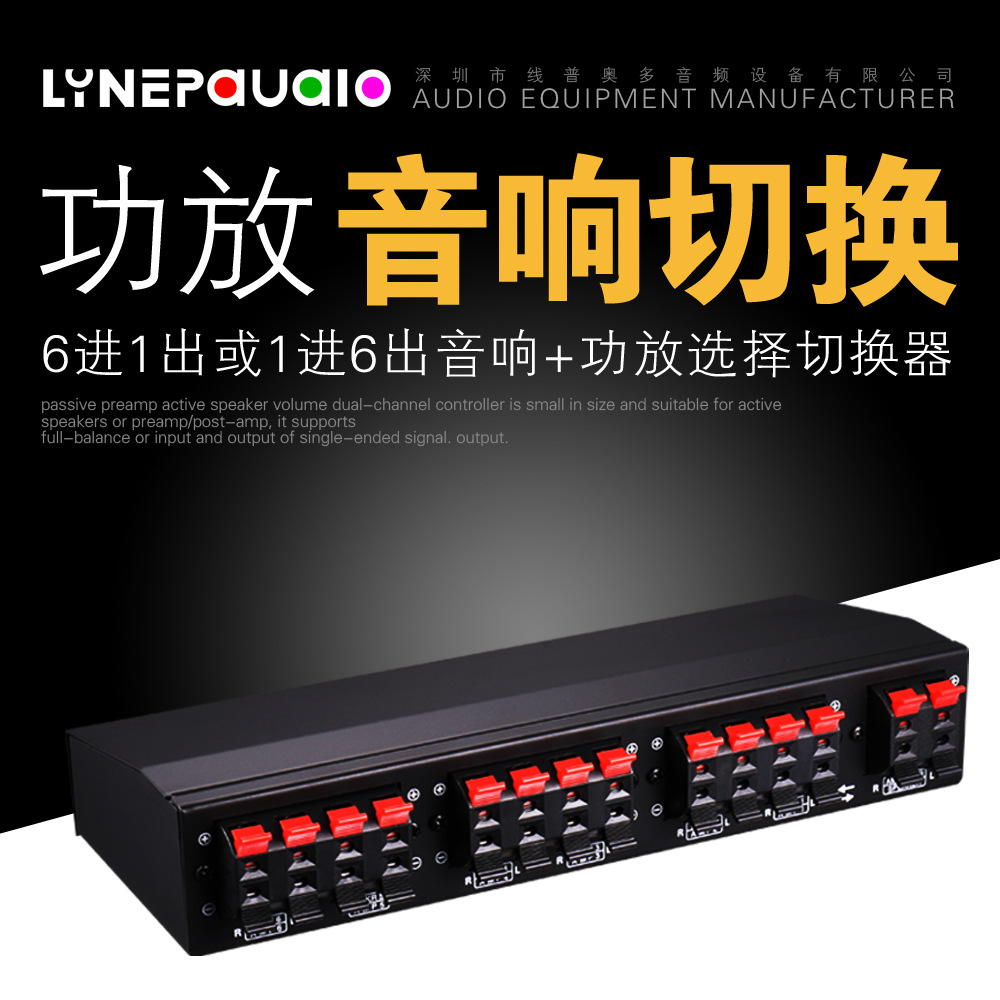

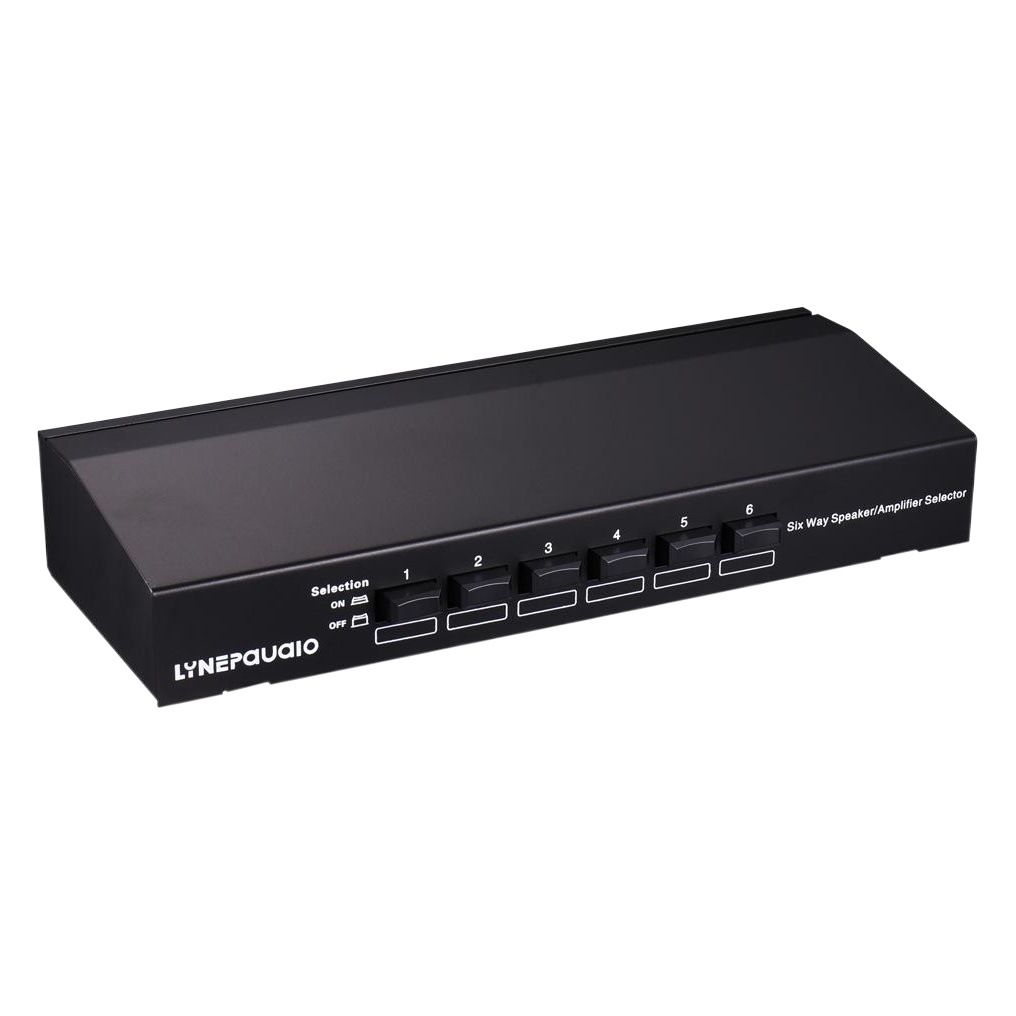

Six-way Stereo loudspeaker/Amplifier comparator Bidirectional selective switch switcher

【Product Details】产品功能介绍

6 port stereo speaker selector amplifier switch switcher
The speaker switcher allows the user to connect multiple pairs of speakers to a single stereo receiver or amplifier or vice versa to multiple amplifiers/receivers of a single speaker pair.
The device has a convenient button terminal that can accept up to 12 AWG speaker lines.
[Note]: this speaker switch does not allow multiple speaker pairs to be selected simultaneously. Only one pair of outputs can be selected at a time.
This speaker selection can also be used in the opposite way, imagine having multiple amplifiers connected to a speaker pair for setting. Because each stereo amplifier has its own sound characteristics, the user can connect different power amplifiers to the switch and then output to the same speaker pair.

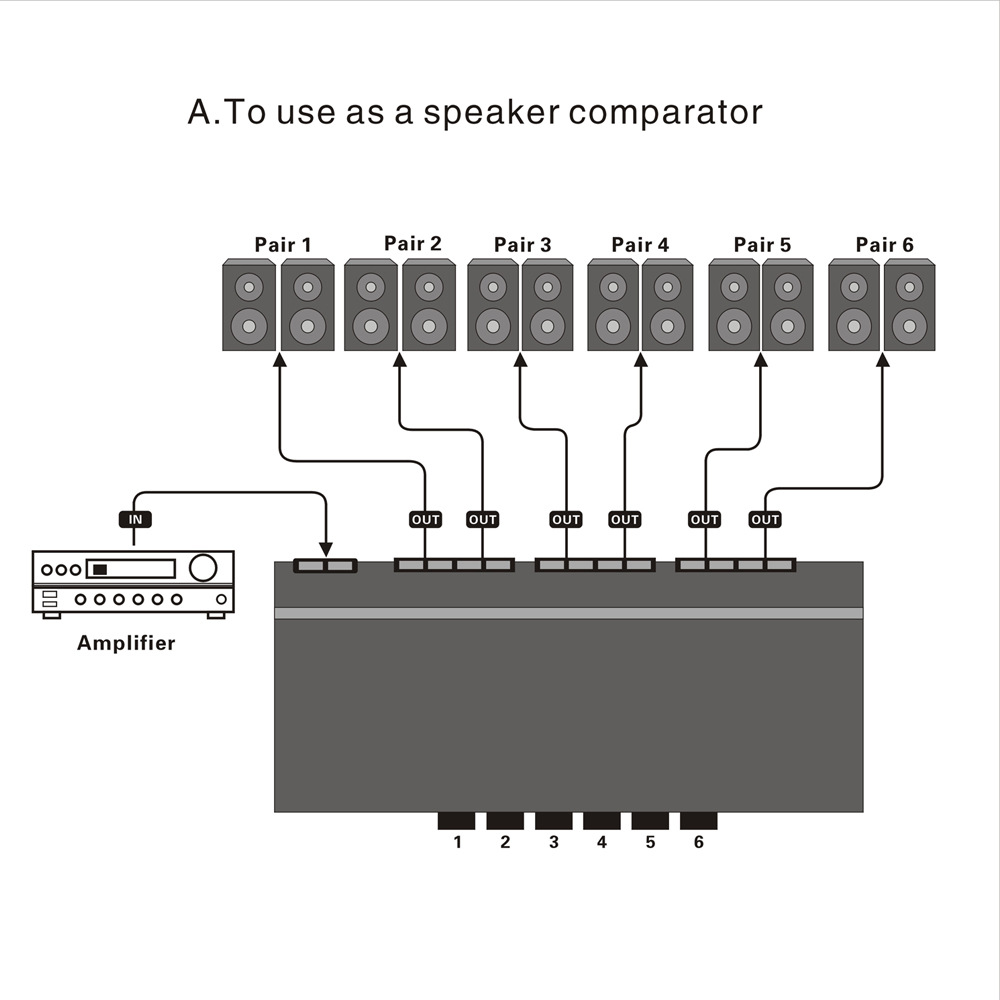

Connect multiple speakers to an audio amplifier/receiver as loudspeakers to select a pair of speakers at a time.
Connect multiple amplifiers/receivers to a pair of speakers as an amplifier selection to select one amplifier/receiver.
The high-current amplifier protection circuit allows up to 6 pairs of speakers to be connected without damaging the amplifier. The protection circuit can safely protect unselected amplifiers or loudspeakers.

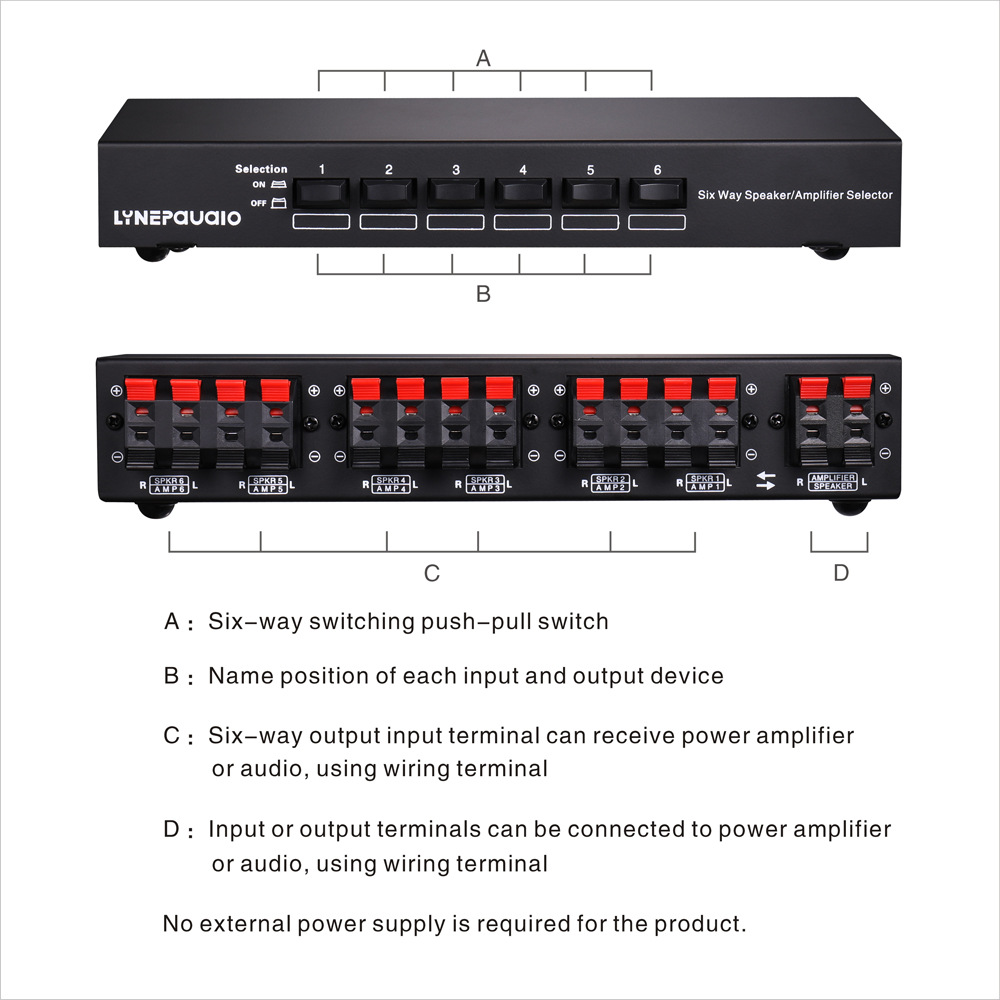

Select each time with a manual button on the front panel. Independent left/right channel grounding path, are compatible with all stereo amplifiers.

【Product features】产品参数

Use convenient button terminal, can accept up to 12 AWG loudspeaker wires.
Supports up to 100 watts of amplifier power and 4 to 16 ohms of all types of speakers.
Sturdy, luxurious steel metal case and good shielding.
Independent left and right channel grounding path-in-type push-in terminal.
No external power supply is required.
Rated power: 100 watts per channel.
Product net weight: 0.66 kg
Product weight after packing: 0.81 kg
Product size: length 240 mm X width 93 mm X height 42 mm
Packing size: length 260 mm X width 185 mm X Height 65 mm

【Packing list】套件清单

1X Bidirectional Amplifier switch selector loudspeaker switch switcher
