包装方法：6*9小PP袋/PCS,  50个装+钥匙扣=英文说明书，大量可按要求订做.

            出口欧美中东国家（巴西 米多尼加 越南 俄罗斯等等·····）

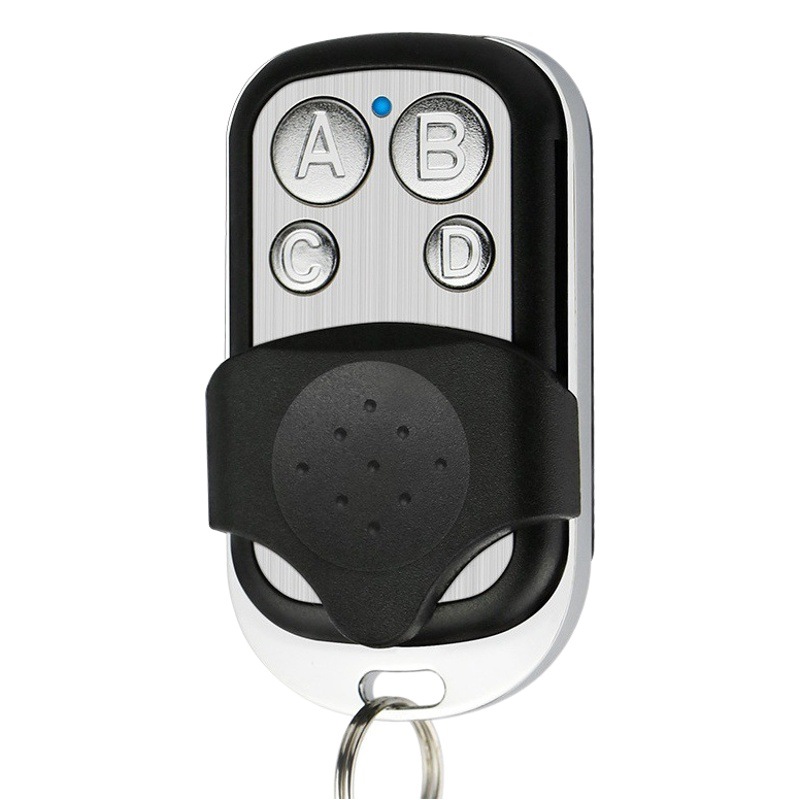

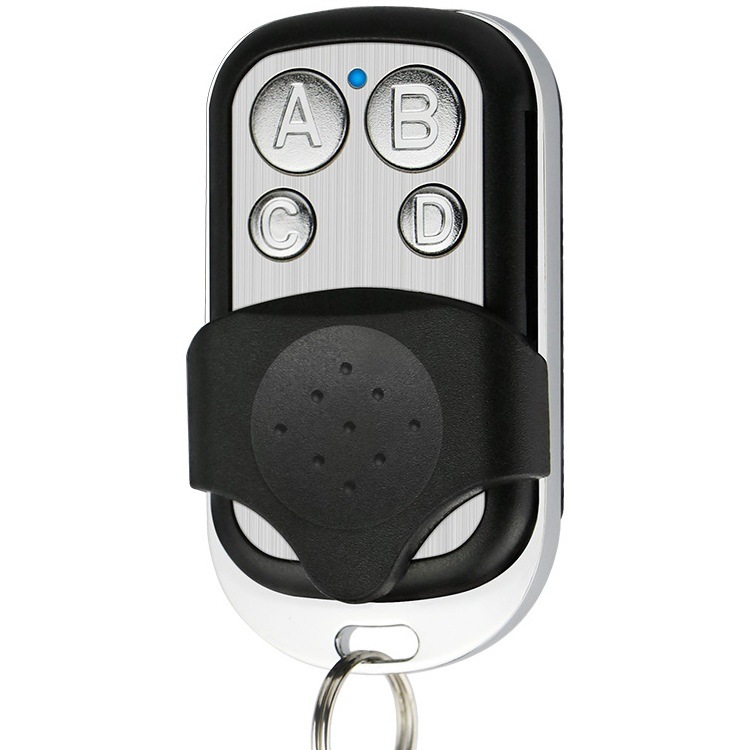

全新快速拷贝型遥控器产品说明

Descriptions of Brand-new and Fast-copy Remote Control

一、概述Overview

在配置销售的过程中很多客户都希望有一款通用的遥控器来代替原遥控器使用，可这样的遥控器至今没有出来。我们的“对拷贝型遥控器”只要您符合以下三个条件，就可在2秒钟之内轻松配置好您的遥控器。

In the configuration and selling process, most clients wish to replace the original remote control with a general remote control, while such remote control has not be developed. You may configure your remote control within 2 seconds if you meet the following three conditions:

条件一、原遥控器是能正常使用的

Condition I: the original remote control may be used normally

 条件二、清楚原遥控器的发射频率(拆开原遥控器参考下图)

Condition II: know the transmission frequency of original remote control (referring to the following diagram)

 条件三、原遥控器编码IC为PT2262 PT2264 SC2262 SC2260 HS2262 2260 LX2262 2260 EV1527  PT2240及一些非标码遥控器。

Condition III: IC of original remote control is PT2262 PT2264 SC2262 SC2260 HS2262 2260 LX2262 2260 EV1527  PT2240 or without code.

 二、对拷的方法Copying method

1、对拷前先清零操作：同时按下对拷型遥控器上排两个按键（一定要同时按下才有效），见到LED灯亮下，然后熄灭，不要松开手直到LED灯闪烁则表示清零成功。清零成功后按遥控器按键，LED灯是亮下熄灭。

Resetting before copying: press two keys on copying remote control at the same time until LED flicks, indicating the resetting is successful. After resetting, press the key of remote control, and LED will be off.

2、对拷：对拷前请注意产品的正确放置，应该将原遥控器与对拷型遥控器并排靠在一起放置在桌面。用右手按下对拷型遥控器下箭头按键不松手，见到LED灯点亮下后熄灭，示意已进入拷贝状态，用左手快速按下原遥控器上相对应按键，见对拷遥控器LED灯快闪则对拷成功，多个键对拷方法相同。

Copying: place the product correctly before copying. Place the original remote control and copying remote control on the desk. Use right hand to press the copying remote control until LED is on – off, indicating it enters to copying status. Use left hand to press the key of original remote control. The fast clicking of LED of remote control indicates success in copying. The copying method is the same as for several keys.

3、使用小巧门：如果您不小心将对拷型遥控器的码清零掉了，您想恢复过来，就同时按下排两个键不松手，见LED灯亮下后熄灭，不松手直到LED灯不停闪烁表示恢复已经成功了。

Tips: if you reset the code of remote control and want to recover, press two keys until LED light flicks.

三、技术参数Technical parameters

1、本产品可拷贝的原遥控IC型号为2262 2260 1527 2240及兼容IC等。

IC model of original remote control is 2262 2260 1527 2240 and compatible IC

2、无需考虑震荡电阻及地址编码，本产品会自动兼容震荡电阻及地址编码。

It is unnecessary to consider vibration resistance and address code. The project may be compatible to vibration resistance and address code.

3、本产品不可拷贝的IC如HCS300 301及兼容的滚码IC等。

The inapplicable IC is  HCS300 30 and compatible rolling code IC

4、本产品使用的电池为3V   2032，当遥控距离不足时请更换电池。

The battery used in the product is 3V and 2032. please replace the battery when the remote control distance is insufficient

5、本遥控器为固定工作频率，常用为315MHz；433MHz。可定制其它频率

The fixed working frequency is 315MHz；433MHz; other frequencies may be customized.

产品简介:

性能特点：
1.外形设计小巧美观，无需布线
2.即装即用，安装使用非常简单便捷
3.采用无线射频技术，传输距离远，无方向性，传输灵敏度高，无信号阻隔
4.外壳采用进口优质ABS阻燃材料生产制作，使用安全可靠
