本公司所售产品为出国外定制产品，国内使用者如是在国内使用请勿下单.

跨境包裹密封袋装：15g.中英文说明书.无电池无磁

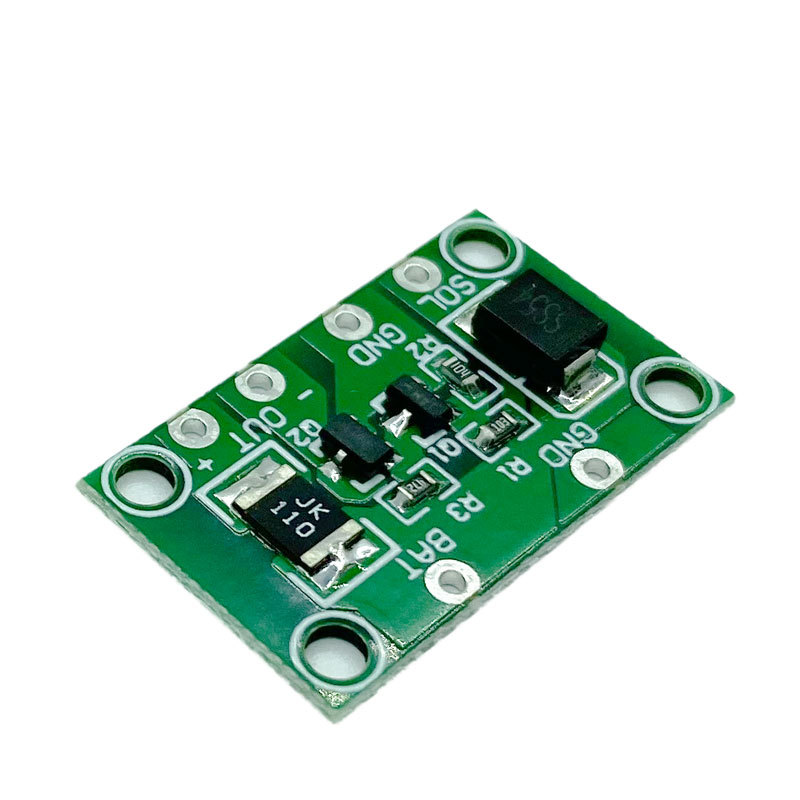

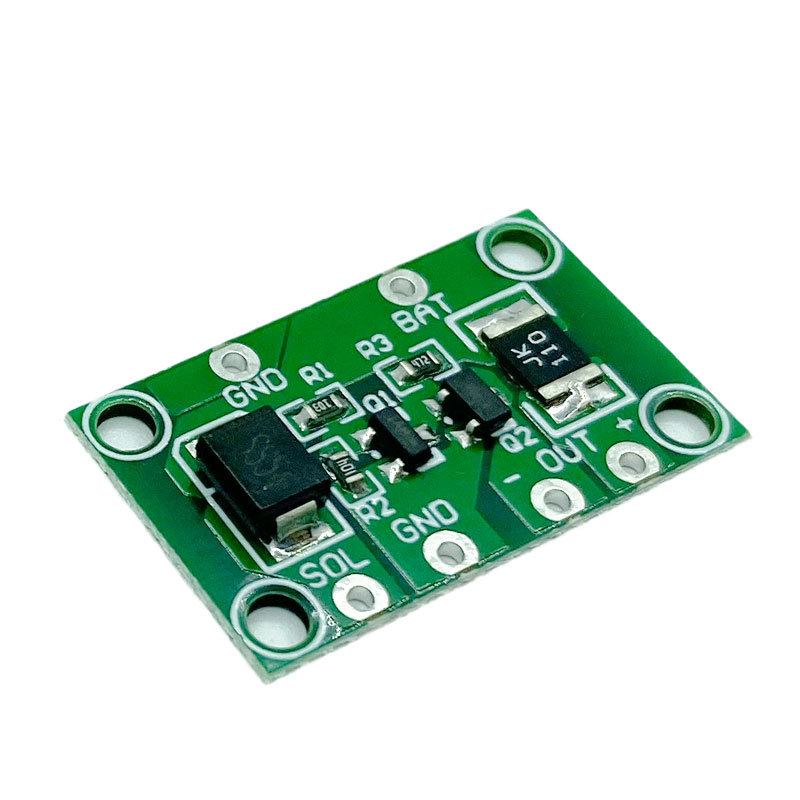

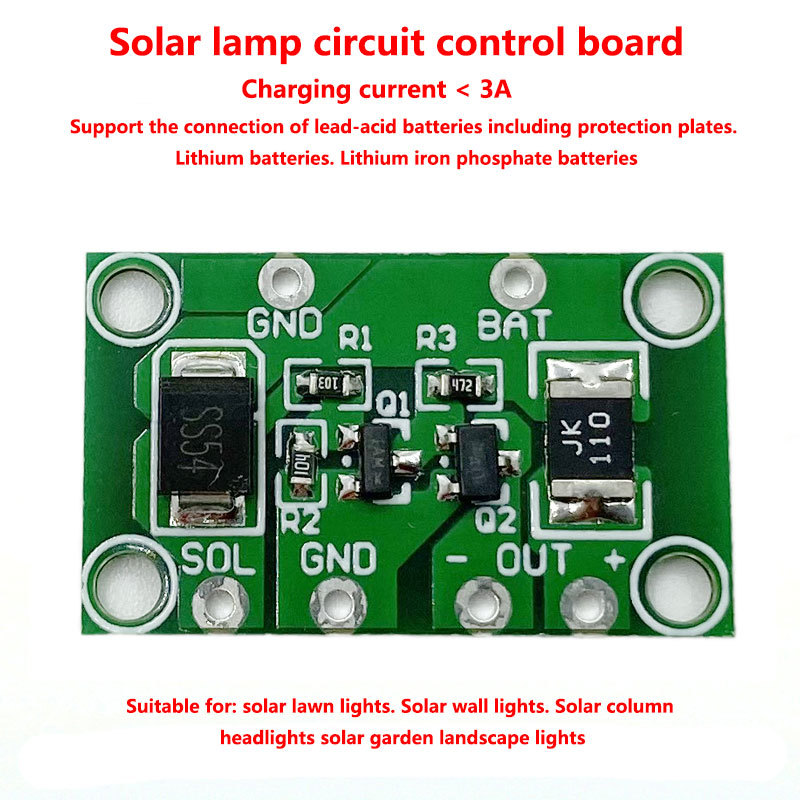

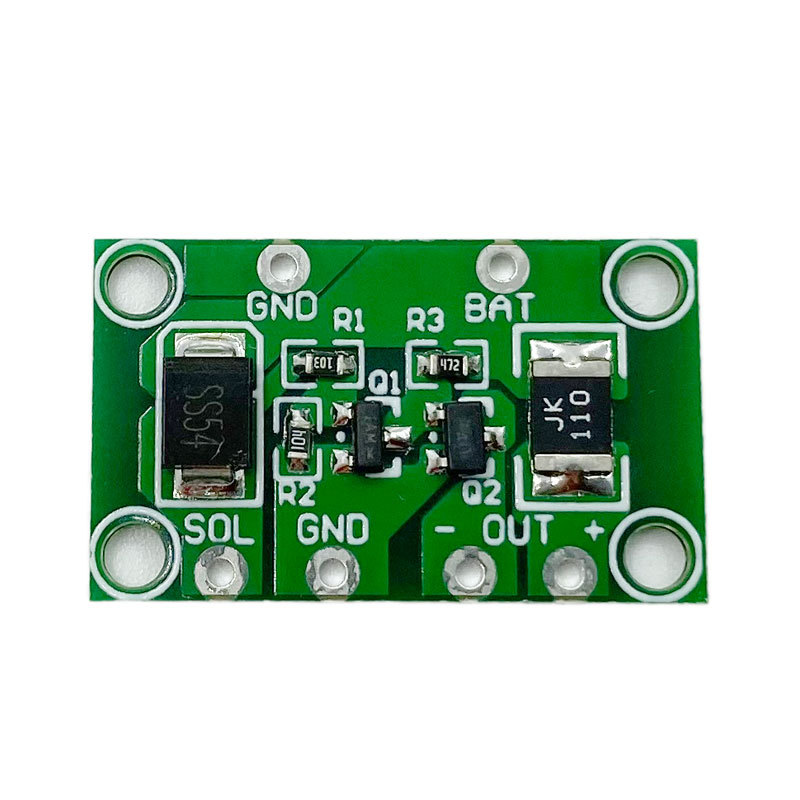

迷你太阳能灯电路控制板.不带过充过放保护.需要电池上自带保护板.适合太阳能草坪灯.太阳能壁灯.太阳能陶瓷灯.太阳能景观灯.太阳能柱头灯.太阳能庭院灯等太阳能灯产品上电路控制用.

本电路板没有过充过放保护.

   电池必须要自带保护板，否则会过充或过放而损坏电池

参数：

兼容电池电压：3.7V-24V之间的电池

输入太阳板要求电压：电池电压X1.5倍是要配的太阳板电压

输出电压：接多少V电池输出就是多少V.

输入电流：<3A

放电电流：<1.5A

控制方式：光控控制（接上太阳板后白天灯不亮.天黑自动亮）

尺寸：25*15mm

透用于太阳能草坪灯.太阳能柱头灯.太阳能景观装饰灯.太阳能小壁灯等小功率太阳能产品控制

注：1.此线路板的输出端不能接各类型升压电路；

2.LED 灯珠请勿直接使用，需接降压驱动（或串联合适的电阻限流）；

3.电池必须要加保护板，否则会过充或过放而损坏电池

请先连接电池.再接LED灯.最后接太阳能板

The circuit board has no over charge and over discharge protection

The battery must be equipped with a protection board, otherwise it will be overcharged or discharged and damage the battery

Parameters:

Compatible battery voltage: 3.7v-24v

Solar panel input voltage: battery voltage X1.5 = solar panel voltage

Output voltage: battery voltage = output voltage

Maximum input current: < 3A

Maximum output current: < 1.5A

Control mode: light control (after connecting the solar panel, the light is not on during the day. It will be on automatically in the dark)

Size: 25 * 15mm

It is widely used in solar lawn lamp, solar column lamp, solar landscape decorative lamp, solar wall lamp and other low-power solar products control

Note:

1. The output terminal of this circuit board cannot be connected with various types of boost circuits;

2. Do not use LED lamp beads directly, but need to be connected with step-down drive (or series suitable resistance current limiting);

1. 3. The battery must be equipped with a protective board, otherwise it will be damaged due to overcharge or over discharge

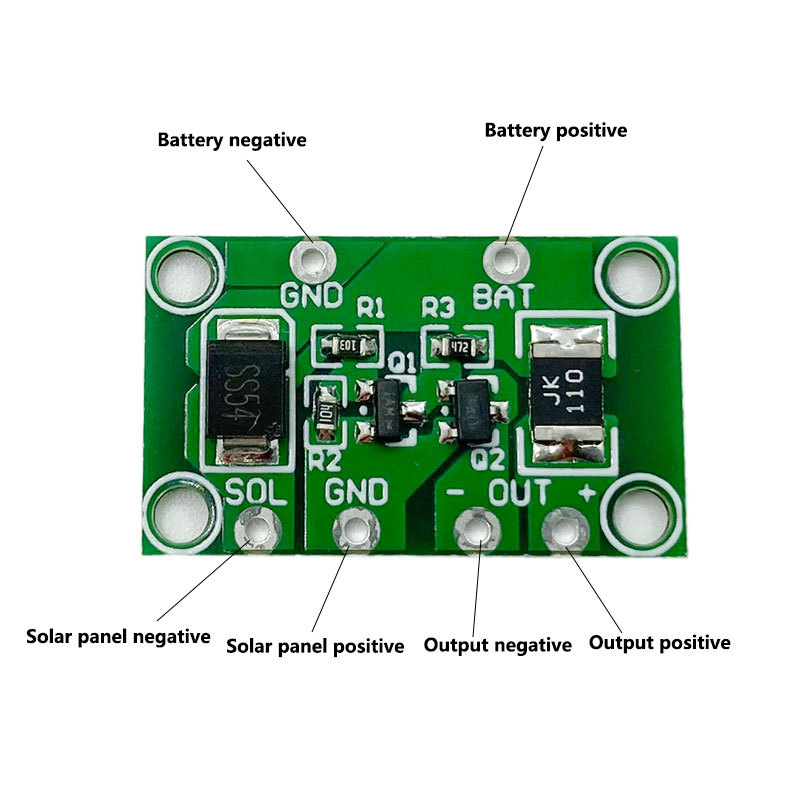

2. 4. Please connect the battery first, then the LED lamp, and finally the solar panel
