US$ 118.05
>=1 pcs

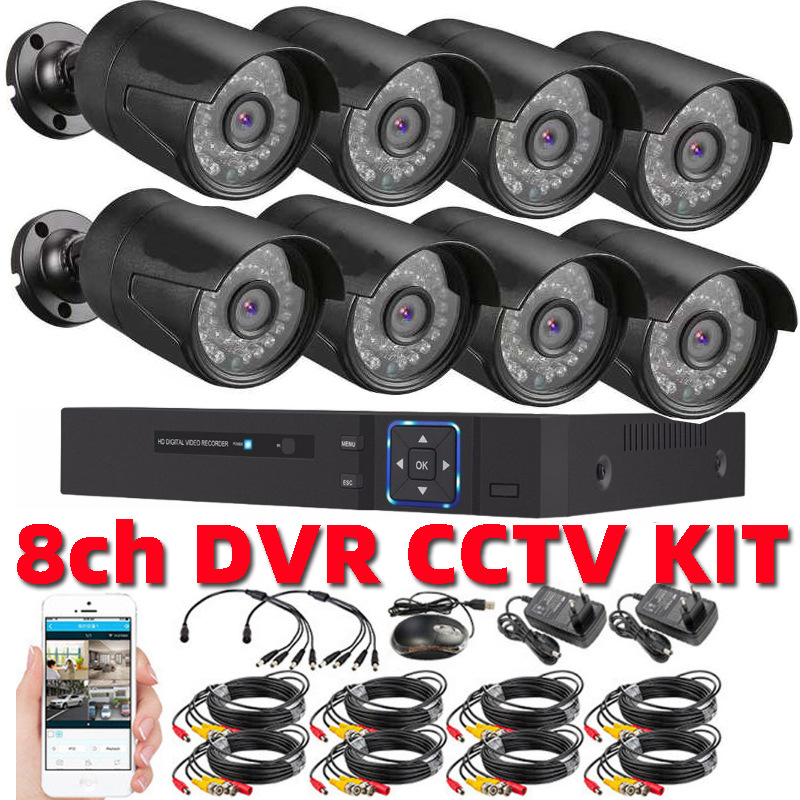

Paquete de monitoreo de 8 canales Paquete de monitoreo de 2 millones de píxeles Equipo de monitoreo Ingeniería de seguridad 2MP
Codigo de material：WB-250303-4895
Especificación
EspecificacionesOpcional
Atributos clave
| Especificaciones | Traje de monitoreo de 8 vías |
| Tipo | Sistema de monitoreo de circuito cerrado |
| Número de artículo | HD-8008T |
| Marca | HJSCD/Hongjin |
| Modelo | Ya sea para exportaciones transfronterizas |
Descripcion
• 8x 18M Coaxial Cable
• 1x 8CH Power Splitter Cable
• 1x DC12V/2A Power Adapter
• 1x DC12V/6A Power Adapter
• 1x USB Mouse
|
Package
|
||
|
NVR
|
A0801R-GS-XM
|
|
|
Camera
|
8x MHD500X-FWD30
|
|
|
Cable
|
8x 18m BNC+DC Cable, 1x (1 to 8CH power cable splitter)
|
|
|
Mouse
|
1xUSB 2.0 Mouse
|
|
|
Hard Disk
|
1x1TB Western Digital Security Hark Disk WD10EJRX
|
|
|
Adaptor
|
1xDC12V/6A
|
|
|
Weight
|
10kg/SET
|
|
|
Camera Model
|
MHD500X-FWD30
|
|
|
Image Resolution
|
5MP /4MP /1080P / 960H
|
|
|
Effective Pixels
|
2704H x 1950V
|
|
|
TV System
|
PAL/NTSC
|
|
|
Electronic Shutter
|
1/25s~1/50,000s , 1/30s~1/60,000s
|
|
|
S/N Ratio
|
≥50dB
|
|
|
Scanning System
|
Progressive Scan
|
|
|
Lens
|
||
|
Focus Length
|
3.6mm/F2.0
|
|
|
Focus Control
|
Fixed
|
|
|
Lens Type
|
Fixed
|
|
|
Pixels
|
2M Pixels
|
|
|
Auto Iris Support
|
NO
|
|
|
Night Vision
|
||
|
Infrared LED
|
36pcs IR LED
|
|
|
Infrared Distance
|
30M
|
|
|
IR Status
|
Under 10 Lux by CDS
|
|
|
IR Power On
|
CDS Auto Control
|
|
|
Camera Features
|
||
|
Day/Night
|
YES
|
|
|
OSD Menu Language
|
YES
|
|
|
White Balance
|
AUTO / MANUAL
|
|
|
Gain Control
|
AUTO
|
|
|
Noise Reduction
|
3DNR
|
|
|
Picture Adjustment
|
YES
|
|
|
WDR
|
YES
|
|
|
OSD Support
|
YES
|
|
|
General
|
||
|
Housing
|
Metal
|
|
|
Bracket
|
YES
|
|
|
Dual Voltage
|
NO
|
|
|
IR Cut Filter
|
YES
|
|
|
Heater
|
NO
|
|
|
Operation Temperature
|
-10℃ ~ +50℃ RH95% Max
|
|
|
Storage Temperature
|
-20℃ ~ +60℃ RH95% Max
|
|
|
Power Source
|
DC12V±10%, 500mA
|
|
|
DVR Model
|
A0801R-GS-XM
|
|
|
System
|
||
|
Main Processor
|
Hi3521D
|
|
|
Video
|
||
|
Codec
|
H.265+
|
|
|
Monitor quality
|
VGA(1080P at most);HDMI(4K at most)
|
|
|
Preview ability
|
8*5M@12fps(6 in 1)/8*4M@15fps（6 in 1）/8*3M@18fps（6 in 1）/8*1080P（6 in 1）
|
|
|
Encode ability
|
8*5M@6fps(6 in 1)/8*4M@8fps（6 in 1）/8*3M@10fps（6 in 1）/8*1080P@15fps（6 in 1）
|
|
|
Decode ability
|
8*5M@6fps(6 in 1)/8*4M@8fps（6 in 1）/8*3M@10fps（6 in 1）/8*1080P@15fps（6 in 1）
|
|
|
input
|
Analog：8*5M; 8*4M;8*1080P; hybrid： 4*4M（analog）+4*4M（network）
network：8*1080P+8*960P;4*3M;4*5M |
|
|
Motion Detection
|
Each screen can be set to 192 (16 * 12) detection areas; multi-level sensitivity can be set(Limited local channel)
|
|
|
Audio
|
||
|
Audio compression
|
G.711A
|
|
|
Intercom
|
support
|
|
|
Record & playback
|
||
|
Record mode
|
manual>alarm>motion detection>timing
|
|
|
Local Playback
|
8ch(analog input mode)
|
|
|
Search mode
|
Search by time, calendar, event, channel
|
|
|
Storage & backup
|
||
|
Video storage
|
HDD, network
|
|
|
Backup mode
|
Network, USB hard disk, USB burner, SATA burner
|
|
|
External Interface
|
||
|
Video input
|
8ch BNC
|
|
|
Video output
|
1ch VGA, 1ch HDMI
|
|
|
Loop Vout
|
N/A
|
|
|
Audio I/O
|
1/1
|
|
|
Alarm I/O
|
0/0
|
|
|
Network interface
|
RJ45 10M/100M self-adaption
|
|
|
PTZ control
|
1*RS485, Support kinds of PTZ protocols
|
|
|
USB
|
2* USB 2.0 ports
|
|
|
HDD
|
1*SATA ports (Max 8TB/per)
|
|
|
Wireless
|
3G, WIFI (extend via USB)
|
|
|
General
|
||
|
Power supply
|
12V/2A
|
|
|
Power Consumption
|
|
|
|
Working environment
|
Temperature:0℃—+55℃，Humidity:10%—90%，Atm:86kpa—106kpa
|
|
