US$ 24.255
1-9 pcs
US$ 21.83
10-99 pcs
US$ 21.021
>=100 pcs

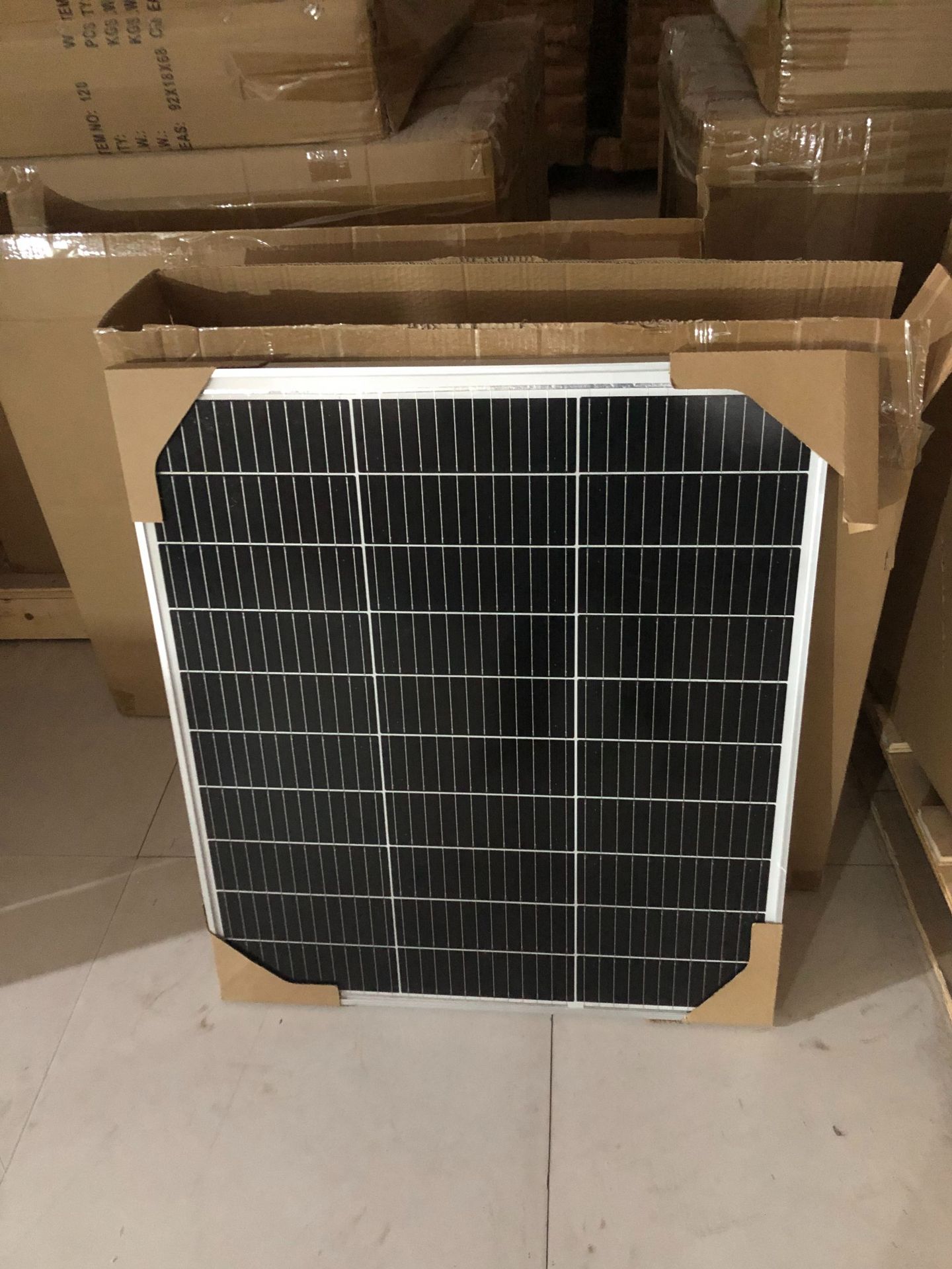

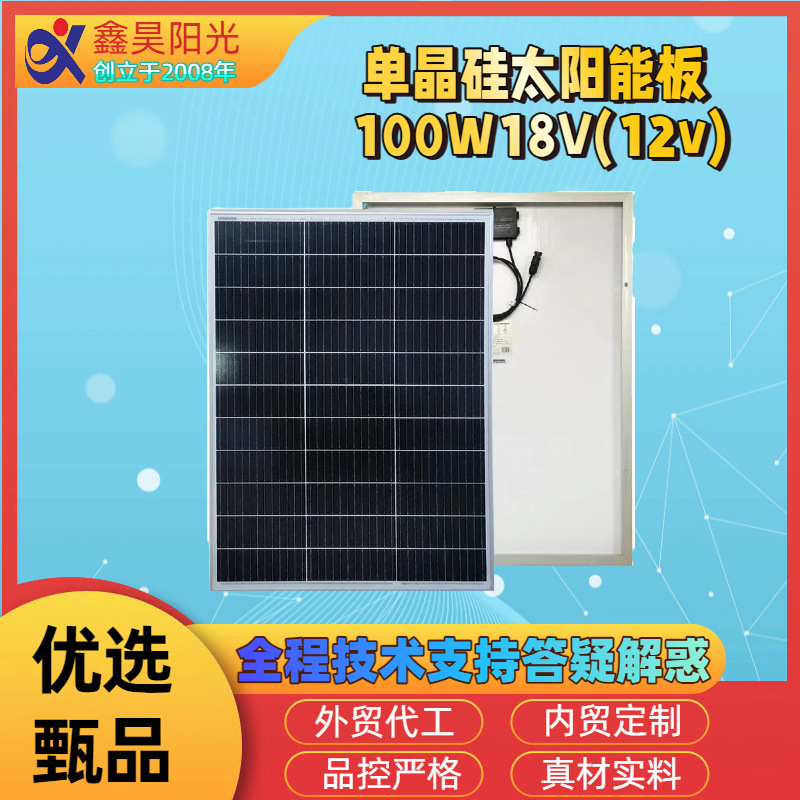

Panel solar de alta eficiencia de rejilla densa 100w18v placa de carga de potencia completa placa del sistema de generación de energía del módulo fotovoltaico doméstico
Código: WB-250528-2108
Especificación
ModeloOpcional
Hacer que importar sea más cómodo
1
Selección y cotización
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Tipo | Componentes monocristalinos |
| Voltaje de funcionamiento | 18.5 |
| Tipo de batería | Paneles solares, componentes |
| Modelo | XHGD-100W |
| Marca | Xinhao solar/Xinhao Sunshine |
Descripcion
产品参数详情
| Module Type | XHGD-100W |
| Peak power(Pmax) | 100W |
| MPP voltage(Vmp) | 18.5V |
| MPP current(Imp) | 5.27A |
| Open circuit voltage(Voc) | 22.2V |
| Short circuit current(Isc) | 5.56A |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |

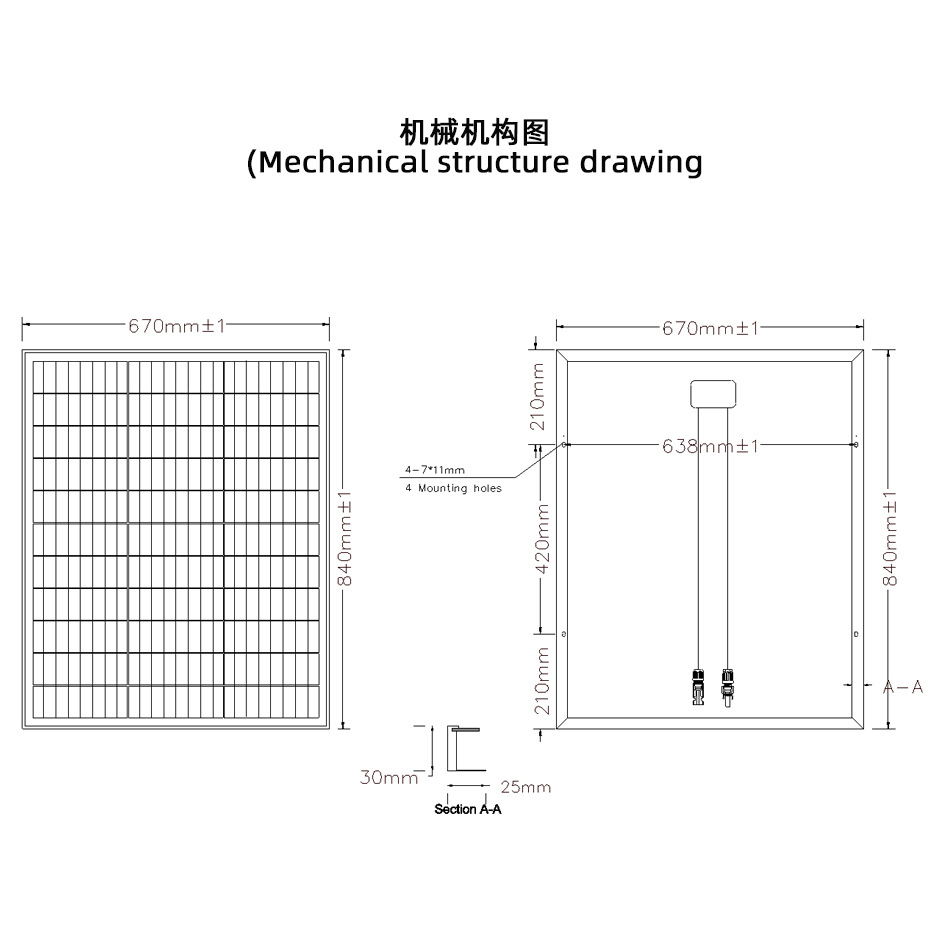

| Dimensions | 840*680*30mm |
| No. of Cells | 33PCS(3*11) |
| Weight | 5.5kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |

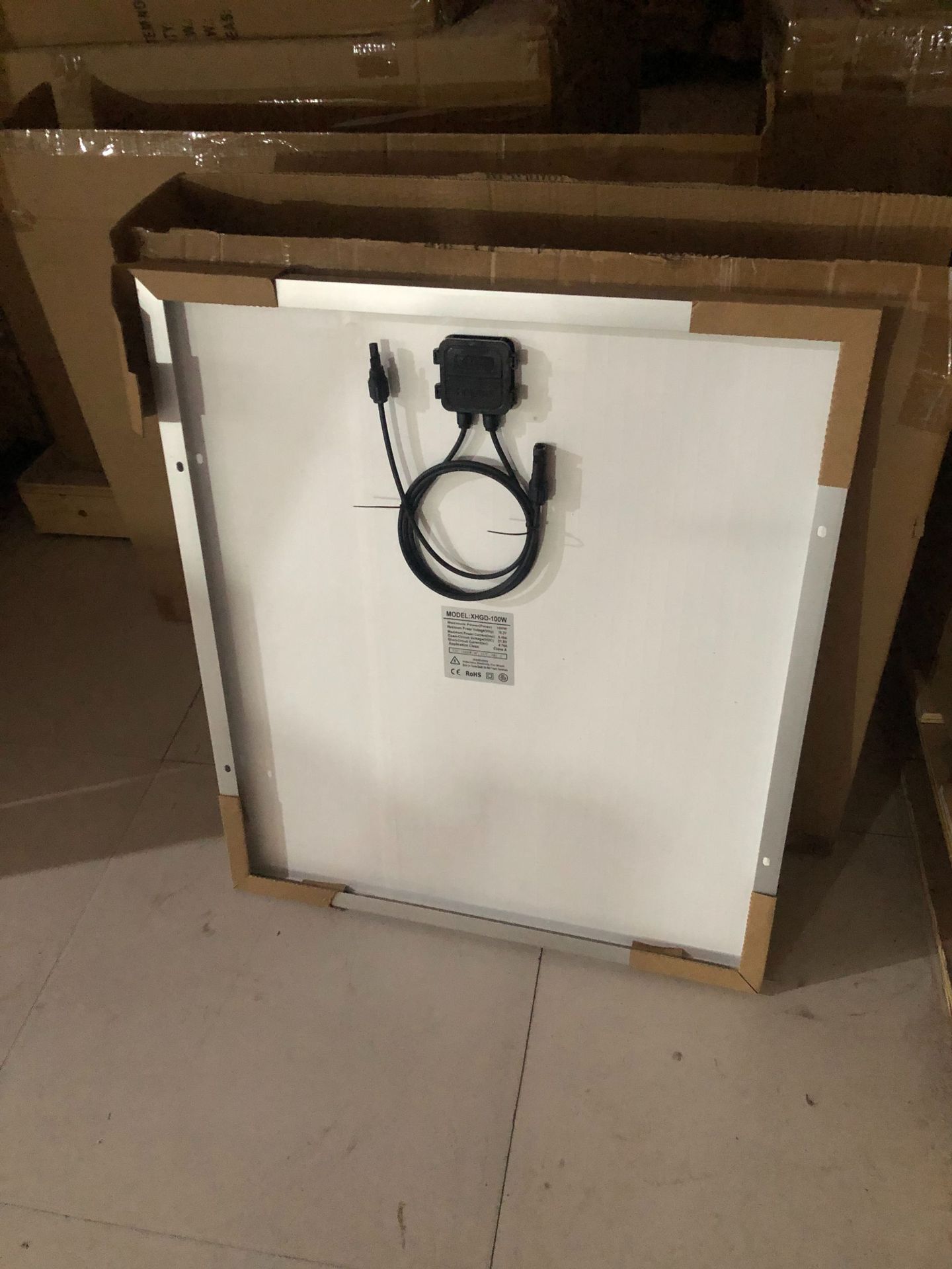

| Junction Box | IP65 |
| Output Cables | 2.5㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 85*18*69cm |

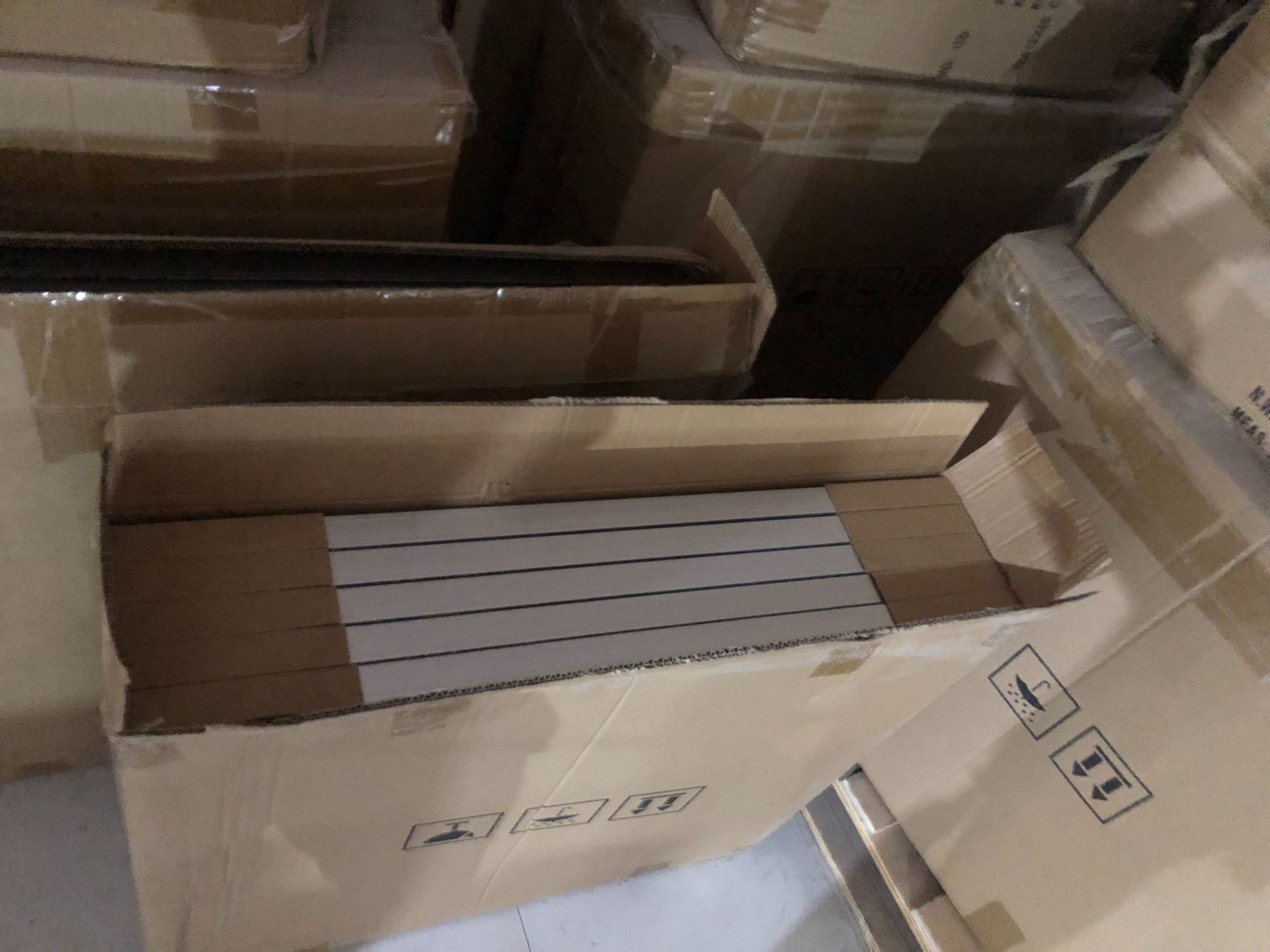

| Packing Type | 5PCS/CTN |
| weight | 29kg/CTN |

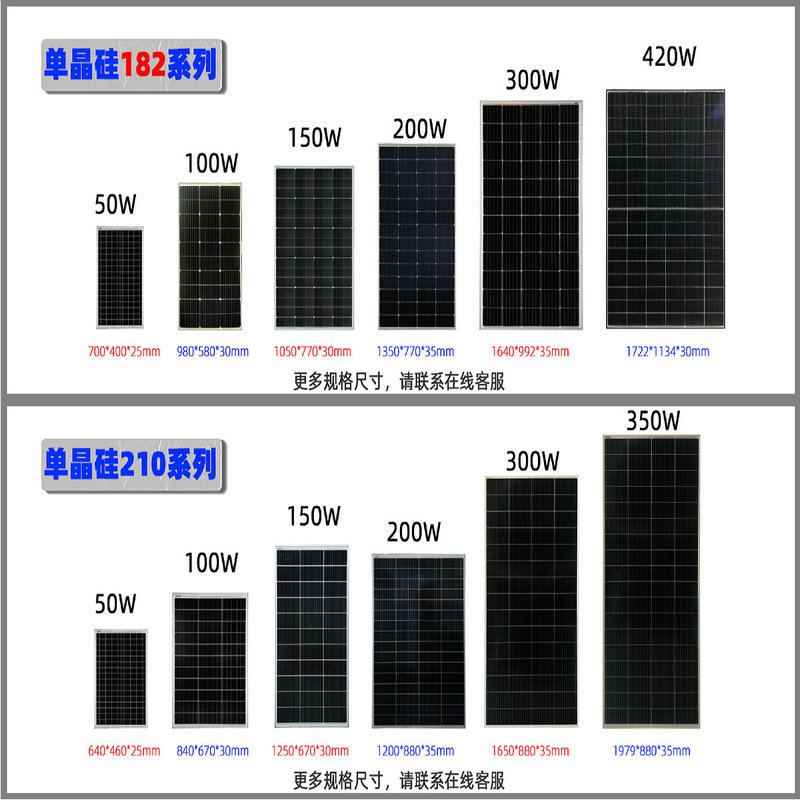

182电池部分组件尺寸
工厂生产环境及设备流程
VI测试仪
层压机
小功率串焊机
多栅自动串焊机
叠层流水线
EL测试台
自动划片机
