| Tipo | Componentes monocristalinos |
| Voltaje de funcionamiento | 34.5 |
| Tipo de batería | Paneles solares, componentes |
| Modelo | XHGD-300W |
| Marca | Xinhao Sunshine/xinhaosolar |





产品参数详情
| Module Type | XHGD-300W |
| Peak power(Pmax) | 300W |
| MPP voltage(Vmp) | 34.5V |
| MPP current(Imp) | 8.7A |
| Open circuit voltage(Voc) | 41.4V |
| Short circuit current(Isc) | 9.18A |
| Module efficiency | 20.7% |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |
| Dimensions | 1640*992*35mm |
| No. of Cells | 60PCS(5*12) |
| Weight | 17kg |

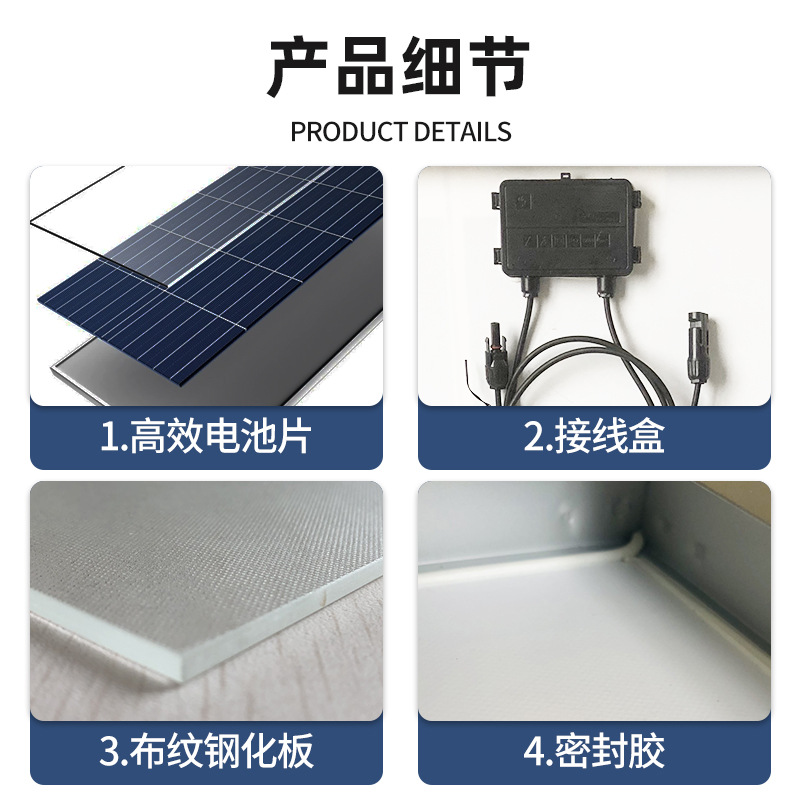

| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 4㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 167*8.5*90cm |
| Packing Type | 2PCS/CTN |
| weight | 27kg/CTN |


182电池部分组件尺寸
