产品英文介绍（Product introduction in English）

XTOOL InPlus IP900 OE-Level Full System Diagnostic Support ECU Coding DOIP / CANFD Protocol & FCA AutoAuth

ID NO.: CTP304

Product Description

1. OE-Level Full Systems Diagnosis.
2. Bi-directional Control (Active Test).
3. IMMO/Key Programming.
4. Support for DOIP & CAN FD Protocols.
5. 38+ Reset Functions.
6. Advanced ECU Coding.
7. 3-year free updates.

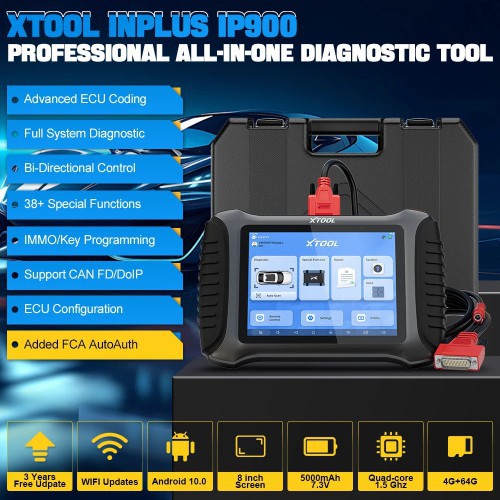

XTOOL IP900 OE-Level Full System Diagnostic Support ECU Coding DOIP / CANFD Protocol & FCA AutoAuth

The XTOOL IP900 is designed for both professional mechanics and DIY enthusiasts. Its sleek, user-friendly interface makes it easy to navigate and operate, even for those new to diagnostic tools. It supports multiple languages, ensuring a seamless user experience.
The XTOOL IP900 is a powerful diagnostic tool that supports a wide range of vehicles, including those with the latest DOIP and CANFD protocols. It offers 3-year free updates, ensuring you stay up-to-date with the latest vehicle technology. Whether you're a mechanic in a busy shop or a car enthusiast looking to maintain your vehicle, the XTOOL IP900 is the perfect companion for all your diagnostic and programming needs.

Product Features:
FCA AutoAuth
The IP900 supports both DOIP and CAN FD protocols, and it also permits FCA AutoAuth. This allows diagnostics on FCA vehicles without needing identity registration and authentication, streamlining the process for 2017+ models of Chrysler, Dodge, Jeep, Alfa Romeo, Fiat, and more.
38+ Reset Functions
The IP900 covers more than 38 popular reset functions, including ABS Bleed, Oil Reset, DPF Regeneration, EPB, BMS Reset, HV Battery, Power Balance, SAS Calibration, A/C Relearn, VGT Relearn, Injector Coding, TPMS Reset, Throttle Adaptation, Headlight Adjustment, Crankshaft Sensor Relearn, Suspension Calibration, Transmission Matching, Tire Upgrade, and many more.
Advanced ECU Coding
Enhance vehicle performance with advanced ECU coding, including adaptation for various engines, transmissions, car bodies, gearing, and fuel qualities, enabling precise tuning and customization.
Offline Programming
Supports programmable module installation (PMI) for Ford, Lincoln, and Mazda, as well as offline coding for VW, Benz, and Mitsubishi. This feature allows you to program ECUs and other modules without needing a constant internet connection.
ECU Configuration
Unlock hidden features and customize your vehicle with the ECU Configuration function. The IP900 allows you to activate higher-level car functions that may not be enabled by default, providing greater control and personalization.
PMI Function Support
The IP900 supports the Programmable Module Installation (PMI) function, which is crucial when replacing or initializing modules. This function is compatible with Ford, Lincoln, Mazda, and other select brands, ensuring smooth transitions during part replacements.
IMMO/Key Programming
Offers full IMMO features including programming new key fobs, adding new keys, remote learning, and disabling lost keys, making it a reliable tool for anti-theft system management.
OE-Level Full Systems Diagnosis
Perform comprehensive system diagnostics, including reading and clearing trouble codes, viewing and graphing live data PIDs, retrieving freeze frames, and reading ECU information across all vehicle systems (Engine, Transmission, ABS, Airbags, etc.).
Bi-directional Control (Active Test)
With bi-directional control, you can send commands and receive information from vehicle ECUs to perform active tests, such as EVAP system tests, cooling fan control, compression tests, and more. Control vehicle components like windows, wipers, sunroofs, doors, etc., for efficient diagnostics.
8-in-1 Live Data Graphing
View live sensor data in text or graph form for accurate diagnostics and performance monitoring. The IP900 allows for data combination, playback, recording, and export as CSV files for easy reporting and analysis.
Support for DOIP & CAN FD Protocols
This tool is compatible with DOIP and CAN FD protocols, making it suitable for diagnostics on GM, GMC, Cadillac, Chevrolet, and Buick vehicles post-2020, ensuring faster communication and greater diagnostic efficiency.
Auto VIN & Auto Scan
Automatically identify vehicle information with the intelligent Auto VIN feature for quick and accurate diagnostics. Auto Scan allows for fast scanning of all vehicle systems without manual input.
Full OBD2 Functions
Includes the complete suite of OBD2 functions, such as reading and clearing codes, live data, I/M readiness, on-board monitor test, freeze frame data, O2 sensor test, vehicle information retrieval, component tests, and module presence checking.
15+ Languages Supported
The IP900 supports more than 15 languages, including English, German, Spanish, French, Polish, Portuguese, Russian, Italian, Turkish, Traditional Chinese, Japanese, Korean, Vietnamese, Arabic, and Finnish, ensuring accessibility to technicians around the world.
10,000+ Vehicle Coverage
The IP900 works on over 10,000 vehicles globally from America, Europe, Asia, Australia, and China, with continuous updates expanding its vehicle coverage. It ensures compatibility with a wide range of makes and models, keeping your diagnostic capabilities up-to-date.
Upgraded Hardware
Equipped with a 5000mAh, 7.3V battery for extended service life, 8.0-inch touchscreen display with 1024×768 resolution, 4+64GB memory, and a powerful 1.5GHz quad-core processor. The IP900 also features a USB, WiFi, and wired connection, 8MP rear camera, and comes with a 3-year free update, 2-year warranty, and 24/7 technical support.

Product Functions:

Basic OBDⅡ function: Auto VIN, Read ECU Information, Read  code, Clear code, Read live data, Read freeze frame, Actuation test

Other function: PMI, ADAS Calibration, ECU Configurations, Guided function, Coding

Special function：Oil Light Reset, ECU Configuration, EPB, A/F settings, SAS, Start/Stop Reset, DPF, Airbag Repair, BMS Reset, Instrument Cluster, Throttle, Language Change, TPMS Reset, Transporter Mode, ABS Bleeding, Tire Upgrade, Injector Coding, Gear Learning, Key Programmer, Power Balance, Gearbox Match, EEPROM, Suspension, Electronic Pump Activation, Window Initialization, ADAS Calibration, Seat Calibration, Speed Limit, Headlight, Clutch Adaption, SRS, Control unit Reset, EGR Relearn, FRM Reset, VGT Relearn, HV Battery, A/C Relearn, Rain/Light Sensor
OE-Level Full System Diagnostic
Inplus IP900 can perform complete system diagnoses to check ECU info, read codes, clear codes, read freeze frame and live data. It can carry out a comprehensive diagnosis for cars' system, such as the engine, airbags, chassis, body, network system, transmission, anti-lock system, etc.
It is suitable for all system, including ABS system, Engine system, SAS system, TPMS system, IMMO system, Battery system, Oil service system, SRS system, etc...ECM System (Engine Control Monitor), SRS (Supplement Restraint System), TCM (Transmission Control Module), IMMO (Immobilizer), ABS (Anti-lock Braking System), TPMS (Tire Pressure Monitoring System), BMS (Battery Monitor System), etc.

Bi-Directional Control(Active Test)
XTOOL InPlus IP900 bi-directional scanner supports active tests to output the command into the ECU to request information or command a module to perform specific tests and functions.To find faults in the subsystems of your car effortlessly, without using the vehicle’s control, including EVAP Test, Injector Buzz Test, EGR Test, Window/Mirror/Door Lock Test, A/C Clutch On/Off, ABS Pump Cycling, Pump and Value Tests, Interior & exterior lights Test, Sound horn Test, More...

FCA AutoAuth
For the 2018+ FCA vehicles (For Fiat, For Chrysler, For Jeep, For Alfa Romeo, etc.) equipped with the Security Gateway module, the XTOOL INPLUS IP919 car scanner can help you to log in to the FCA account and perform diagnostic functions such as clearing DTCs, bi-directional tests, and calibrations.
Note：We do not provide FCA accounts, Please register an FCA account yourself.
CANFD/DOIP Support
1. DOIP Support
With Diagnostics over DoIP, diagnostics introduced over UDS are used over TCP/IP and Ethernet. This enables much higher data rates than with CAN.
Compatible with For BMW (F&G chassis), For Volvo models (2018 later), For Land Rover & For Jaguar models (2017 later).
2. CAN FD Support
Supports the latest For GM vehicles manufactured after 2020. Adopts advanced CRC algorithms to accommodate more data from 8 to 64 bytes in the CAN frame, which runs faster than other products and reduces the risk of undetected errors to greatly enhance the user experience.
For Onix 2020-2024, For Tracker 2020-2024, For Suburban 2021-2024, For Tahoe 2021-2024, For Montana 2024, For Silverado 2024, For Electra E5 2024, For Escalade 2021-2024, For Escalade ESV 2021-2024, For Sierra 2024, For Yukon 2021-202.2/2024, For Yukon XL 2021-202.2/2024, and For Chrysler Models including For Grand For Cherokee(WL) 2021-20203, For Grand For Wagoneer 2022-2024.
Note : this is car list that CANFD and DIOP supports , XTOOL IP919 also supports other cars , more than about 100+ brands , like for bmw , for vw , for ford etc , please feel free to contact with us check for you.
38+ Popular Special Functions
The XTOOL IP900 car diagnostic scanner tools performs More Than 38 commonly used maintenance functions that every mechanic wants to deal with the complex vehicle issues including:
Oil Reset: Reset service intervals after oil change and turn off the oil light.
EPB Reset: Reset the calipers, brake discs or pads after the electronic parking brake system is repaired or replaced.
SAS Adjustment: Perform calibration of the steering angle sensor to clear the fault steering angle sensor memories.
BMS Reset: Register the new battery to the ECU after replacement.
Throttle Relearn: Enables you to make initial settings to throttle to adjust the amount of air intake.
ABS Bleeding: Perform ABS Brake Bleed function to cycle the ABS pump to bleed the air out of the ABS.
Injector Coding: Coding injectors after replacement.
Transmission Match: Reset the adaptive shifting points in your automatic Transmission Control Unit.
And the full special functions under specific systems: Steering position sensor calibration, Zero Point Calibration, Hybrid Control Compression Test, HVAC Control Module Calibrate, Injector balance test, ECU Configuration, VGT Turbo Calibration, Idle Learn Reset, Alcohol Content Reset, ABS Initialization, Seat Weight Sensor Calibration, Fuel Trim Reset, Crankshaft Sensors Relearn, Window Initialization, TPMS Reset, Suspension, Injector Coding, Airbag Repair, Cylinder Power Balance, Seat Configurations, Electronic Pump Activation, Disable Transportation, Performance Tire Upgrade, ECU configurations, A/F reset, Language change, Start/Stop Reset, etc.

Advanced ECU Coding & ECU Configuration
ECU Coding: for VW(For VW / AUDI / Škoda) / for BENZ / for Mitsubish: XTOOL IP900 OBD2 scanner performs ECU Coding, Component Matching, Adaptive Data Reset, Flash Hidden Functions, etc to optimize vehicle performance and customize car settings.
ECU Configuration: for BMW / VW / AUDI / Škoda / TOYOTA / LEXUS / SCION / MAZDA / FORD / LINCOLN: IP90 helps to activate the higher-level car functions and disable any annoying features including disabled the seat belt buzzer, wind the windows down with the remote fob, deactivate the Start/Stop function, etc.



VAG Guided Functions
IP900 can perform complex functions such as special functions, ECU coding, etc., to help your diagnostic step by step with instructions for VW/for Audi/for Skoda, etc.



IMMO / Key Programmer
Key programming means matching a smart key to a specific vehicle's security system. This process ensures that only the programmed paired key can start the vehicle, greatly increasing security. It is mainly used to replace lost or damaged car keys or to add additional spare keys. A thorough key programming process involves encoding a wireless signal between the smart key and the car, ensuring that the car receives and recognizes the signal and works as intended.
XTOOL IP900 offers key programming functions like programming new key fobs, reading PIN Code, adding smart keys, remote learning.
Main Functions:
1.Key All-lost Matching
2.Key Add Matching
3.Key Info Reset
4.Key Adding

8-in-1 Live Data Graphing
Allows you to view the live PID(parameter identification data) data of vehicle’s computer module(s) in text, graph to check the status of various sensors.Live Data Combine, 8-IN-1 Live Data PIDs, Live Data Playback & Record, Export as CSV Files.

Supported Vehicle Brands:

Product Specifications:

Package includes:
