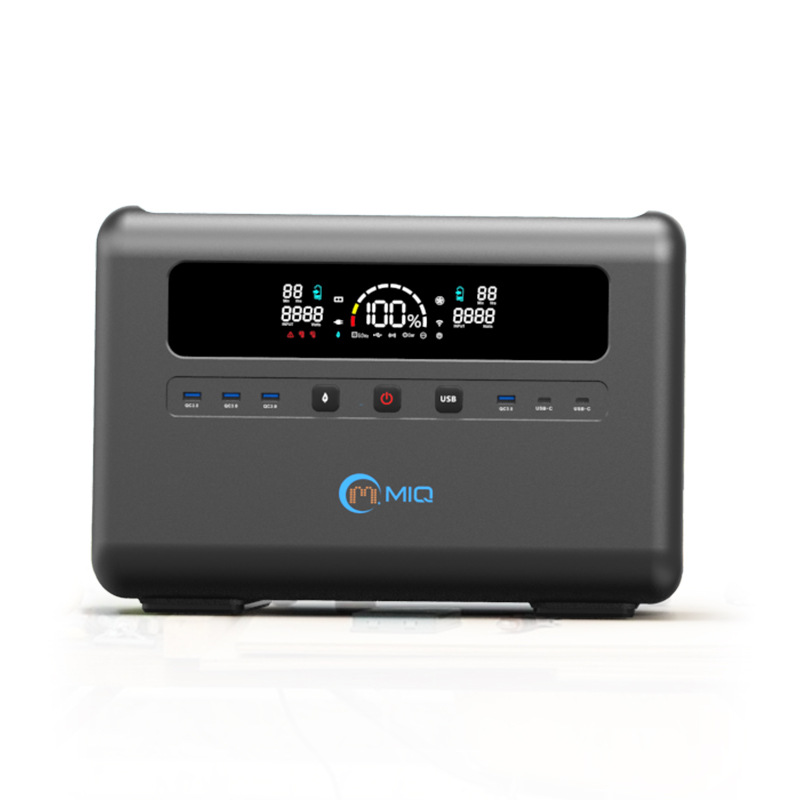

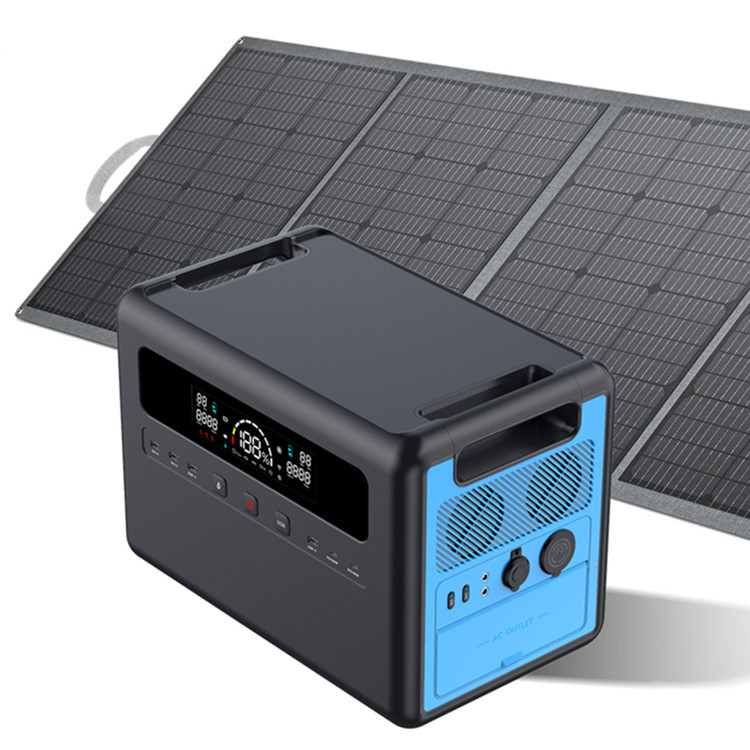

| Model |
Q2400 |
| Rated Power |
2400W |
| 产品主要卖点 |
双向快充技术+UL车规级更安全磷酸铁锂循环寿命2000+次 +超级逆变技术+UPS不间断电源+2400W额定输出+足大容量2度电+造型IP黑金刚+可升级并机功能 |
| Capacity电池容量 |
2304Wh (51.2V/45Ah or 3.2V/720000mAh) |

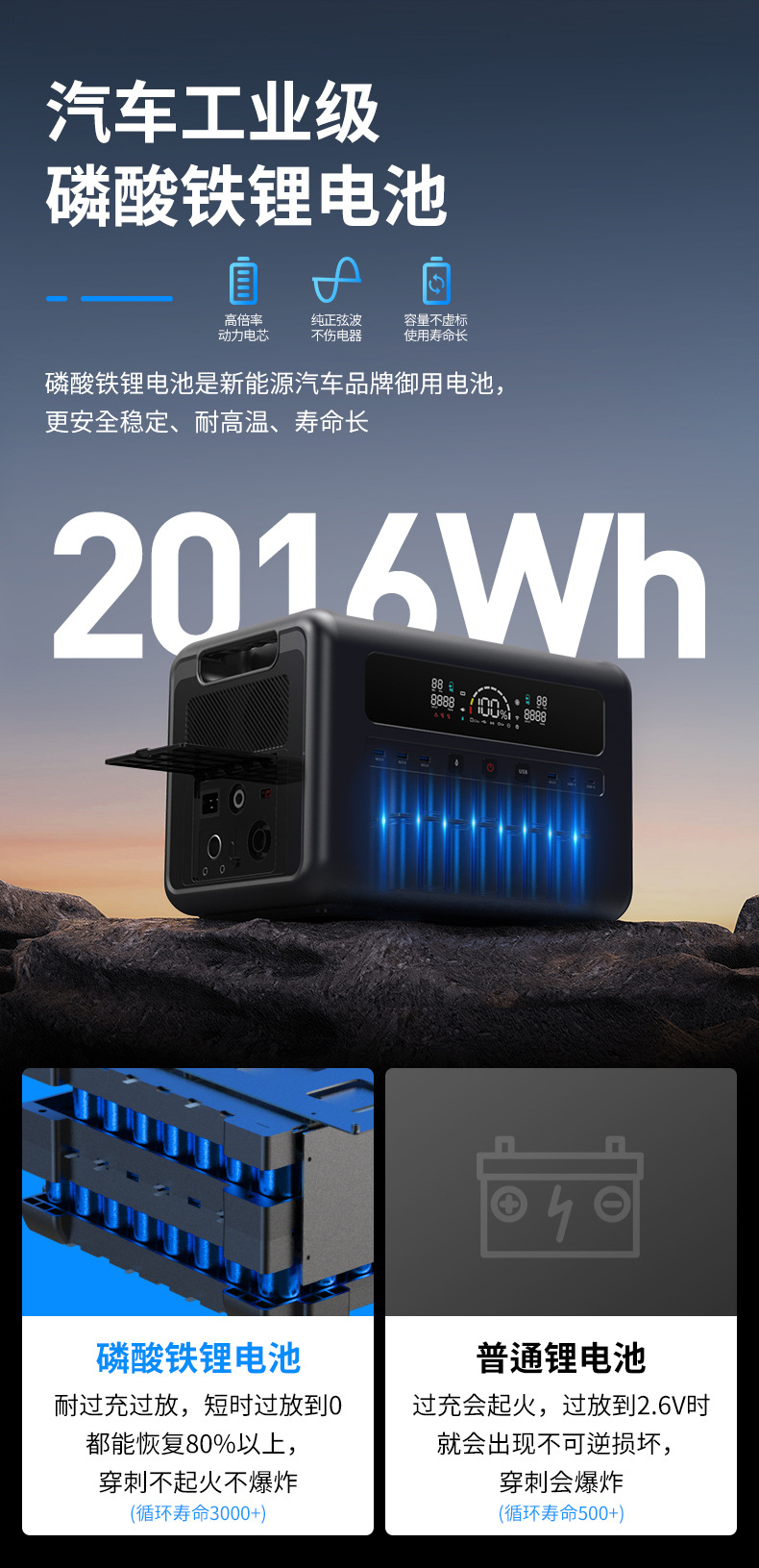

| Battery type电池类型 |
LiFePO4,UL车规级磷酸铁锂 |
| Power Indicate显示类型 |
LCD display LCD显示 |
| LCD Display显示屏内容 |
Battery remaining capacity, Battery fault, total output power,Over temperature,input power,Charge time, discharge time电池剩余容量、电池故障、输出总功率、温度过高、输入功率、充电时间、放电时间 |
| AC Input 输入 |
AC 1200W |
| AC fully Charging Time AC充满电时间 |
About 2H |
Solar Controller Model 太阳能类型
|
MPPT |
| Solar Charging Input 太阳能输入 |
800W max |
| Charging Temperature Range 充电温度范围 |
32~104℉(0℃~40℃) |
| USB Output USB输出 |
Type-C output:PD 100W*2 |
| USB output:QC3.0(18W/5V3A,9V2A,12V1.5A)*4 |
| Cigarret Lighter output 点烟口输出 |
12V/10A(120W) |
| DC output DC输出 |
12V/5A/DC5521*2(total 120W ) |
| LED light LED灯 |
6-10W |
| SOS,flshlingt |
| AC Output AC输出 |
Output waveform:pure sinewave |
| Output voltage:110V(US/JP) or 220V(EU/UK/AU/CN) (AC output voltage and frequency are customized,according to different countries and regions.Please refer to the actual product) |
| Output frequency: 50/60Hz |
| Peak AC output:4800W |
| AC continuous output: 2400W |
| 支持UPS功能(不间断电源) |
不间断电源功能 |
| Discharging Temperature Range 放电温度范围 |
14~104℉(-10~40℃ ) |

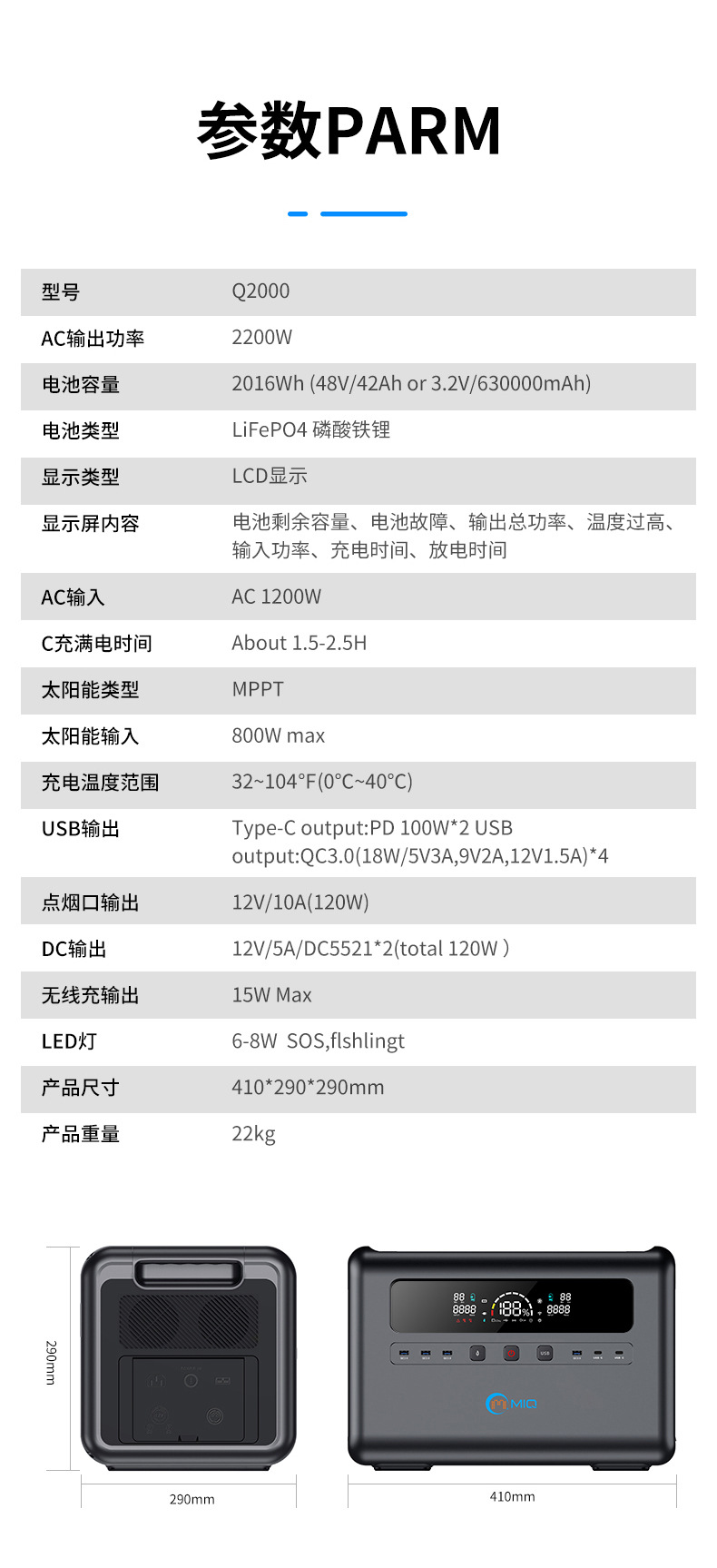

| Product size/Weight 产品尺寸重量 |
410*290*290mm/about25.7kg |
| Carton Size/Weight 纸箱尺寸重量 |
52.5*36.5*33.5CM/about 29.2Kg/1PCS |
| Protections 保护 |
over-charging, short-circuit ,low-voltage,over-temperatature and over-discharging protection |
| Color颜色 |
gray |
| Housing Material 外壳材料 |
ABS+PC ( fireproofing V0) |
| Working Temperature工作温度 |
-15~45℃ |
| Operation Humidity操作湿度 |
10%~90% |
| Standard Package Include 包装内容 |
1*Q2400 portable power supply, ,1*User Manual, ,color box packaging,1*MC4 charging cable, 1*vehicle charging cable,1 AC cable |
