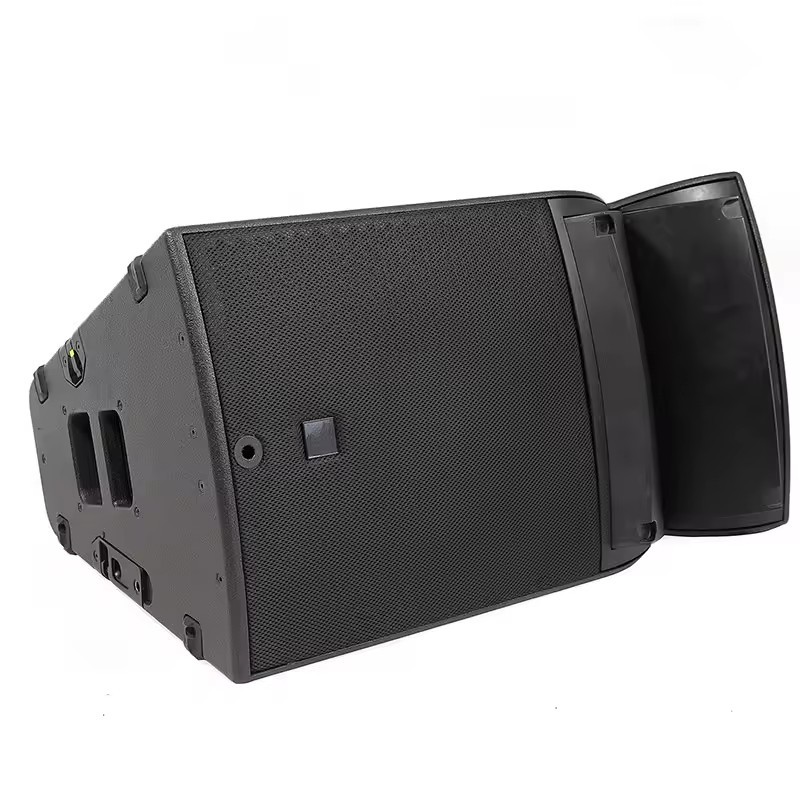

二分频无源线阵，A15

最大声压级141dB

频响范围：42Hz-20KHz

换能器低频：1 x 15”

高频：1 x 3“

重量33公斤/73磅

指向性 H：70° / 0° / 110° V：30°

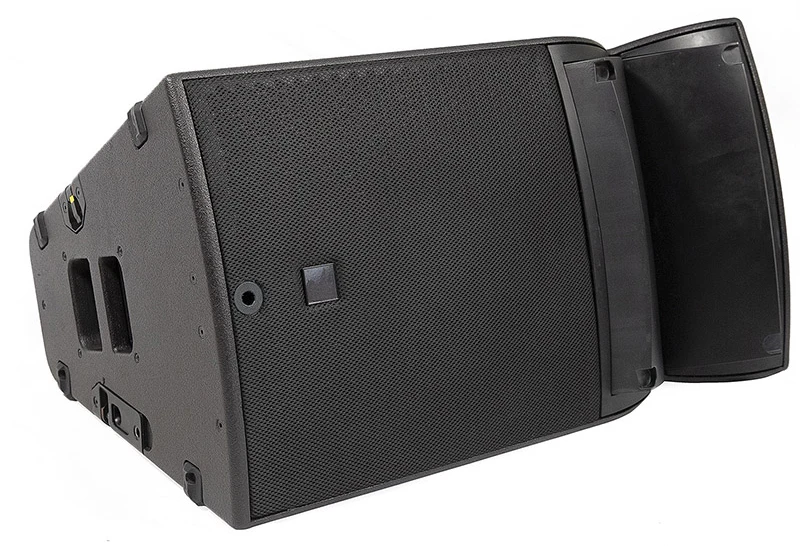

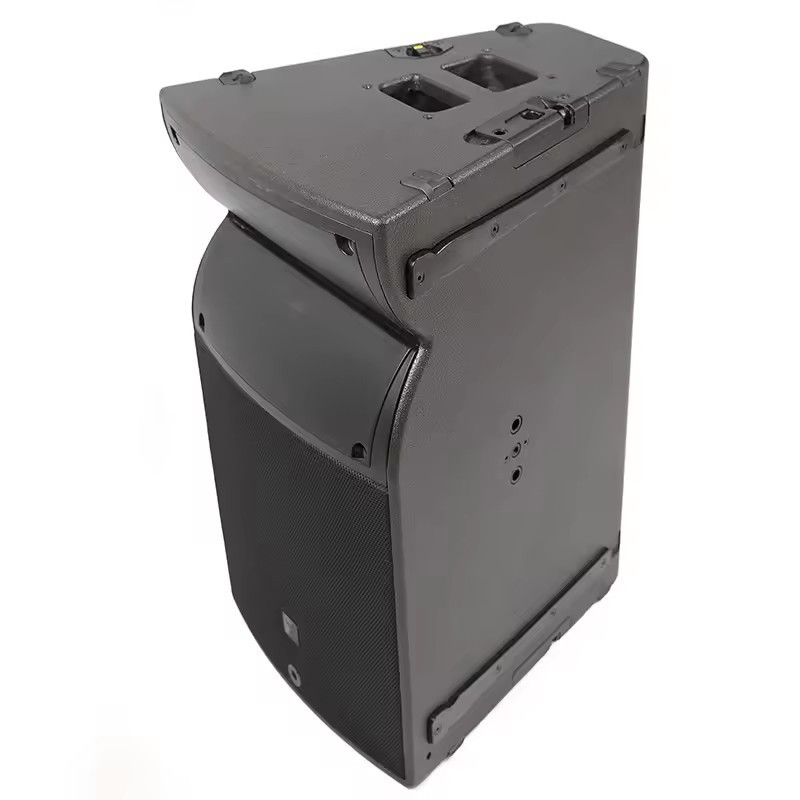

KA15 wide Specification
Usable bandwidth (-10 dB)	42 Hz – 20 kHz
Maximum SPL	141 dB

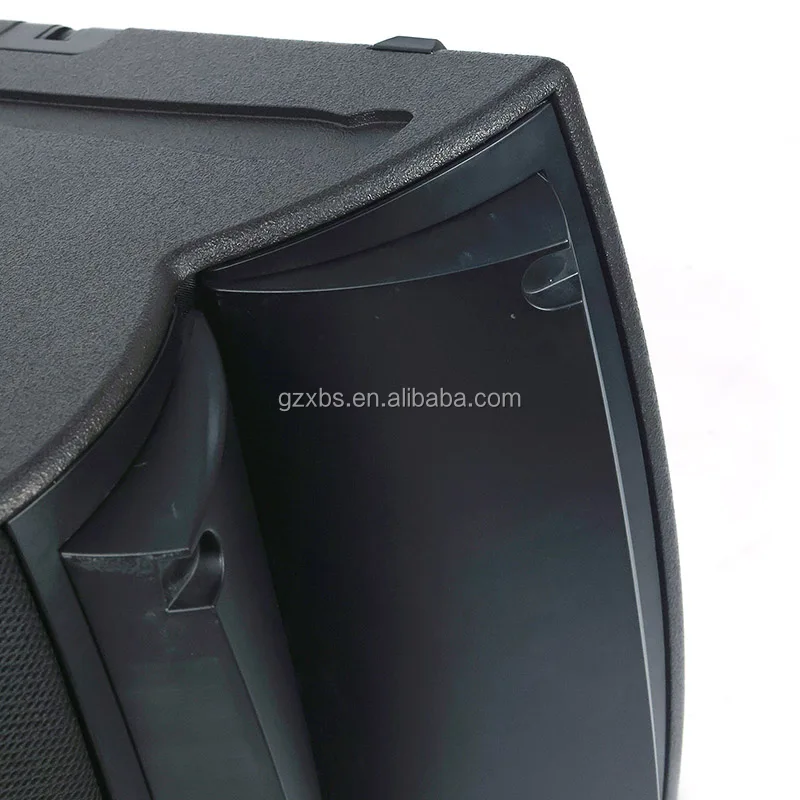

Nominal directivity (-6 dB)	Enclosure: 30° L-Fins: 110° / 70° symmetric , 90° asymmetric

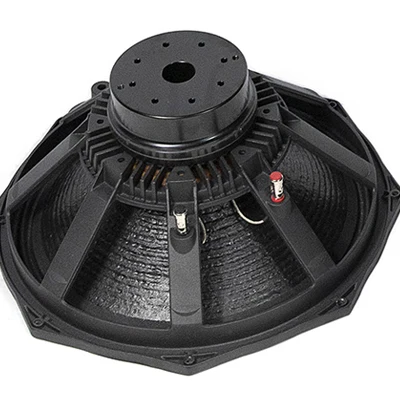

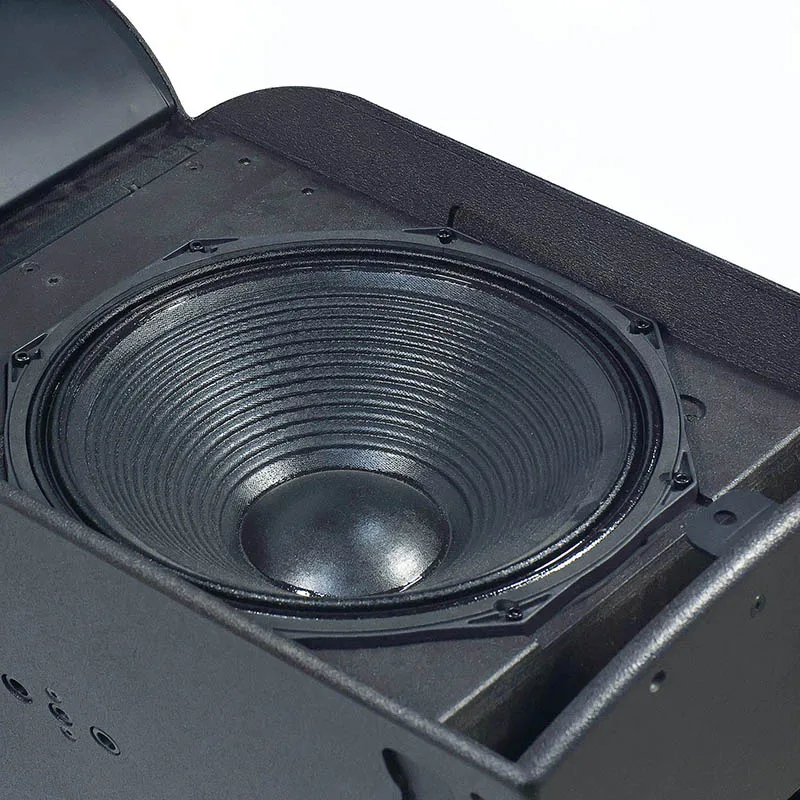

Transducers	LF: 1 × 15″ cone drivers HF: 1 × 3″ diaphragm compression drivers
		Acoustical load	LF: bass-reflex HF: Waveguide
Nominal impedance	8 Ω

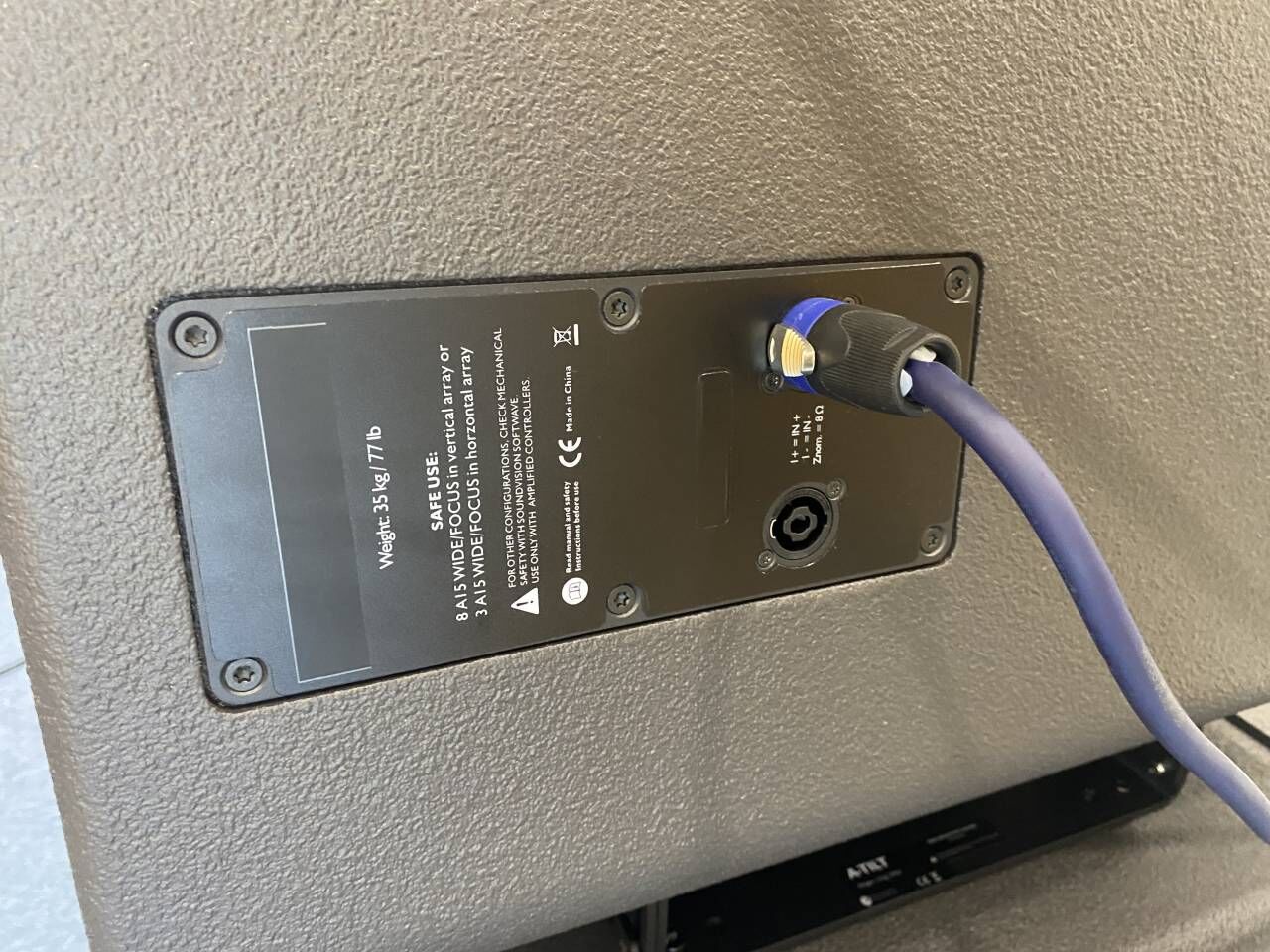

Connectors	IN :1 × 4-point speakON LINK :1 × 4-point speakON

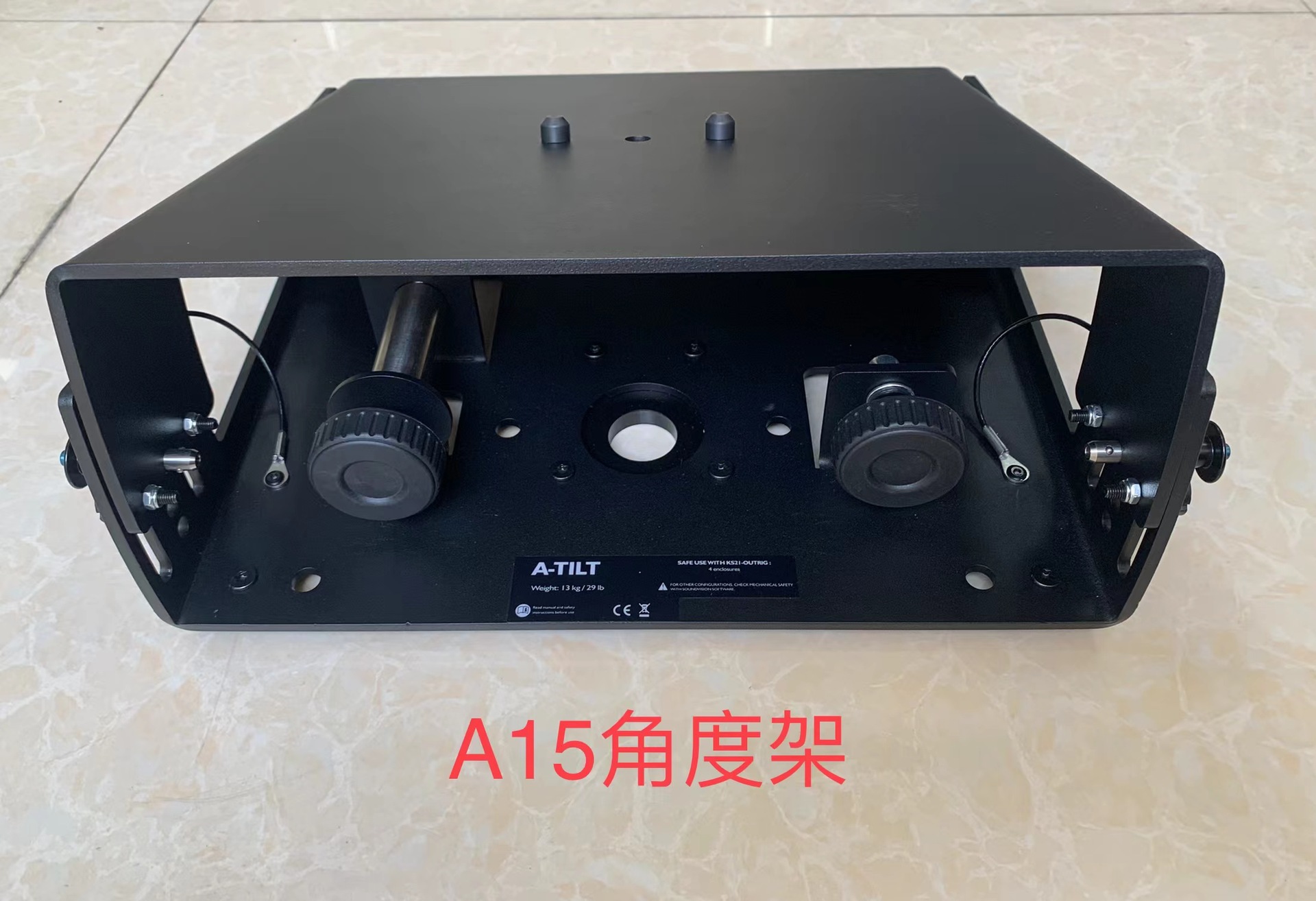

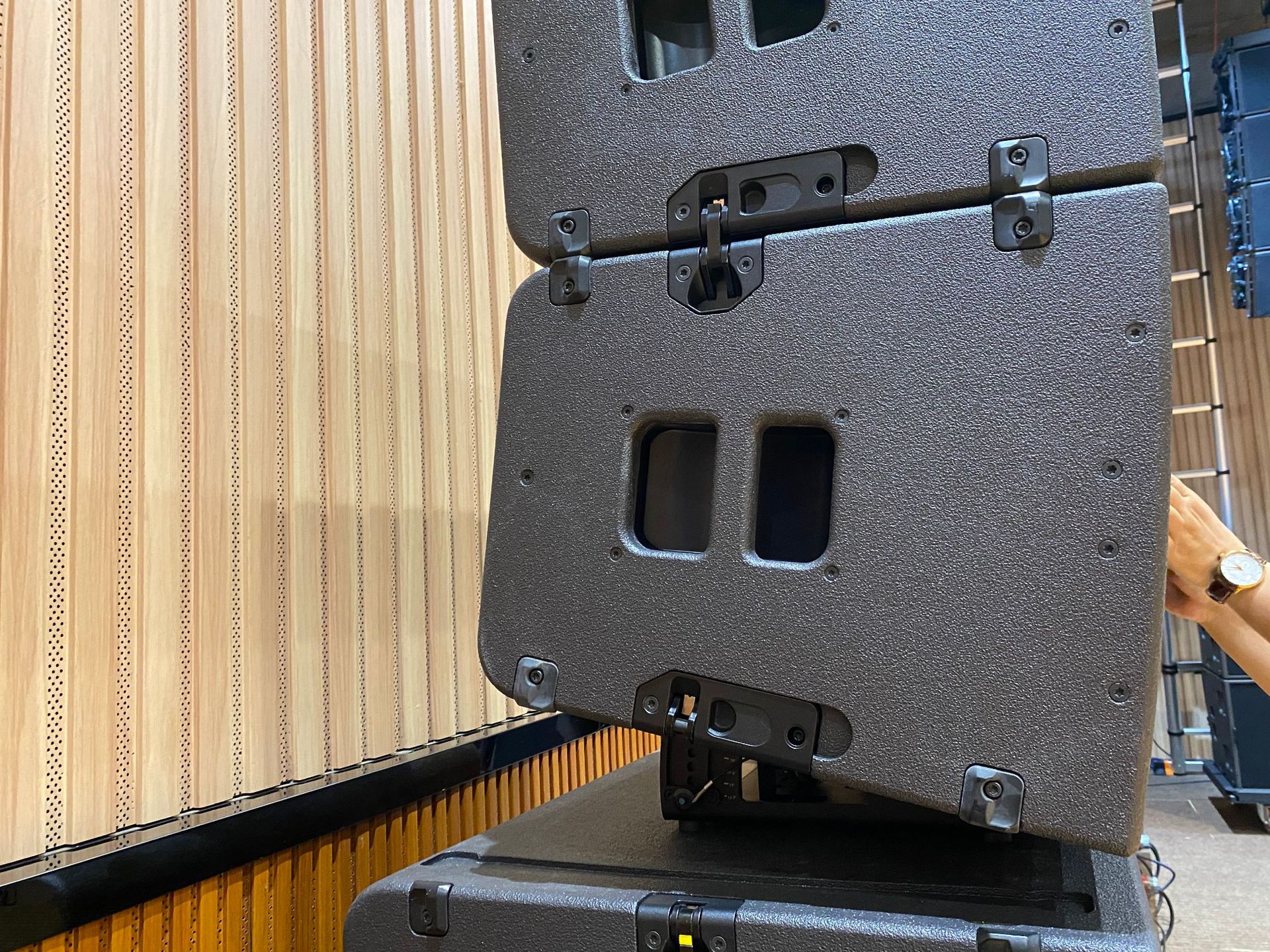

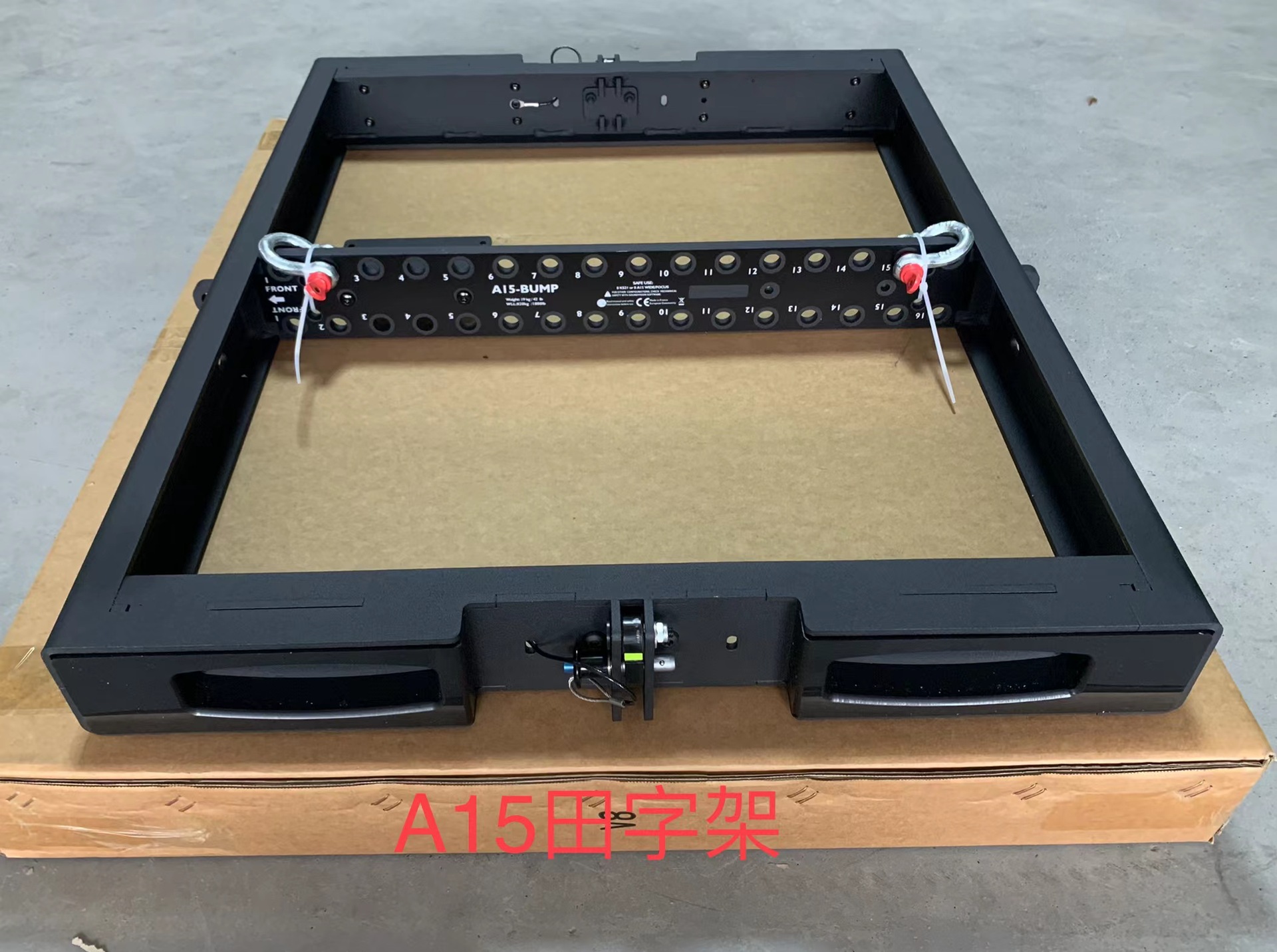

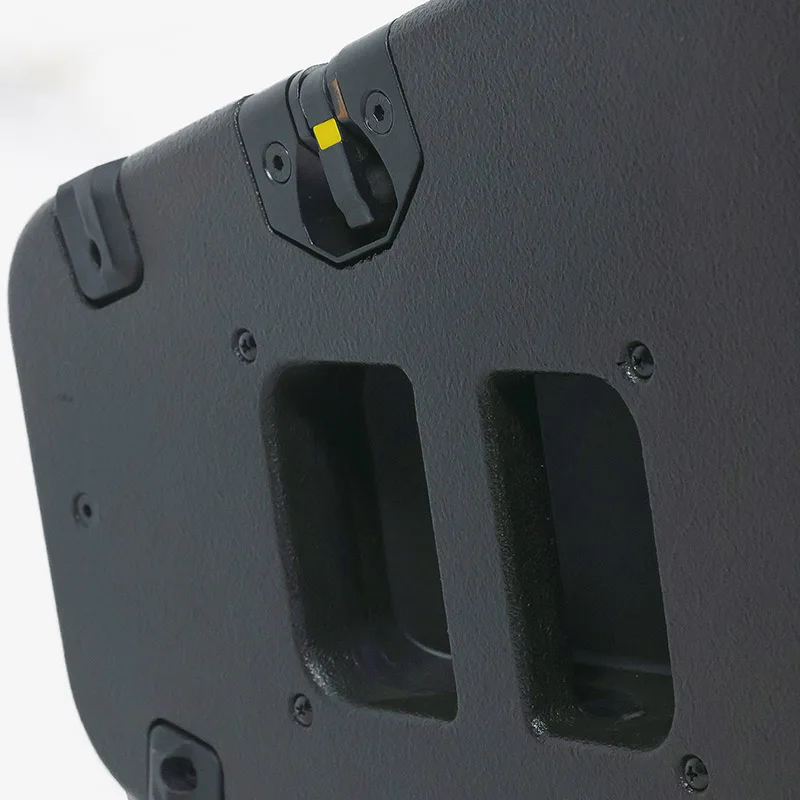

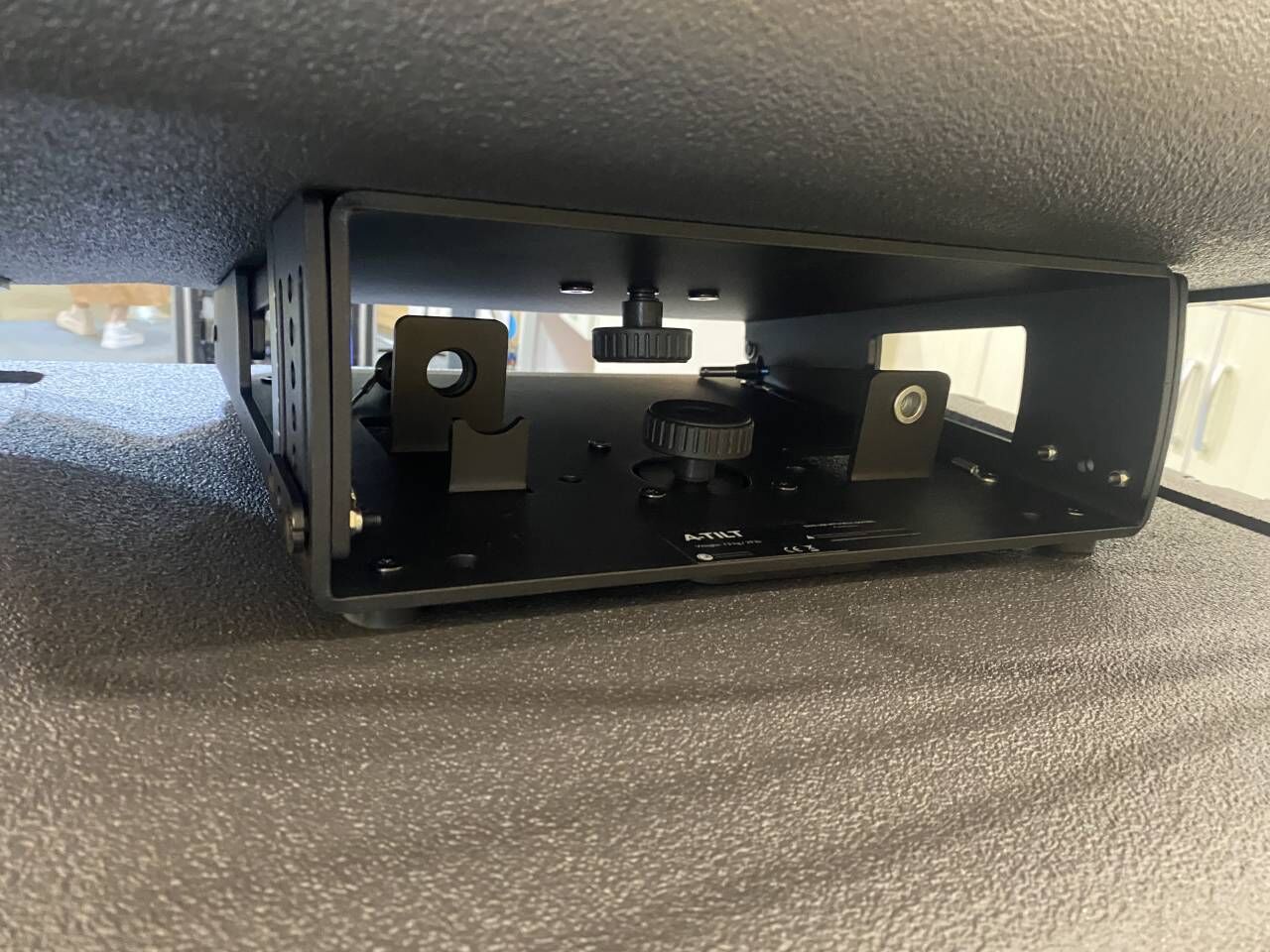

Rigging and handling	Flush-fitting two-point rigging system
	1 handle
	8 corner stops
	2 ground runners

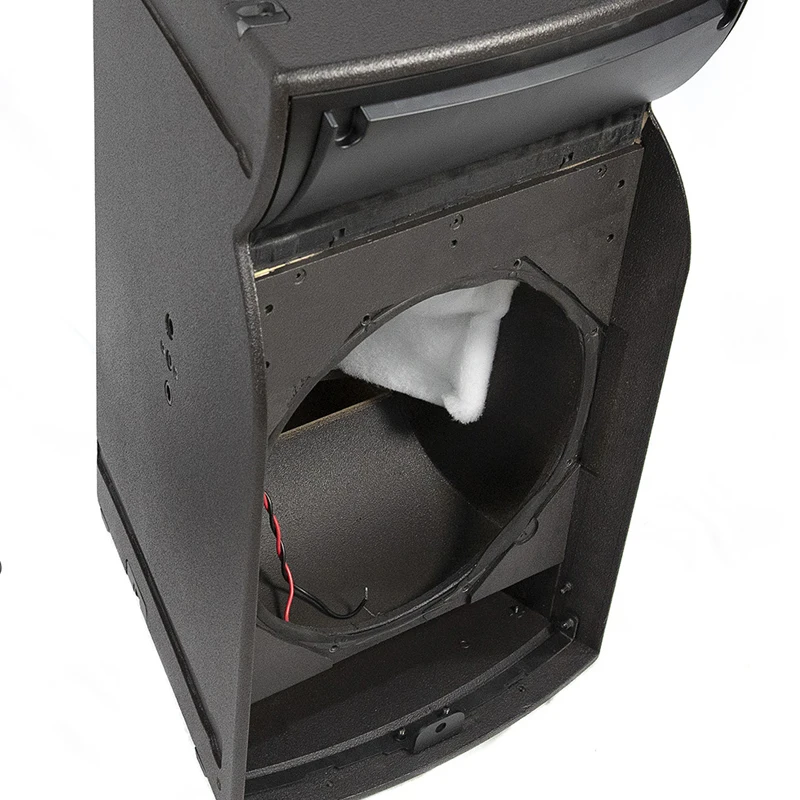

Cabinet	FIrst grade Russian birch plywood

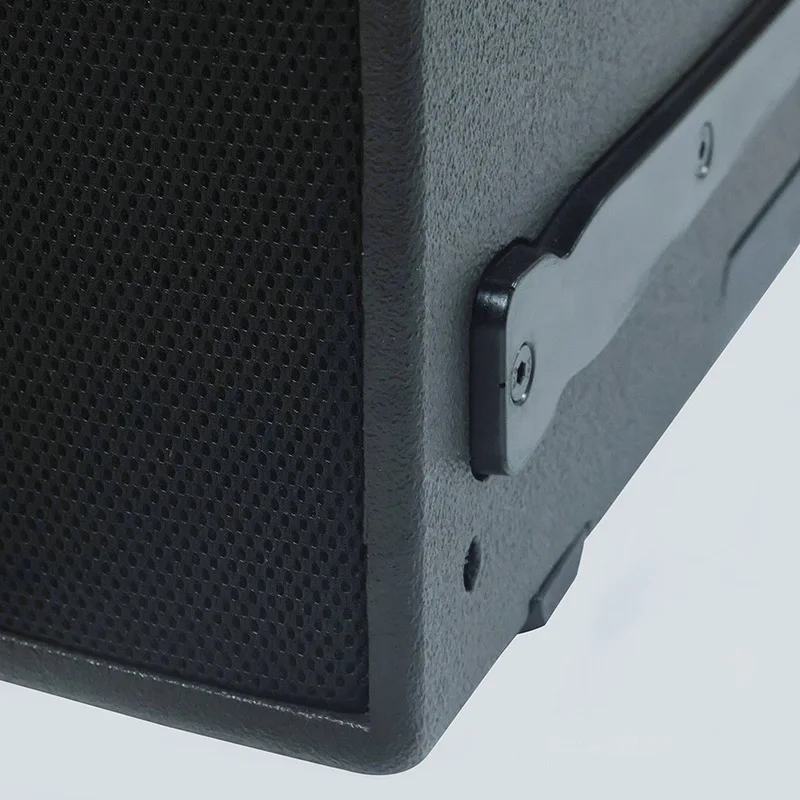

Front	Coated steel grill Acoustically neutral 3D fabric
Rigging components	High grade steel with anti-corrosion coating
Weight	33 kg / 73 lb

FEATURE OF KA15



●Flexible layout, strong ease of use.
●Vertical coverage angle of 30°, which brings wide coverage to a compact line array without compromising vision.
●The user can adjust the directivity to cover a specific geometry of the audience area and ensure excellent frequency response stability.

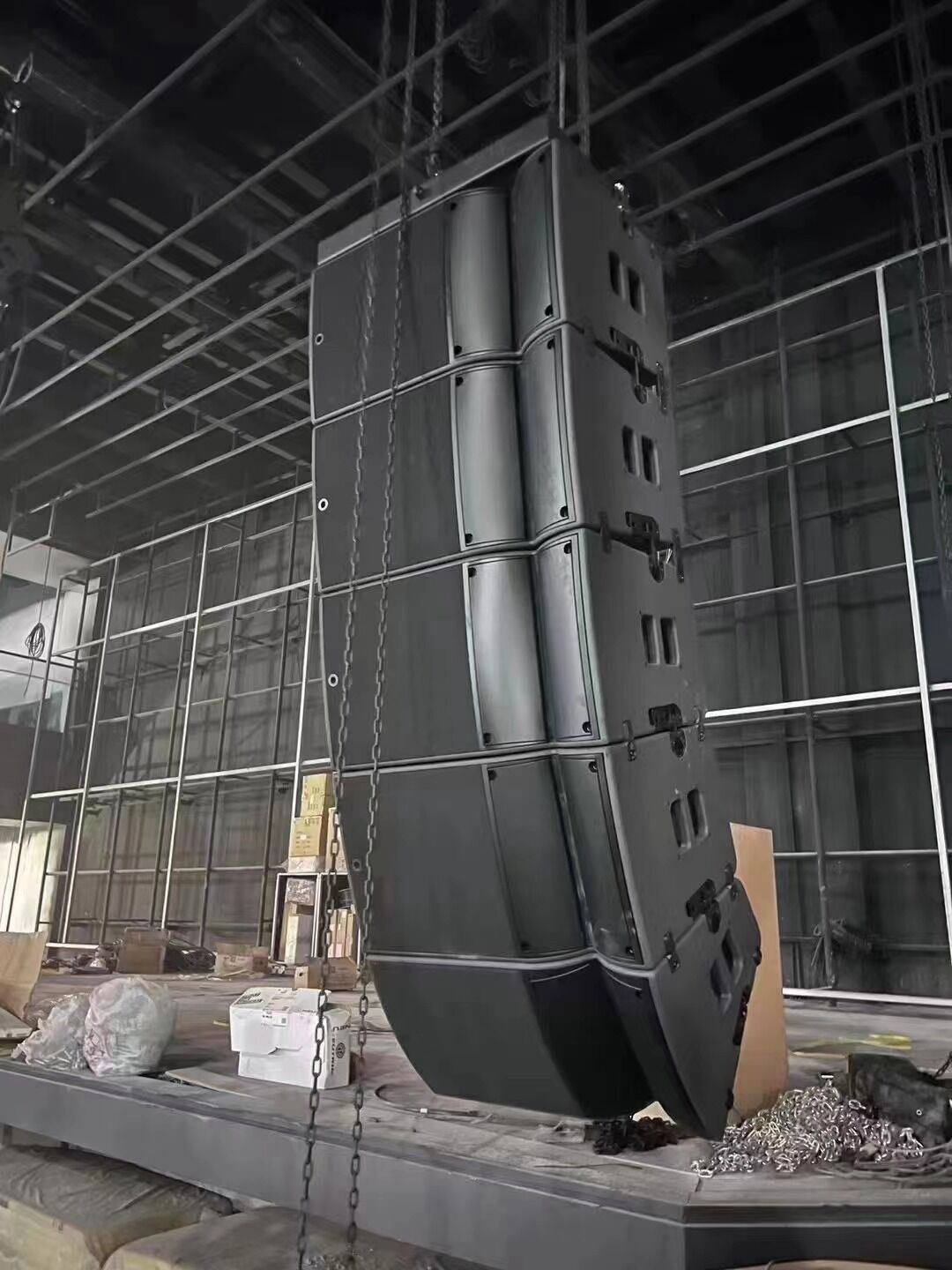

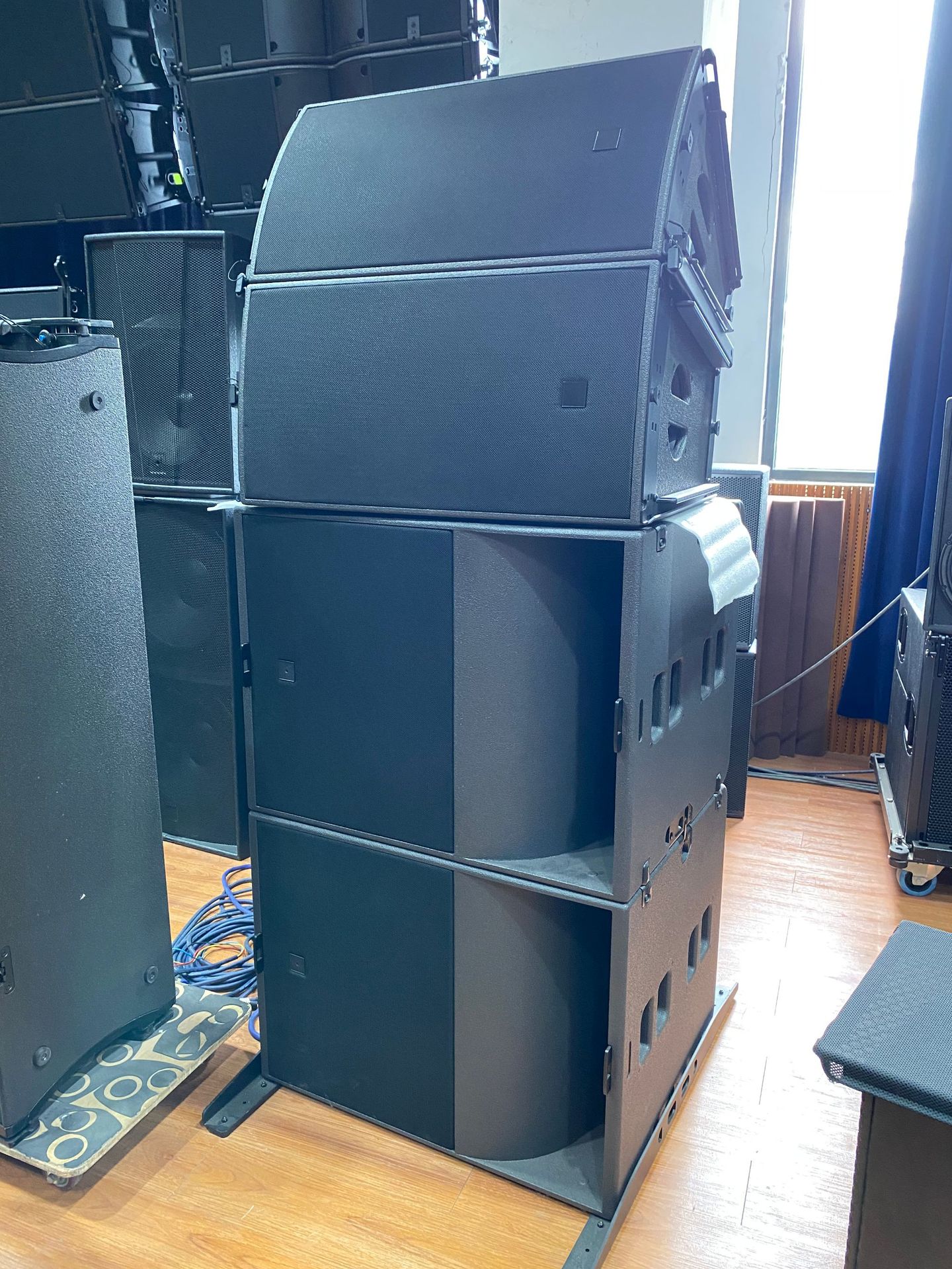

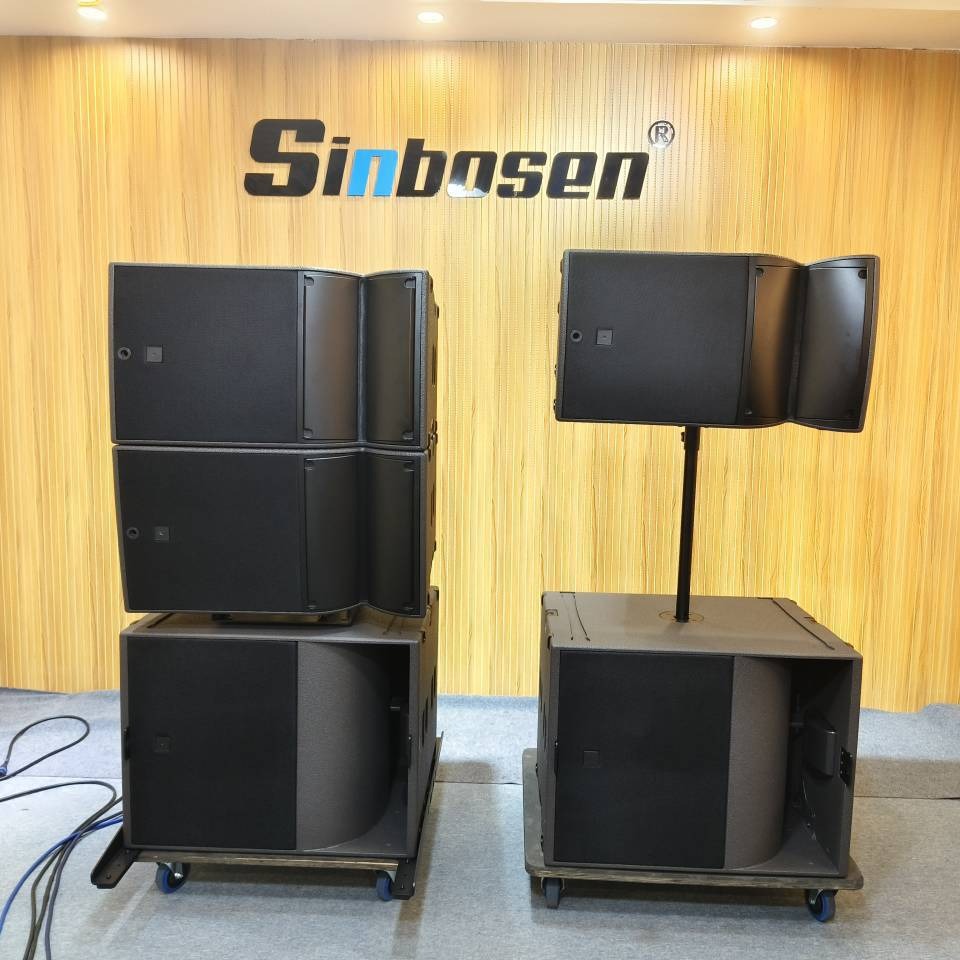

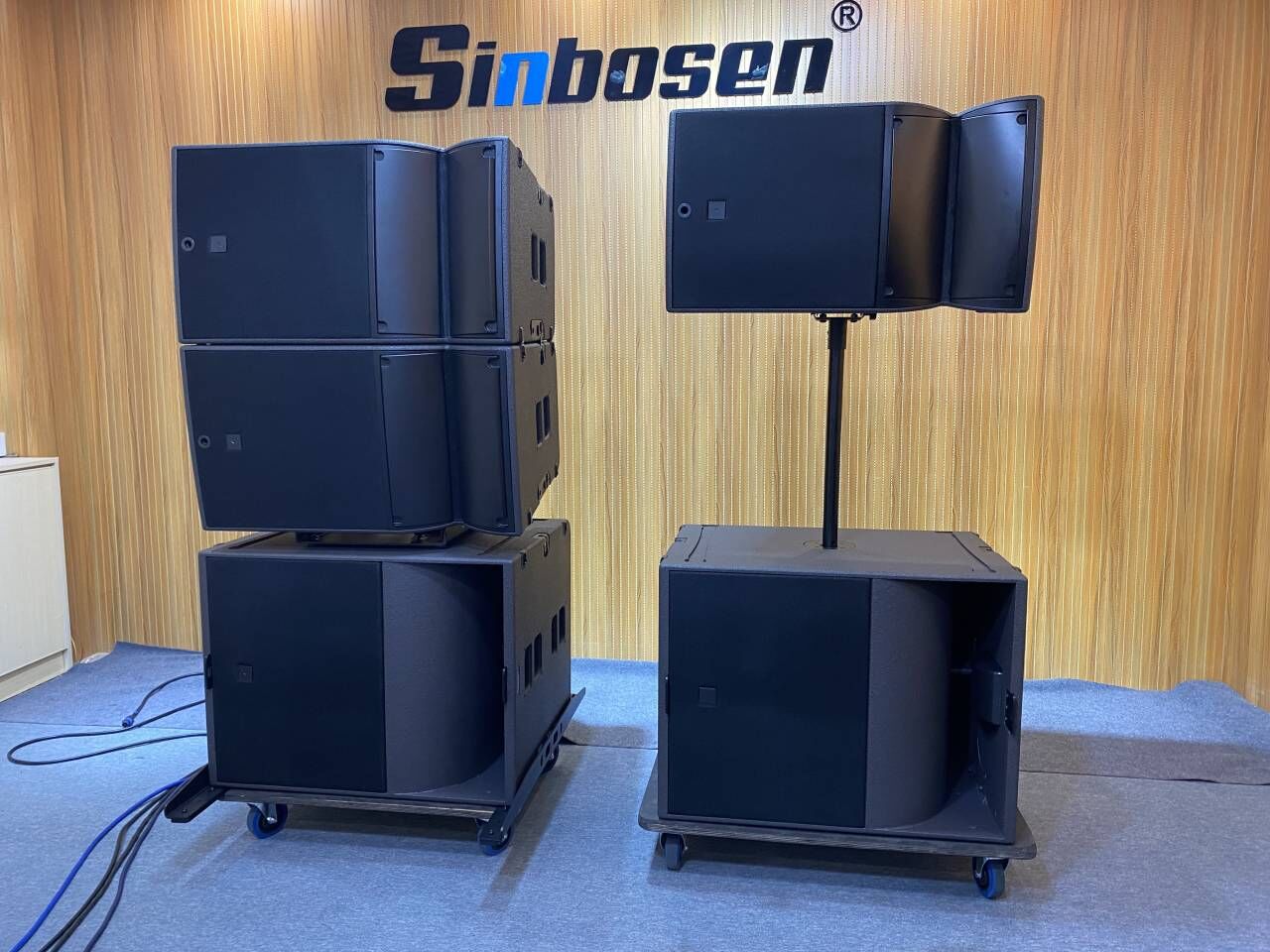

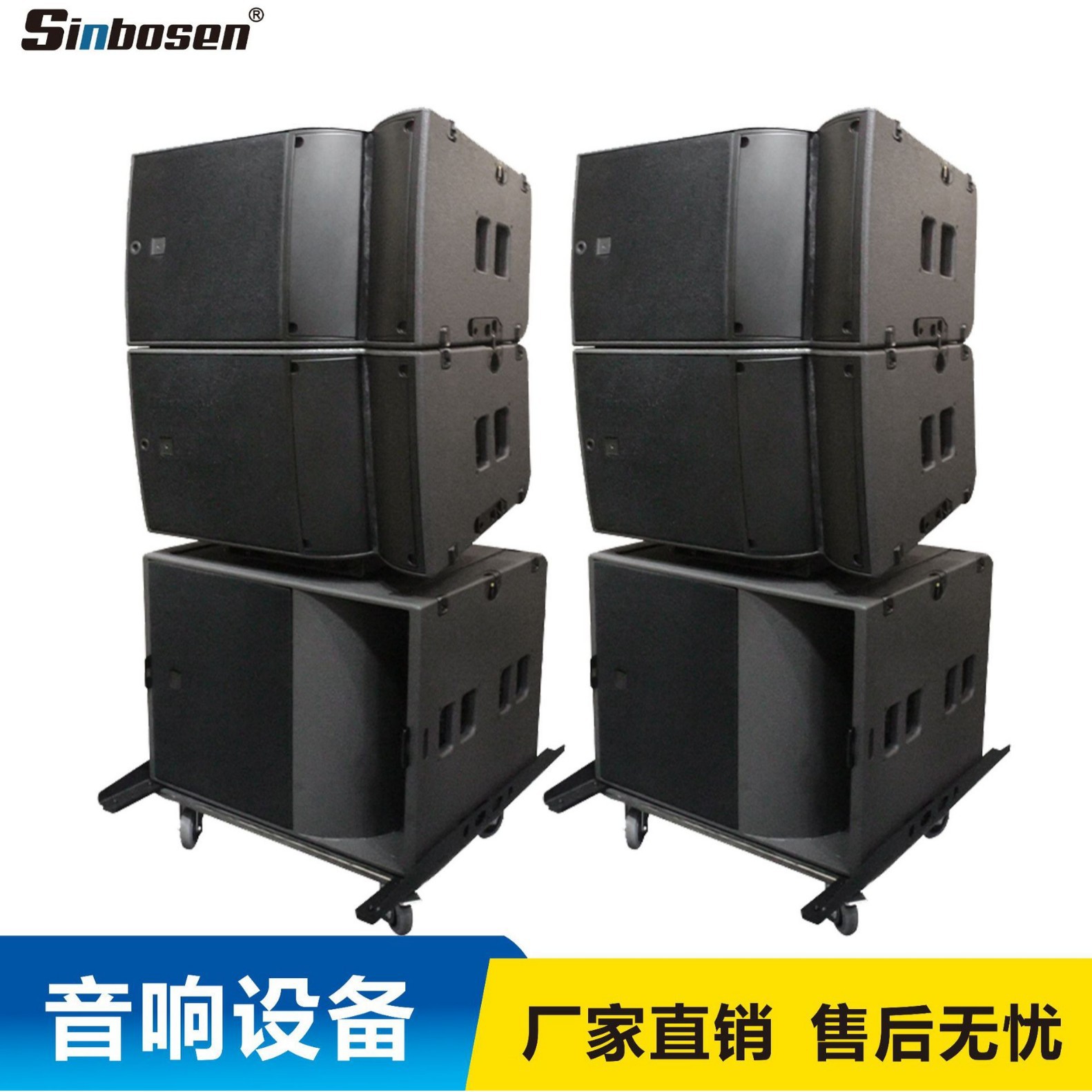

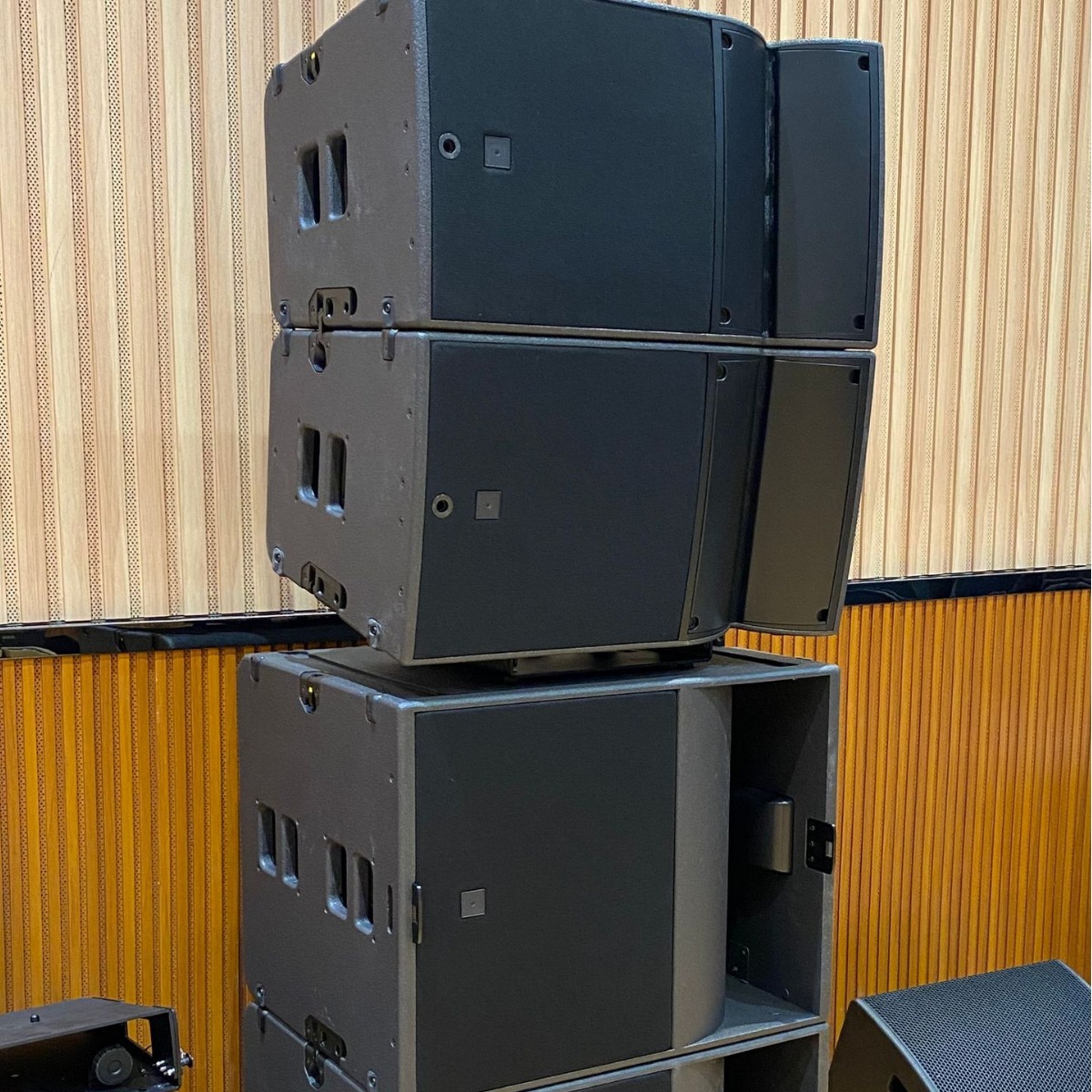

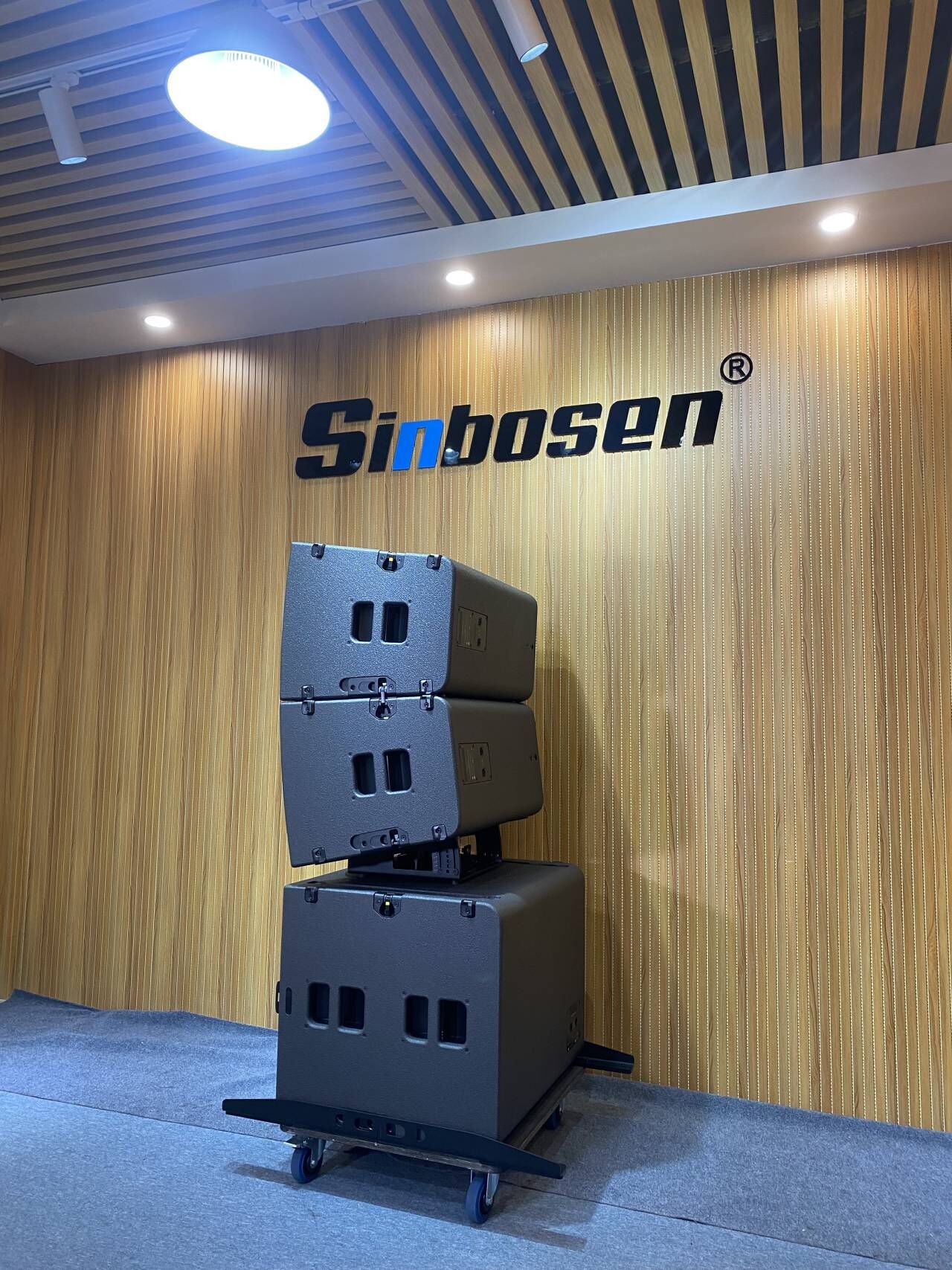

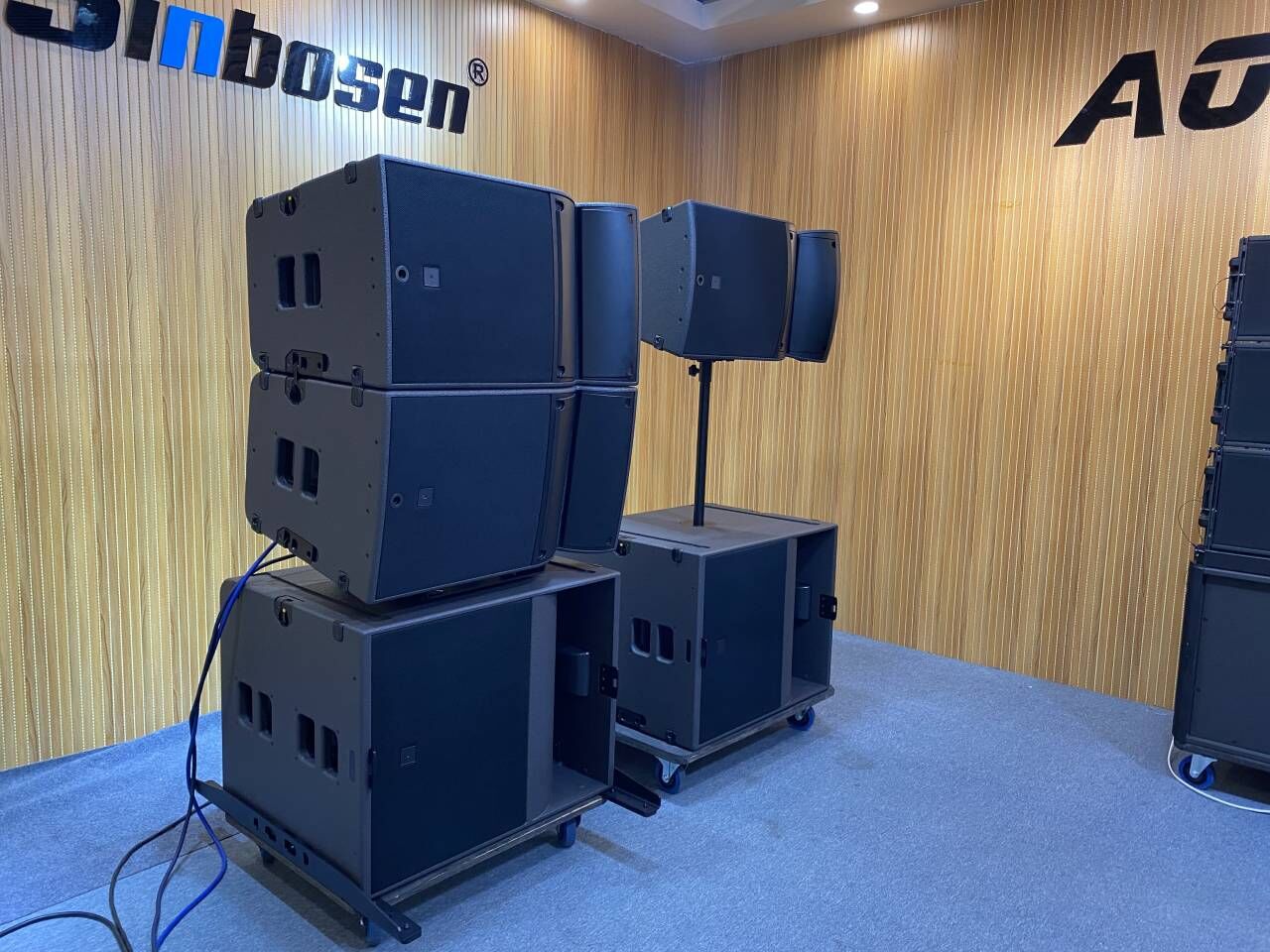

●The KA15 Wide and KA15 Focus can be hung together or stacked together to form a vertical line array.
●The KA15 Wide provides wide horizontal coverage when mounted radially, which is ideal for infill and side-fill use on large
stages.

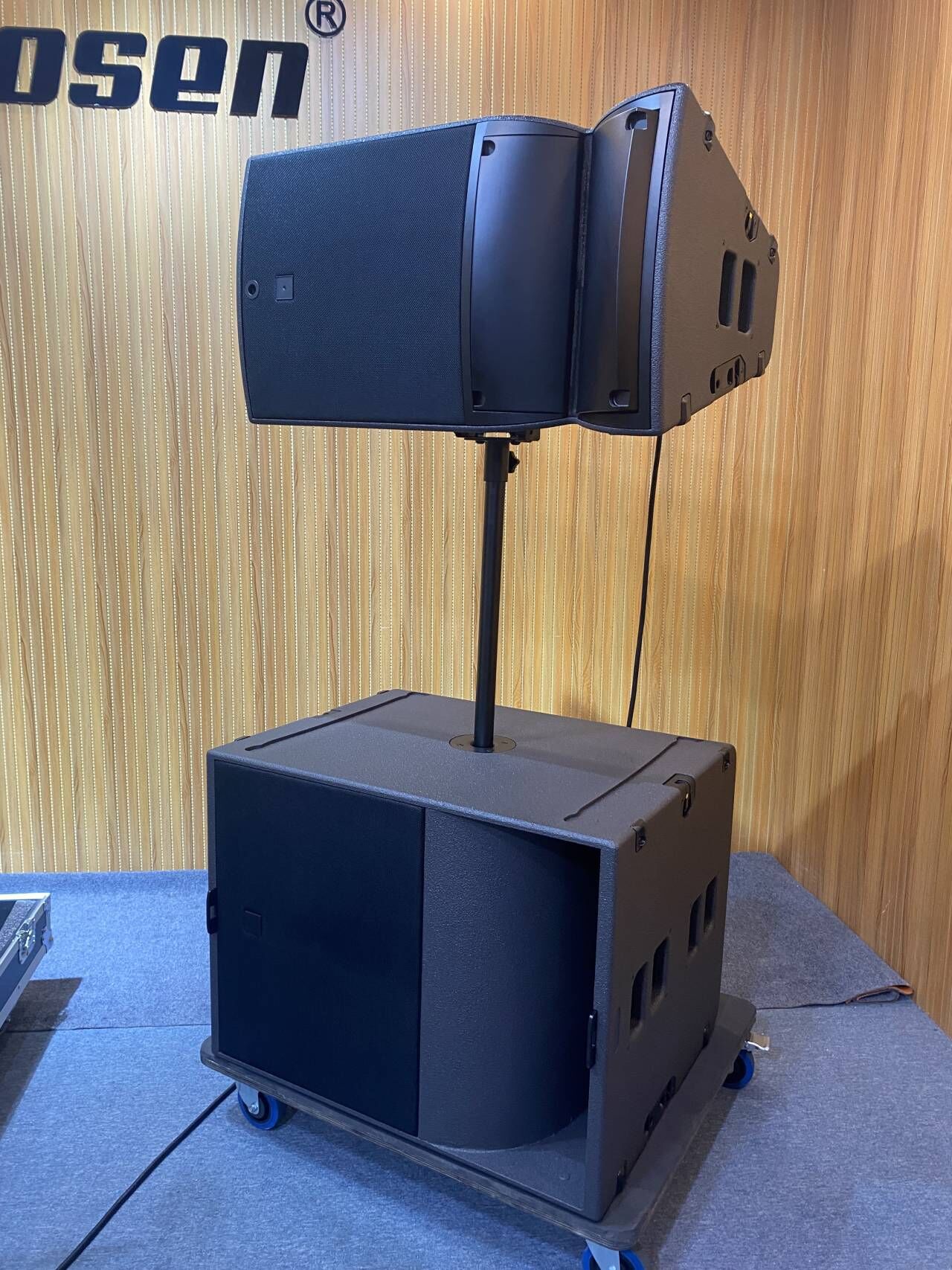

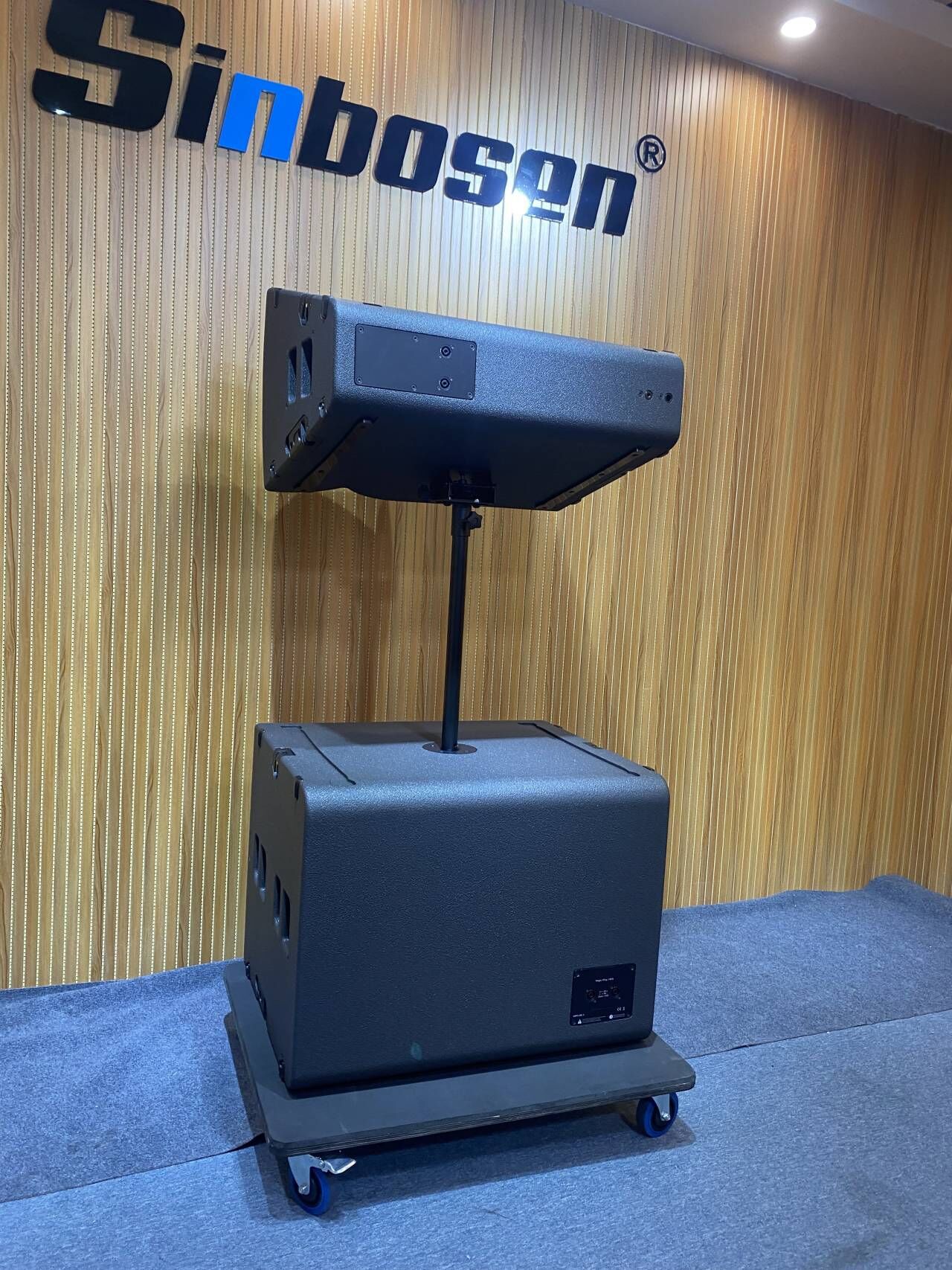

●A single KA15 Wide can also be used as a point source pole mount with adjustable directivity, or for applications such as delayed fill.
●The KA15 Wide delivers large concert-level low frequency response.



160/2000

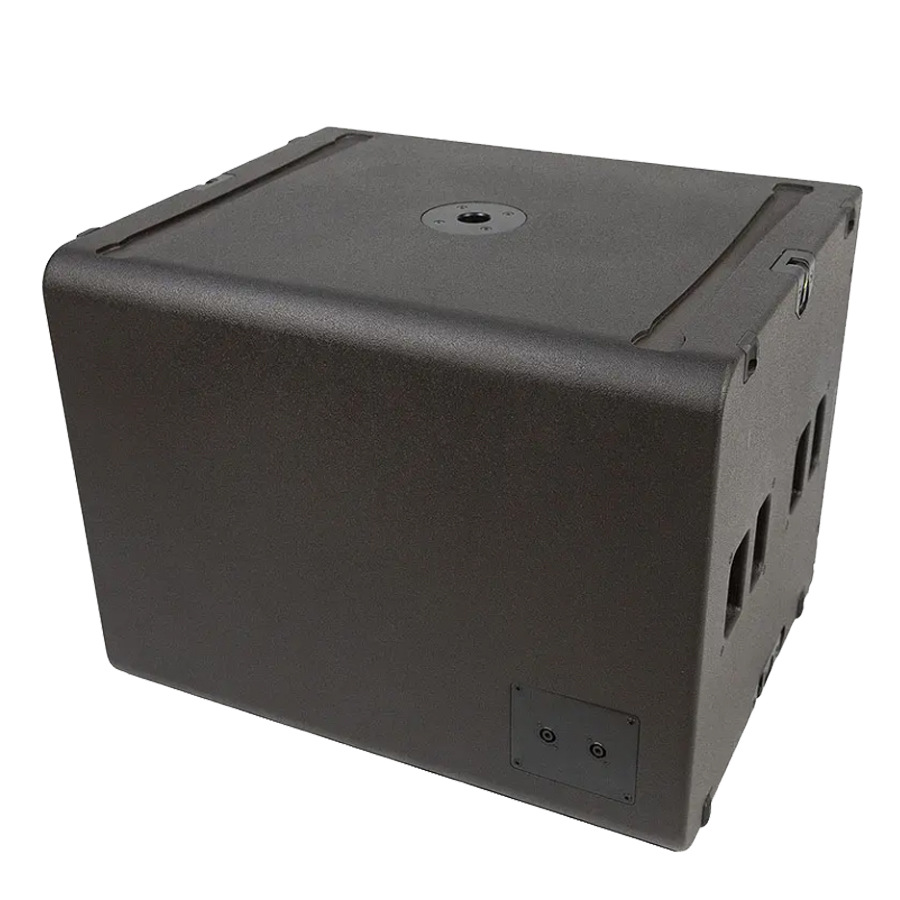

 技术参数：KS21

大功率低音炮

21寸

最大声压级：138dB

低频下限29Hz

扬声器 LF1 x 21”

重量49公斤/108磅

指向性标准或心形配置

High power subwoofer, 21"

Max SPL 138 dB
Low frequency limit 29 Hz
Transducers LF: 1 x 21"
Weight 49 kg / 108 lb
Directivity standard or cardioid configurations
