中文标题：适用于DELL Optiplex 3020/7020/9020 ATX 24P转8P线

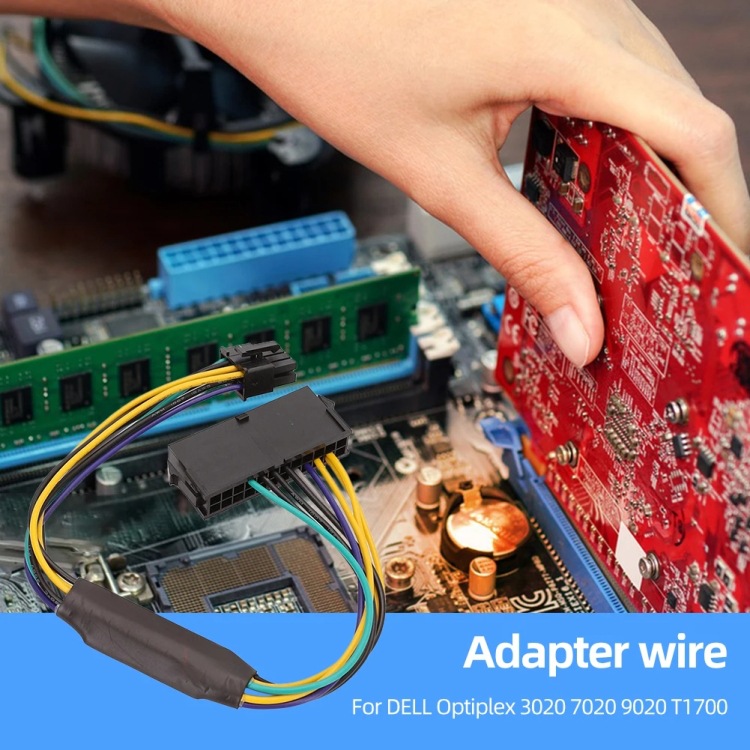

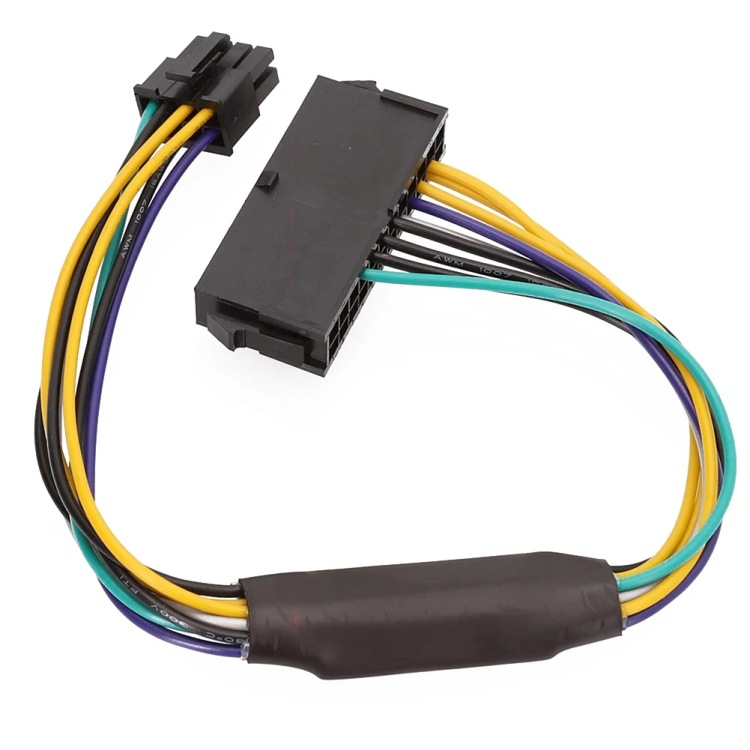

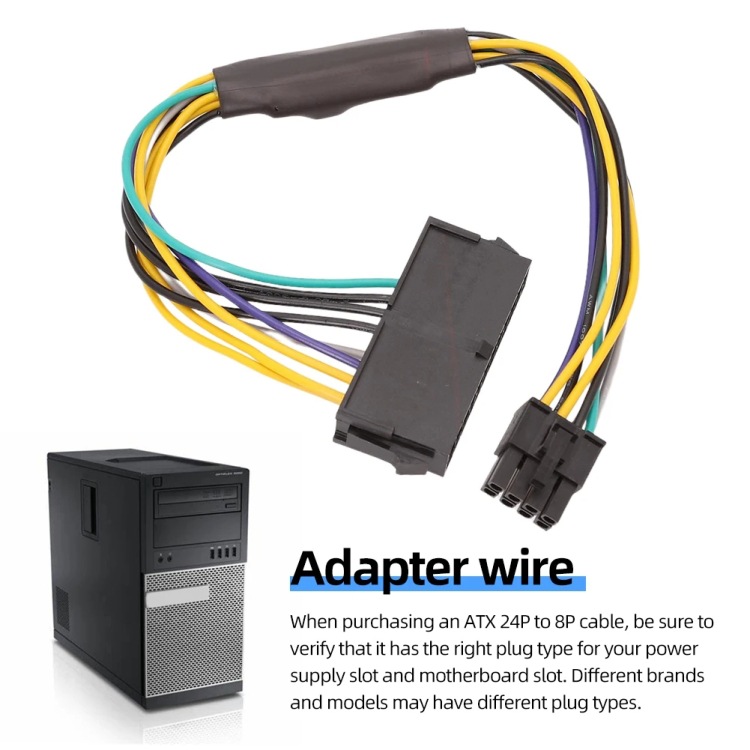

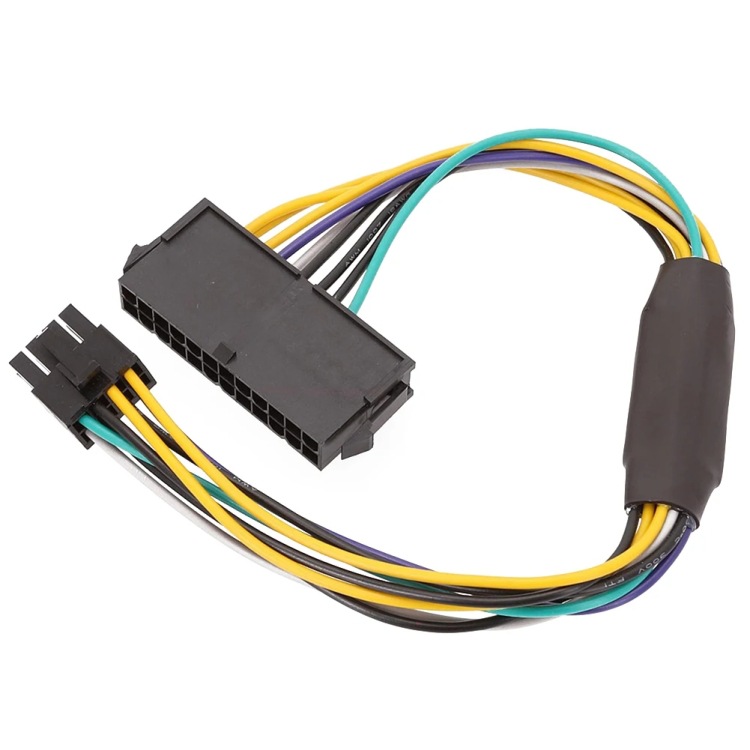

英文标题：For DELL Optiplex 3020/7020/9020 ATX 24P to 8P Cable

1. 材质：1007-18AWG全铜镀锡线 + 环保接插件
2. 适用 DELL全系列8P主板，DELL Optiplex 3020 7020 9020 T1700
3. 一头针座接普通ATX 电源24P ，另一头接全系列DELLH61/H81/Q77/Q87/B75/A75/Q75/Q65等
4. 只要是主板8P针座的，采用18AWG 正标线材，0.18x34铜芯，支持1000W大功率电源
5. 长度：30厘米
6. 重量：42克

友情提示：
1. 因以上几款机型，主板供电，除了8针，还有一个4针供电，是标准的CPU 4针设计
2. 如果您的电源，没有CPU 4针线或只有8针的CPU供电，需要另购买CPU 8针转CPU 4针线
3. 本款转接线，要求电源24P定义，一定要AXT标准的，而且拍前确定好，机箱是否可装在标准大电源尺寸

1. Material: 1007-18AWG all-copper tinned wire + environmentally friendly connector
2. For DELL full range of 8P motherboards, for DELL Optiplex 3020 7020 9020 T1700
3. One end of the pin socket is connected to the ordinary ATX power supply 24P, and the other end is connected to the full range of DELLH61/H81/Q77/Q87/B75/A75/Q75/Q65, etc.
4. As long as it is the 8P pin socket of the motherboard, it uses 18AWG standard wire, 0.18x34 copper core, and supports 1000W high-power power supply.
5. Length: 30cm
6. Weight: 42 grams

Friendly reminder:
1. Because of the above models, in addition to the 8-pin motherboard power supply, there is also a 4-pin power supply, which is a standard CPU 4-pin design.
2. If your power supply does not have a CPU 4-pin cable or only has an 8-pin CPU power supply, you need to purchase a CPU 8-pin to CPU 4-pin cable.
3. This adapter cable requires a 24P power supply definition, which must be AXT standard, and make sure before taking the photo whether the chassis can be installed in a standard large power supply size.

装箱信息：
每箱个数:165pcs
毛重:10.18kg
整箱尺寸:47.00*32.00*35.00cm

单个重量和尺寸：
重量:54.00g
长:15.00cm
宽:6.00cm
高:3.00cm
