VTX系列凭借出色的音响效果、通用的索具系统和完整的集成，在任何规模上提供非凡的声音表现。紧凑的外形设计，配套的无源双向线阵列分频网络是一种多功能解决方案，适用于巡演音响解决方案，公司活动、剧院、俱乐部或任何需要卓越扩声的地方。

VTX10系统选用10英寸大功率低音单元和两只1.4英寸音圈高音压缩驱动器

内置的保护技术能够有效保护高音单元不过载，可长时间稳定工作。

双功放/无源开关可让您在双向主动模式或高效无源模式之间进行切换。

VTX10系统在箱体底部设有一个Φ35 mm x 2 (0°or -7°)的支杆插孔，与配备完整的索具可实现支撑、堆叠与悬架等功能在不同的环境场所应用。

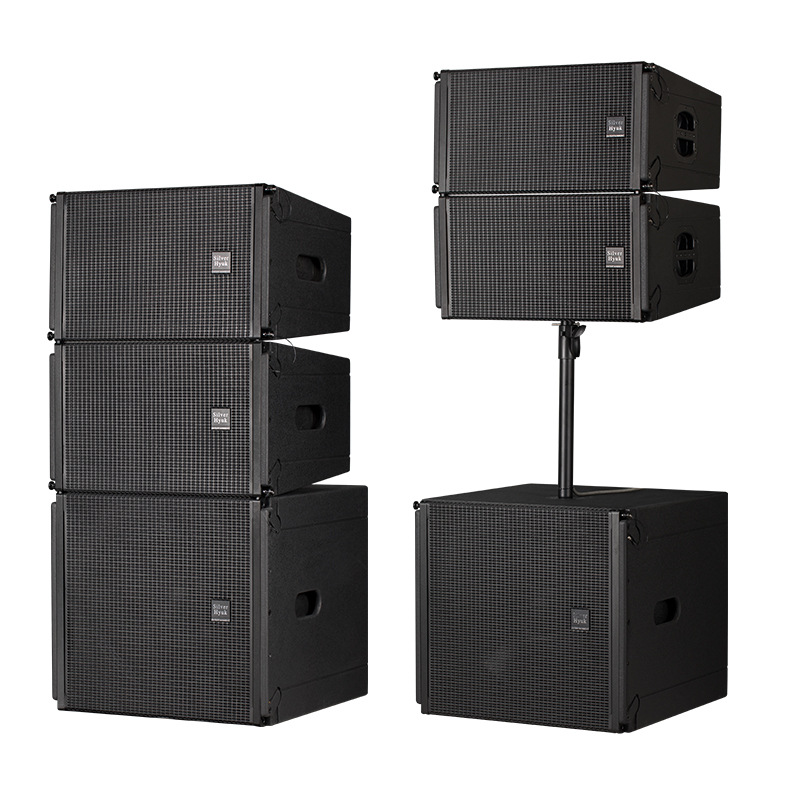

两只VTX10与VTX118PD有源低音炮组合便可成为主动式现场扩声，能够扩展并解决巡演与固定安装的多样化需求，是专为各种应用而设计。而且这些应用在紧凑、与低成本高效益的价值中表现出来。

系统表层经多次打磨处理，有耐用、持久如新、硬度强、抗磨损、符合环保的标准。

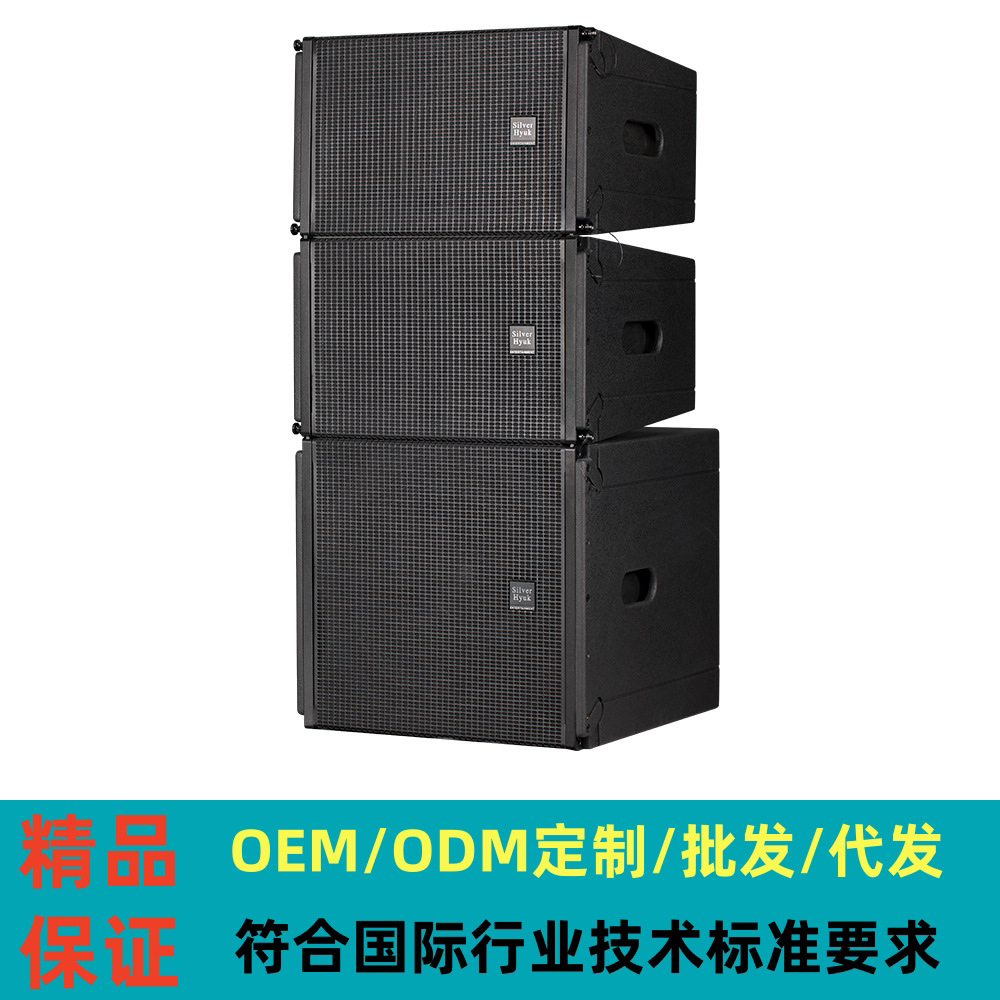

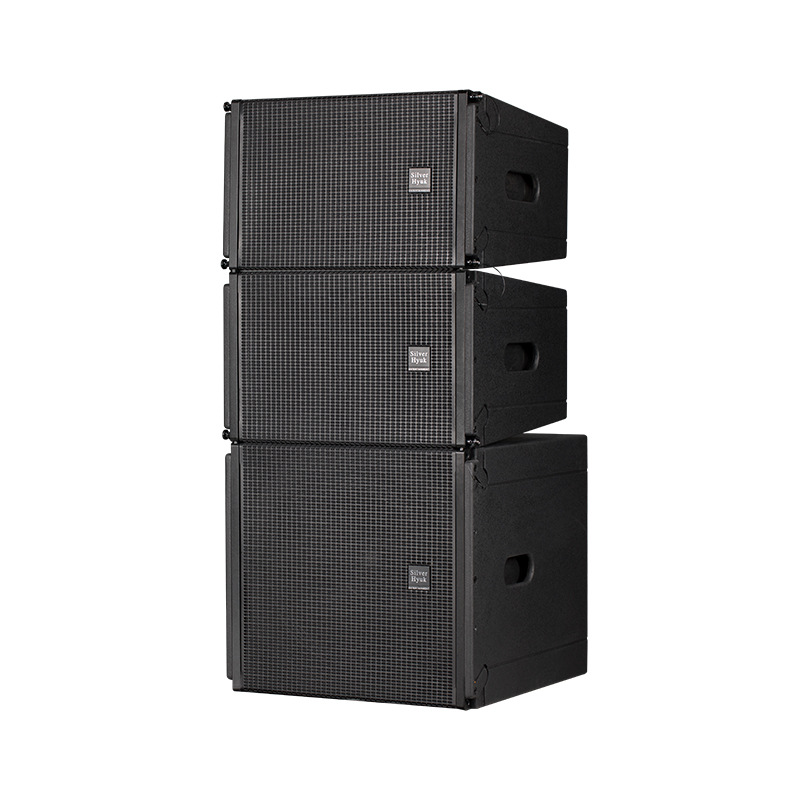

阵列升降组合兼容低频音箱VTX18S（无源） / VTX118PD（有源）

类型：                10寸两路线性阵列音箱
频率范围(-3dB)： 53Hz-20KHz
无源功率(AES) :   (连续/峰值) 300 W/1200 W
灵敏度：              96dB, spl @ 1w,1m
最大声压级：        130dB
水平覆盖角度(H)： 120°
垂直覆盖角度(V)： 10°
低频单元：           10英寸大功态驱动器
低频处理功率：      (连续/峰值) 200 W/800 W
高频单元：            两只1.4英寸音圈压缩驱动器
高频处理功率：      (连续/峰值) 150 W/600 W

标称阻抗：            被动(+1，-1)8Ω
主动阻抗：            双功放，双向(+1，-1)低频8Ω (+2，-2)高频 16Ω

连接器：               2×NEUTRIK NL4MP
音箱支架插孔：      Φ35 mm x 2 (底部, 0° or -7°)
箱体材料：            桦木胶合板，CNC制造
箱体外观：            黑色耐磨喷漆处理，定制其他颜色，请咨询商务人员
尺寸(W×H×D)：    598×311×440mm
净重：                  20Kg
包装尺寸：             547×422×697mm
包装重量：             22Kg

The VTX10 system uses a 10-inch high-power woofer and two 1.4-inch voice coil tweeter compression drivers.

The built-in protection technology can effectively protect the tweeter from being overloaded and can work stably for a long time.

A bi-amp/passive switch lets you switch between bi-directional active mode or high-efficiency passive mode.

The VTX10 system is equipped with a Φ35 mm x 2 (0° or -7°) pole jack at the bottom of the box, and is equipped with complete rigging to achieve support, stacking and suspension functions in different environmental locations.

The combination of two VTX10 and one VTX118PD active subwoofer can become active live sound reinforcement, which can expand and solve the diverse needs of touring and fixed installation, and is designed for various applications. And these applications are characterized by compactness, cost-effectiveness and value.

The surface of the system has been polished multiple times, making it durable, long-lasting, strong in hardness, anti-wear, and environmentally friendly.

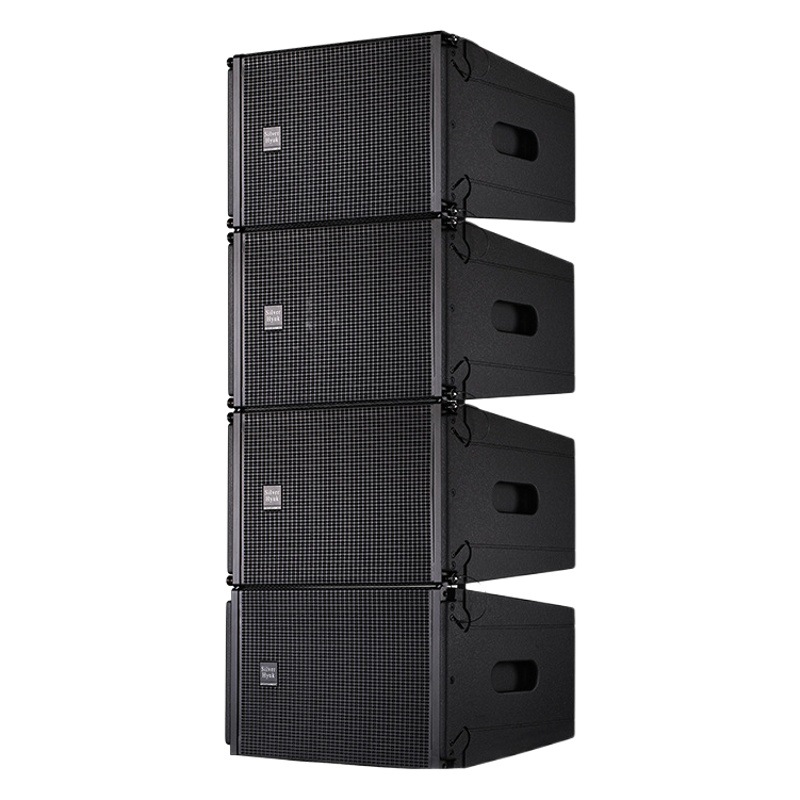

Array lifting combination is compatible with subwoofer VTX18S (passive) / VTX118PD (active)

Specifications:
System Type：                10-inch two-way line array speaker
Frequency Range (-3dB): 53Hz - 20KHz
System Sensitivity:         96 db (1w @ 1m)
Maximum SPL:                128db
Power Rating:                 300 W Continuous, 1200 W Peak
Horizontial Coverage:      120°
Vertical Coverage:           10°
LF Driver:                       10" woofer
LF Power Handling：        200 W Continuous, 800 W Peak
HF Driver:                       2 x 1" compression drivers, 1.4" voice coil
HF Power Handling：       150 W Continuous, 600 W Peak
Impedance:                    Passive (+1,-1)8Ω
Active impedance：         Bi-amplifier, bidirectional(+1,-1)Low frequency 8Ω (+2,-2)High frequency 16Ω
CONNECTORS:               (2) Neutrik® Speakon® NL4MP
Speaker stand jack:        Φ35 mm x 2 (bottom, 0° or -7°)
Enclosure:                      High quality Russian birch wood, CNC manufacturing
OPTIONS:                       Black textured paint or waterproof finish
Dimensions:                    (W x H x D) 598×311×440mm
Packing Specifications:     547×422×697mm
Net Weight：                   20 kg
packing weight:               22 Kg

VTX12系统选用12英寸大功率低音单元和两只1.4英寸音圈高音压缩驱动器

内置的保护技术能够有效保护高音单元不过载，可长时间稳定工作。

双功放/无源开关可让您在双向主动模式或高效无源模式之间进行切换。

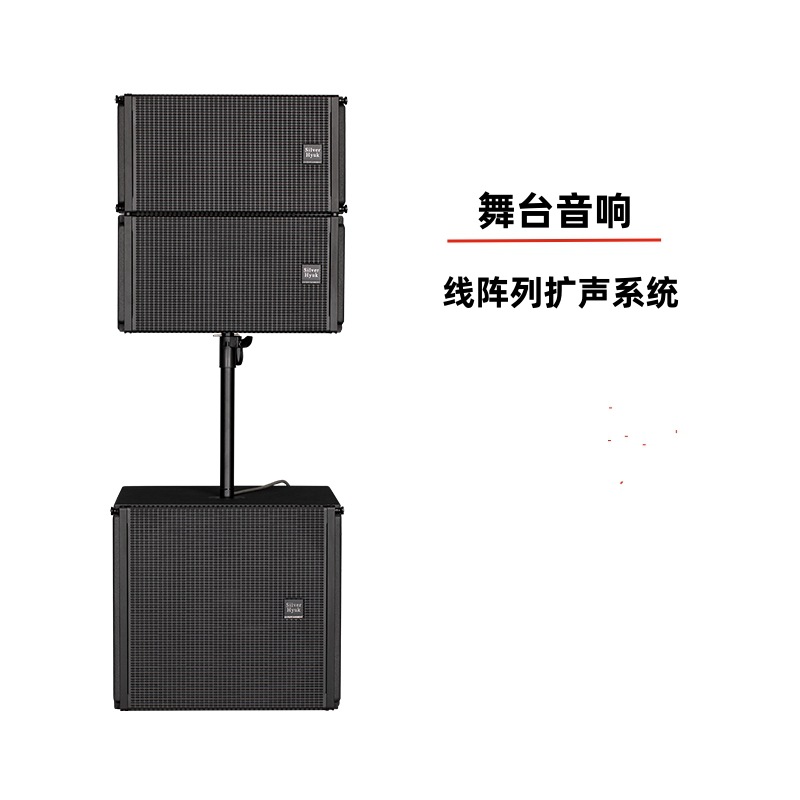

两只VTX12与VTX118PD有源低音炮组合便可成为主动式现场扩声，能够扩展并解决巡演与固定安装的多样化需求，是专为各种应用而设计。而且这些应用在紧凑、与低成本高效益的价值中表现出来。

系统表层经多次打磨处理，有耐用、持久如新、硬度强、抗磨损、符合环保的标准。

阵列升降组合兼容低频音箱VTX18S（无源） / VTX118PD（有源）

类型：                 12寸两路线性阵列音箱
频率范围(-3dB)：  56Hz-20KHz
无源功率(AES) :   (连续/峰值) 450 W/1800 W
灵敏度：              96dB, spl @ 1w,1m
最大声压级：         128dB(峰值:132dB)
水平覆盖角度(H)： 120°
垂直覆盖角度(V)： 10°
低频单元：           12英寸大功态驱动器
低频处理功率：      (连续/峰值) 350 W/1400 W
高频单元：            两只1.4英寸音圈压缩驱动器
高频处理功率：      (连续/峰值) 150 W/600 W

标称阻抗：            被动(+1，-1)8Ω
主动阻抗：            双功放，双向(+1，-1)低频8Ω (+2，-2)高频 16Ω

连接器：               2×NEUTRIK NL4MP
箱体材料：            桦木胶合板，CNC制造
箱体外观：            黑色耐磨喷漆处理，定制其他颜色，请咨询商务人员
尺寸(W×H×D)：   598×365×480mm
净重：                 24Kg
包装尺寸：           697×472×582mm
包装重量：           26Kg

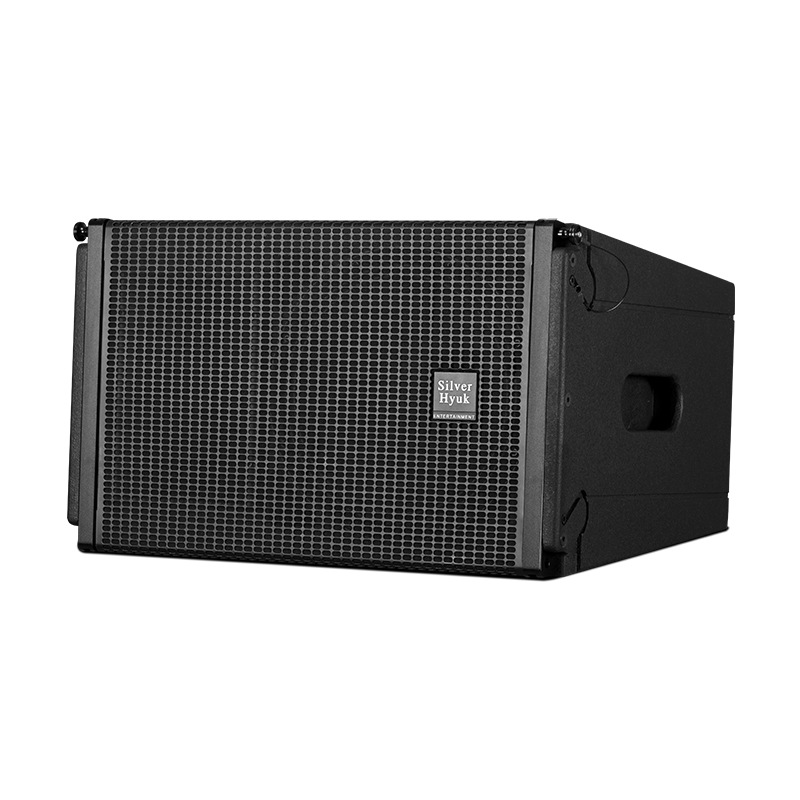

The VTX12 system uses a 12-inch high-power woofer and two 1.4-inch voice coil tweeter compression drivers.

The built-in protection technology can effectively protect the tweeter from being overloaded and can work stably for a long time.

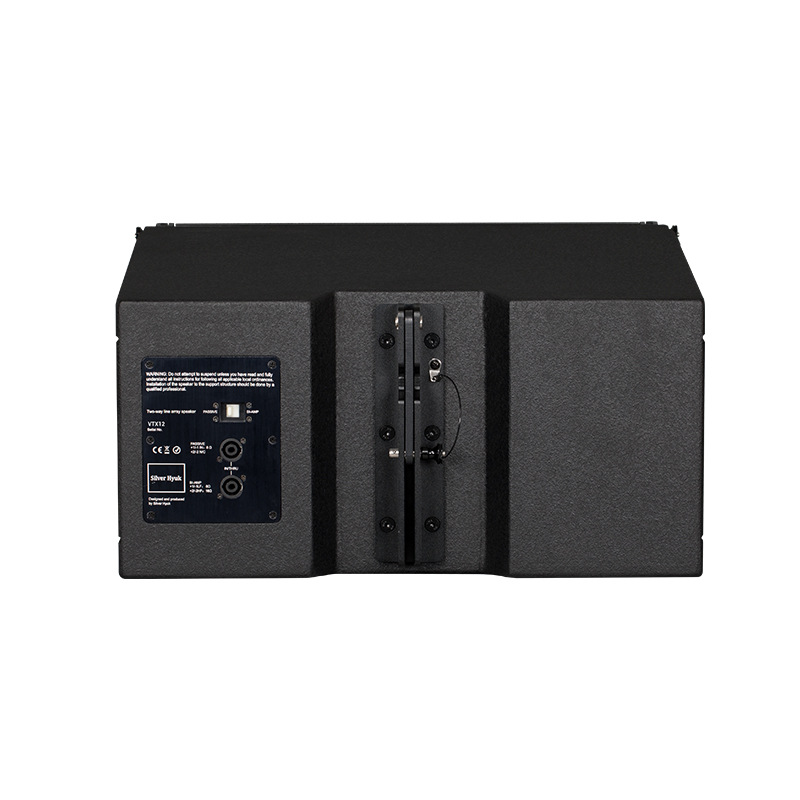

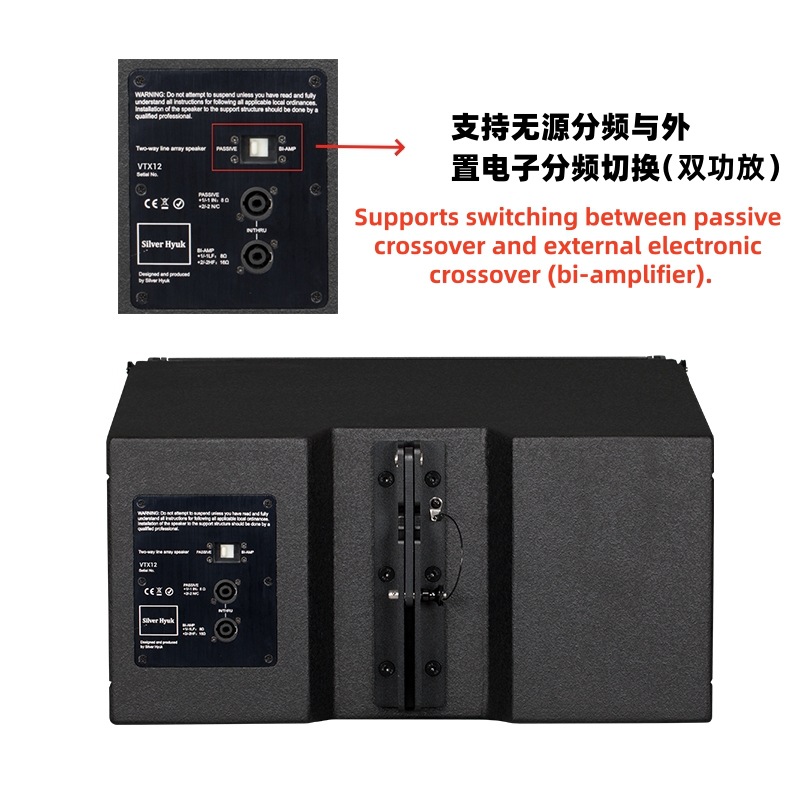

A bi-amp/passive switch lets you switch between bi-directional active mode or high-efficiency passive mode.

The combination of two VTX12 and VTX118PD active subwoofers can become active live sound reinforcement, able to expand and solve the diverse needs of touring and fixed installations, and is designed for a variety of applications. And these applications are characterized by compactness, cost-effectiveness and value.

The surface of the system has been polished multiple times, making it durable, long-lasting, strong in hardness, anti-wear, and environmentally friendly.

Array lifting combination is compatible with subwoofer VTX18S (passive) / VTX118PD (active)
​

Specifications:
System Type：                12-inch two-way line array speaker
Frequency Range (-3dB): 58Hz-20KHz
System Sensitivity:          96 db (1w @ 1m)
Maximum SPL:                132db
Power Rating:                  450 W Continuous, 1800 W Peak
Horizontial Coverage:       120°
Vertical Coverage:            10°
LF Driver:                        12" woofer
LF Power Handling：         350 W Continuous, 1200 W Peak
HF Driver:                        2 x 1" compression drivers, 1.4" voice coil
HF Power Handling：         150 W Continuous, 600 W Peak
Impedance:                      Passive (+1,-1)8Ω
Active impedance：           Bi-amplifier, bidirectional(+1,-1)Low frequency 8Ω (+2,-2)High frequency 16Ω
CONNECTORS:                  (2) Neutrik® Speakon® NL4MP
Enclosure:                         High quality Russian birch wood, CNC manufacturing
OPTIONS:                         Black textured paint or waterproof finish
Dimensions:                      (W x H x D) 598×365×480mm
Packing Specifications:       697×472×582mm
Net Weight：                     24 kg
packing weight:                 26 Kg
