VTX系列凭借出色的音响效果、通用的索具系统和完整的集成，在任何规模上提供非凡的声音表现。紧凑的外形设计，配套的无源双向线阵列分频网络是一种多功能解决方案，适用于巡演音响解决方案，公司活动、剧院、俱乐部、礼拜堂或任何需要卓越扩声的地方。

VTX102具有两个10英寸高效低音扬声器和两个 1.75 英寸音圈钕磁压缩驱动器，而且内置保护技术，可防止高音扬声器过载。

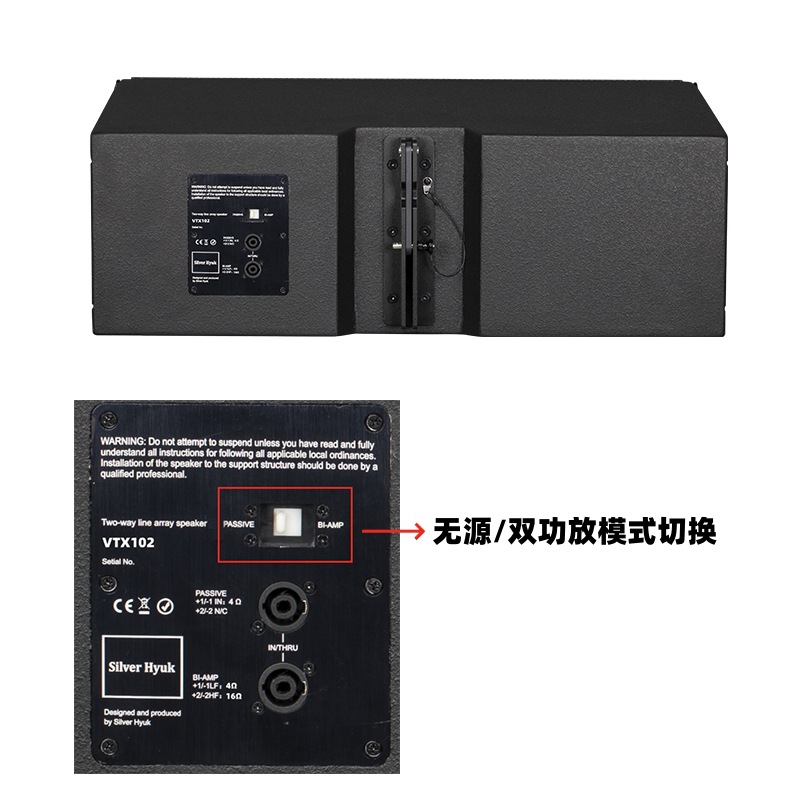

双功放/无源开关允许您在双向有源模式或高效无源模式之间切换。

VTX102与VTX18W相同的宽度锁定索具机构和悬架系统，配对时提供一个完整的生态系统。可以在世界任何地方的任何规模、任何场所提供无与伦比的扩声效果。

系统表面经过多次喷漆处理，提供耐用、恒久如新、硬度、耐磨损、符合环保标准。

类型：                 双10寸双向线性阵列音箱
频率范围(-3dB)：  55Hz-20KHz
无源功率(AES) :   (连续/峰值) 550 W/2200 W
灵敏度：              97dB, spl @ 1w,1m
最大声压级：        130dB(峰值:136dB)
水平覆盖角度(H)： 90°
垂直覆盖角度(V)： 10°
低频单元：           两只10英寸大功态驱动器
低频处理功率：     (连续/峰值) 400 W/1600 W

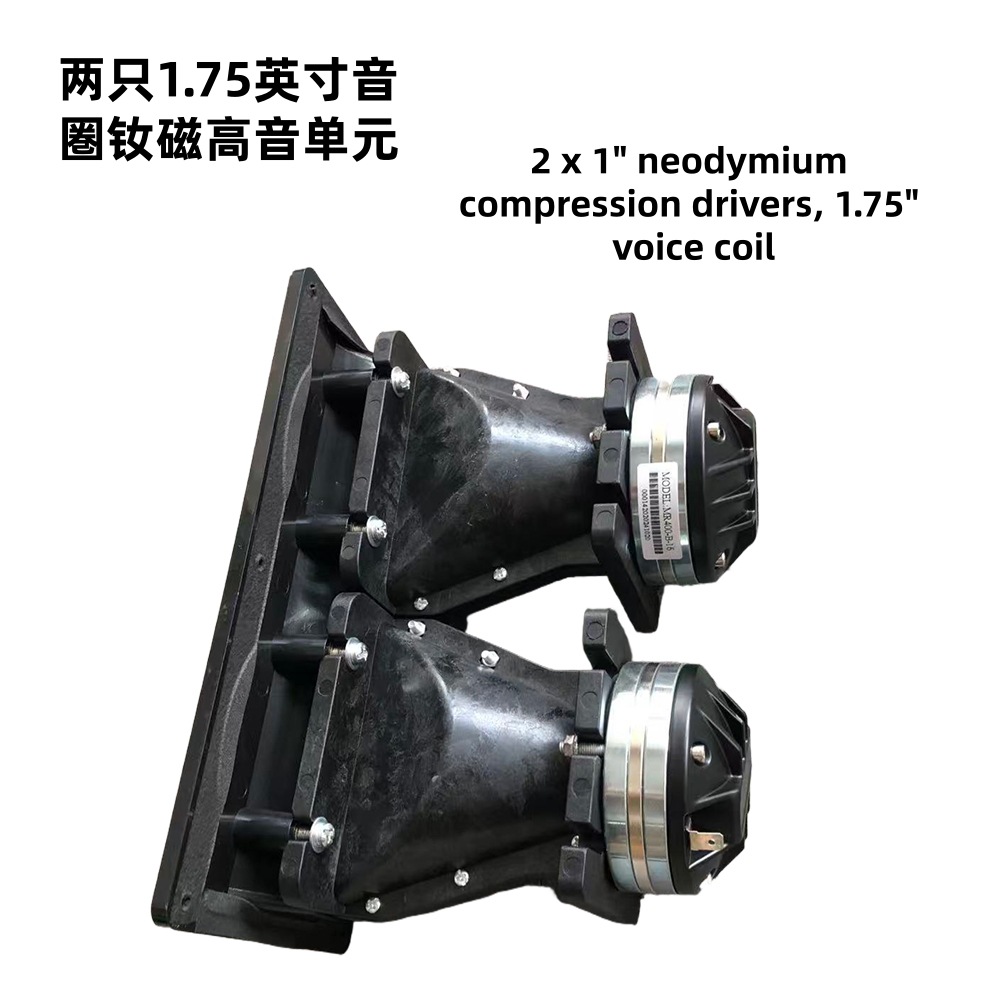

高频单元：           两只1.75英寸音圈钕磁压缩驱动器
高频处理功率：     (连续/峰值) 150 W/600 W
标称阻抗：           被动(+1，-1)8Ω
主动阻抗：           双功放，双向(+1，-1)低频8Ω (+2，-2)高频8Ω
连接器：              2×NEUTRIK NL4MP
箱体材料：           桦木胶合板，CNC制造
箱体外观：           黑色耐磨喷漆处理，定制其他颜色，请咨询商务人员
尺寸(W×H×D)：  800×311×440mm
净重：                30Kg
包装尺寸：           892×547×422mm
包装重量：           32.5Kg

The VTX102 features two 10-inch high-efficiency woofers and two 1.75-inch voice coil compression drivers, and has built-in protection technology to prevent tweeter overload.

The bi-amp/passive switch allows you to switch between bi-directional active mode or high-efficiency passive mode.

The VTX102 shares the same width-locking rigging mechanism and suspension system as the VTX18W, providing a complete ecosystem when paired. Providing unparalleled sound reinforcement in any venue, at any size, anywhere in the world.

The surface of the system has been spray-painted multiple times to provide durability, long-lasting performance, hardness, wear resistance, and compliance with environmental standards.
​

Specifications:
System Type：                Dual 10-inch two-way linear array speaker
Frequency Range (-3dB): 55Hz-20KHz
System Sensitivity:          97 db (1w @ 1m)
Maximum SPL:                136db
Power Rating:                  550 W Continuous, 2200 W Peak
Horizontial Coverage:       90°
Vertical Coverage:           10°
LF Driver:                        2 x 10-inch bass driver
LF Power Handling：         400 W Continuous, 1600 W Peak
HF Driver:                        2 x 1" neodymium compression drivers, 1.75" voice coil
HF Power Handling：         150 W Continuous, 600 W Peak
Impedance: Passive          (+1,-1)8Ω
Active impedance：           Bi-amplifier, bidirectional(+1,-1)Low frequency 8Ω (+2,-2)High frequency 8Ω
CONNECTORS:                 (2) Neutrik® Speakon® NL4MP
Enclosure:                        High quality Russian birch wood, CNC manufacturing
OPTIONS:                        Black textured paint or waterproof finish
Dimensions:                     (W x H x D) 800×310×440mm
Package Size:                    892×547×422mm
Net Weight：                     30 kg
Gross weights:                  32 Kg

VTX122 具有两个12英寸高效低音扬声器和两个 1.75 英寸音圈钕磁压缩驱动器，而且内置保护技术，可防止高音扬声器过载。

此外，双功放/无源开关允许您在双向有源模式或高效无源模式之间切换。

VTX122与VTX215B或VTX215PD相同的宽度锁定索具机构和悬架系统，配对时提供一个完整的生态系统。可以在世界任何地方的任何规模、任何场所提供无与伦比的扩声效果。

系统表面经过多次喷漆处理，提供耐用、恒久如新、硬度、耐磨损、符合环保标准。

类型：                  双12英寸双向线阵列音箱
频率范围(-3dB)：   56Hz-20KHz
无源功率(AES):     (连续/峰值) 850 W/3400 W
灵敏度：              96dB, spl @ 1w,1m
最大声压级：         132dB(峰值:138dB)
水平覆盖角度(H)： 90°
垂直覆盖角度(V)： 10°
低频单元：            两只12英寸低音驱动器
低频处理功率：       (连续/峰值) 700 W/2800 W
高音单元：            两只1.75英寸音圈钕磁压缩驱动器
高频处理功率：       (连续/峰值) 150 W/600 W
标称阻抗：            被动(+1，-1)8Ω
主动阻抗：             双功放，双向(+1，-1)低频8Ω (+2，-2)高频8Ω
输入连接器：          2×NEUTRIK NL4MP
箱体材料：             桦木胶合板，CNC制造
箱体外观：             黑色耐磨喷漆处理
尺寸(W×H×D)：     888×365×480mm
净重：                   42Kg
包装尺寸：             987×472×582mm
包装重量：             45.5Kg

The VTX122 features two 12" high-efficiency woofers and two 1.75" voice coil compression drivers, plus built-in protection technology to prevent tweeter overload. Additionally, a bi-amp/passive switch allows you to switch between two-way active mode or high-efficiency passive mode.

The VTX122 shares the same width locking rigging mechanism and suspension system as the VTX215B , providing a complete ecosystem when paired. Providing unparalleled sound reinforcement in any venue, at any size, anywhere in the world.

The surface of the system has been spray-painted multiple times to provide durability, long-lasting performance, hardness, wear resistance, and compliance with environmental standards.
​
​

Specifications:
System Type：                 Dual 12-inch two-way linear array speaker
Frequency Range (-3dB): 56Hz-20KHz
System Sensitivity:          96 db (1w @ 1m)
Maximum SPL:                138db
Power Rating:                  850 W Continuous, 3400 W Peak
Horizontial Coverage:       90°
Vertical Coverage:            10°
LF Driver:                        2 x 12-inch bass driver
LF Power Handling：         700 W Continuous, 1400 W Peak
HF Driver:                        2 x 1" neodymium compression drivers, 1.75" voice coil
HF Power Handling：         150 W Continuous, 600 W Peak
Impedance:                      Passive (+1,-1)8Ω
Active impedance：           Bi-amplifier, bidirectional(+1,-1)Low frequency 8Ω (+2,-2)High frequency 8Ω
CONNECTORS:                 (2) Neutrik® Speakon® NL4MP
Enclosure:                        High quality Russian birch wood, CNC manufacturing
OPTIONS:                         Black textured paint or waterproof finish
Dimensions:                     (W x H x D) 888×365×480mm
Packing Specifications:       987×472×582mm
Net Weight：                     42 kg
packing weight:                 45.5 Kg
