US$ 1,511.895
>=1 pcs

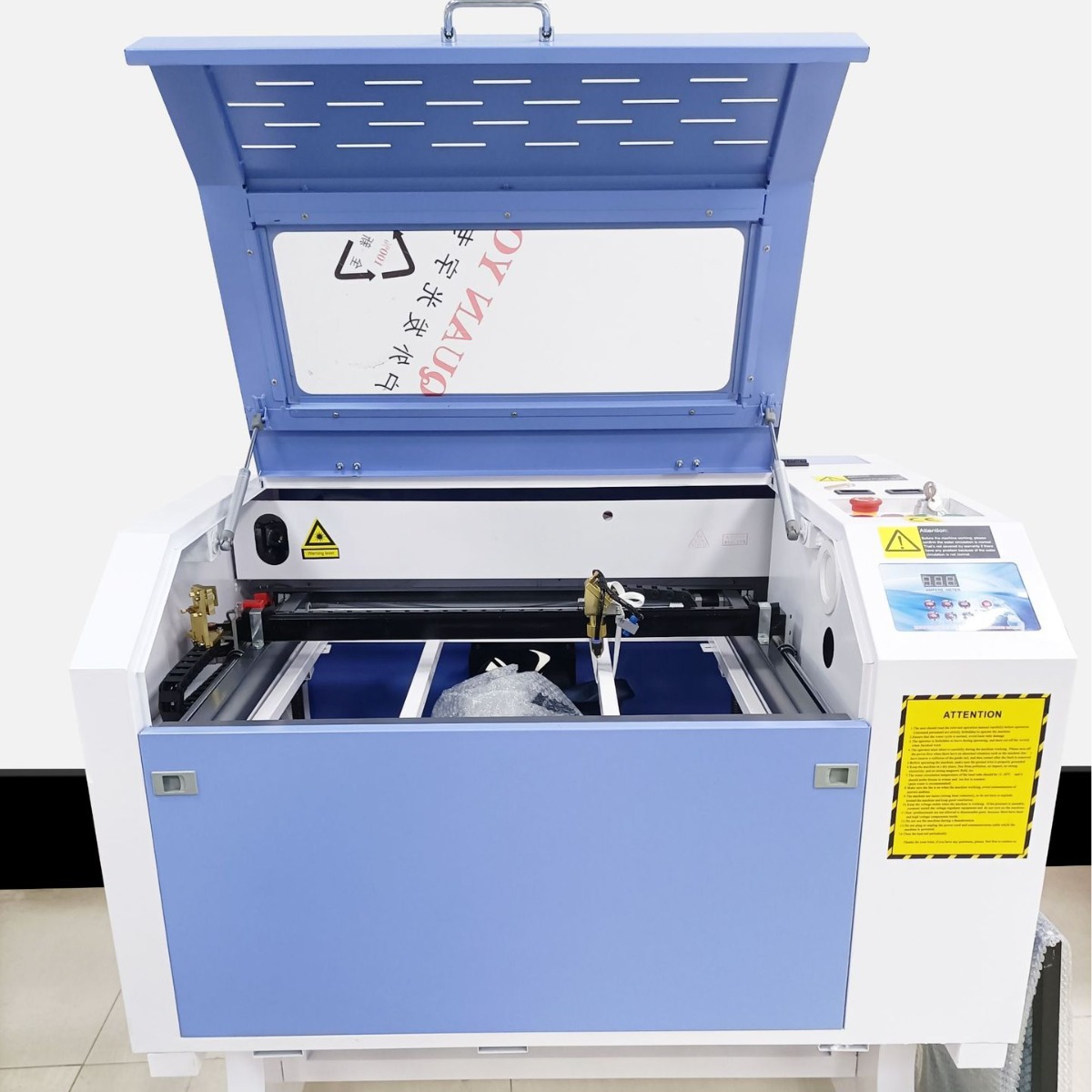

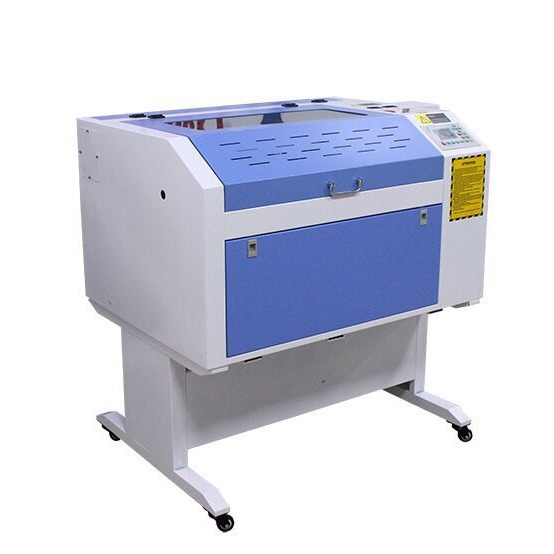

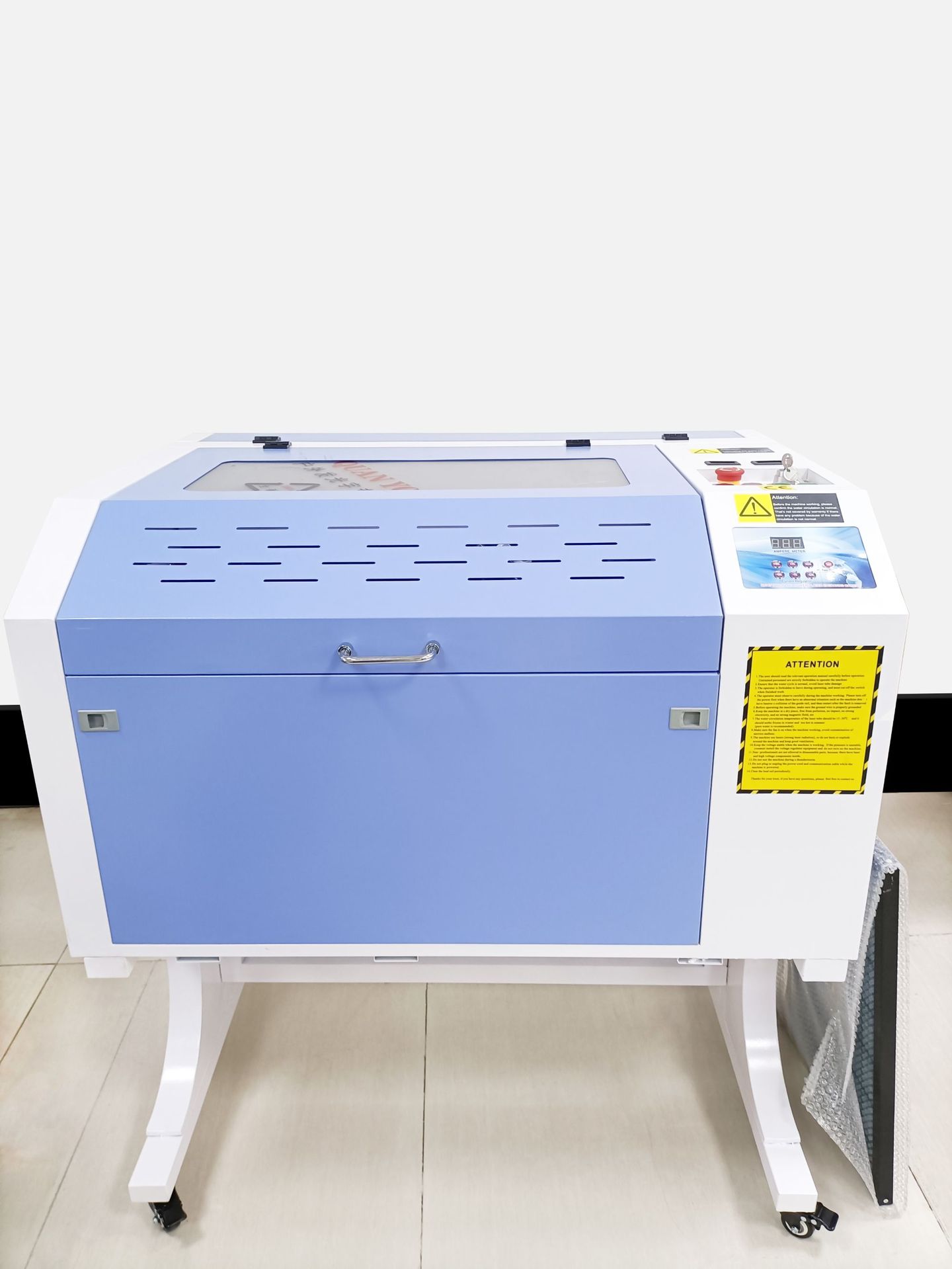

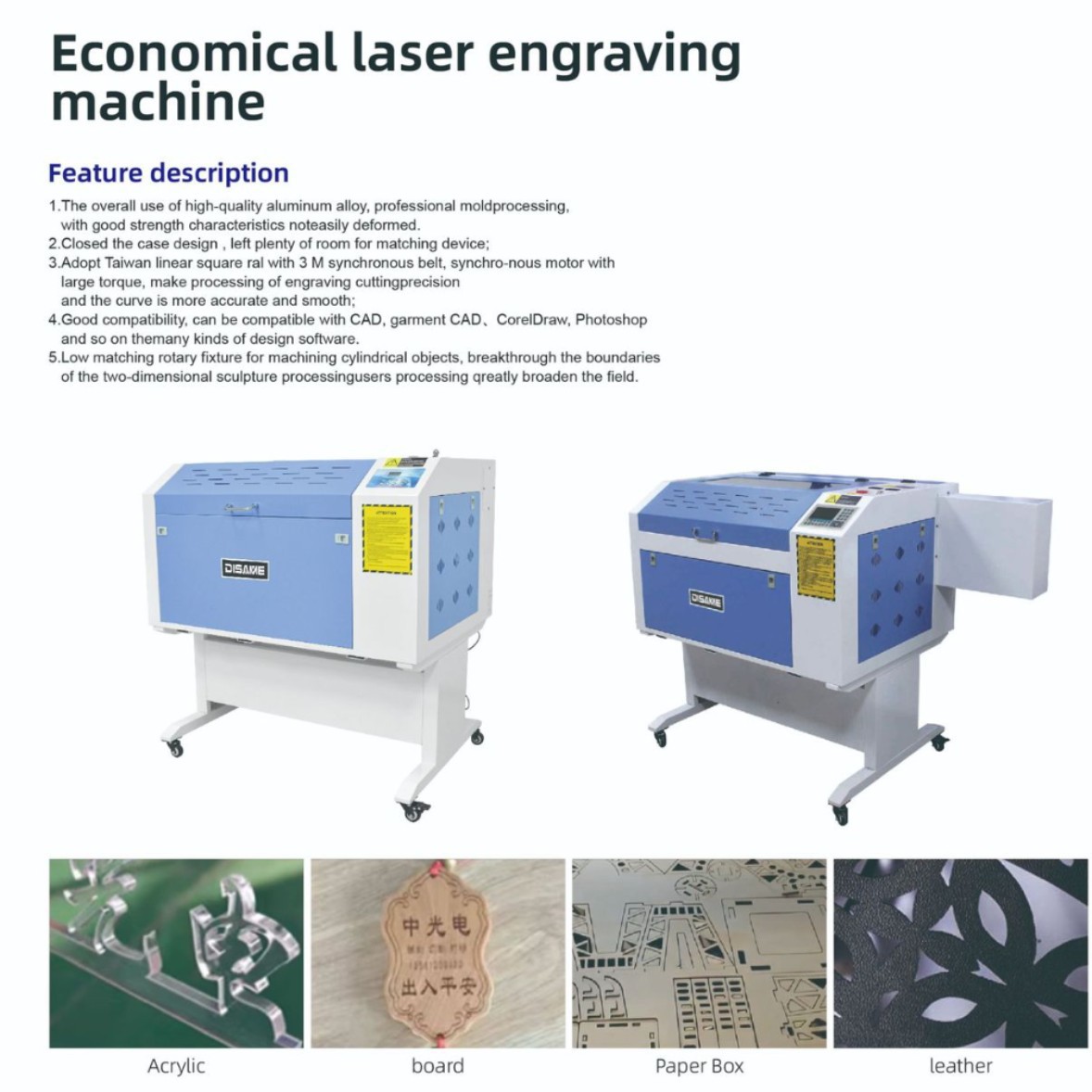

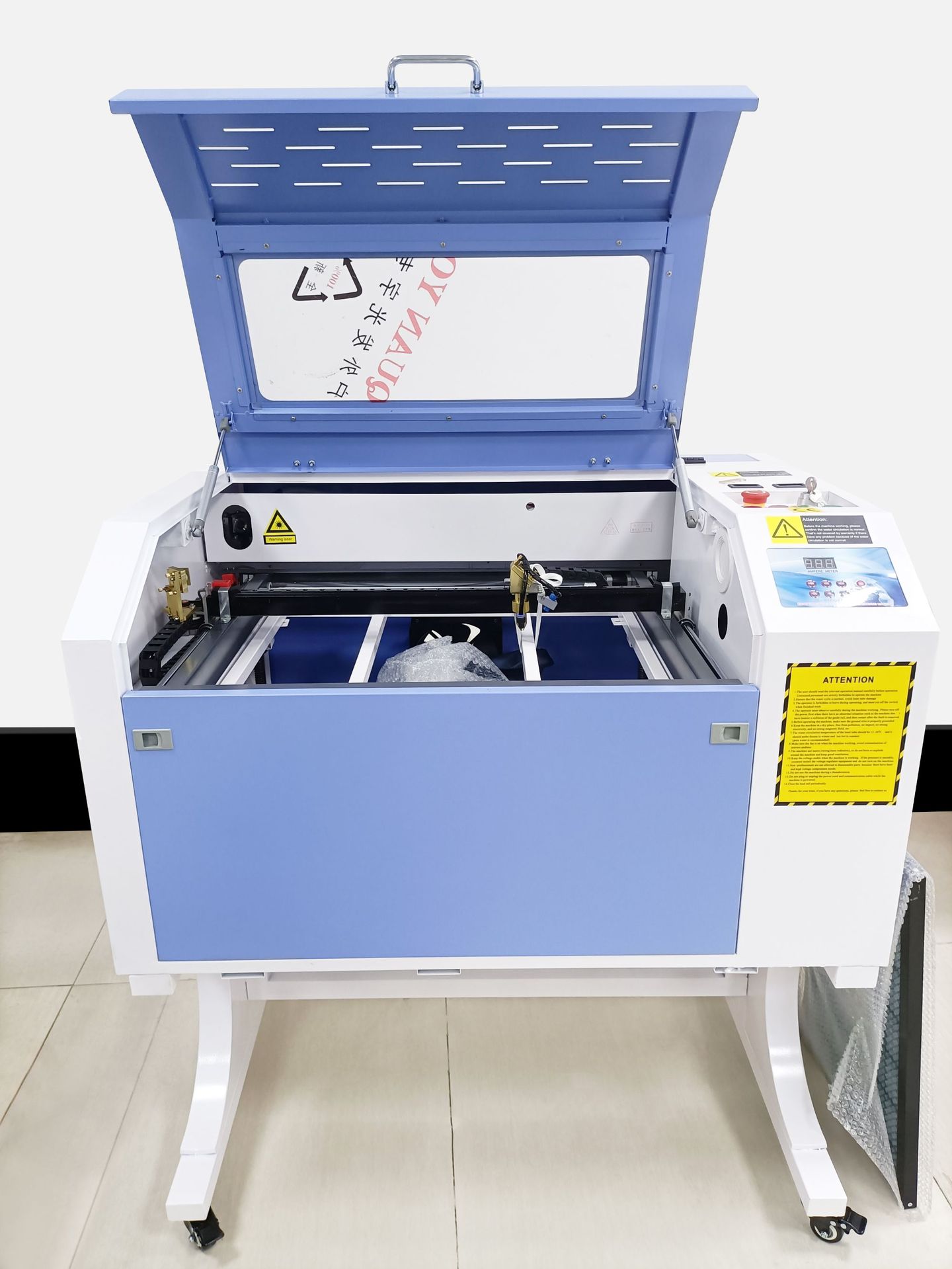

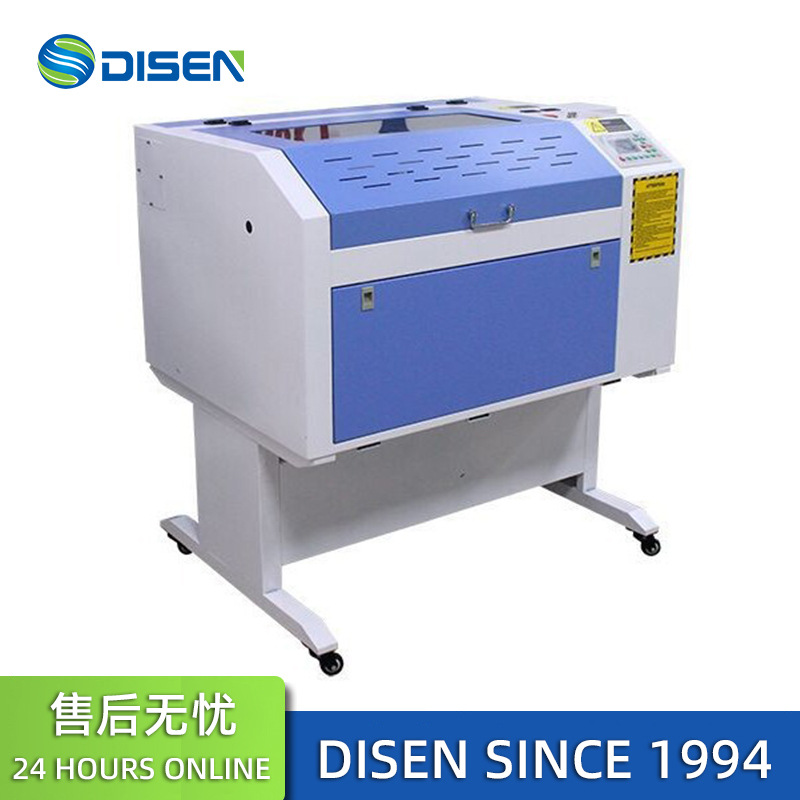

Máquina de grabado láser acrílico plástico madera artesanía máquina de grabado láser
Código: WB-260103-204
Especificación
EspecificacionesOpcional
Hacer que importar sea más cómodo
1
Selección y cotización
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Marca | Otros |
| Número de artículo | DS-4060 |
| Tipo | Otros |
| Especificaciones | 50W |
| Si la exportación transfronteriza es un suministro exclusivo | No |
Descripcion
| 机种型号 | 6040 |
| 激光类型 | 玻璃管封离CO2 激光器 |
| 激光输出功率 | 50W/60W/80W/100W/130W |
| 加工幅面 | 600*400mm |
| 工作平台 | 电动升降铝刀平台/蜂窝平台 |
| 加工速度 | 可调 |
| 雕刻速度 | 0-600mm/s |
| 切割速度 | 0-40mm/s |
| 雕刻尺寸 | 汉字2*2mm 字母1*1mm |
| 定位精度 | ≤0.01mm |
| 运动系统 | 步进运动系统 |
| 控制方式 | 脱机（DSP）/U盘/连接电脑 |
| 通信接口 | USB |
| 系统环境 | WINDOWS XP/WIN7/8/10 |
| 支持格式 | BMP/PLT/AI/CDR/DXF/CAD/JPG 等 |
| 脱机工作 | 支持 |
| 水保护及断水报警系统 | 支持(需要提前给客服讲) |
| 适用材料 | 双色板、有机玻璃、亚克力、木板、纸张、皮革、布料、橡胶、大理石、瓷砖、贝壳、等非金属材料 |
| 断点续雕 | 支持 |

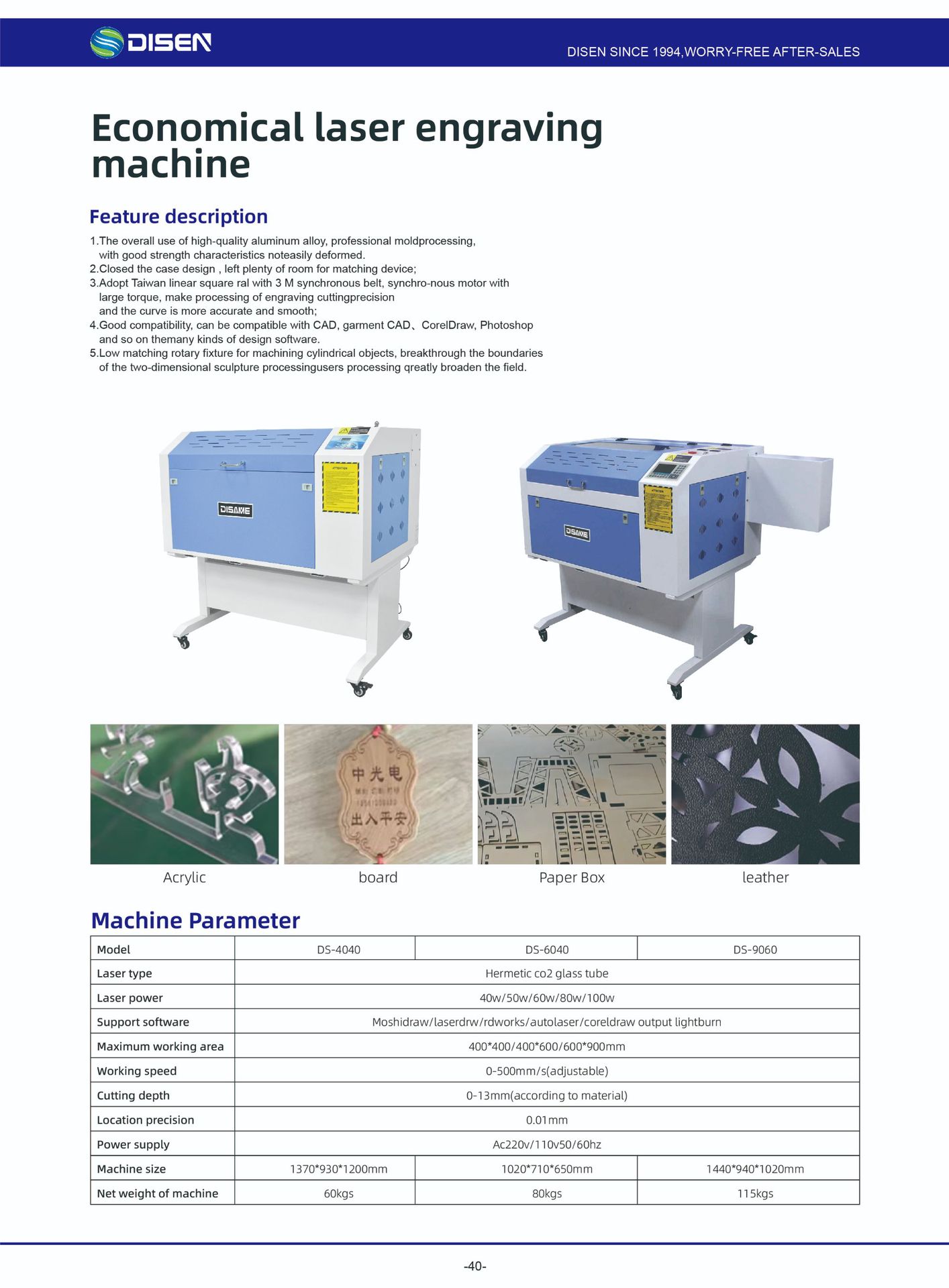

| Technical | Parameters Model: DS-4060 |
| Laser type | Hermetic CO2 glass tube |
| Laser power | 50W/60W/80W |
| Laser wave length | 10.64um |
| Driving System | Stepper motor |
| Power supply | AC220±10% 50HZ/AC110±10% 60HZ |
| Total power | ≤300W |
| Working area | 600×400mm |
| Max moving speed/Max cutting speed | 0-500 mm/s |
| Worktable | Up&down worktable(0-300mm)/fixed worktable (optional) |
| Location precision | ±0.1mm |
| Location way | Red light positioning |
| The rotating fixture | φ10-150×600mm |
| Mini shaping character | Chinese Character, 2*2mm, English Letter, 1*1mm |
| Resolution ratio | ≤1000DPI |
| Data transfer interface | USB |
| System environment | Windows 2000/ Windows XP /Win 7 |
| Cooling way | Water cooling and protection system |
| Graphic format supported | files which CorelDraw,Photoshop can identify (BMP,GIF,JPGE,PCX,TGA, TIFF,PLT,CDR,DMG,DXF,PAT,CDT,CLK,DEX,CSL,CMX,AI,WPG,WMF,EMF, CGM,SVG,SVGZ,PCT) |
| Compatible software | Coreldraw |
| Cutting thickness | 0-10mm (depends on different materials) |
| Operating temperature | 0-45℃ |
| Operating humidity | 5-95% |
| Cuts off the water supply the protection | Yes |
