| Especificaciones | Trituradora biaxial |
| Si la exportación transfronteriza está disponible exclusivamente | No |
| Artículo No. | Js-ssj-0328 |
| Marca | Jiesheng |
| Objeto de acción | -1 |

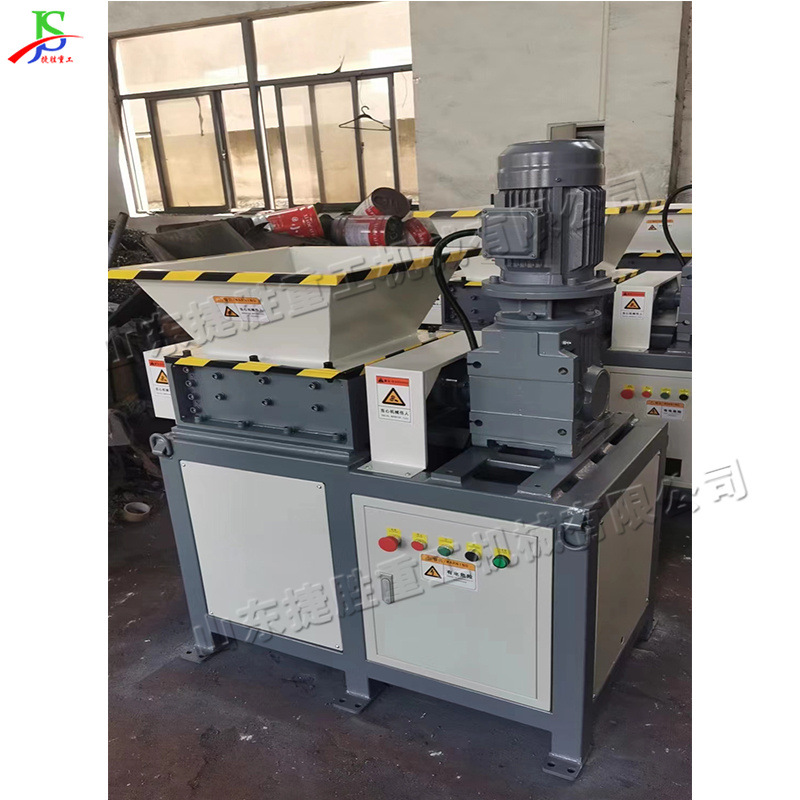

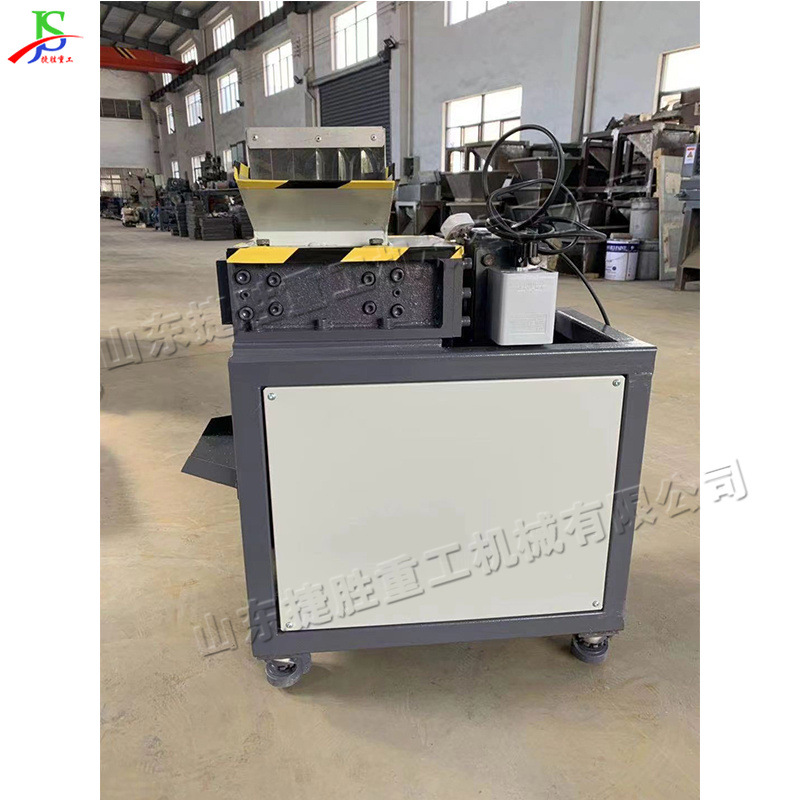

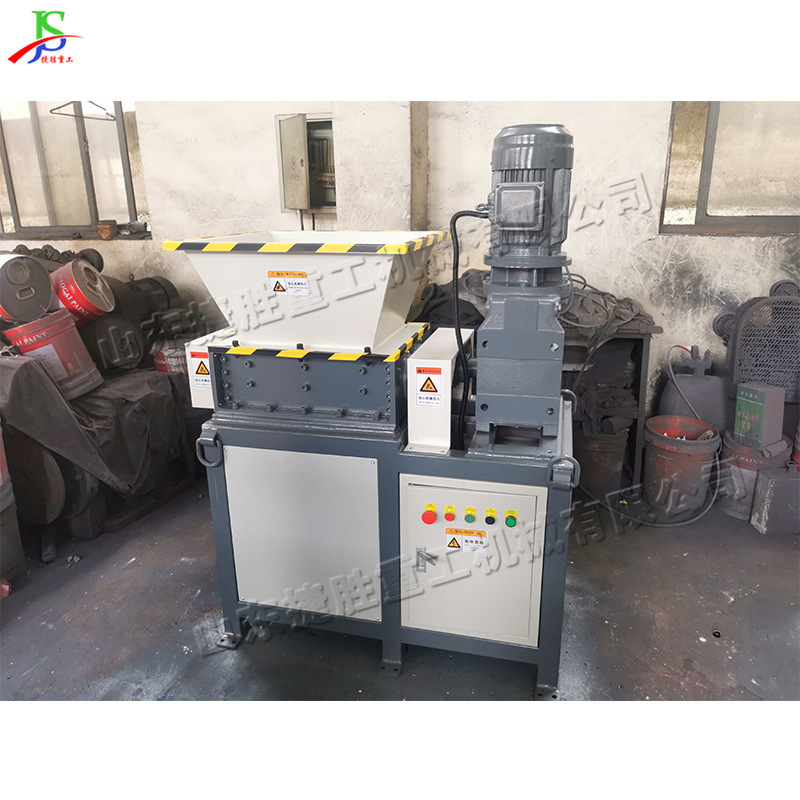

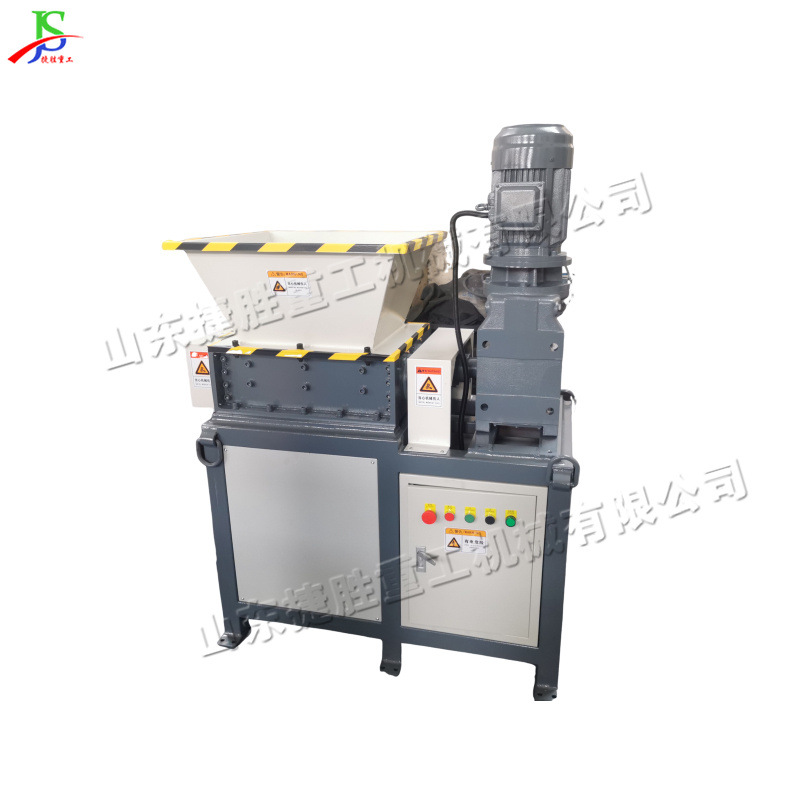

双轴撕碎机是把不方便运输的大块物料通过撕碎机的剪切，撕碎成符合要求的物料。主要由撕碎刀片组、承载箱体、箱体支架、进料系统、动力系统，电器控制系统组成的机器。适用于工业废弃物回收、医疗回收、电子制造、托板制造、木材加工、生活垃圾回收、塑料回收、轮胎回收、造纸等行业的应用。撕碎对象如各种中空容器、废旧家电、废旧塑料橡胶制品、废钢废铁、城市垃圾、生活垃圾、电子垃圾、报废车辆等。
|
参数类型 参数类型 型号 |
EB180-1.1KW |
EB300-3KW |
EB400-4KW |
EB500-7.5KW |
|
电机 |
1.1KW-4，380V-50HZ，1台 |
3KW-4，380V-50HZ，1台 |
4KW-4，380V-50HZ，1台 |
7.5KW-4，380V-50HZ，1台 |
|
减速机 |
JLK47-21,1台 |
JLK77-17，1台 |
JLK87-12，1台 |
JLK97-23，1台 |
|
电控柜 |
倒顺开关 |
热继电器保护 |
热继电器保护 |
热继电器保护 |
|
输入扭矩 |
450Nm |
1679Nm |
2976Nm |
4574Nm |
|
刀轴转速 |
21转/分钟 |
17转/分钟 |
12转/分钟 |
15转/分钟 |
|
刀轴外直径 |
Φ45mm 2支 |
Φ75mm 2支 |
Φ75mm 2支 |
Φ90mm 2支 |
|
刀片规格（直径*厚度） |
Φ90mm*8mm |
Φ180mm*12mm |
Φ180mm*15mm |
Φ200mm*20mm |
|
旋转刀片数量 |
21片 |
24片 |
26片 |
24片 |
|
刀箱内尺寸(长*宽*高） |
180mm*190mm*120mm |
300mm*350mm*200mm |
400mm*350mm*200mm |
500mm*400mm*250mm |
|
进料口外尺寸(长*宽*高） |
300mm*300mm*150mm |
500mm*500mm*300mm |
600mm*500mm*300mm |
700mm*600mm*300mm |
|
机器外形尺寸(长*宽*高） |
700*400*1000 |
1050*680*1300 |
1180*700*1400 |
1350*700*1650 |
|
整机净重 |
120千克 |
400千克 |
500千克 |
750千克 |
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个和地区，并从德国、英国、法国等进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
