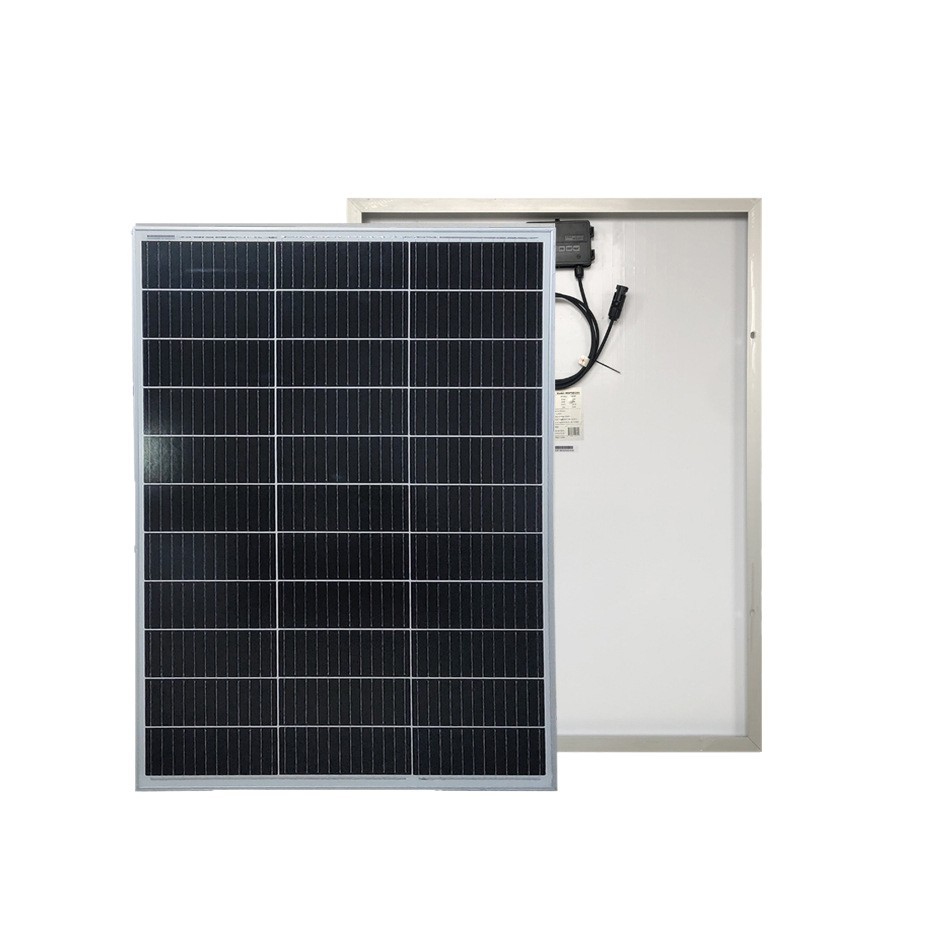

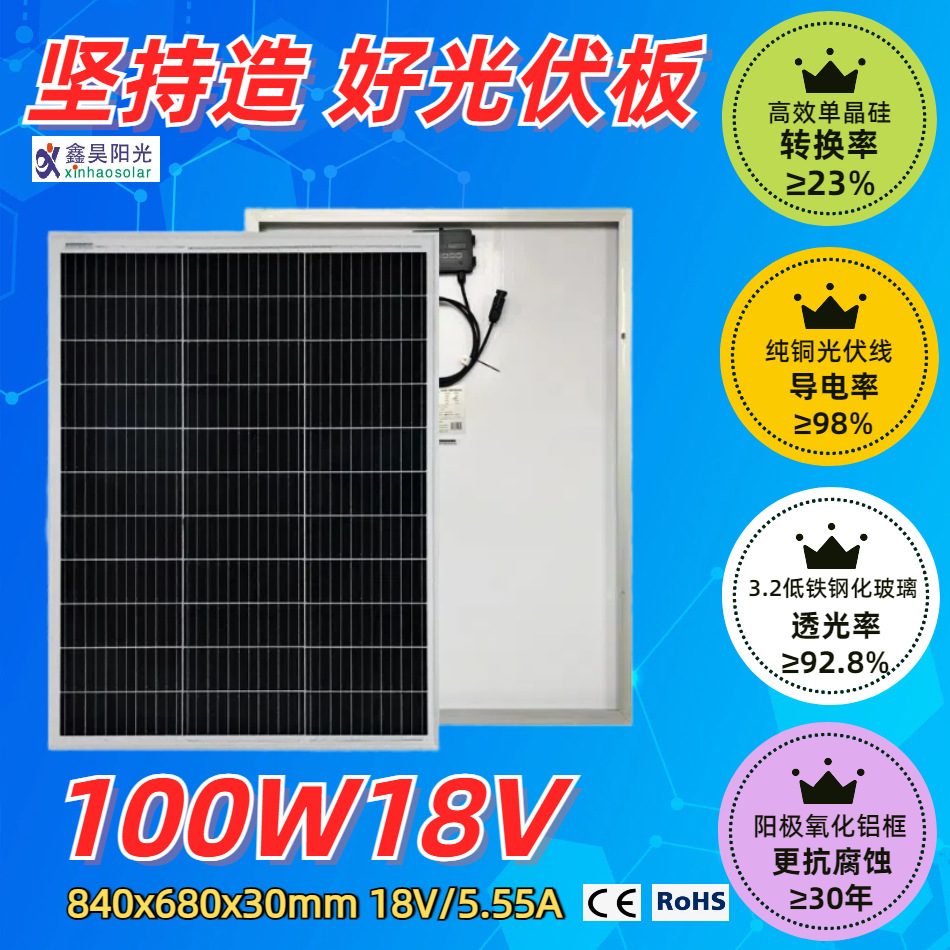

Panel fotovoltaico solar de silicio monocristalino 100w18v panel solar generación de energía doméstica panel fotovoltaico 12v batería placa de carga
Código: WB-250528-2226
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Tipo | Componentes monocristalinos |
| Voltaje de funcionamiento | 19 |
| Tipo de batería | Paneles solares, componentes |
| Modelo | XHGD-100W |
| Marca | Xinhao Sunshine/xinhaosolar |
| Corriente de cortocircuito | 5.32 |
Mostrar más
Descripcion

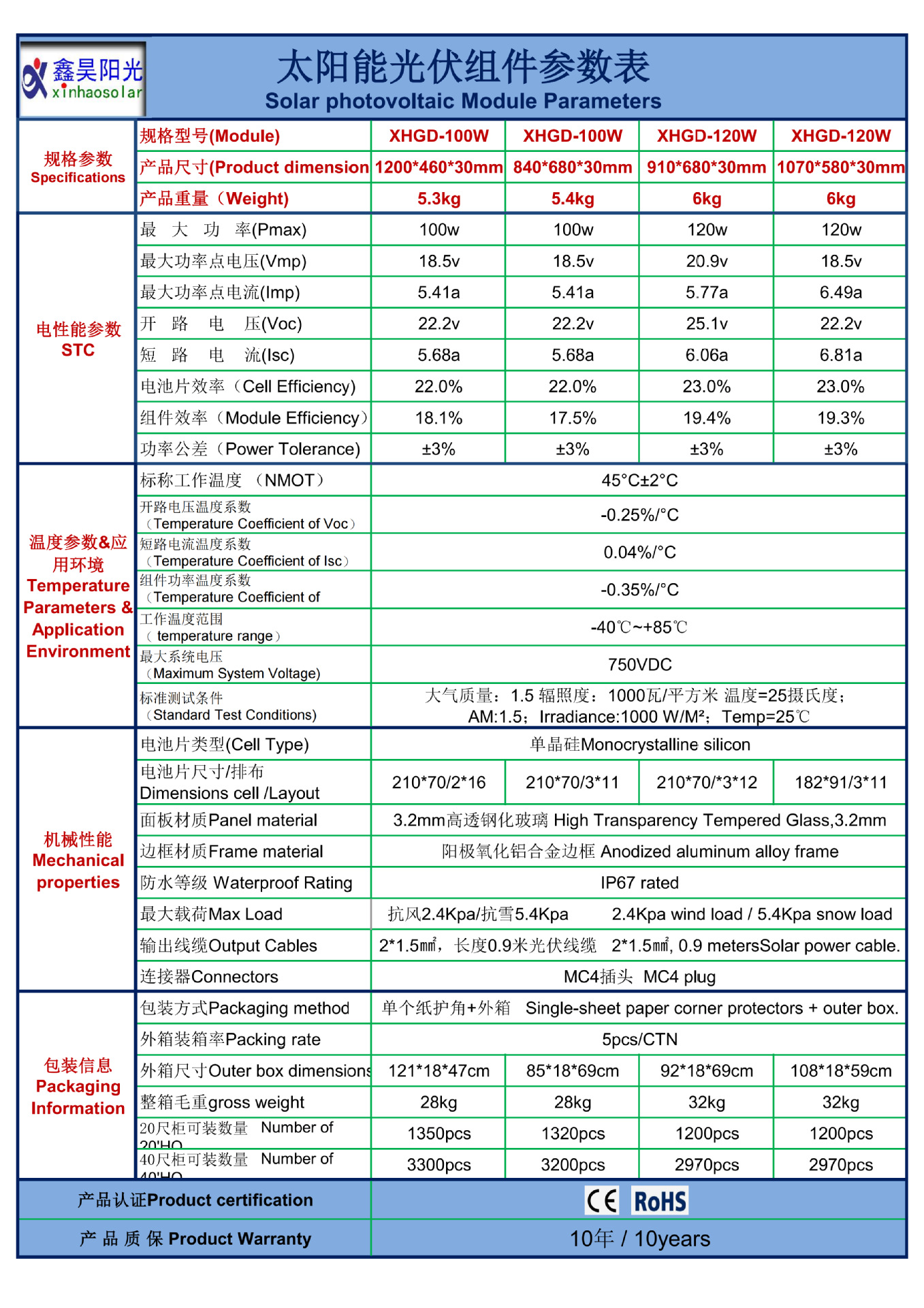

产品参数
| Module Type | XHGD-100W |
| Peak power(Pmax) | 100W |
| MPP voltage(Vmp) | 19V |
| MPP current(Imp) | 5.27A |
| Open circuit voltage(Voc) | 22.8V |
| Short circuit current(Isc) | 5.56A |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |
| Dimensions | 840*680*30mm |
| No. of Cells | 33PCS(3*11) |
| Weight | 5.5kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 2.5㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 85*18*70cm |
| Packing Type | 5PCS/CTN |
|
weight
|
29kg/CTN
|

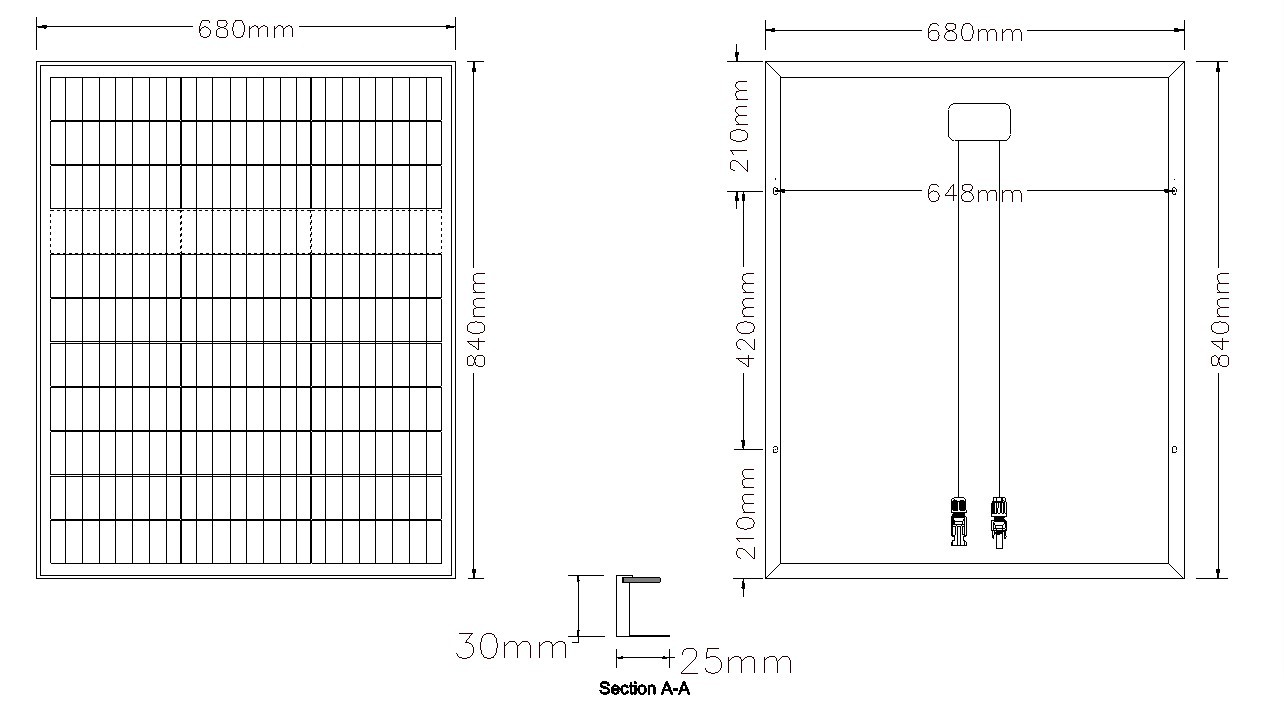

边框孔位图
182电池部分组件尺寸
工厂生产环境及设备流程
VI测试仪
层压机
小功率串焊机
多栅自动串焊机
叠层流水线
EL测试台
自动划片机
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 24.255
1-99 pcs
US$ 21.83
100-999 pcs
US$ 19.404
>=1000 pcs
1. Modelo:
XHGD-100W
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
