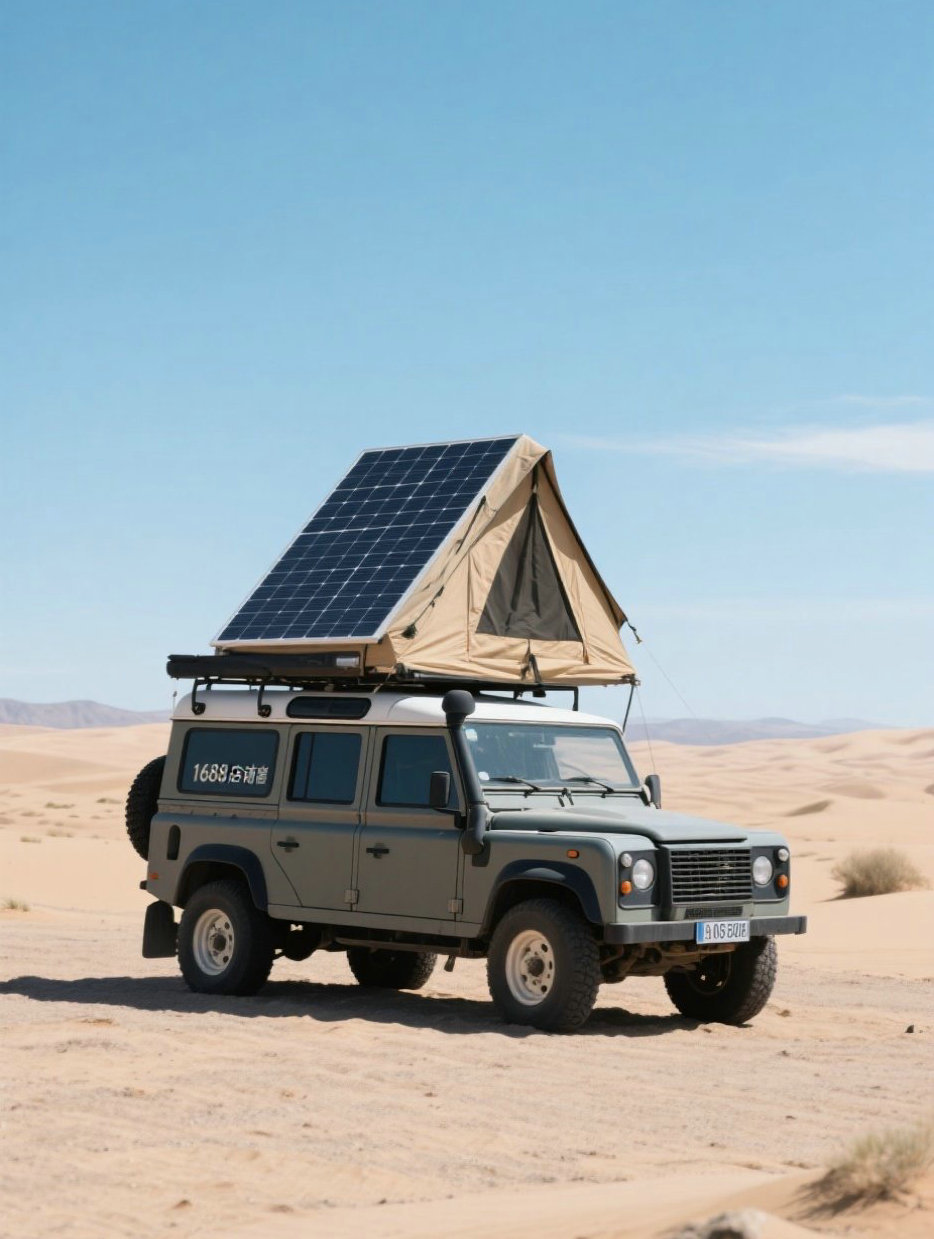

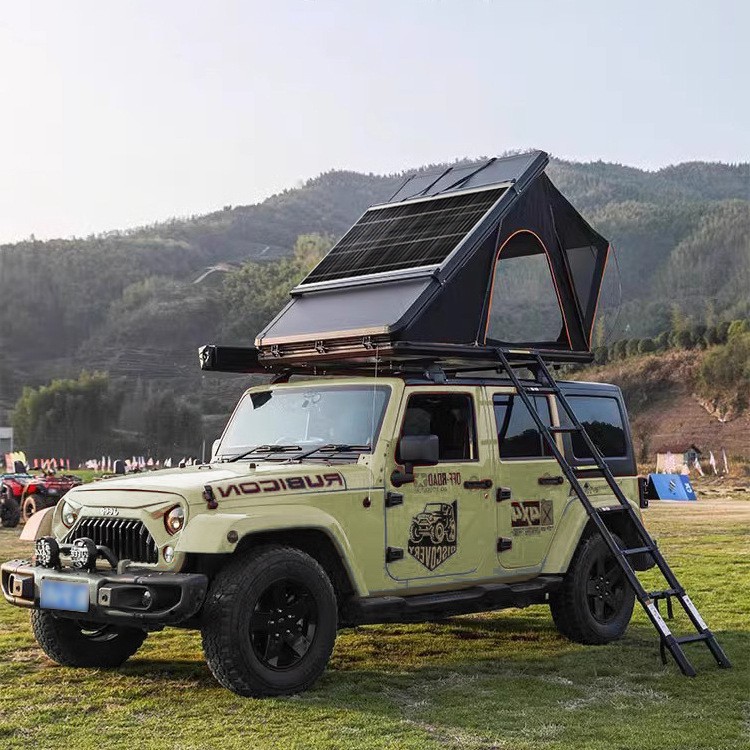

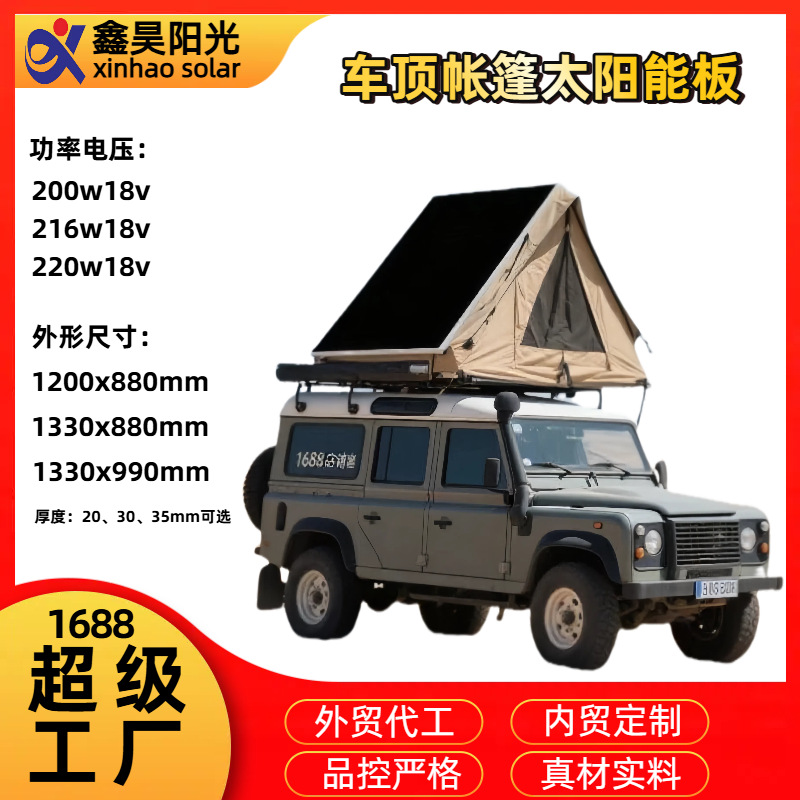

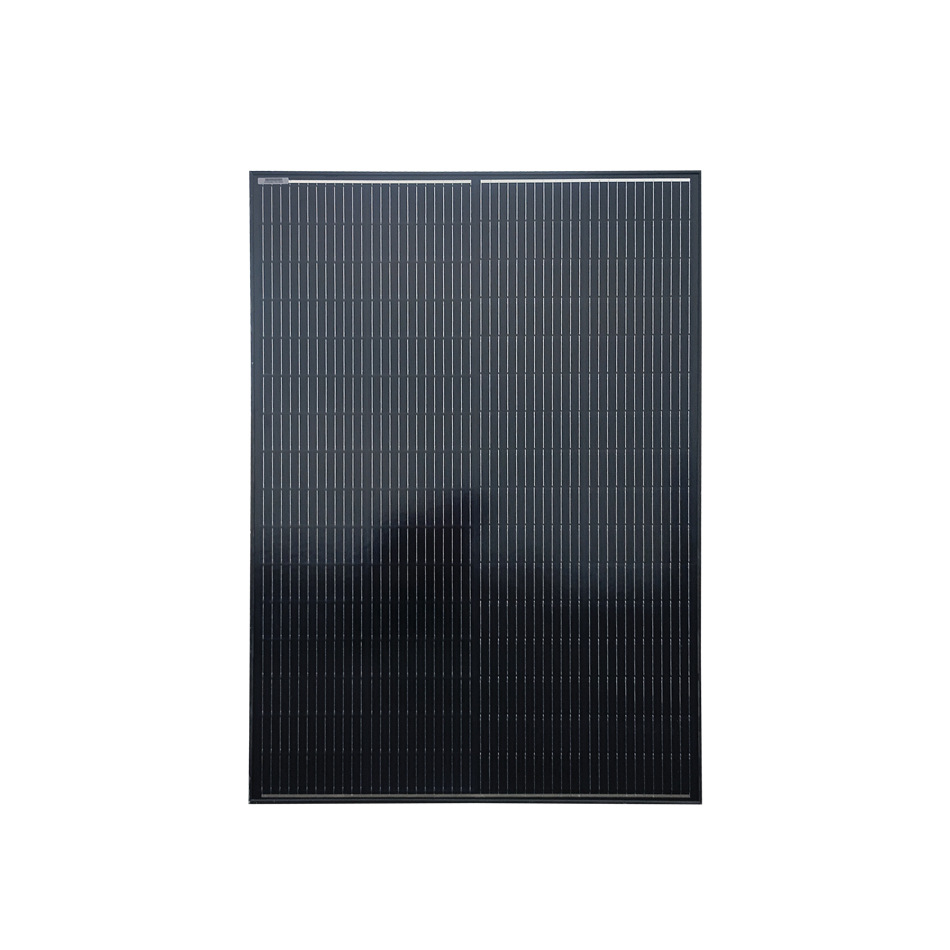

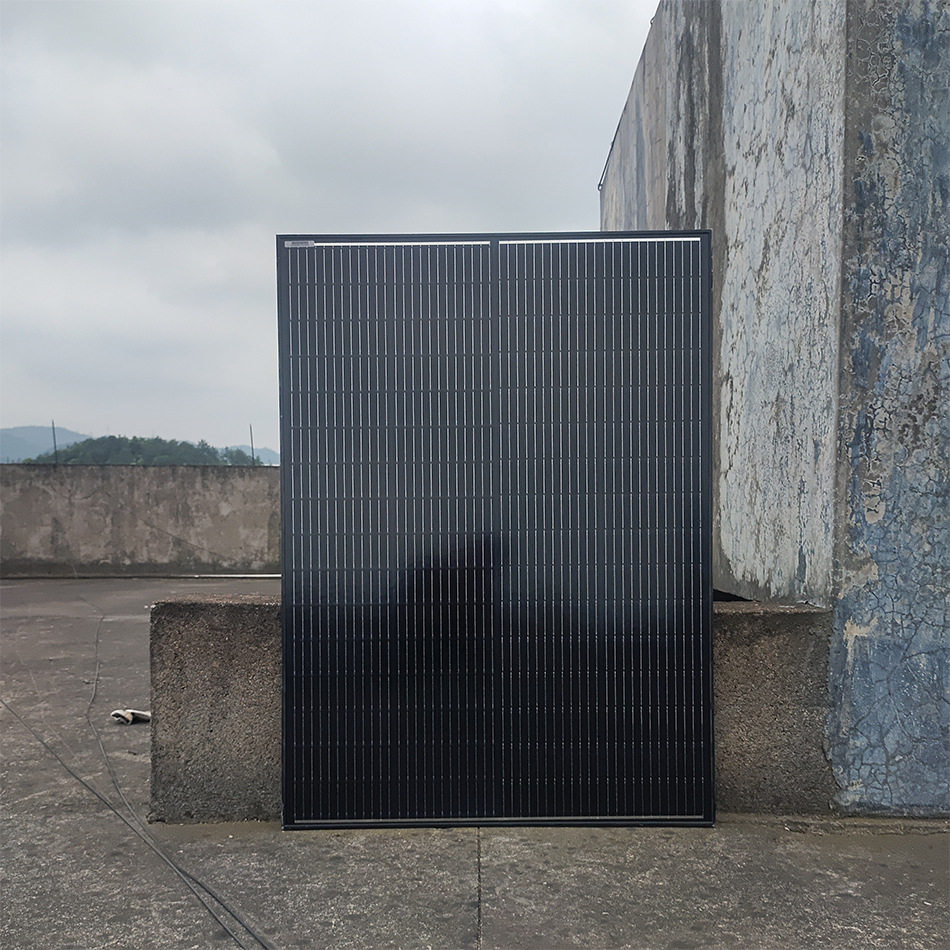

Panel Solar Negro para Tienda de Campaña, 200W, para Camping al Aire Libre, Panel de Carga Fotovoltaica de 12v, Módulo Solar Fotovoltaico
Código: WB-250528-2239
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Tipo | Componentes monocristalinos |
| Voltaje de funcionamiento | 18.4 |
| Tipo de batería | Paneles solares, componentes |
| Marca | xinhao solar/xinhao sol |
| Corriente de cortocircuito | 11.5A |
| Origen | Zhejiang |
Mostrar más
Descripcion
价格是常规款的参考价，特殊需求请联系在线客服询价
产品参数详情

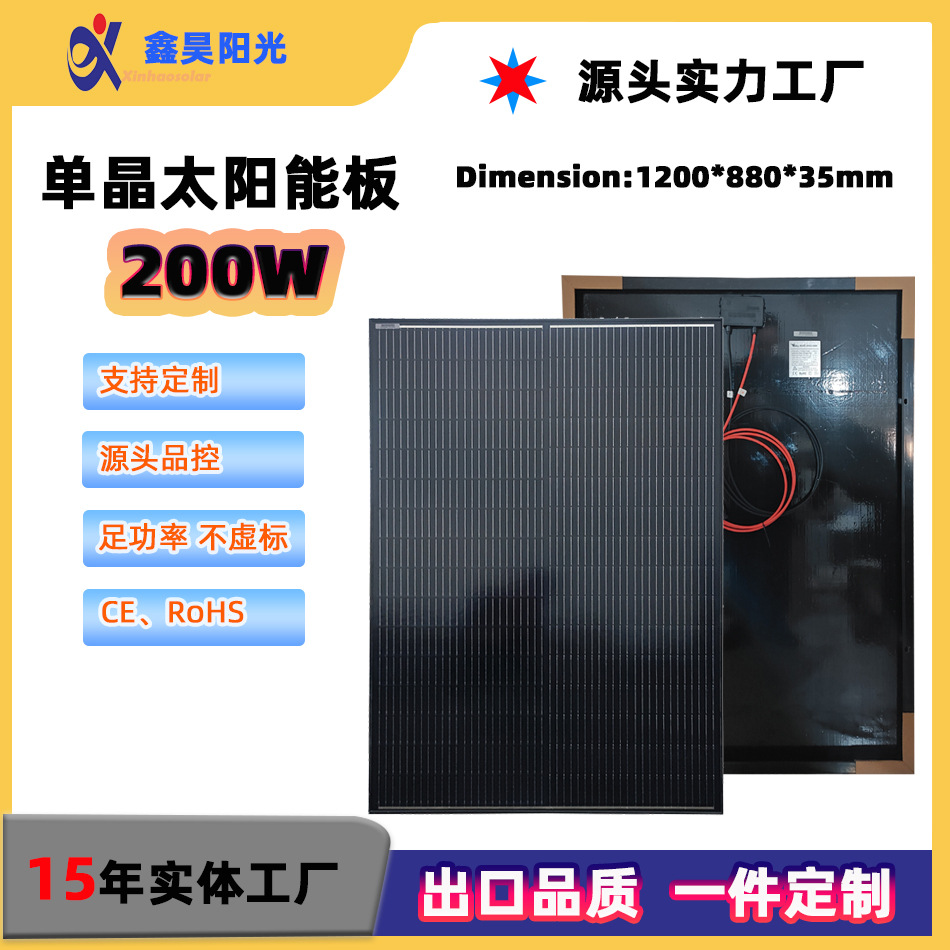

| Module Type | XHGD-200W |
| Peak power(Pmax) | 200W |
| MPP voltage(Vmp) | 18.4V |
| MPP current(Imp) | 10.87A |
| Open circuit voltage(Voc) | 22.1V |
| Short circuit current(Isc) | 11.48A |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |

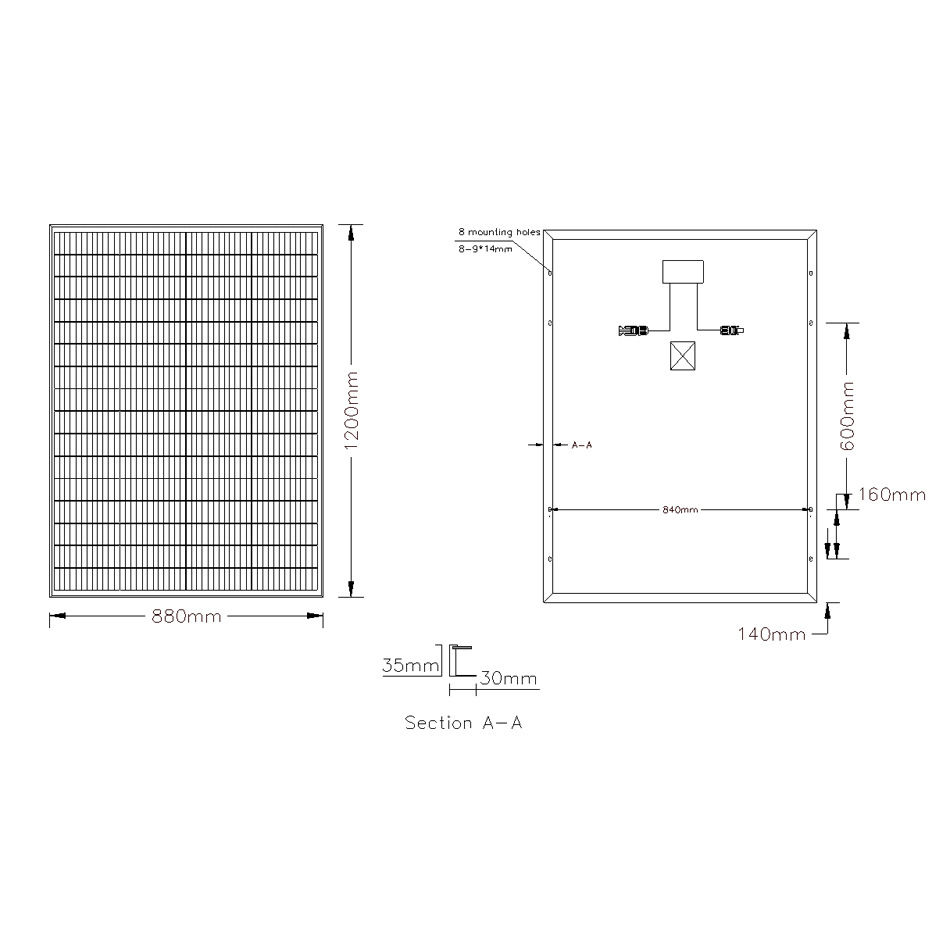

| Dimensions | 1200*880*30mm |
| No. of Cells | 64PCS(4*16) |
| Weight | 11kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 4㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 122*8*90cm |
| Packing Type | 2PCS/CTN |
| weight | 23kg/CTN |
182电池部分组件尺寸
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 0.292
4000-59999 pcs
US$ 0.275
60000-119999 pcs
US$ 0.259
>=120000 pcs
1. especificación:
producto
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
