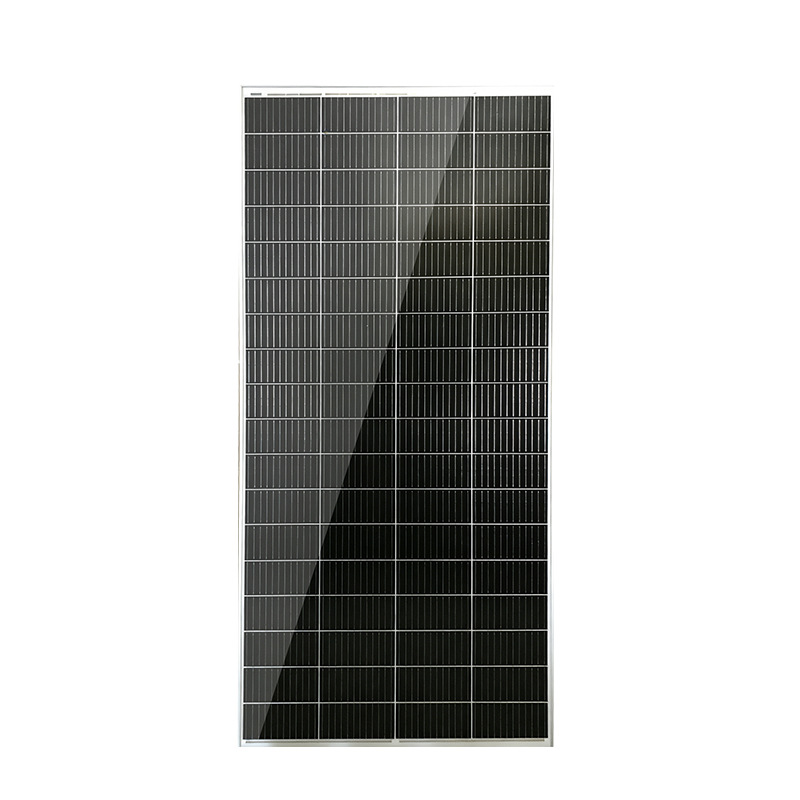

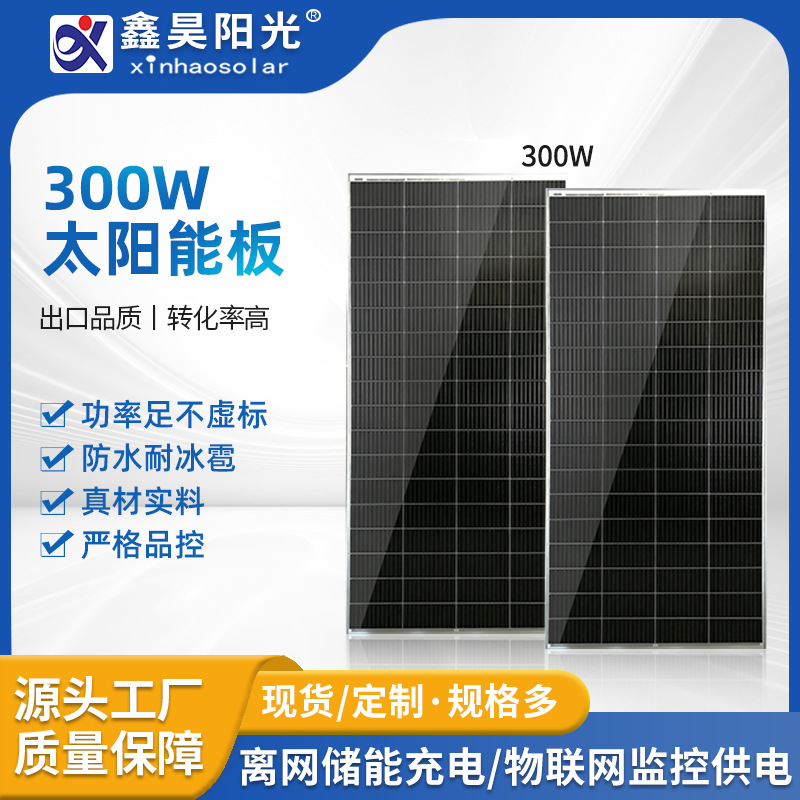

Panel fotovoltaico solar, módulo fotovoltaico monocristalino a prueba de agua, placa de carga de batería, fábrica de paneles fotovoltaicos de alta eficiencia, sistema fuera de la red.
Código: WB-250528-2754
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Certificación del producto | Ce |
| Número de artículo | 300w |
| Modelo | XHGD-300W-P |
| Marca | Xinhao Solar |
| Peso de referencia | 22 |
| Dimensiones | 1950*992*40 |
Mostrar más
Descripcion
300W参数详情

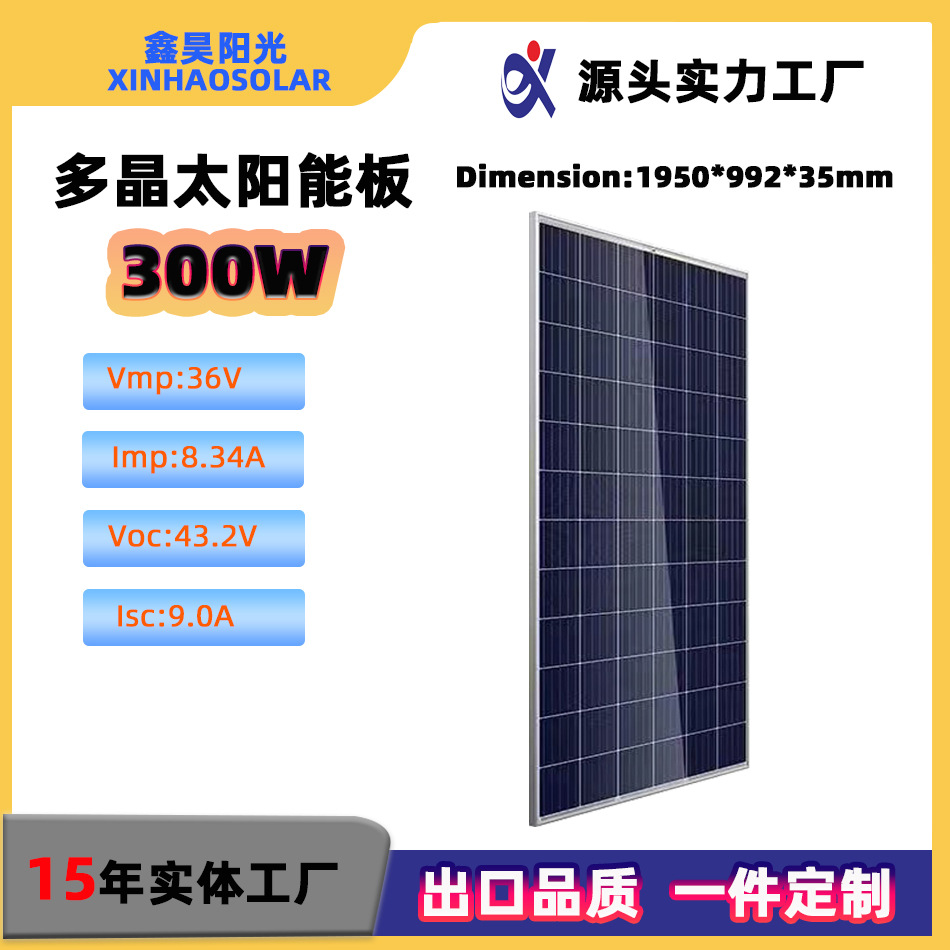

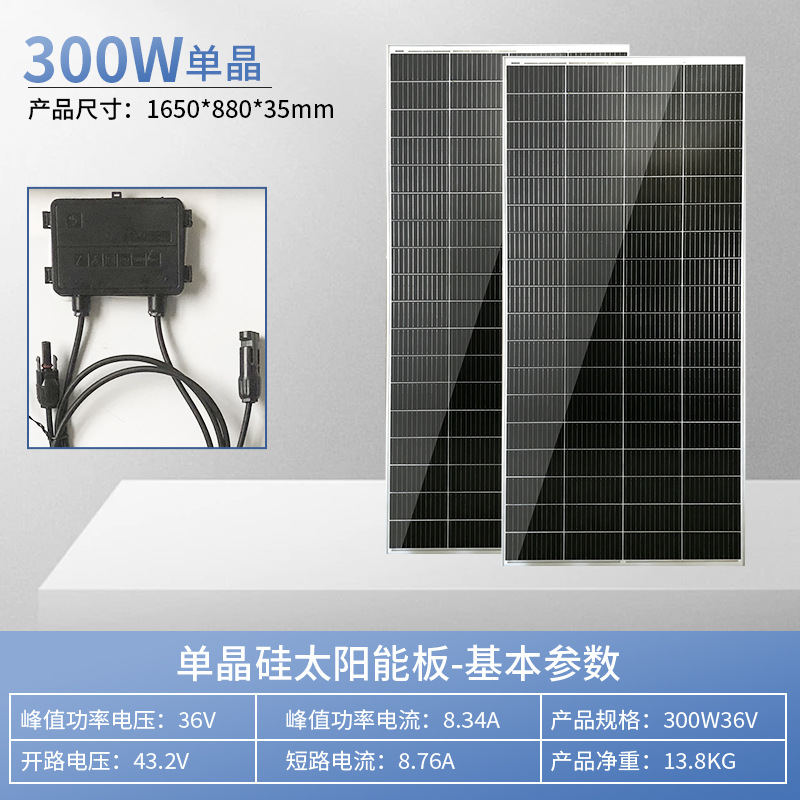

| Module Type | XHGD-300W |
| Peak power(Pmax) | 300W |
| MPP voltage(Vmp) | 36V |
| MPP current(Imp) | 8.33A |
| Open circuit voltage(Voc) | 43.2V |
| Short circuit current(Isc) | 8.99A |
| Module efficiency | 15.5% |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |

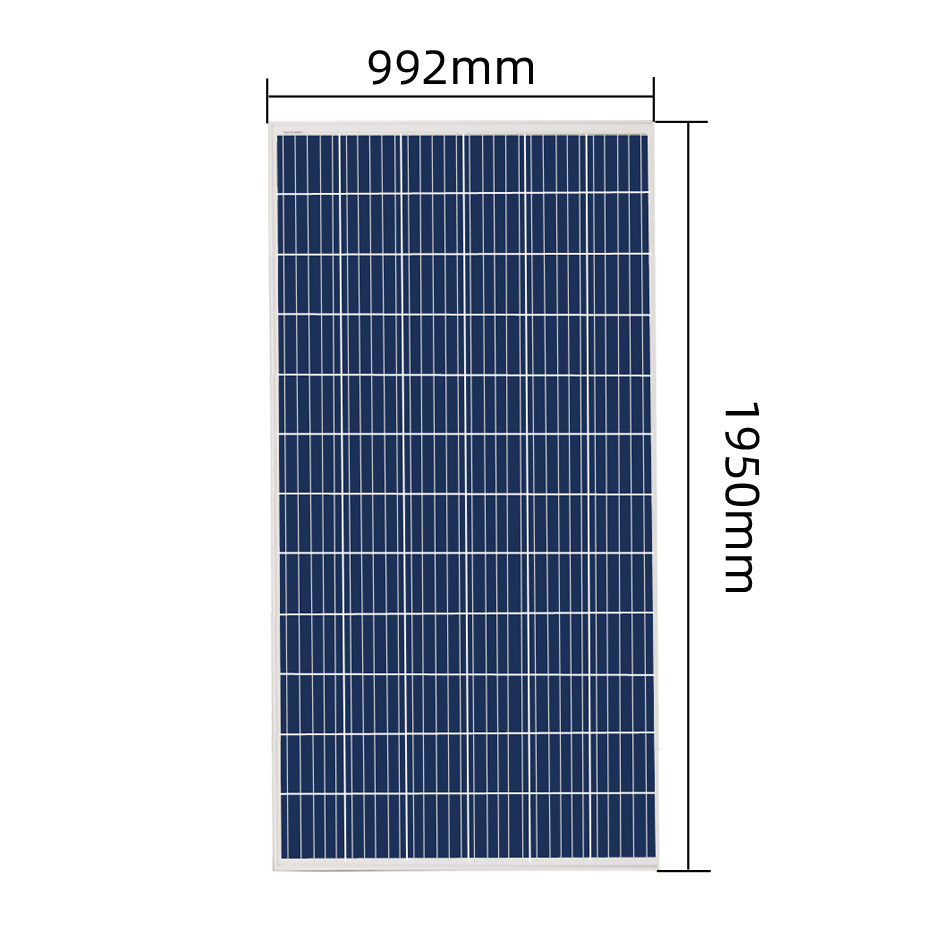

| Dimensions | 1950*992*40mm |
| No. of Cells | 72PCS(6*12) |
| Weight | 20kg |

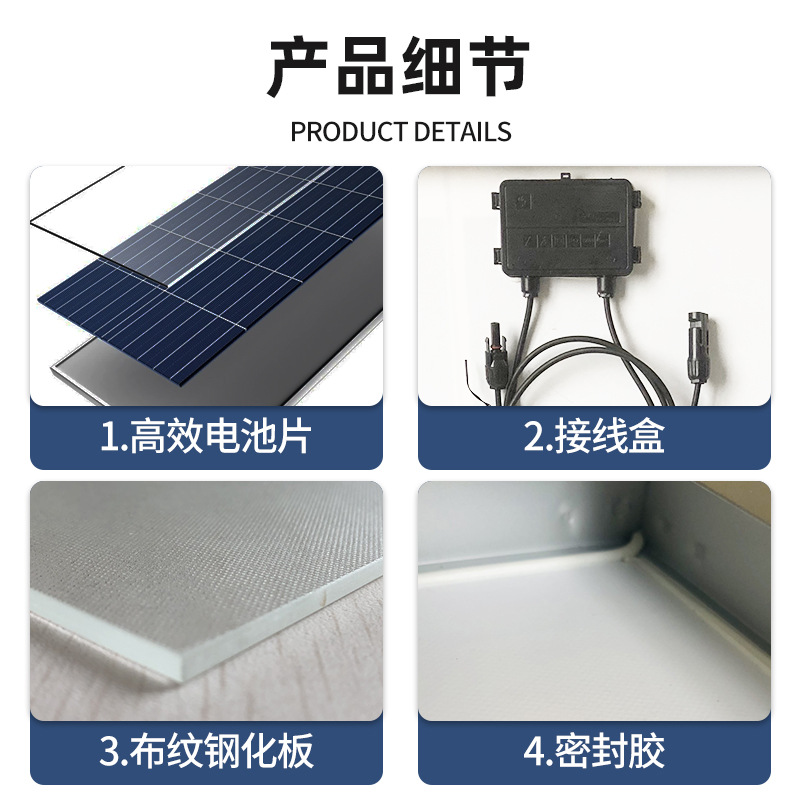

| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 4㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 197*10*101cm |
| Packing Type | 2PCS/CTN |
| weight | 41kg/CTN |
310W参数详情
| Module Type | XHGD-310W |
| Peak power(Pmax) | 310W |
| MPP voltage(Vmp) | 36.2V |
| MPP current(Imp) | 8.5A |
| Open circuit voltage(Voc) | 43.4V |
| Short circuit current(Isc) | 9.1A |
| Module efficiency | 16.0% |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |
| Dimensions | 1950*992*40mm |
| No. of Cells | 72PCS(6*12) |
| Weight | 20kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 4㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 197*10*101cm |
| Packing Type | 2PCS/CTN |
| weight | 41kg/CTN |
320W参数详情
| Module Type | XHGD-320W |
| Peak power(Pmax) | 320W |
| MPP voltage(Vmp) | 36.3V |
| MPP current(Imp) | 8.82A |
| Open circuit voltage(Voc) | 43.5V |
| Short circuit current(Isc) | 9.5A |
| Module efficiency | 16.5% |
| Power Tolerance | ±3% |
| Operating Temperature | -40℃~+85℃ |
| Product certification | IEC/CE/ROHS |
| Dimensions | 1950*992*35mm |
| No. of Cells | 72PCS(6*12) |
| Weight | 20kg |
| Front | 3.2mm tempered glass |
| Frame | Anodized aluminium alloy |
| Junction Box | IP65 |
| Output Cables | 4㎟*900mm |
| Connectors | MC4 compatible |
| Box Size | 197*8.5*101cm |
| Packing Type | 2PCS/CTN |
| weight |
41kg/CTN |

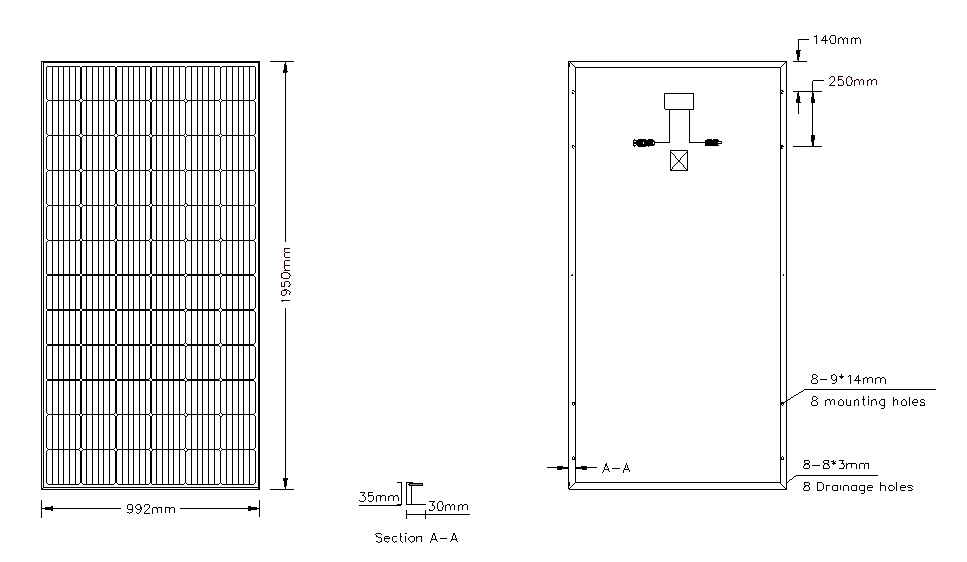

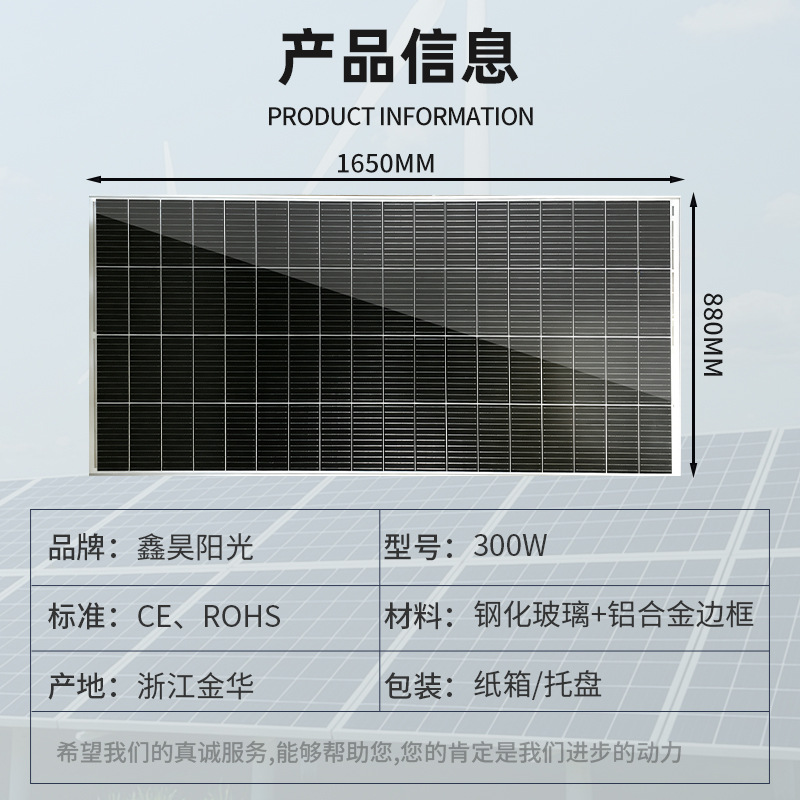

产品机械结构图
182电池部分组件尺寸

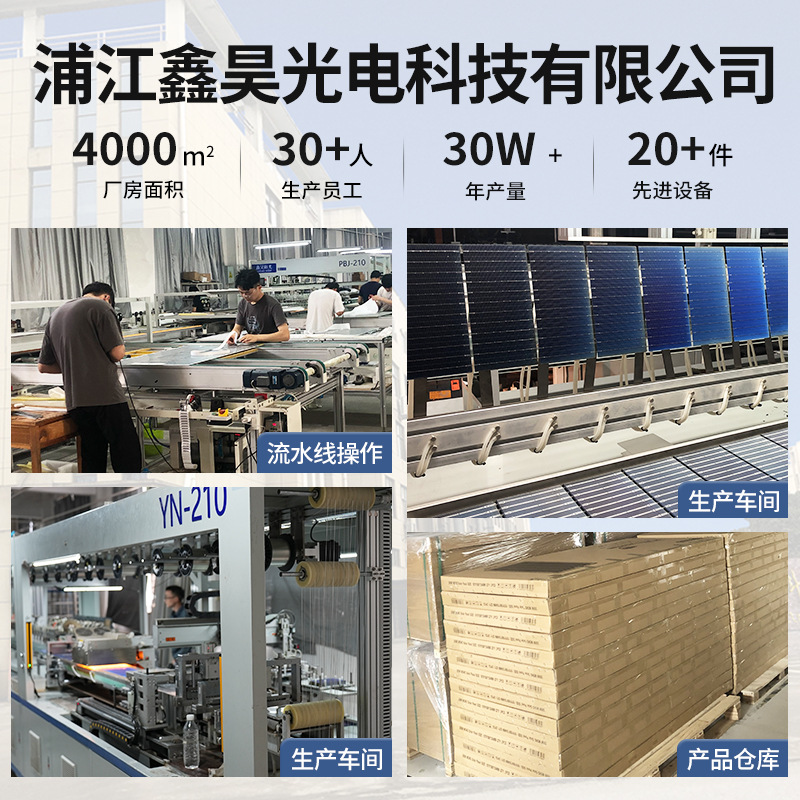

工厂生产环境及设备流程
VI测试仪
层压机
小功率串焊机
多栅自动串焊机
叠层流水线
EL测试台
自动划片机
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 61.446
10-309 pcs
US$ 60.638
310-999 pcs
US$ 59.021
>=1000 pcs
1. Modelo:
XHGD-300W-P
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
