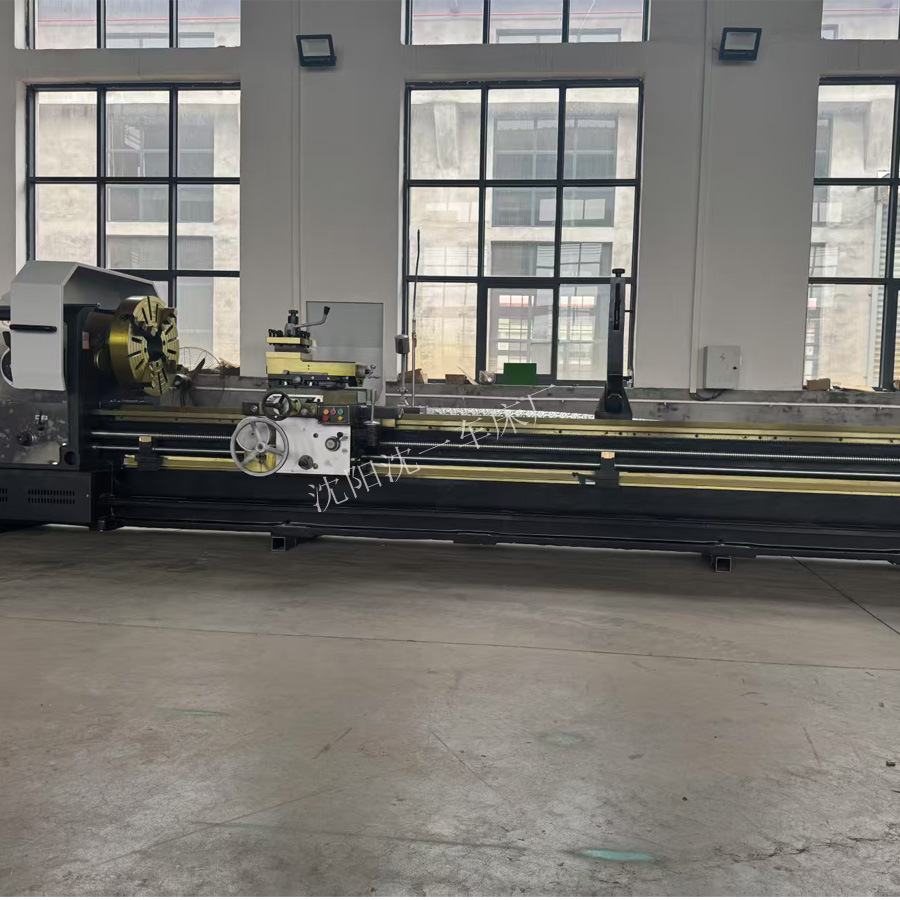

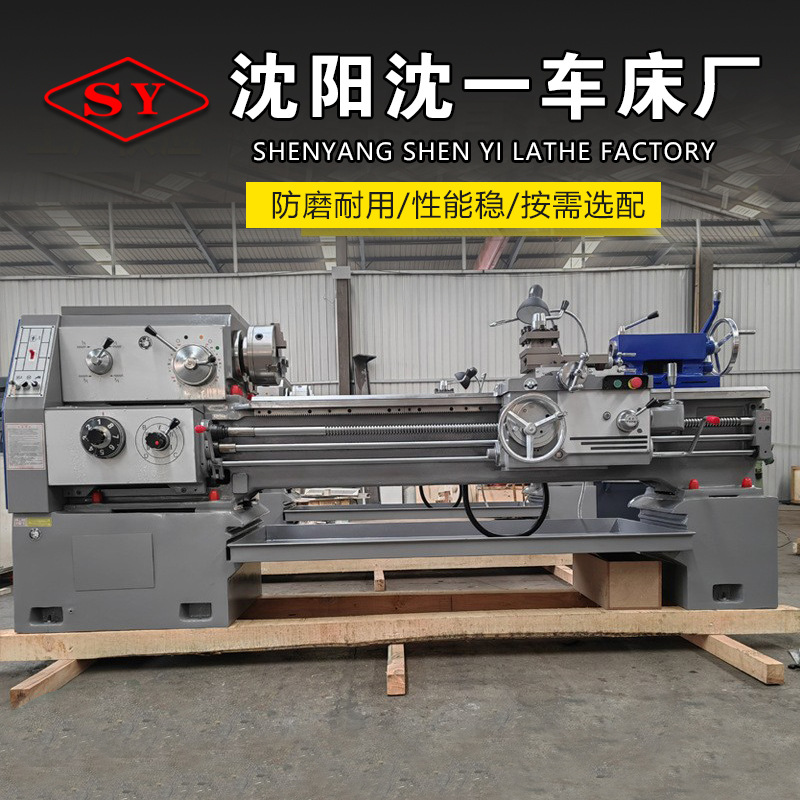

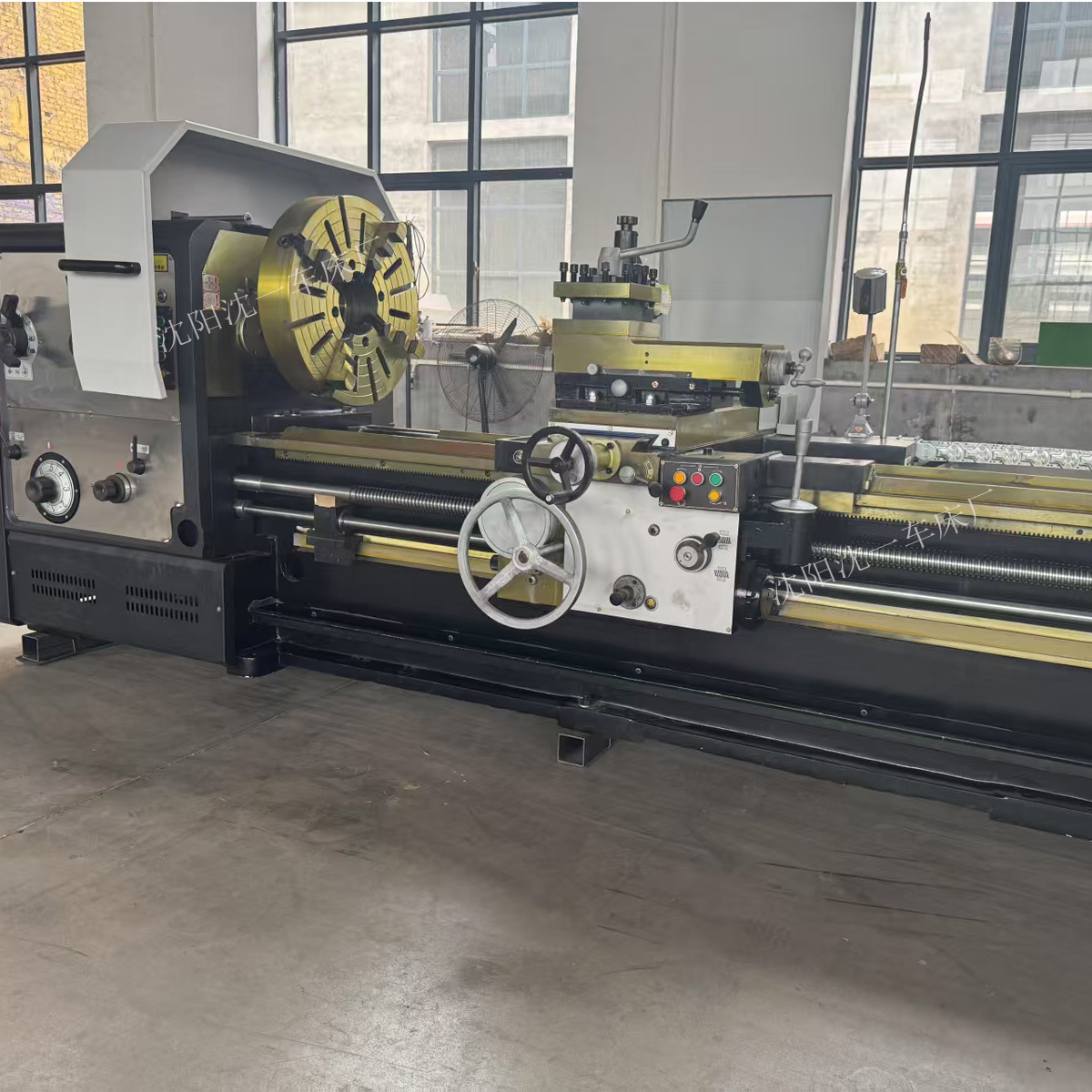

Shenyi Torno Factory CA6140 Torno ordinario Torno horizontal 6240 Torno de silla 1,5 m 2 m 3 m
Código: WB-251230-358
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Diámetro del orificio pasante del husillo | 52 |
| Tipo de potencia | Transmisión mecánica |
| Tipo de producto | Nuevo |
| Servicio post-venta | Tres paquetes al año |
| Forma de instalación | De pie |
| Industrias aplicables | Universal |
Mostrar más
Descripcion
请认准（沈阳沈一车床厂）谨防假冒！网上价格均为参考价格，详细的参数，配置，附件，图片，价格等资料，请联系 沈阳沈一车床厂 13147825747(同V)

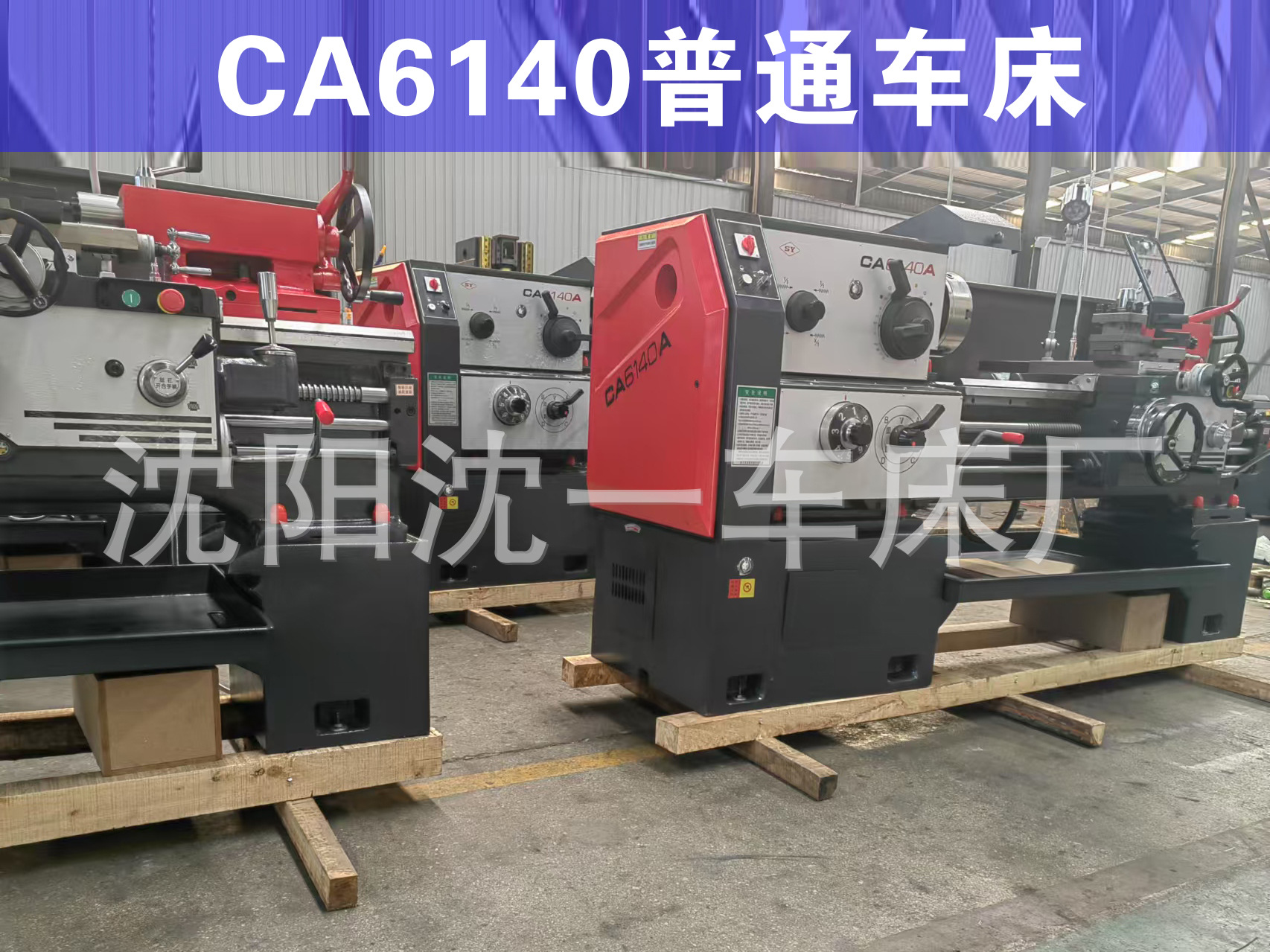

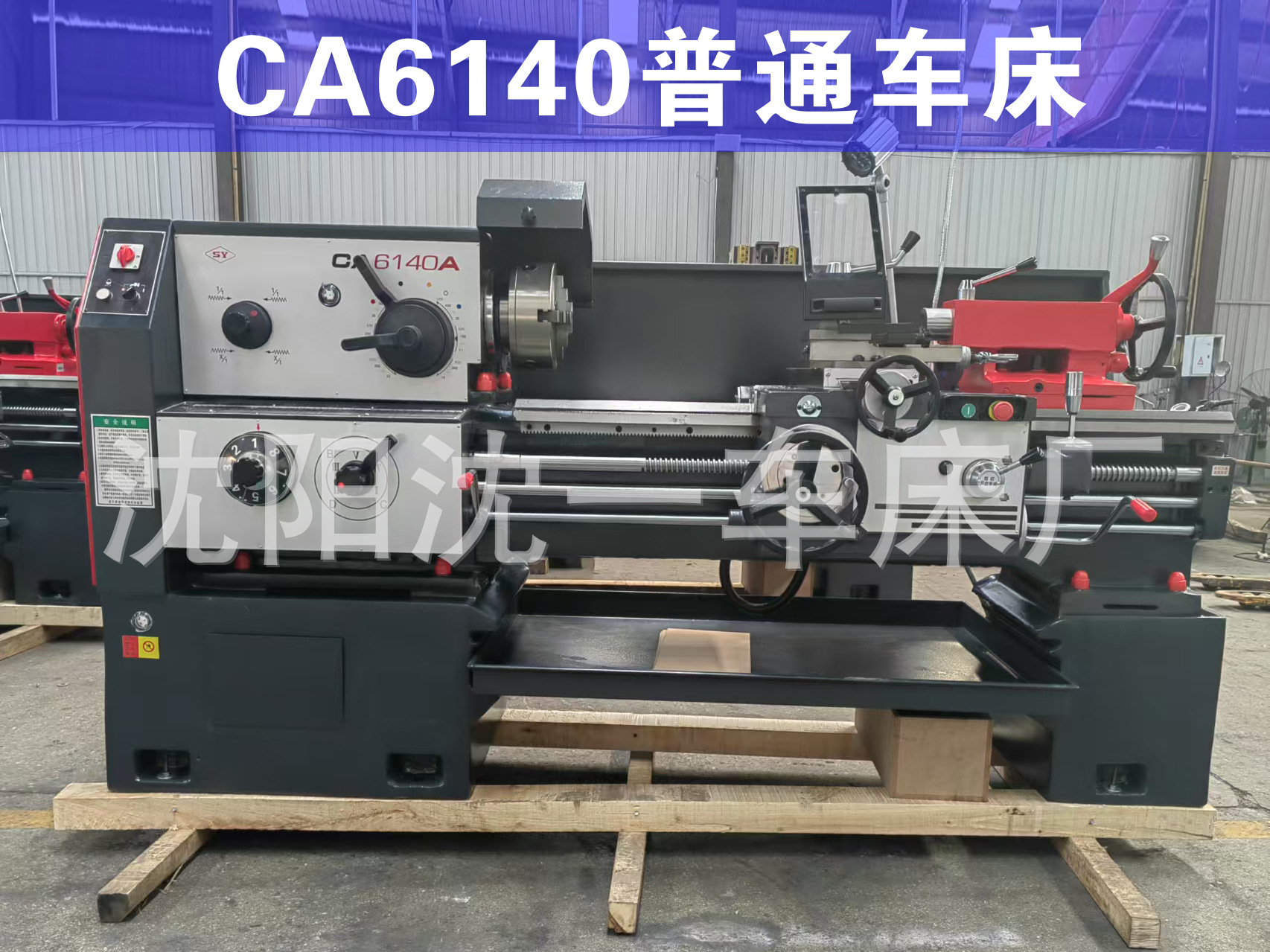

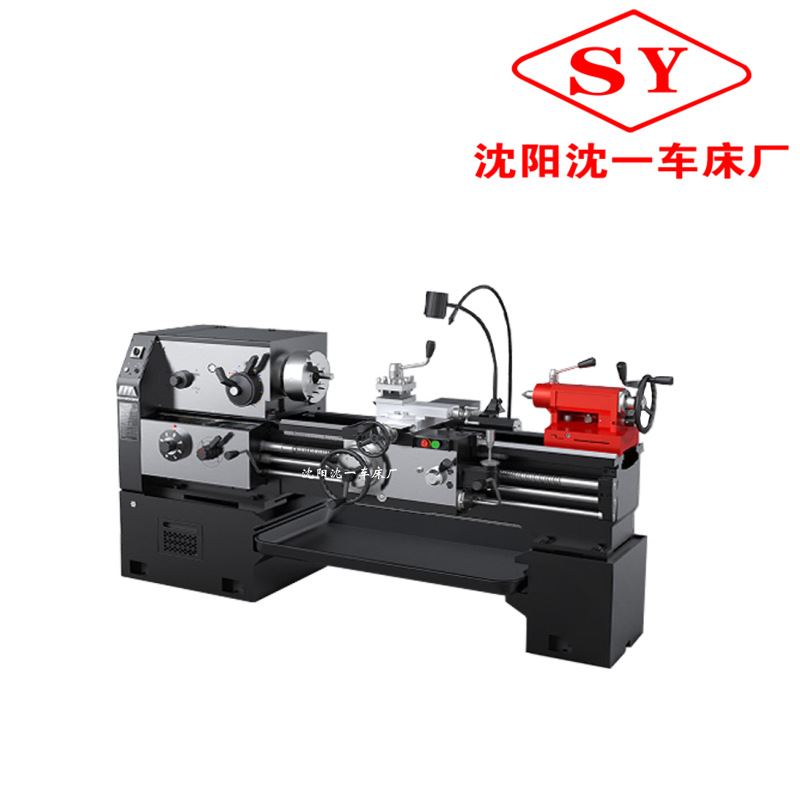

CA6140/6150/6161普通车床
| CA6140A | CA6240A | CA6150A | CA6250A | CA6161A | CA6261A | ||
| 床身回转直径 | mm | 400 | 400 | 500 | 500 | 610 | 610 |
| 刀架上回转直径 | mm | 210 | 210 | 300 | 300 | 370 | 370 |
| 马鞍内回转直径×有效长度 | mm | - | 630×210 | - | 720×210 | 830×210 | |
| 最大工件长度/最大车削长度 | mm | 750/650 1000/900 1500/1400 2000/1900 | 750/650 1000/900 1500/1400 2000/1900 | 750/650 1000/900 1500/1400 2000/1900 | 750/650 1000/900 1500/1400 2000/1900 | 750/650 1000/900 1500/1400 2000/1900 | 750/650 1000/900 1500/1400 2000/1900 |
| 主轴中心至床身平面导轨距离 | mm | 205 | 205 | 250 | 250 | 305 | 305 |
| 主轴孔径/主轴孔前端锥度 | mm | φ52 /莫氏圆锥6号 |
φ52 /莫氏圆锥6号 |
φ52 /莫氏圆锥6号 |
φ52 /莫氏圆锥6号 |
φ52 /莫氏圆锥6号 |
φ52 /莫氏圆锥6号 |
| 主轴转速级数 正转/反转 | 24/12 | 24/12 | 24/12 | 24/12 | 24/12 | 24/12 | |
| 主轴转速范围 | |||||||
| 正转 | r/min | 50Hz:11-1600 60Hz:12-1680 |
50Hz:11-1600 60Hz:12-1680 |
50Hz:11-1600 60Hz:12-1680 |
50Hz:11-1600 60Hz:12-1680 |
50Hz:11-1600 60Hz:12-1680 |
50Hz:11-1600 60Hz:12-1680 |
| 反转 | r/min | 50Hz:14-1580 60Hz:16.8-1896 |
50Hz:14-1580 60Hz:16.8-1896 |
50Hz:14-1580 60Hz:16.8-1896 |
50Hz:14-1580 60Hz:16.8-1896 |
50Hz:14-1580 60Hz:16.8-1896 |
50Hz:14-1580 60Hz:16.8-1896 |
| 纵向进给量范围（64种） | |||||||
| 标准进给 | mm/r | 0.08-1.59 | 0.08-1.59 | 0.08-1.59 | 0.08-1.59 | 0.08-1.59 | 0.08-1.59 |
| 小进给 | mm/r | 0.028-0.054 | 0.028-0.054 | 0.028-0.054 | 0.028-0.054 | 0.028-0.054 | 0.028-0.054 |
| 加大进给 | mm/r | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 |
| 横向进给量范围（64种） | |||||||
| 标准进给 | mm/r | 0.04-0.79 | 0.04-0.79 | 0.04-0.79 | 0.04-0.79 | 0.04-0.79 | 0.04-0.79 |
| 小进给 | mm/r | 0.014-0.027 | 0.014-0.027 | 0.014-0.027 | 0.014-0.027 | 0.014-0.027 | 0.014-0.027 |
| 加大进给 | mm/r | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 | 0.86-3.16 |
| 刀架纵/横向的快移速度 | m/min | 纵向4 横向2 |
纵向4 横向2 |
纵向4 横向2 |
纵向4 横向2 |
纵向4 横向2 |
纵向4 横向2 |
| 加工螺纹范围 | |||||||
| 公制螺纹44种 | mm | 1-192 | 1-192 | 1-192 | 1-192 | 1-192 | 1-192 |
| 模数螺纹39种 | mm | 0.25-48 | 0.25-48 | 0.25-48 | 0.25-48 | 0.25-48 | 0.25-48 |
| 英制螺纹21种 | 牙/寸 | 2-24 | 2-24 | 2-24 | 2-24 | 2-24 | 2-24 |
| 径节螺纹37种 | 1-96 | 1-96 | 1-96 | 1-96 | 1-96 | 1-96 | |
| 上/下刀架最大行程 | mm | 140/320 | 140/320 | 140/320 | 140/420 | 140/420 | 140/420 |
| 刀架转盘回转角度 | ° | ±90 | ±90 | ±90 | ±90 | ±90 | ±90 |
| 主轴中心线至刀具支承面距离 | mm | 26 | 26 | 26 | 26 | 26 | 26 |
| 刀杆截面尺寸 | mm | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 |
| 尾座主轴直径×行程及主轴孔锥度 | mm | 75×150 莫氏圆锥5号 |
75×150 莫氏圆锥5号 |
75×150 莫氏圆锥5号 |
75×150 莫氏圆锥5号 |
75×150 莫氏圆锥5号 |
75×150 莫氏圆锥5号 |
| 丝杠螺距 | mm | 12 | 12 | 12 | 12 | 12 | 12 |
| 主电机功率 | kW | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 | 7.5 |
| 主机净重(约) | |||||||
| 750mm | kg | 1990 | 1990 | 2060 | 2060 | 2180 | 2180 |
| 1000mm | kg | 2070 | 2070 | 2140 | 2140 | 2260 | 2260 |
| 1500mm | kg | 2220 | 2220 | 2290 | 2290 | 2437 | 2437 |
| 2000mm | kg | 2570 | 2570 | 2640 | 2640 | 2787 | 2787 |
| 主机轮廓尺寸(长×宽×高) | |||||||
| 750mm | mm | 2418×1000 ×1267 |
2418×1000 ×1267 |
2418×1037 ×1312 |
2418×1037 ×1312 |
2418×1130 ×1367 |
2418×1130 ×1367 |
| 1000mm | mm | 2668×1000 ×1267 |
2668×1000 ×1267 |
2668×1037 ×1312 |
2668×1037 ×1312 |
2668×1130 ×1367 |
2668×1130 ×1367 |
| 1500mm | mm | 3168×1000 ×1267 |
3168×1000 ×1267 |
3168×1037 ×1312 |
3168×1037 ×1312 |
3168×1130 ×1367 |
3168×1130 ×1367 |
| 2000mm | mm | 3668×1000 ×1267 |
3668×1000 ×1267 |
3668×1037 ×1312 |
3668×1037 ×1312 |
3668×1130 ×1367 |
3668×1130 ×1367 |
大孔普通车床
| 大孔车床 | 单位 | CA6140B/A | CA6240B/A | CA6150B/A | CA6250B/A | CA6161B/A | CA6261B/A |
| 床身上回转直径 | mm | φ400(16") | φ400(16") | φ500(20") | φ500(20") | φ610(24") | φ610(24") |
| 刀架上回转直径 | mm | φ210 | φ210 | φ300 | φ300 | φ370 | φ370 |
| (8 1/4") | (8 1/4") | (12") | (12") | (14 9/16 ") | (14 9/16 ") | ||
| 马鞍内回转直径× | mm | φ630(25") | φ720(28") | φ830 | |||
| 有效宽度 | ×210 | ×210 | (32 2/3 ") | ||||
| ×210 | |||||||
| 二顶尖间长度 | mm | 750/1000/ | 750/1000/ | 750/1000/ | 750/1000/ | 750/1000/ | 750/1000/ |
| 1500/2000/ | 1500/2000/ | 1500/2000/ | 1500/2000/ | 1500/2000/ | 1500/2000/ | ||
| 3000 | 3000 | 3000 | 3000 | 3000 | 3000 | ||
| (29"/40"/ | (29"/40"/ | (29"/40"/ | (29"/40"/ | (29"/40"/ | (29"/40"/ | ||
| 60"/118") | 60"/118") | 60"/118") | 60"/118") | 60"/118") | 60"/118") | ||
| 床身宽度、硬度 | mm | 400、RC52 | 400、RC52 | 400、RC52 | 400、RC52 | 400、RC52 | 400、RC52 |
| 刀杆截面 | mm | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 | 25×25 |
| 主轴 | |||||||
| 主轴转速范围(级数) | |||||||
| 正传 | r/min | 10-1400 | 10-1400 | 10-1400 | 10-1400 | 10-1400 | 10-1400 |
| (24 kinds) | (24 kinds) | (24 kinds) | (24 kinds) | (24 kinds) | (24 kinds) | ||
| 反转 | r/min | 14-1580 | 14-1580 | 14-1580 | 14-1580 | 14-1580 | 14-1580 |
| (12 kinds) | (12 kinds) | (12 kinds) | (12 kinds) | (12 kinds) | (12 kinds) | ||
| 主轴内孔直径 | mm | φ80 | φ80 | φ80 | φ80 | φ80 | φ80 |
| (3 9/64") | (3 9/64") | (3 9/64") | (3 9/64") | (3 9/64") | (3 9/64") | ||
| 主轴头型式 | mm | A28 | A28 | A28 | A28 | A28 | A28 |
| 前主轴孔锥度 | φ90(1:20) | φ90(1:20) | φ90(1:20) | φ90(1:20) | φ90(1:20) | φ90(1:20) | |
| 进给 | |||||||
| 进给数量 | 64 kinds | 64 kinds | 64 kinds | 64 kinds | 64 kinds | 64 kinds | |
| (for each) | (for each) | (for each) | (for each) | (for each) | (for each) | ||
| 主轴每转纵向进给 | |||||||
| 标准 | mm/r | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 | 0.11-1.6 |
| 小进给 | mm/r | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 | 0.028-0.11 |
| 加大进给 | mm/r | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 | 1.76-6.4 |
| 主轴每转横向进给 | |||||||
| 标准 | mm/r | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 | 0.05-0.8 |
| 小进给 | mm/r | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 | 0.014-0.05 |
| 加大进给 | mm/r | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 | 0.88-3.2 |
| 公制螺纹范围 | mm | 1-192 | 1-192 | 1-192 | 1-192 | 1-192 | 1-192 |
| (44 kinds) | (44 kinds) | (44 kinds) | (44 kinds) | (44 kinds) | (44 kinds) | ||
| 英制螺纹范围 | t.p.i | 2001-2-24 | 2001-2-24 | 2001-2-24 | 2001-2-24 | 2001-2-24 | 2001-2-24 |
| (28kinds) | (28kinds) | (28kinds) | (28kinds) | (28kinds) | (28kinds) | ||
| 模数螺纹范围 | mm | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) | 0.25-48(module) |
| (39 kinds) | (39 kinds) | (39 kinds) | (39 kinds) | (39 kinds) | (39 kinds) | ||
| 径节螺纹范围 | D.P | 1/2-96 | 1/2-96 | 1/2-96 | 1/2-96 | 1/2-96 | 1/2-96 |
| (38 kinds) | (38 kinds) | (38 kinds) | (38 kinds) | (38 kinds) | (38 kinds) | ||
| 床鞍纵向快移速度 | m/min | 4 m/min | 4 m/min | 4 m/min | 4 m/min | 4 m/min | 4 m/min |
| 刀架横向快移速度 | m/min | 2 m/min | 2 m/min | 2 m/min | 2 m/min | 2 m/min | 2 m/min |
| 刀架转盘回转角度 | ° | ±90 | ±90 | ±90 | ±90 | ±90 | ±90 |
| 横刀架行程 | mm | 320 | 320 | 320 | 320 | 420 | 420 |
| (12 1/2") | (12 1/2") | (12 1/2") | (12 1/2") | (16 4/25") | (16 4/25") | ||
| 小刀架移动行程 | mm | 140 | 140 | 140 | 140 | 140 | 140 |
| (5 1/2") | (5 1/2") | (5 1/2") | (5 1/2") | (5 1/2") | (5 1/2") | ||
| 床尾 | |||||||
| 床尾主轴最大行程 | mm | 150 | 150 | 150 | 150 | 150 | 150 |
| (5 29/32") | (5 29/32") | (5 29/32") | (5 29/32") | (5 29/32") | (5 29/32") | ||
| 床尾主轴直径 | mm | φ75 | φ75 | φ75 | φ75 | φ75 | φ75 |
| (2 61/64") | (2 61/64") | (2 61/64") | (2 61/64") | (2 61/64") | (2 61/64") | ||
| 床尾主轴孔锥度 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | 莫氏圆锥5号 | |
| 主电机 | kW | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) | 7.5 (10 Hp) |
| 净重/毛重 | |||||||
| 750mm | kg | 1990/2680 | 1990/2680 | 2060/2410 | 2060/2410 | 2180/3000 | 2180/3000 |
| 1000mm | kg | 2070/2760 | 2070/2760 | 2140/2830 | 2140/2830 | 2260/3200 | 2260/3200 |
| 1500mm | kg | 2220/3020 | 2220/3020 | 2290/3050 | 2290/3050 | 2437/3400 | 2437/3400 |
| 2000mm | kg | 2570/3420 | 2570/3420 | 2640/3490 | 2640/3490 | 2787/3800 | 2787/3800 |
| 3000mm | 3200/ | 3287/ | |||||
| 轮廓尺寸/包装尺寸 | |||||||
| 750mm | 2418×1000 | 2418×1000 | 2418×1037 | 2418×1037 | 2418×1130 | 2418×1130 | |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ | ||
| 2600×1520 | 2600×1520 | 2600×1520 | 2600×1520 | 2600×1620 | 2600×1620 | ||
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ||
| 1000mm | 2668×1000 | 2668×1000 | 2668×1037 | 2668×1037 | 2668×1130 | 2668×1130 | |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ | ||
| 2850×1520 | 2850×1520 | 2850×1520 | 2850×1520 | 2850×1620 | 2850×1620 | ||
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ||
| 1500mm | 3168×1000 | 3168×1000 | 3168×1037 | 3168×1037 | 3168×1130 | 3168×1130 | |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ | ||
| 3350×1520 | 3350×1520 | 3350×1520 | 3350×1520 | 3350×1620 | 3350×1620 | ||
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ||
| 2000mm | 3668×1000 | 3668×1000 | 3668×1037 | 3668×1037 | 3668×1130 | 3668×1130 | |
| ×1270/ | ×1270/ | ×1315/ | ×1315/ | ×1370/ | ×1370/ | ||
| 3850×1520 | 3850×1520 | 3850×1520 | 3850×1520 | 3850×1620 | 3850×1620 | ||
| ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ×2010 | ||
| 3000mm | 4668×1130 | 4668×1130 | |||||
| ×1370/ | ×1370/ |
![4@HQP5QWOMN0)VX$$ZD]TE2.png](https://cbu01.alicdn.com/img/ibank/O1CN01d5vTDG2EqcaVqBnJM_!!2214394788796-0-cib.jpg?__r__=1669199278125)
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 6,288.19
>=1 pcs
1. Modelo:
CA6140X1000
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
