| Formas de trabajo | Totalmente automático |
| Número de artículo | js-scf-596627 |
| Máximo ancho de mecanizado | 200 |
| Marca | Victoria Checa |
| Tipo de producto | Nuevo |
| Modelo | js-scf-596627 |

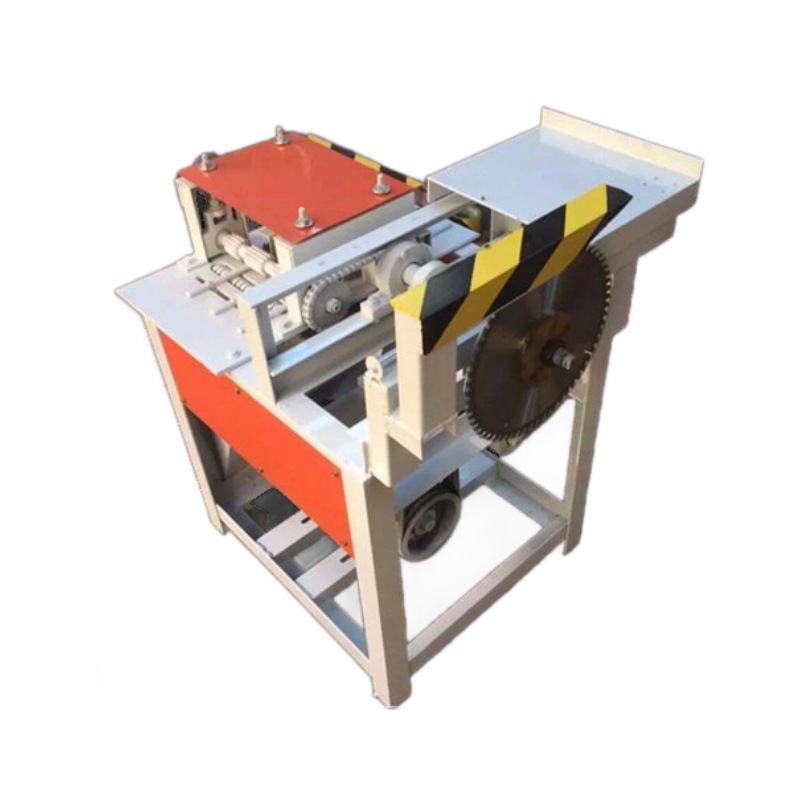

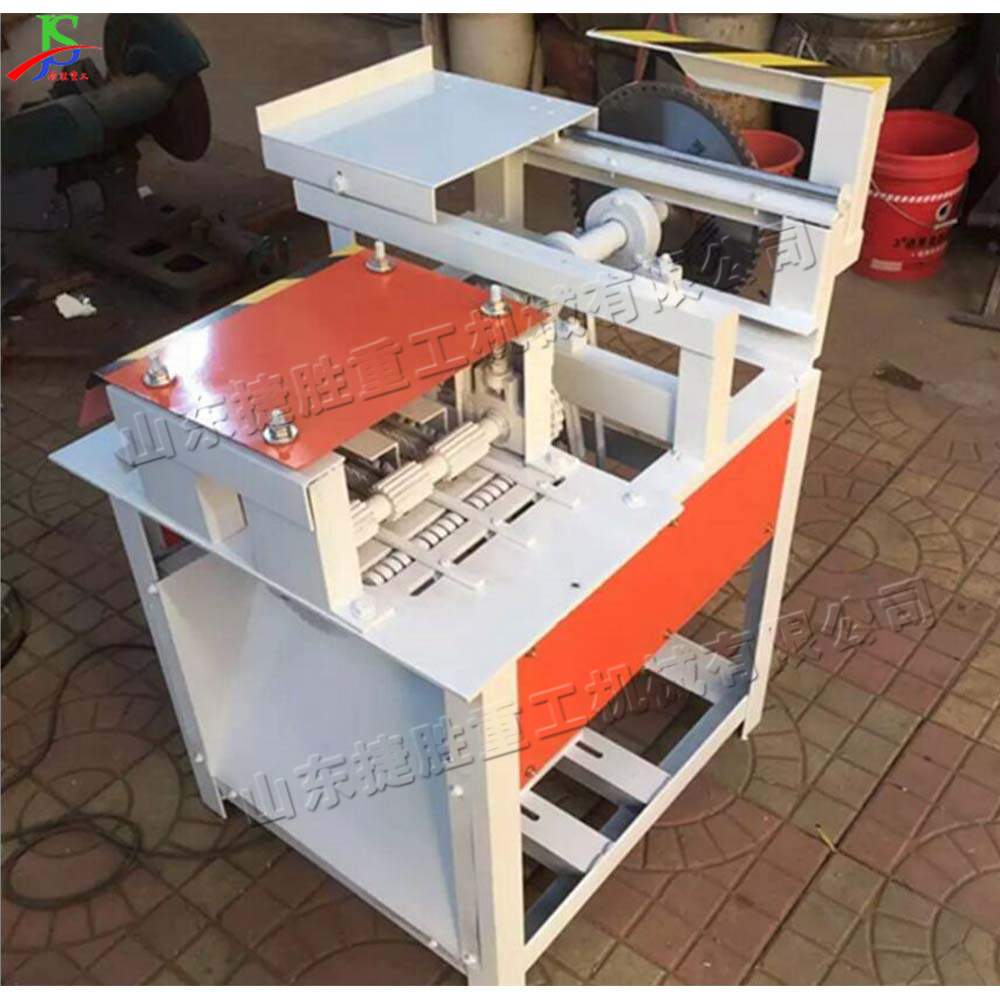

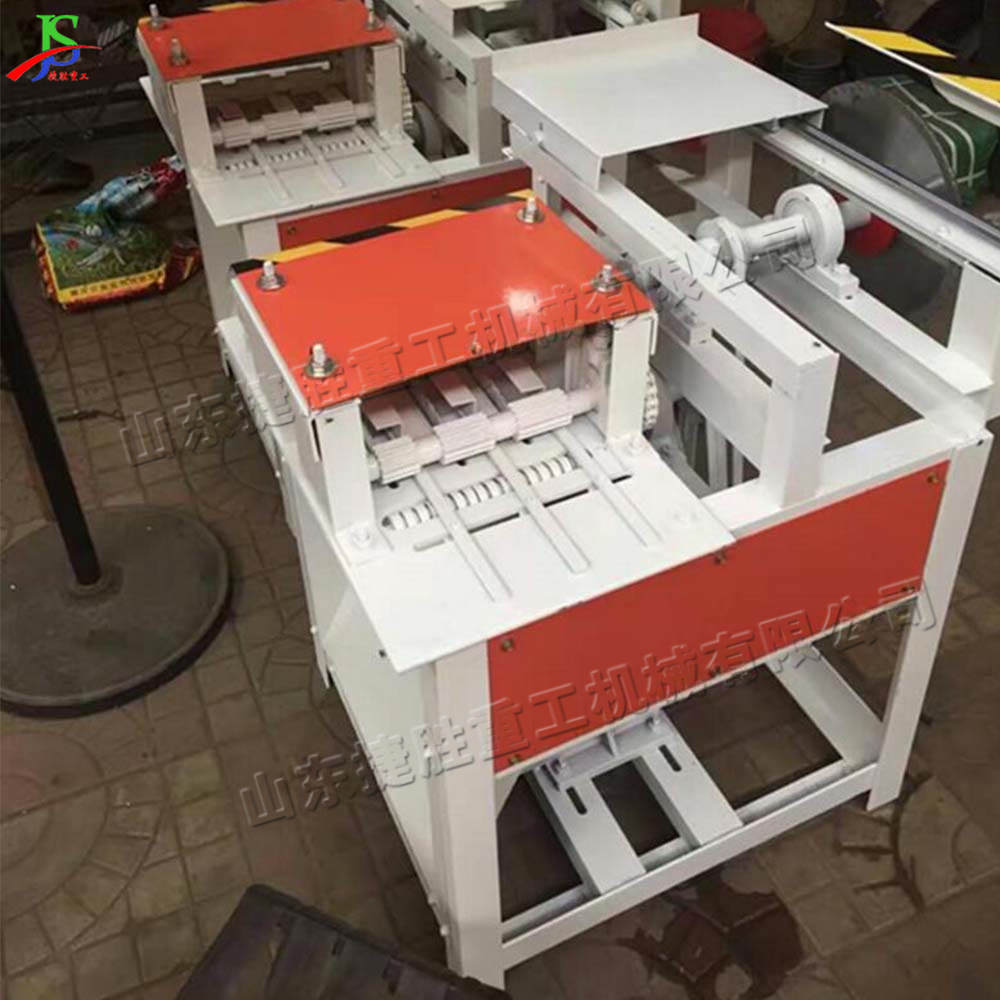

功能介绍

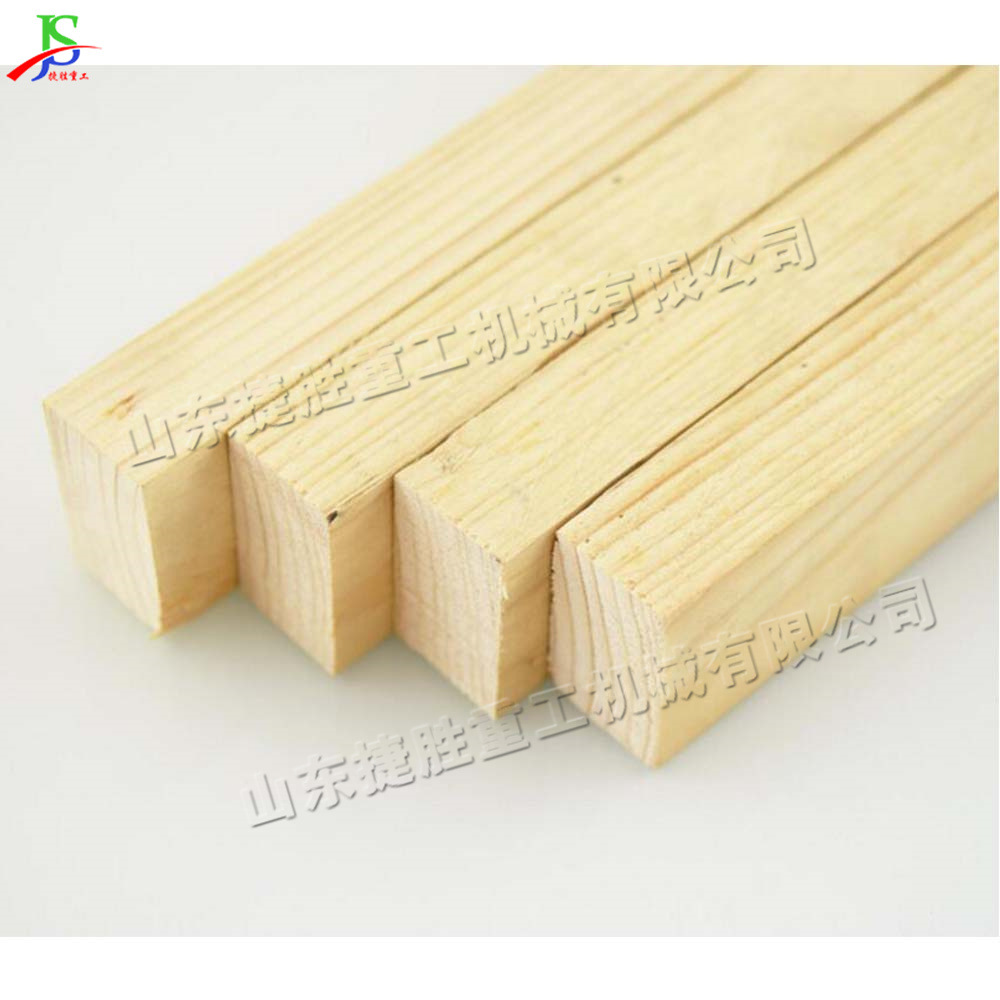

细木工芯条修整锯，将不完整的细木工芯条残条重新修整改进缩小规格，整理成完整的木工板芯条。此锯应用广泛，节省劳动力，易操作
主轴参数： 3600转/分
zui大锯料高度： 2.5cm
锯片直径： 18cm（修边），30cm（盘头）
锯片孔直径： 2.5cm（盘头），3.0cm（修边）
外形尺寸： 90*80*100cm
整机重量： 90kg
zui短加工尺寸： 20cm
进料速度： 12m/分
主轴电机功率： 3kw/时
装锯片数： 盘头锯片1片 修边锯片3片
产品参数：
产品名称：40型清边锯
zui大锯切厚度：25mm
锯切宽度规格：20mm-50mm
zui短锯切长度：15mm
锯片规格：直径180mm
圆锯齿厚度：3.0mm
锯轴转速：2850rpm
主电机功率：4kw
自动输送速度：10m-18m/min
工作台尺寸：400mm*500mm
产品外形尺寸：1000mm*600mm*800mm
产品重量：100kg
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个地区，并从德国、英国、法国进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
