| Formas de trabajo | Semiautomático |
| Número de artículo | js-sgj-331 |
| Máximo ancho de mecanizado | 60 |
| Marca | Victoria Checa |
| Tipo de producto | Nuevo |
| Modelo | js-sgj-331 |

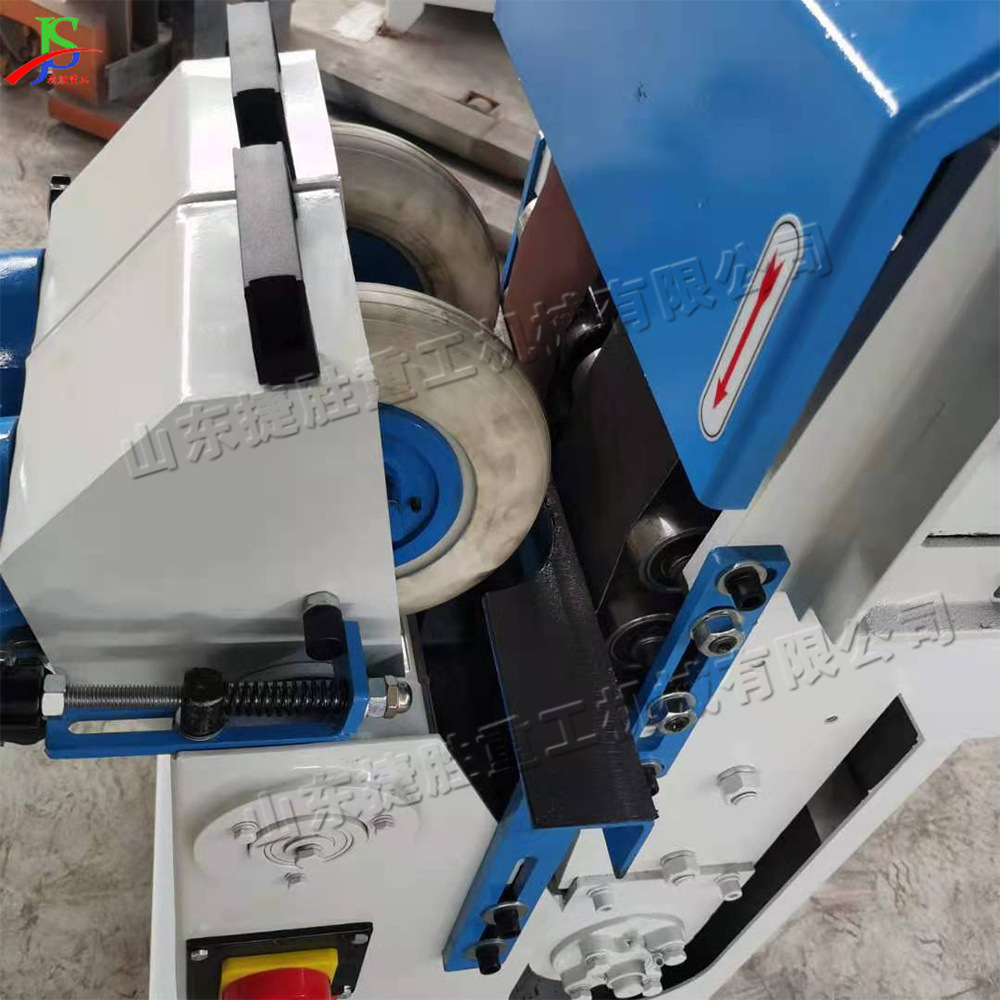

圆棒砂光机，主要组件包括机座、机身和传动及送料装置，所述传动及送料装置主要包括电机、减速轴、送料托板、砂带和胶轮，所述砂带设置在旋转的主动轮和被动轮上，所述胶轮设置于与砂带面向的操作盘上。砂带和胶轮成反方向运动，使需加工的圆棒从进料端进入并自动旋转，在旋转的过程中进行砂光和抛光，并且通过调节螺栓来调整胶轮的角度，根据圆棒的大小和加工精度的要求，达到调整送料速度的快慢的目的，本实用新型具有生产效率高，操作，砂光、抛光的效果好的优点。

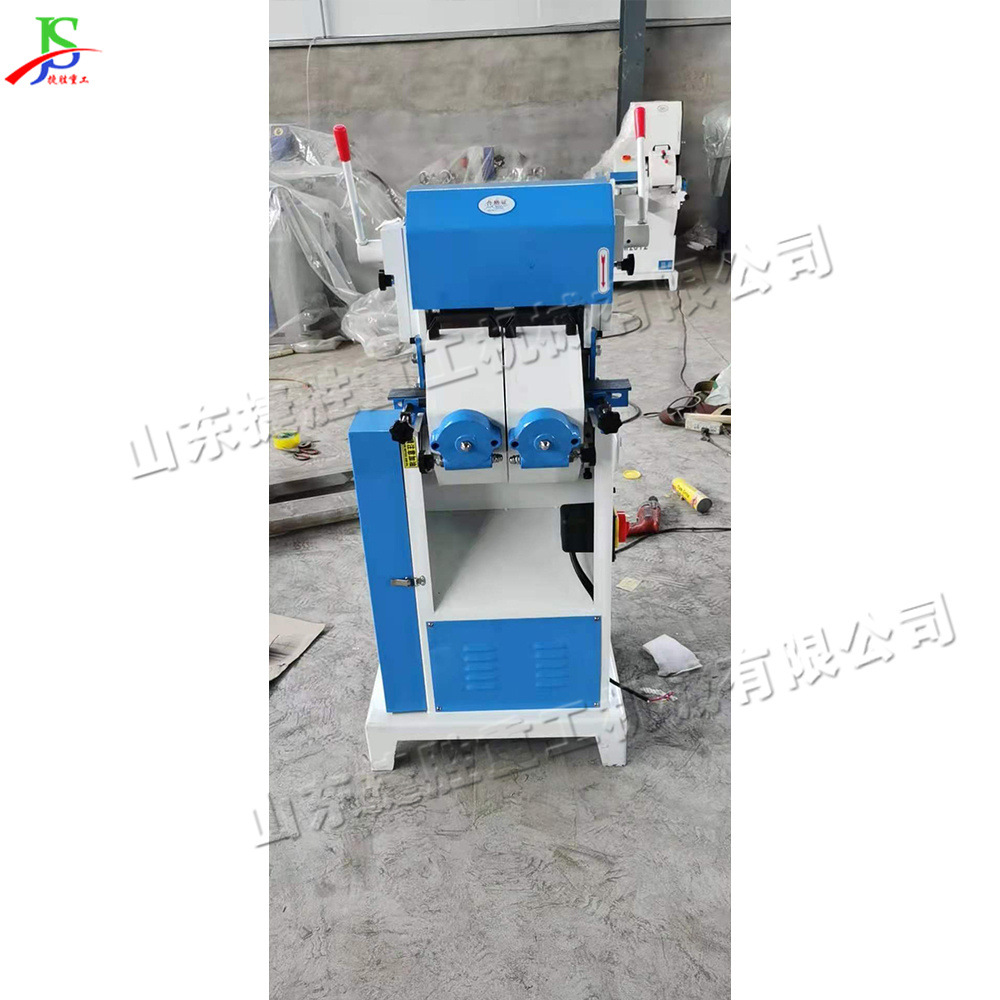

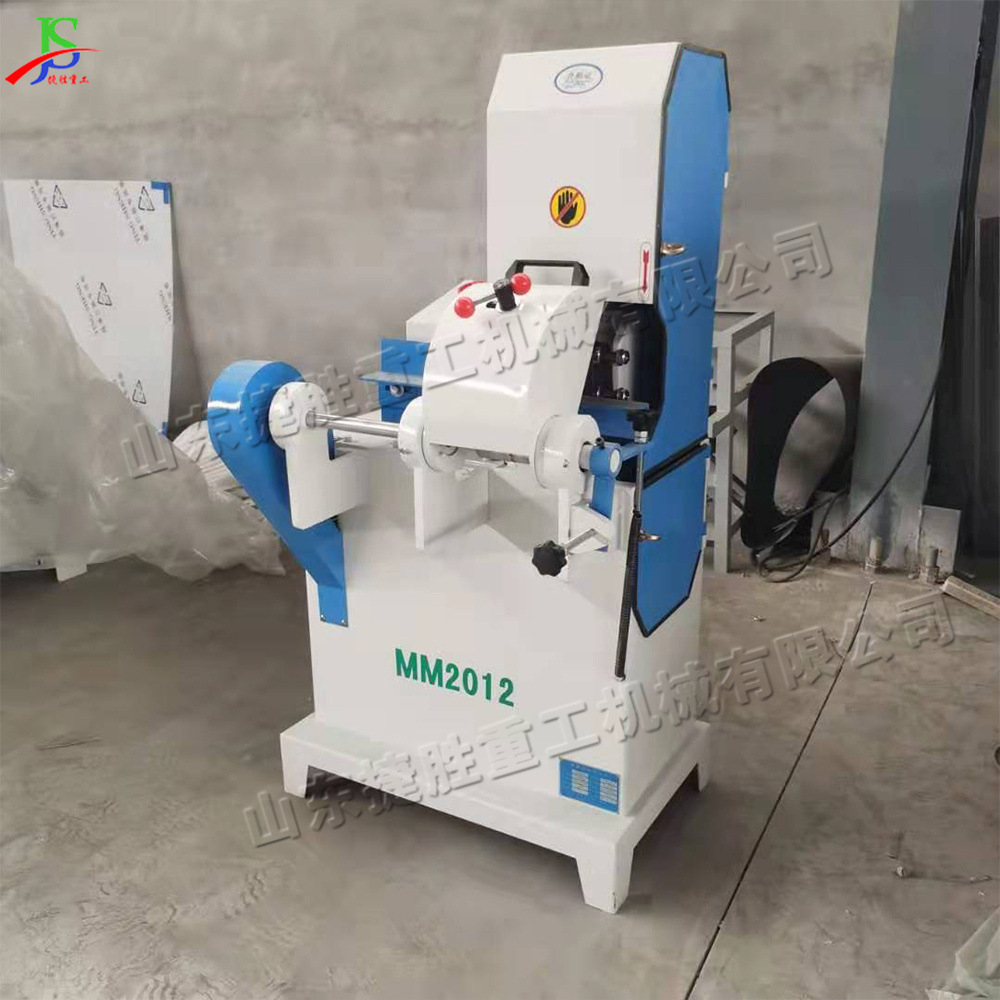

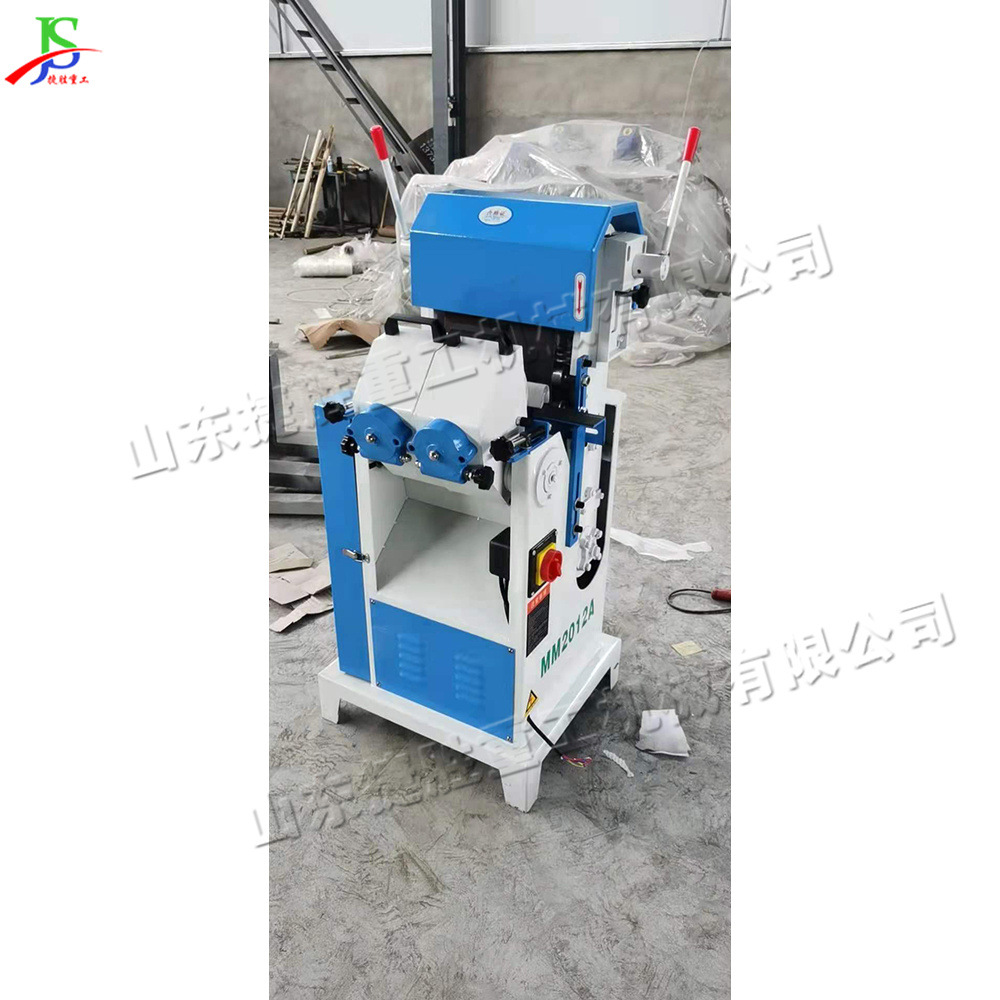

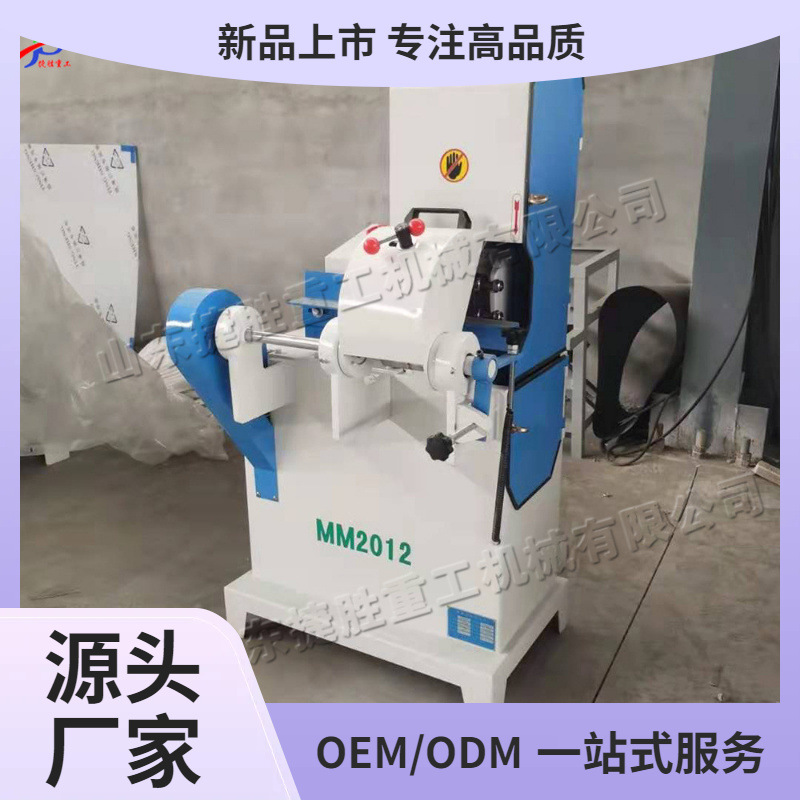

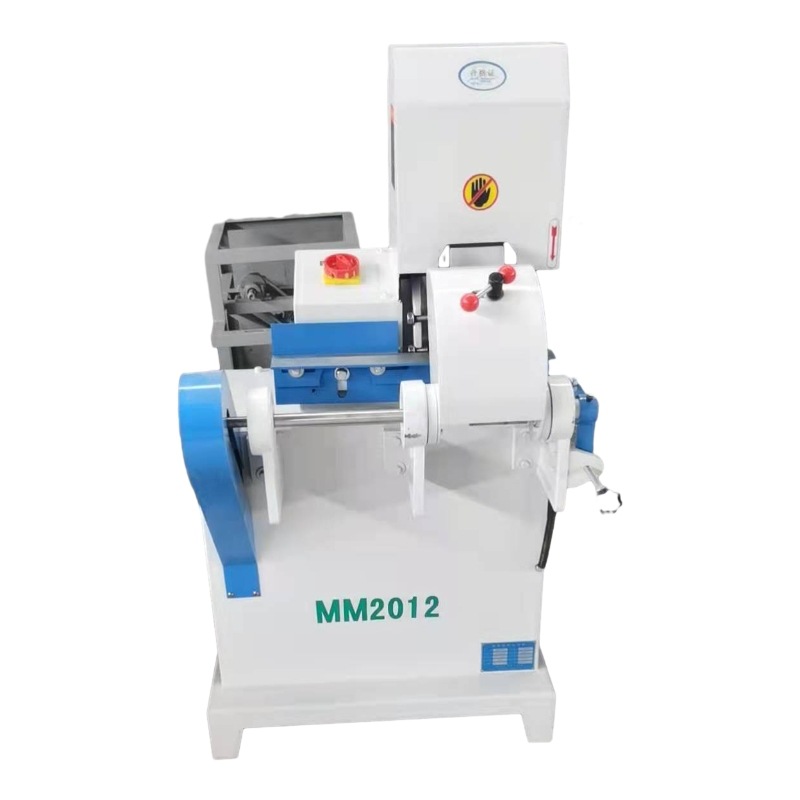

1.单带圆棒砂光机
送料速度： 5-18m/min
主动轮转速： 1420r/min
加工直径： 6-60mm
砂带规格： 1820X120mm
外形尺寸： 800X700X1400mm
电机功率： 3KW
整机重量： 250kg
2.双带圆棒砂光机
送料速度： 0-10m/min
主动轮转速： 1420r/min
加工直径： 10-60mm
砂带轮转速： 890mm/min
外形尺寸： 700x800x1400mm
砂带规格： 1880x120mm
电机功率： 3 KW
整机重量： 360kg
山东捷胜重工机械有限公司是济宁市高新区大型企业，是济宁市的生产制造企业。山东捷胜重工机械有限公司主要经营的各种矿建设备器材已销售到28个省市，出口20多个和地区，并从德国、英国、法国等进口了设备和器材，山东捷胜重工机械有限公司现有工程师16人，技术人员28人，技工150人，主要生产建筑机械、路面机械、矿山设备、园林机械等产品生产加工的公司。山东捷胜重工机械有限公司全体员工秉承信誉是生命、质量求生存、客户是衣食父母的原则，为国内外新老客户做出新的贡献而努力。 欢迎各界朋友莅临参观、指导和业务洽谈。
产品图片仅供参考，具体实物颜色，尺寸规格和款式以发货为准 ，工厂按订单顺序随机发货，无质量问题，不接受退换货。
