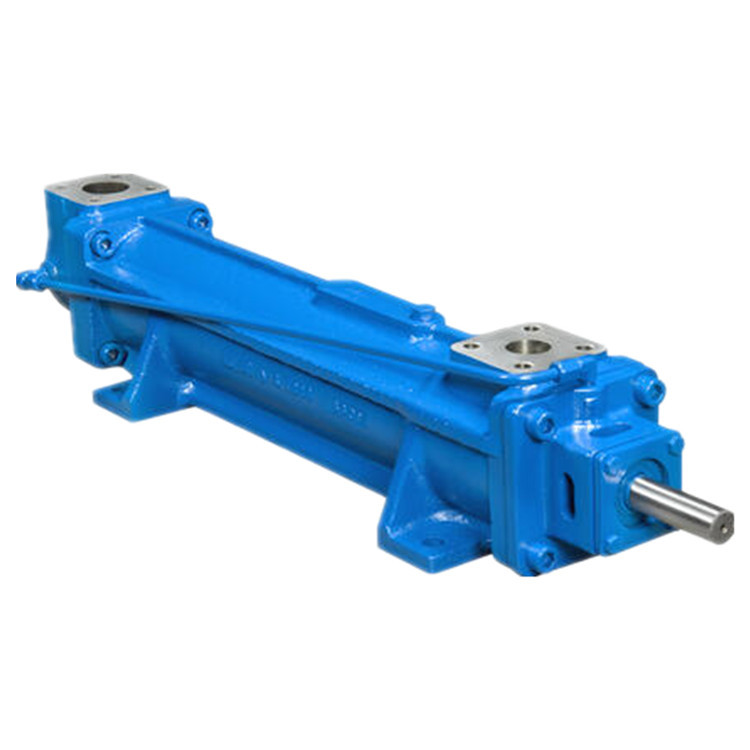

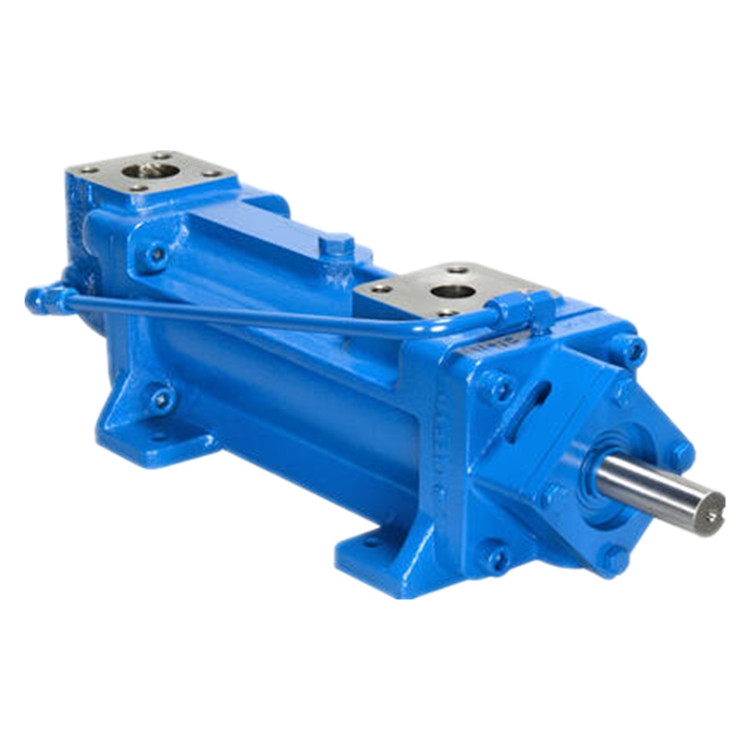

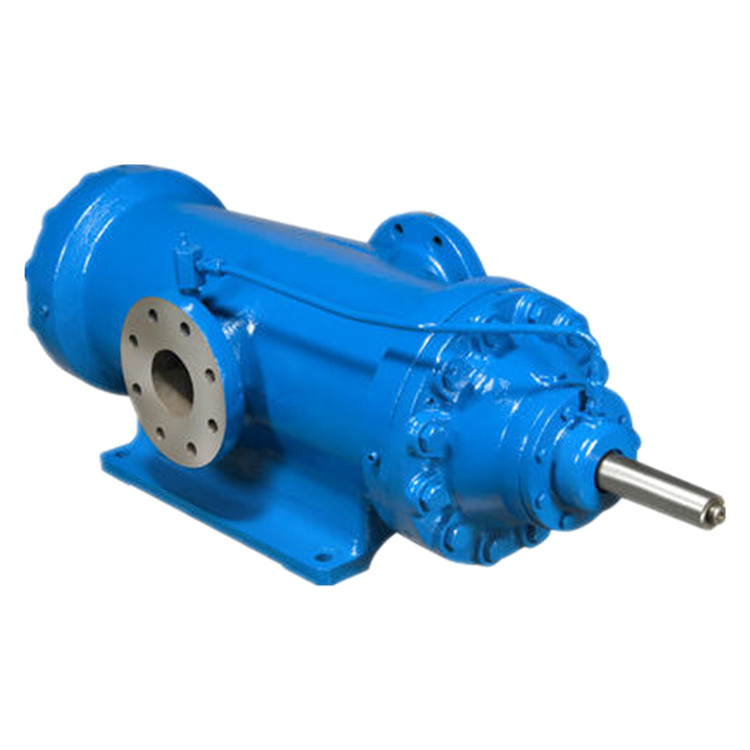

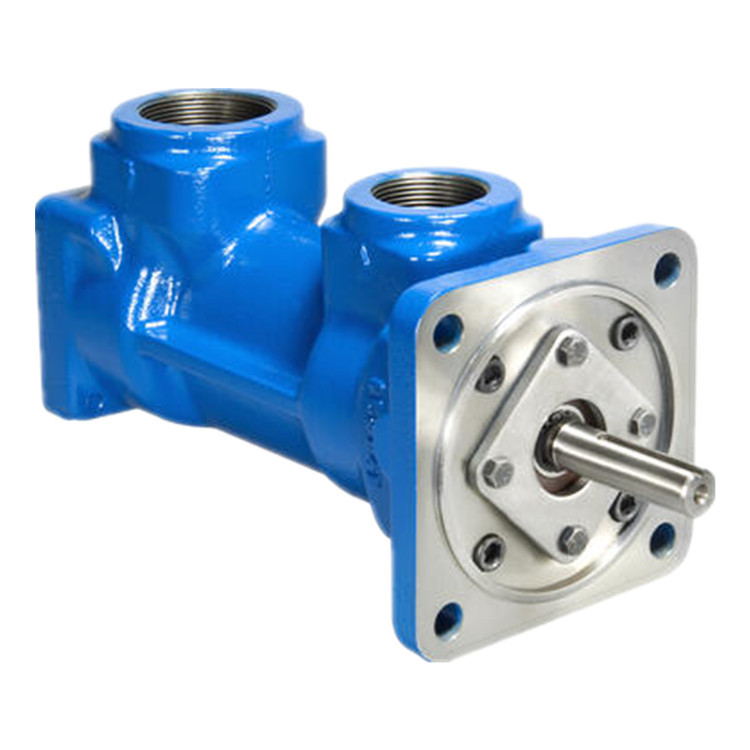

产品名称：IMO螺杆泵3D系列
产品型号：3D
产品介绍：
3D系列泵是一种通用的三螺杆泵，可提供19种不同的排量。这些泵采用全液压平衡，消除了由于排放压力而产生的轴向和径向推力负载。机械密封泵有一个单独的外部滚珠轴承，该轴承不依赖于泵送液体的润滑质量。泵配有可更换的外壳（衬套），大多数尺寸的泵都配有可选的钢壳。轴向进气道也有大多数尺寸。3D系列泵适用于润滑服务、燃油输送和燃烧器应用、液压升降机供应、冷却剂和许多其他工业用途。对于Imo三螺杆容积泵来说，非常低的空气噪声水平是正常的，高操作效率和非脉动流量也是正常的。
3D系列泵是一种通用设计，适用于许多应用，包括润滑、燃料运输和燃烧器服务、低压液压应用和液压升降机服务。泵轴的尺寸足够大，以便在需要时使用皮带传动（有机械密封版本）。
该系列有磁驱动器配置。
性能特点：
• 铁或钢外壳，干式安装，水平或垂直安装，自吸，机械轴封或无密封
• 可靠性高，使用寿命长
• lowest的总体拥有成本
•
• lowest的维护成本
• 易于安装和调试
• 平稳运行
• 低噪音和振动
技术参数：
• 型号：3D
• 所属类别：泵＞三螺杆
• 流体：燃料油，润滑油，油>原油
• 密封：单一机械密封
• 容量高达：400gpm
• 压力高达：500psiD
• 粘度范围：32至3500ssu
• 转速高达：3600 rpm
• 产地：瑞典
-流量
• Maxgpm:400.00
• Maxlpm:1514.16
• Maxm³/小时：90.85
-粘度
• MaxcSt[mm²/s]：3238.50
• MaxSSU：15000.00
• MincSt[mm²/s]：2.10
• MinSSU:33.00
-温度
• MaxC°：121.00
• MaxF°：250.00
• MinC°：-18.00
• MinFº：0.00
产品应用：
• 商船
• 石油和天然气
• 发电
• 润滑
• 工业＞建筑与施工
