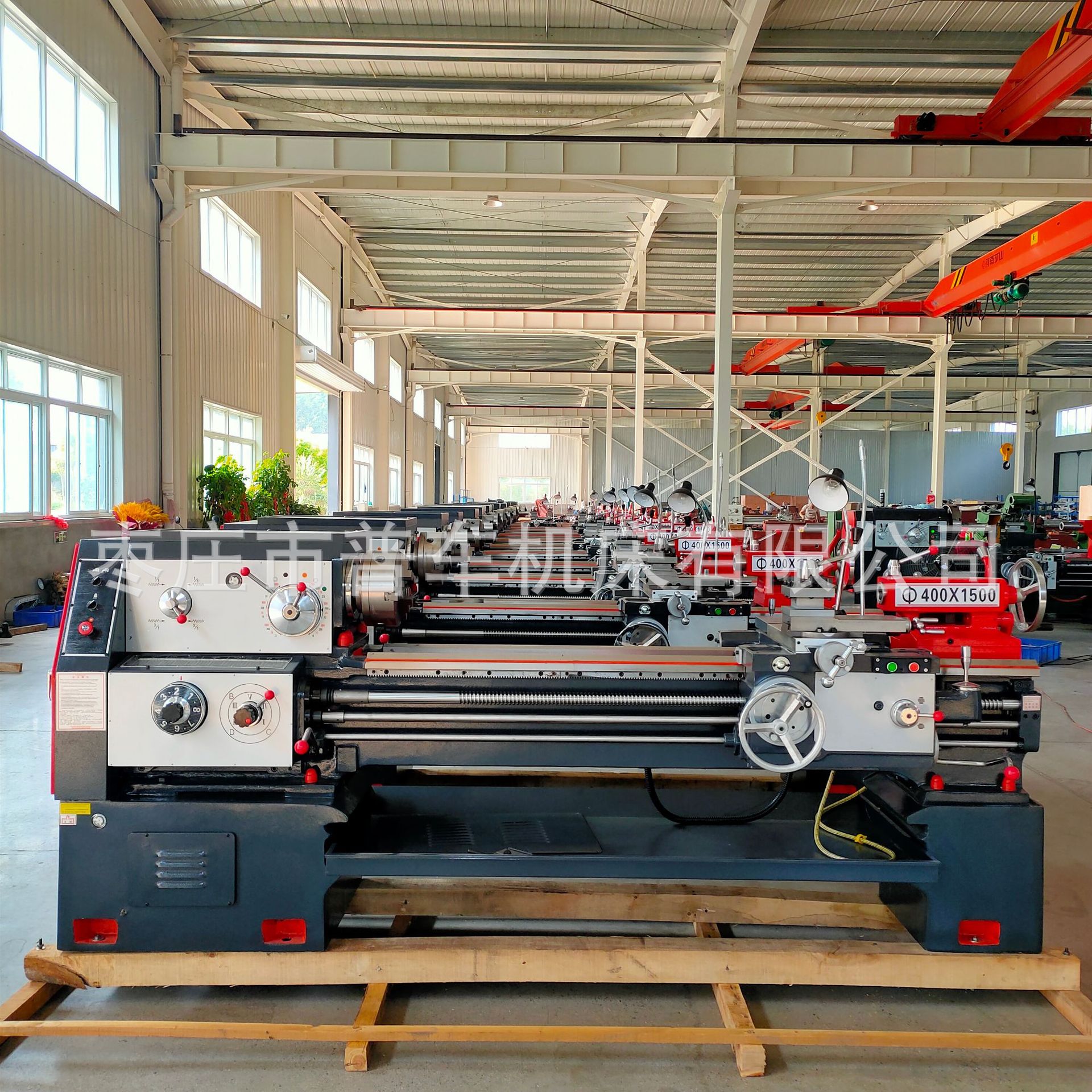

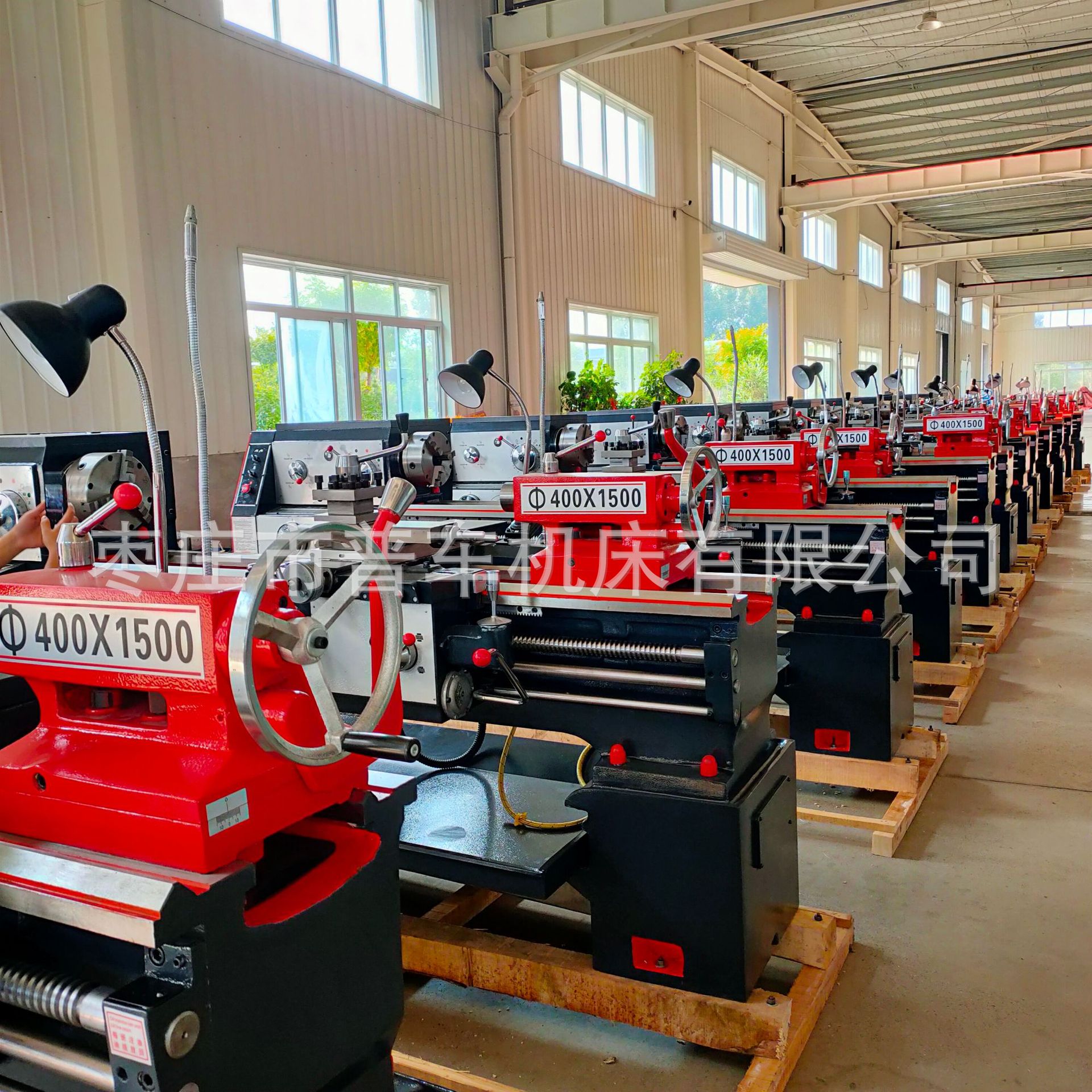

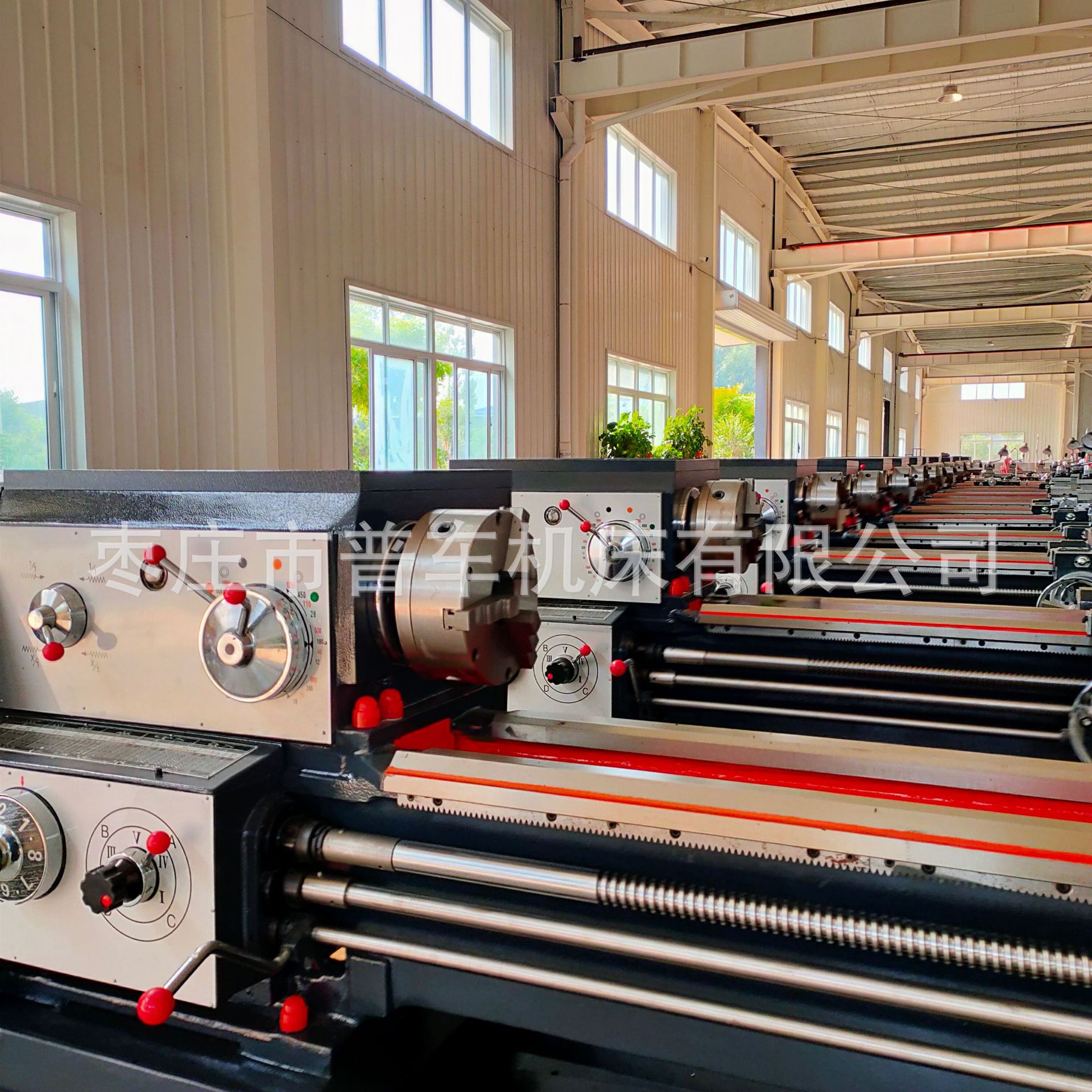

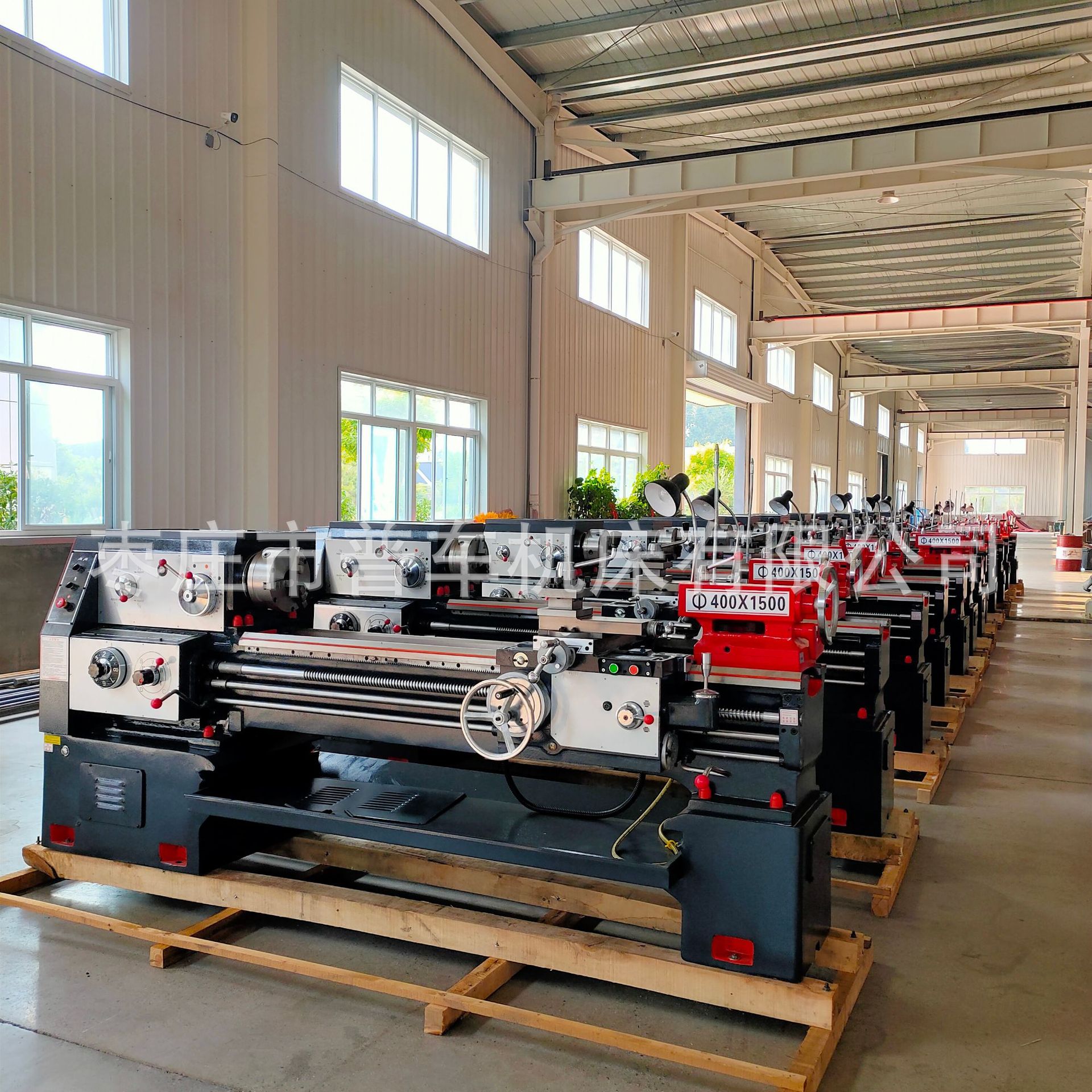

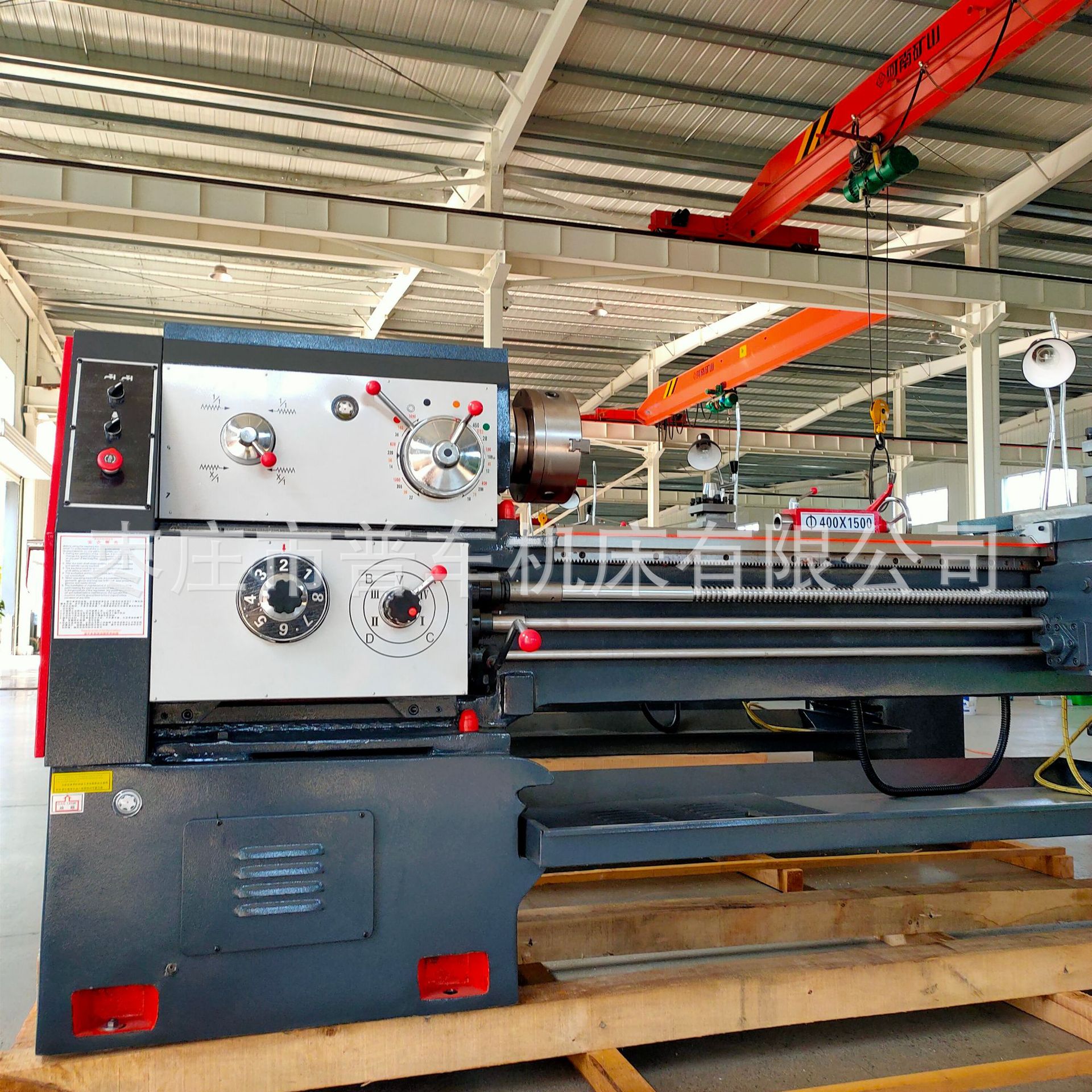

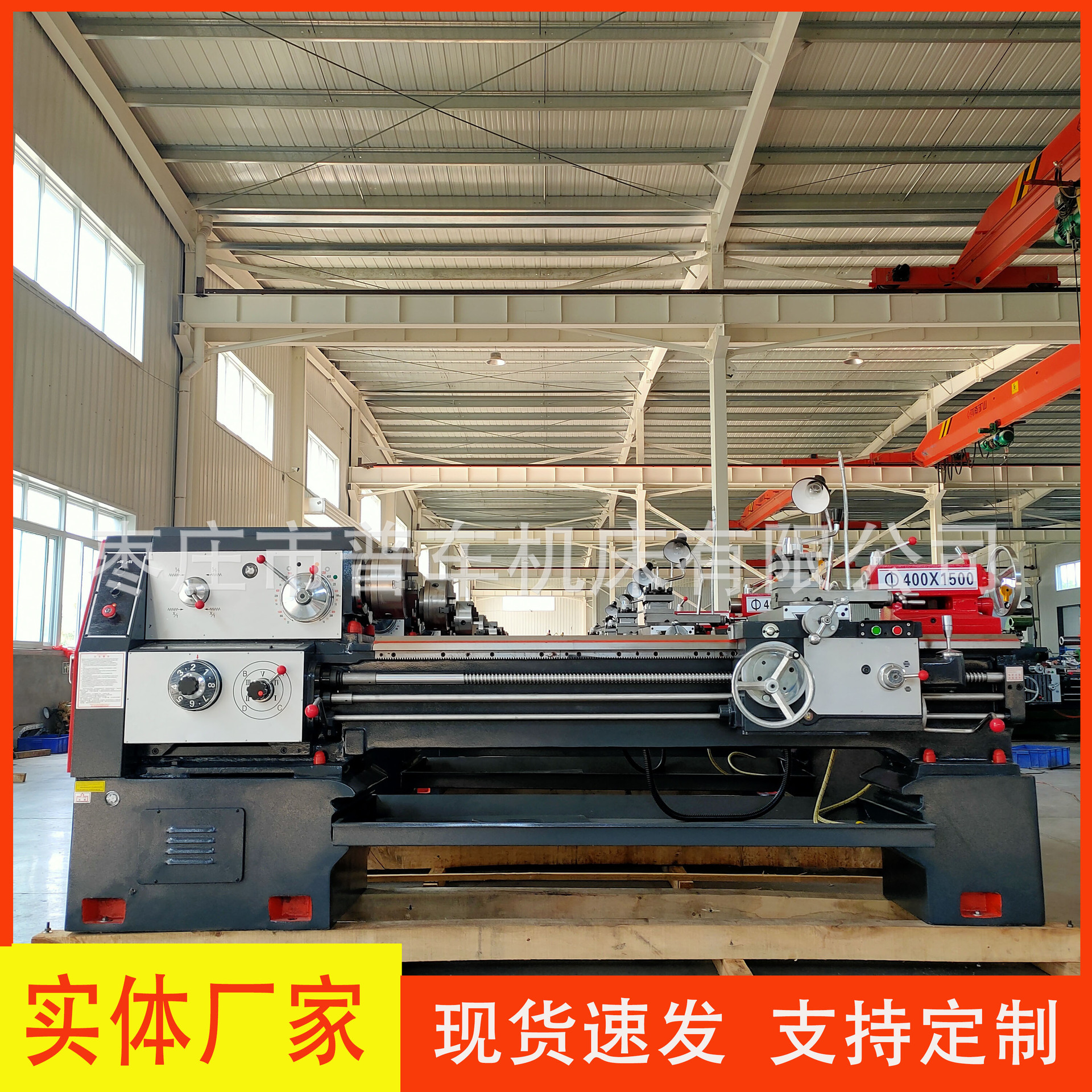

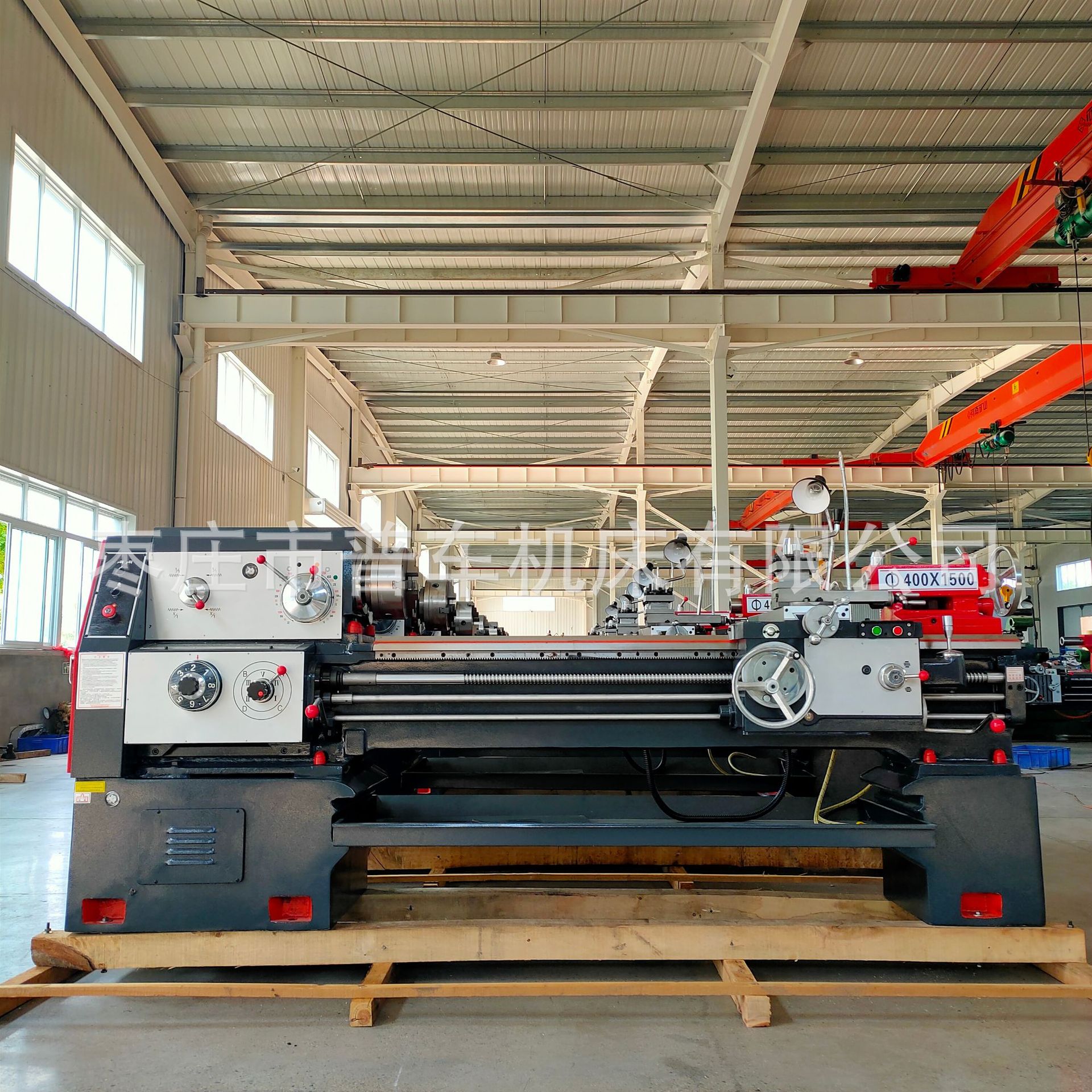

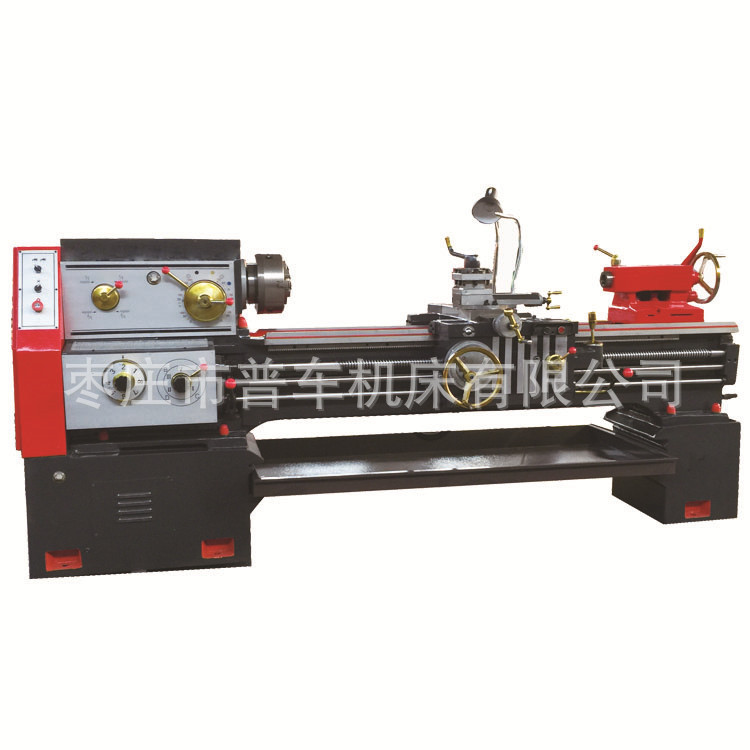

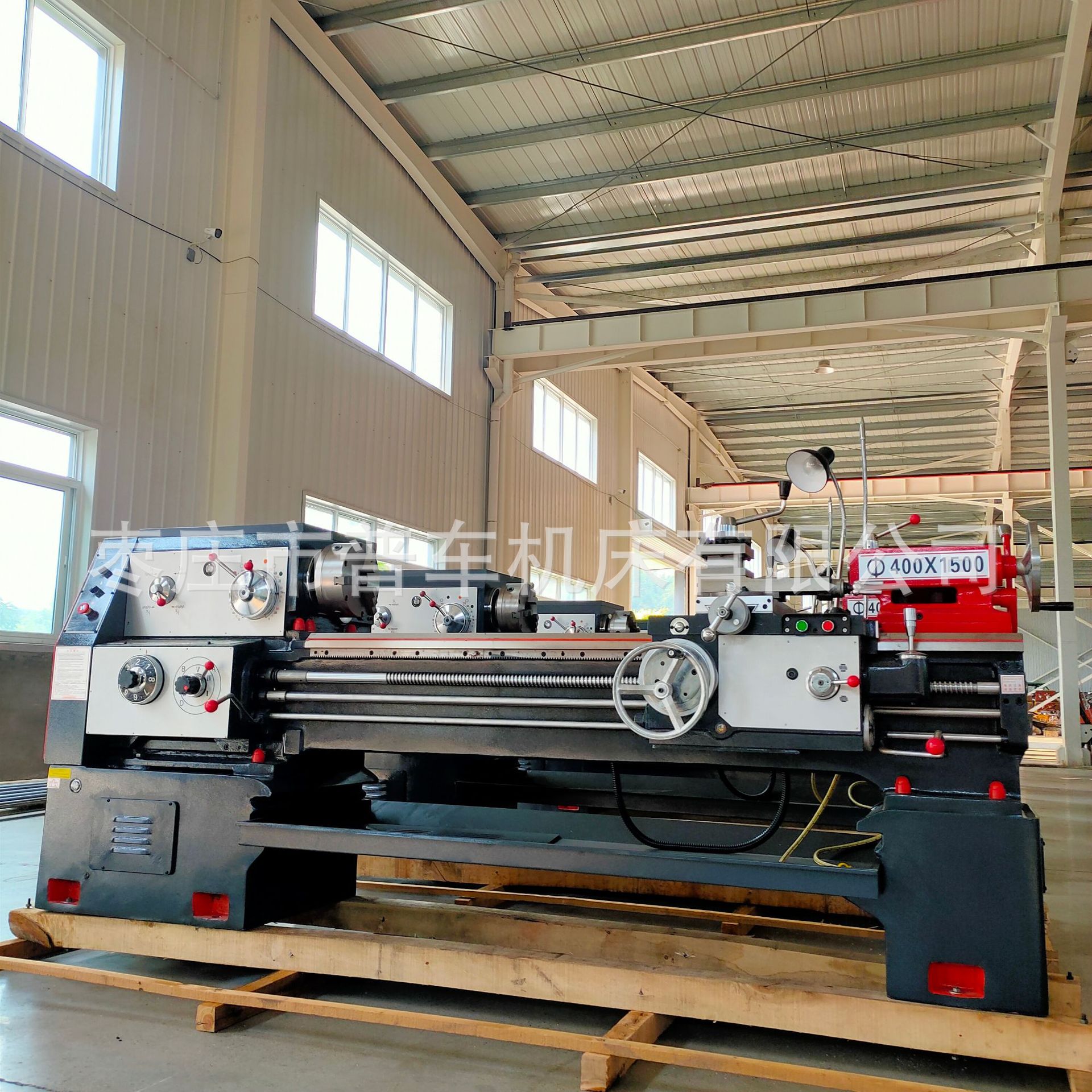

Los fabricantes venden tornos ordinarios CA6140 * 1000
Código: WB-260226-1372
Hacer que importar sea más cómodo
Usted
Enviar lista de compra
CHILATSHOP Servicio
Ofrecemos cotización integrada con precios EXW (recogida en fábrica) o FOB (entrega en puerto de salida)
1
Selección y cotización
2
Confirmación y pago
3
Supervisión y control de calidad
4
Consolidación y transporte
5
Despacho aduanal y entrega
Atributos clave
| Diámetro del orificio pasante del husillo | 52 |
| Tipo de potencia | Transmisión mecánica |
| Tipo de producto | Nuevo |
| Servicio post-venta | 1 año de garantía |
| Forma de instalación | De pie |
| Industrias aplicables | Universal |
Mostrar más
Descripcion
产品参数：
|
项目 |
单位 |
规格 |
|
型号 |
— |
CA6140 |
|
床身上回转直径 |
mm |
400 |
|
刀架上回转直径 |
mm |
210 |
|
工件加工长度 |
mm |
1500 |
|
主轴通孔直径 |
mm |
52 |
|
主轴头形式 |
— |
A6 |
|
床身导轨宽度 |
mm |
400 |
|
床身导轨硬度 |
RC |
52 |
|
主轴转速范围 （24） |
r/min |
10-1400 |
|
进给量范围（标准） |
mm/r |
0.08-1.59 |
|
进给量范围（细进给） |
mm/r |
0.028-0.054 |
|
进给量范围（加大进给） |
mm/r |
1.71-6.33 |
|
加工公制螺纹范围（44种） |
mm |
1-192 |
|
加工英制螺纹范围（20种） |
tpi |
24-2 |
|
加工模数螺纹范围（39种） |
mm |
0.25-48 |
|
加工径节螺纹范围（37种） |
DP |
96-1 |
|
主电机功率 |
kW |
7.5 |
|
机床净重 |
kg |
2220 |
|
机床轮廓尺寸（长×宽×高） |
mm |
3168×1000×1267 |
|
机床包装尺寸（长×宽×高） |
mm |
3600×1260×1760 |
Venta por lotes: la cantidad añadida es el mínimo requerido
US$ 4,689.30
>=1 pcs
1. especificación:
producto
La cantidad indicada corresponde al pedido mínimo requerido por la fábrica; si necesitas ajustar la cantidad del producto, después de enviar el presupuesto, un gerente de compras hispanohablante se pondrá en contacto contigo para discutir los detalles del producto.
