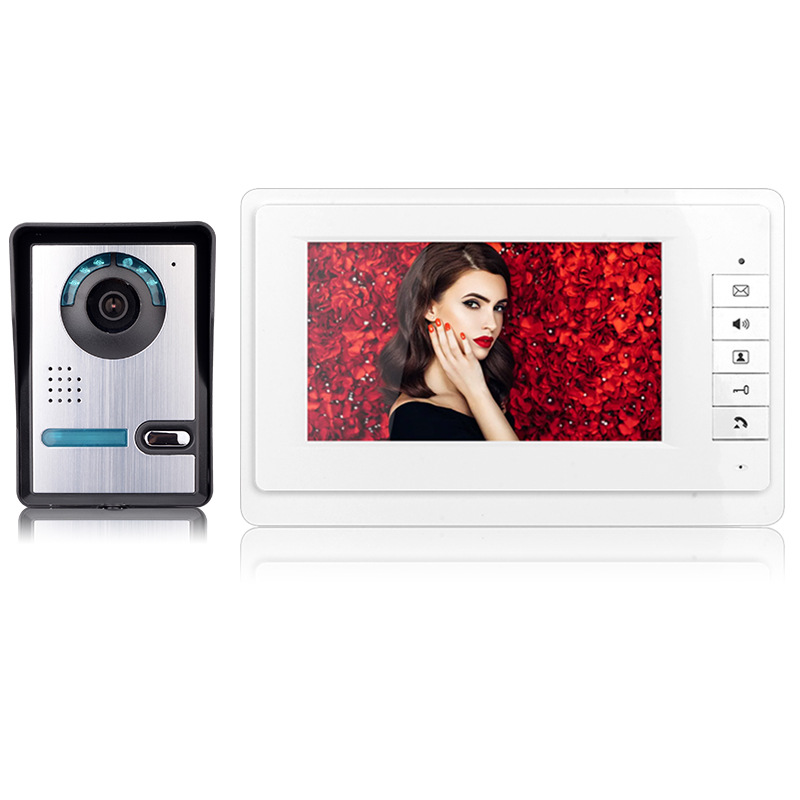

适用于豪华别墅，家庭住户使用，来访客人在外面一按门铃，室内机自动打开图像，按室内机应答键与来访者通话，轻按开锁按纽，电控锁自动打开，不用再跑到门口开门，平时待机时，按监视键，可以监视外部环境。

功能特点：

1、7寸TFT液晶，无辐射、低功耗，高清晰度的宽屏图像。

2、免提对讲功能。

3、电控开锁功能。

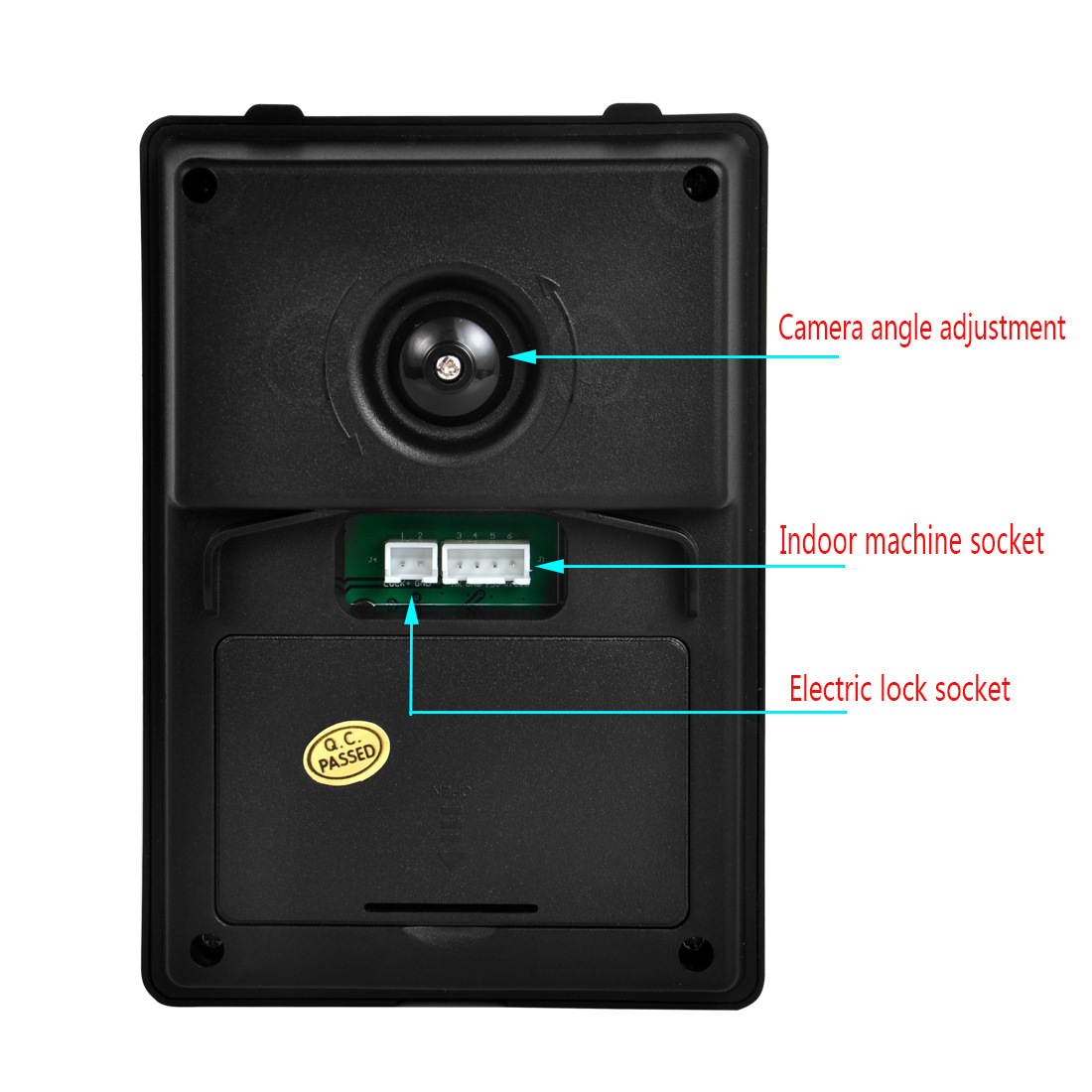

4、有监视室外的功能。室外机角度可调。

5、图像亮度、色度和音量可调节。

6、防氧化及耐磨表面处理的铝合金室外机。

7、室内机超薄型设计，铝面板,电镀按钮,美观尽显豪华气派。

8、12种和弦声可选，不会老是听到单调的门铃声。

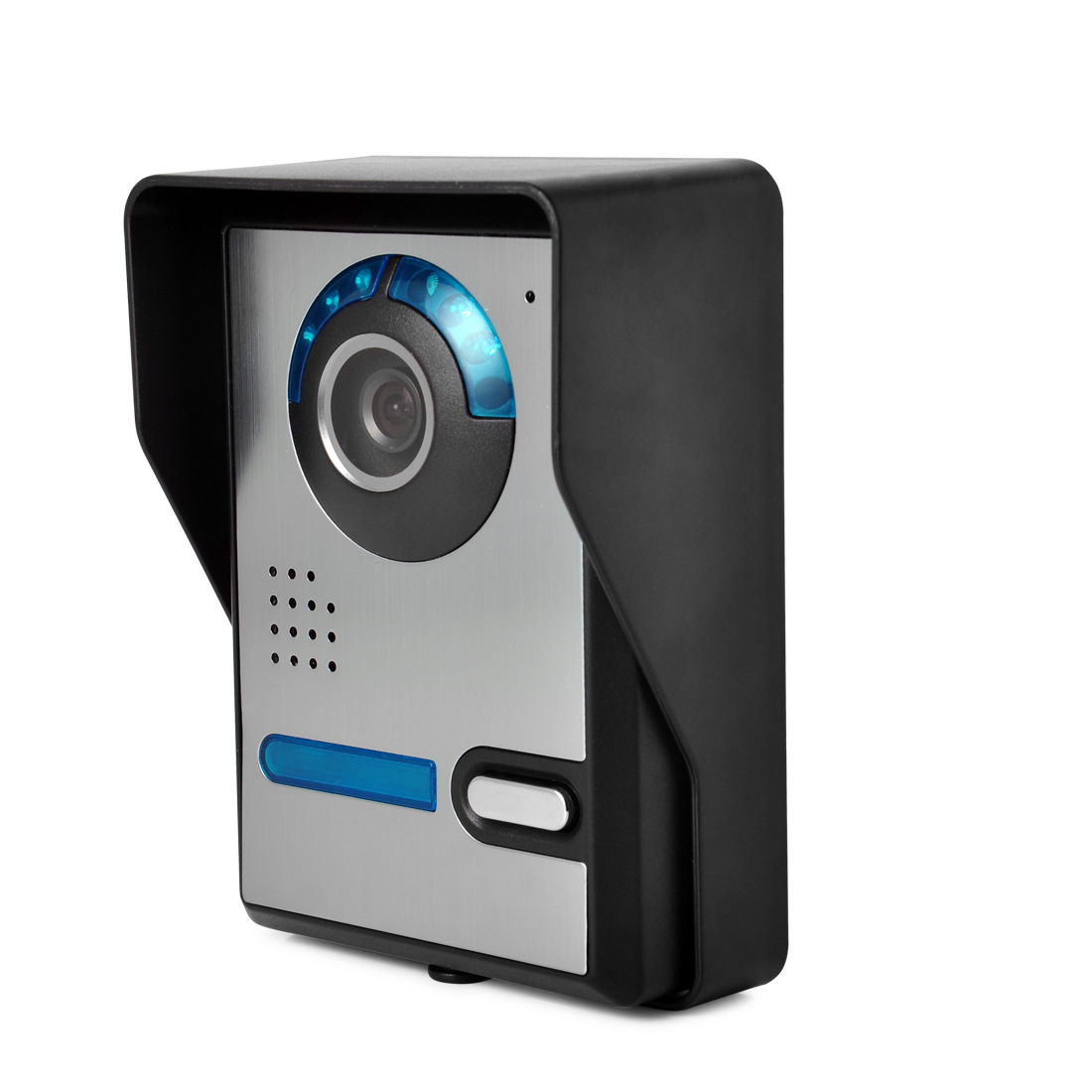

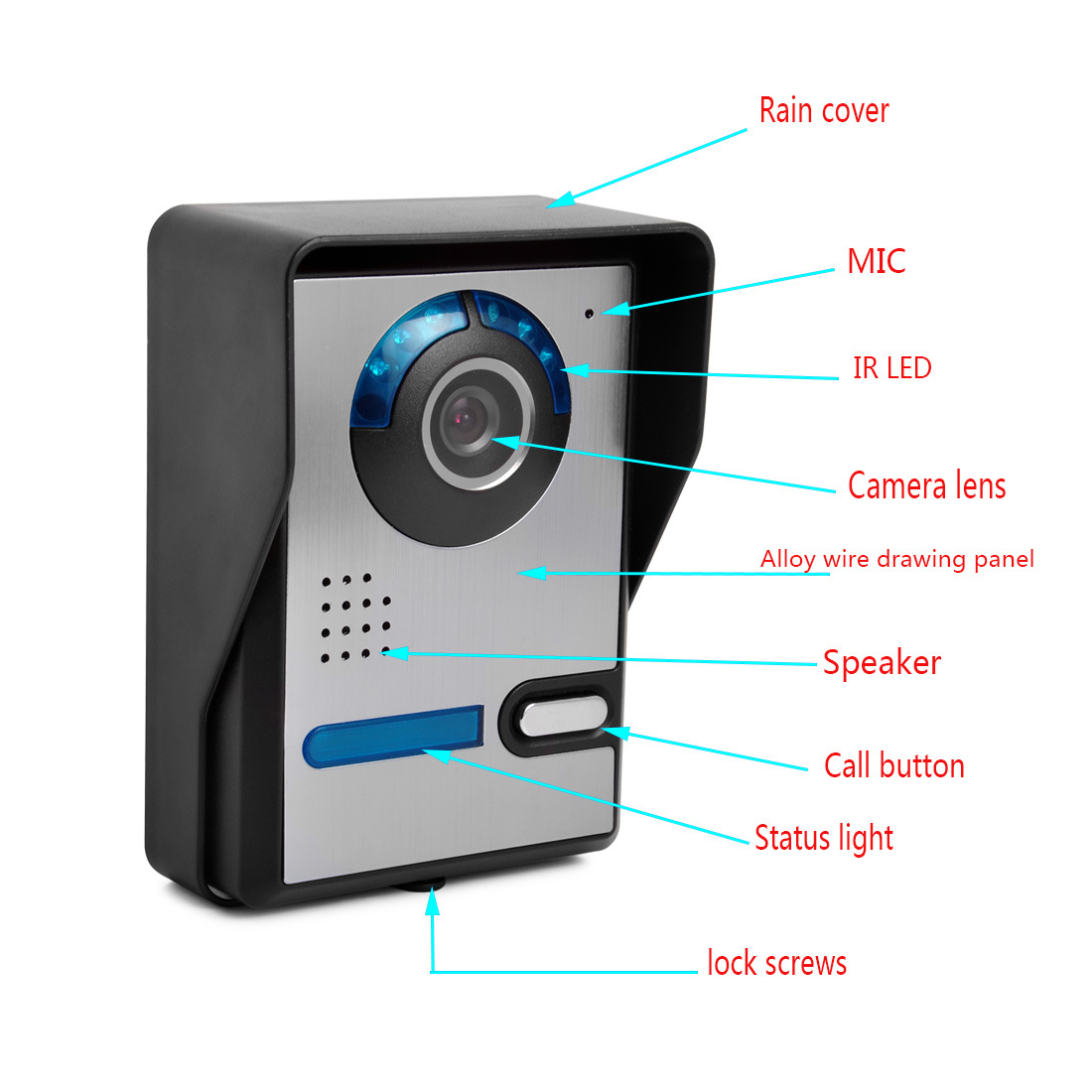

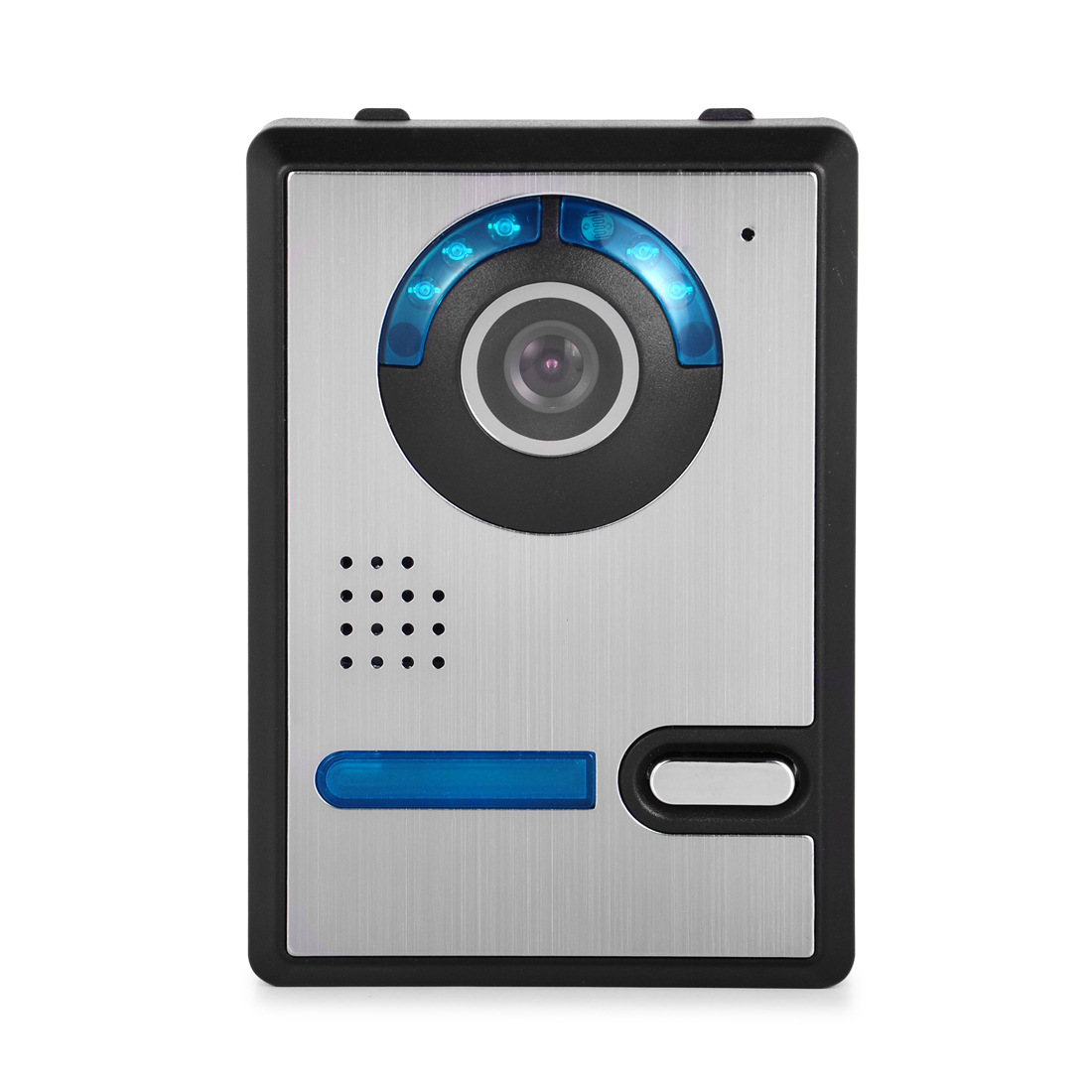

9、室外机精美小巧,铝合金外壳,带夜视红外功能,壁挂式安装简单方便.

10.彩盒包装,10台一箱.

性能参数：

1、开关电源：AC220V--50Hz DC15V 1.2A

2、整机电流：小于800mA

3、通话延时时间：120S±10%

4、监视延时时间：60S±10%

5、摄像机传感器：OV1030 420线

6、镜头：3.6MM92度

7、室外机带红外夜视功能：低开10LUX红外开启

10、室外安装方式：壁挂式

11、连接线：4芯线（配套5芯端子线2条)

Features:

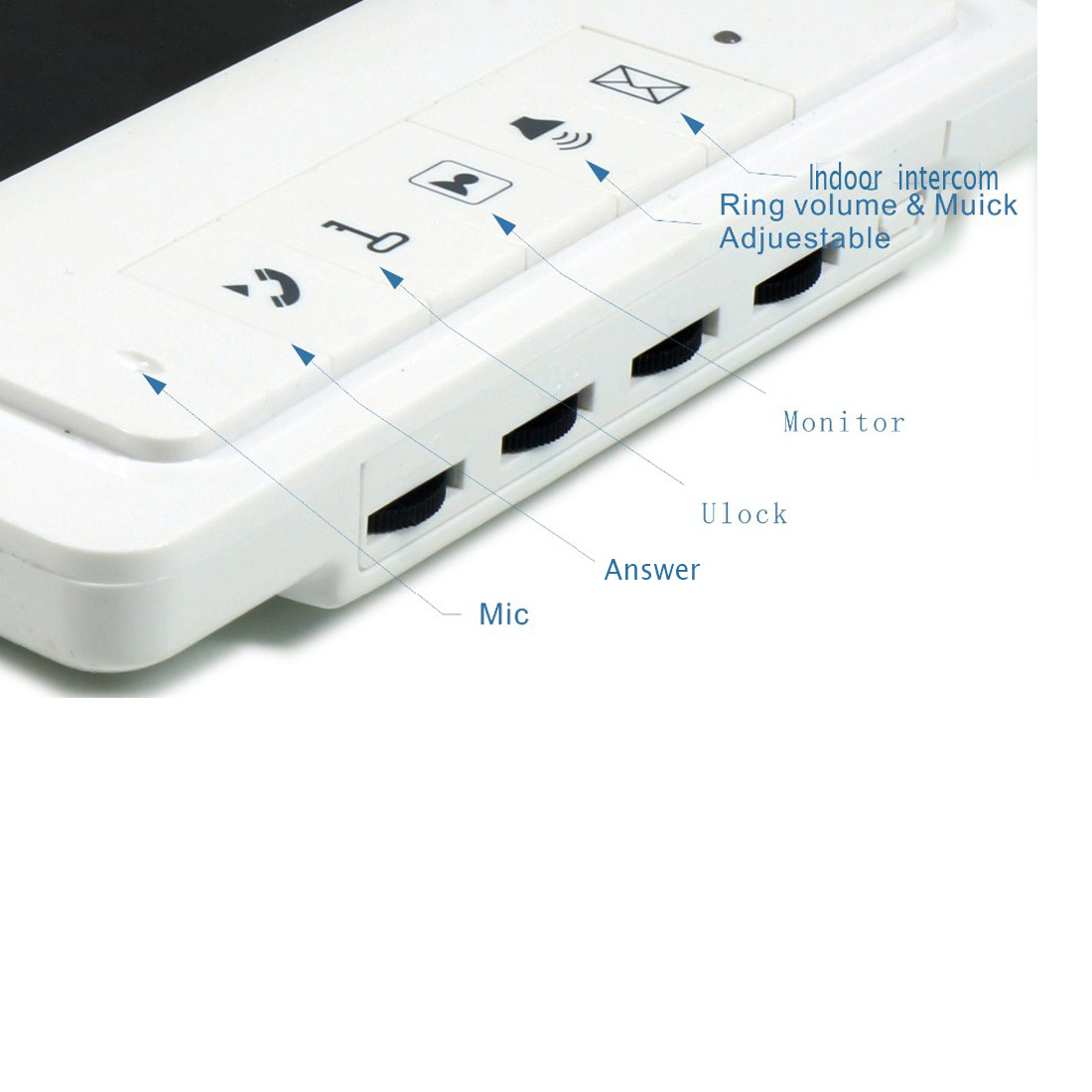

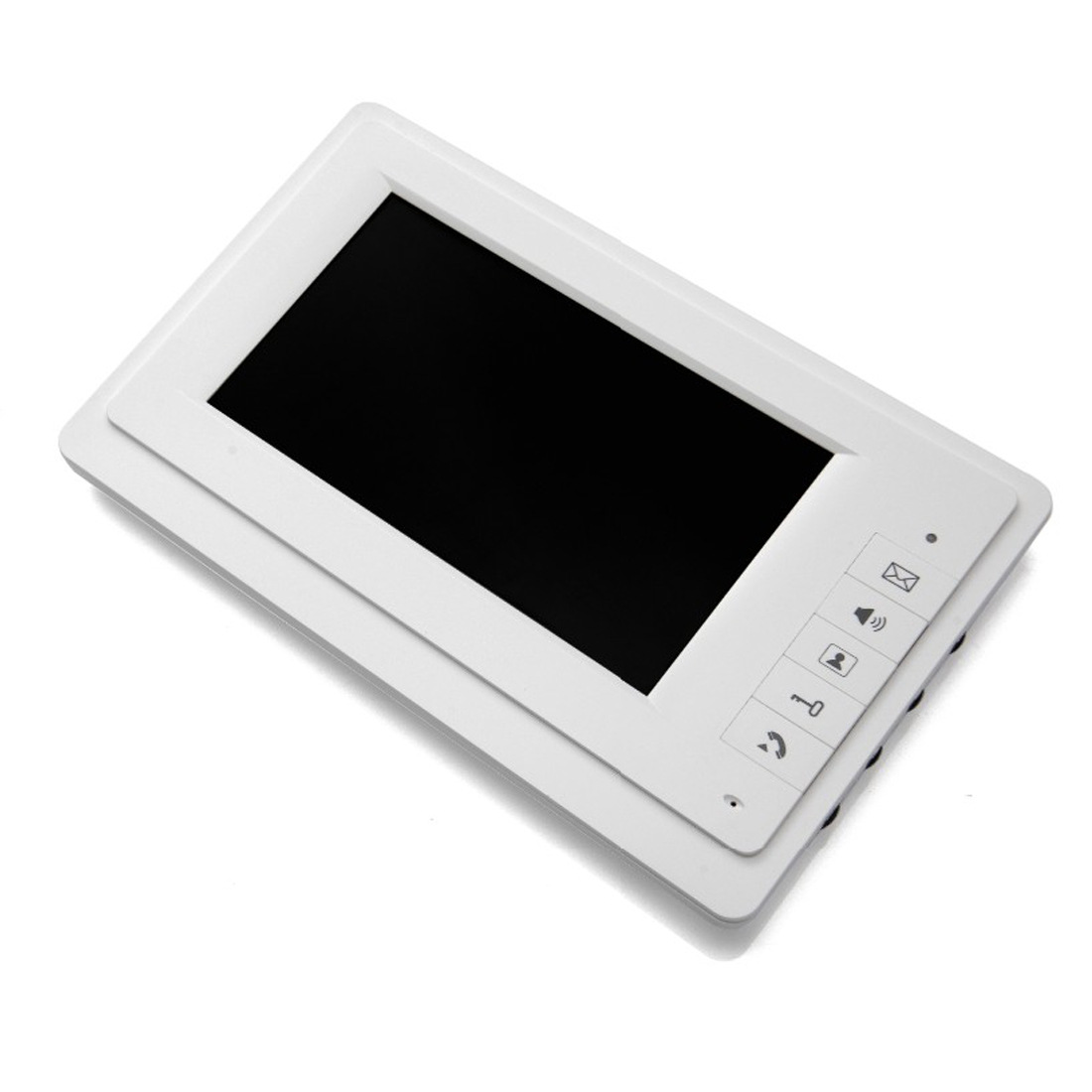

Ultra-thin design indoor unit, fashionable and luxury.

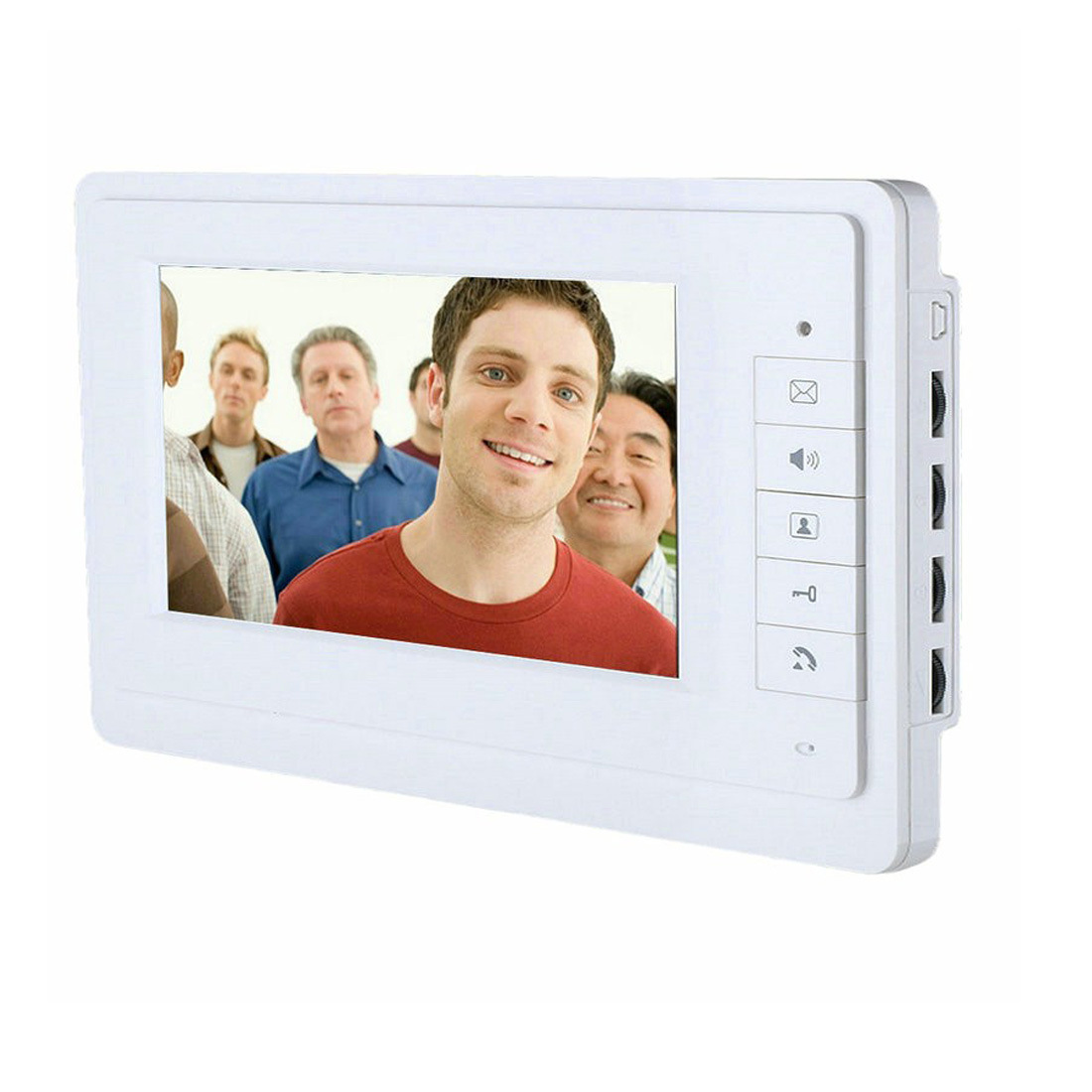

7" TFT LCD screen with no radiation, low power consumption and high definition.

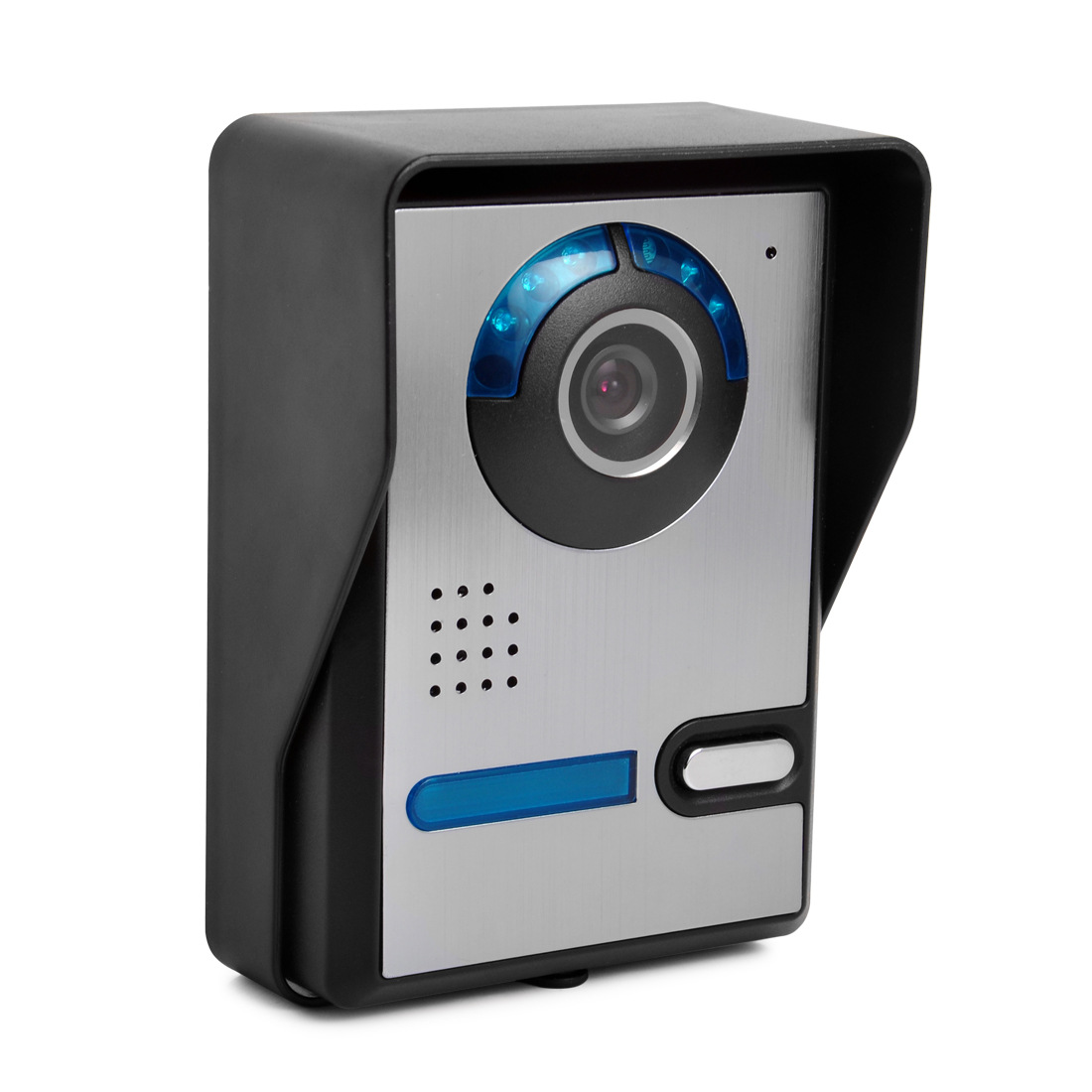

IR Camera with Night Vision.
Electric lock-control function.
Hand-free intercom function.
Mute indoor intercom function.
Monitoring the outside of the door.
16 kinds of doorbell rings.

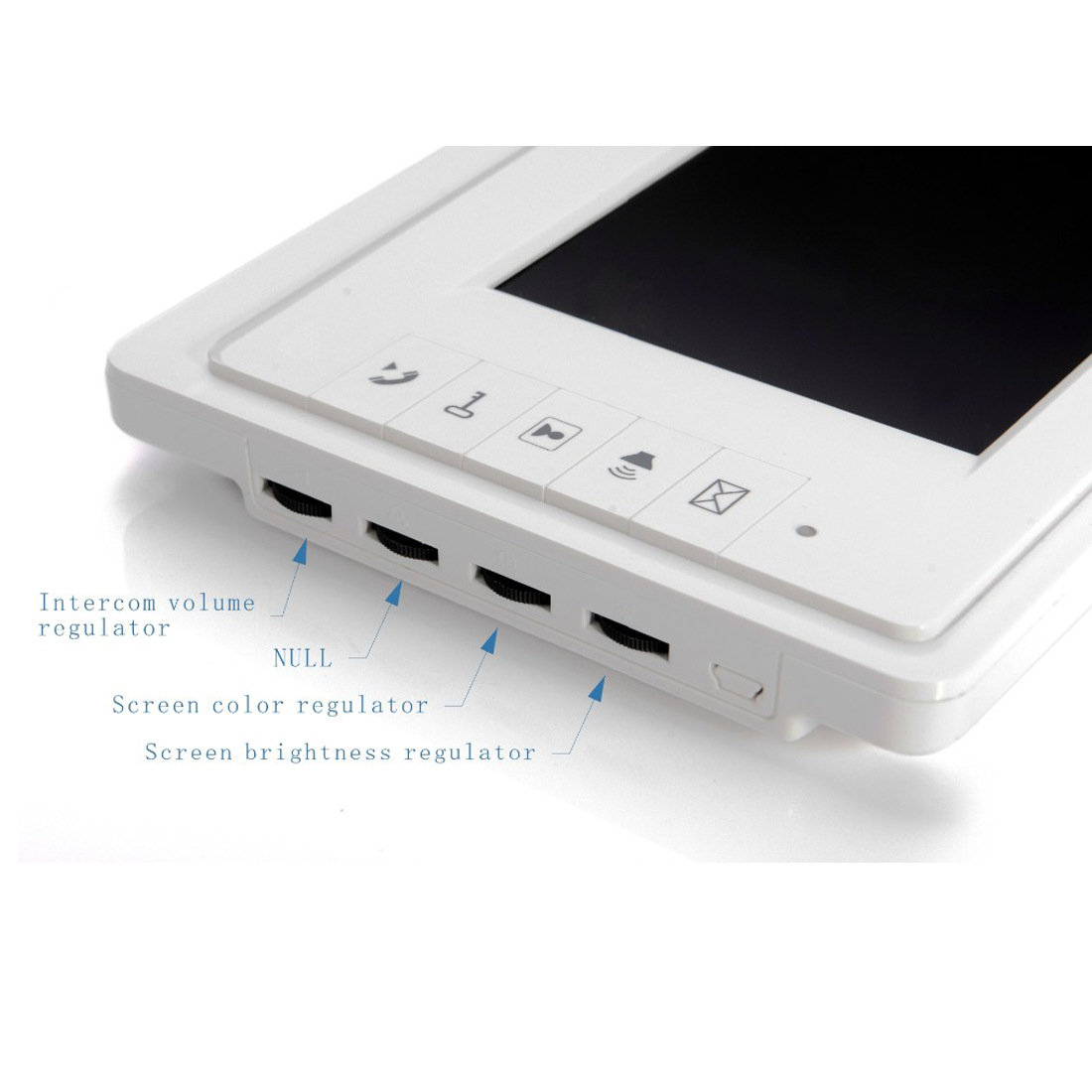

Volume, brightness and contrast adjustable.
The camera could be high definition
monitor, intercom, unlock,hand free, monitors talks to monitor
Suitable most of the electronics lock, with delay unlocks functions

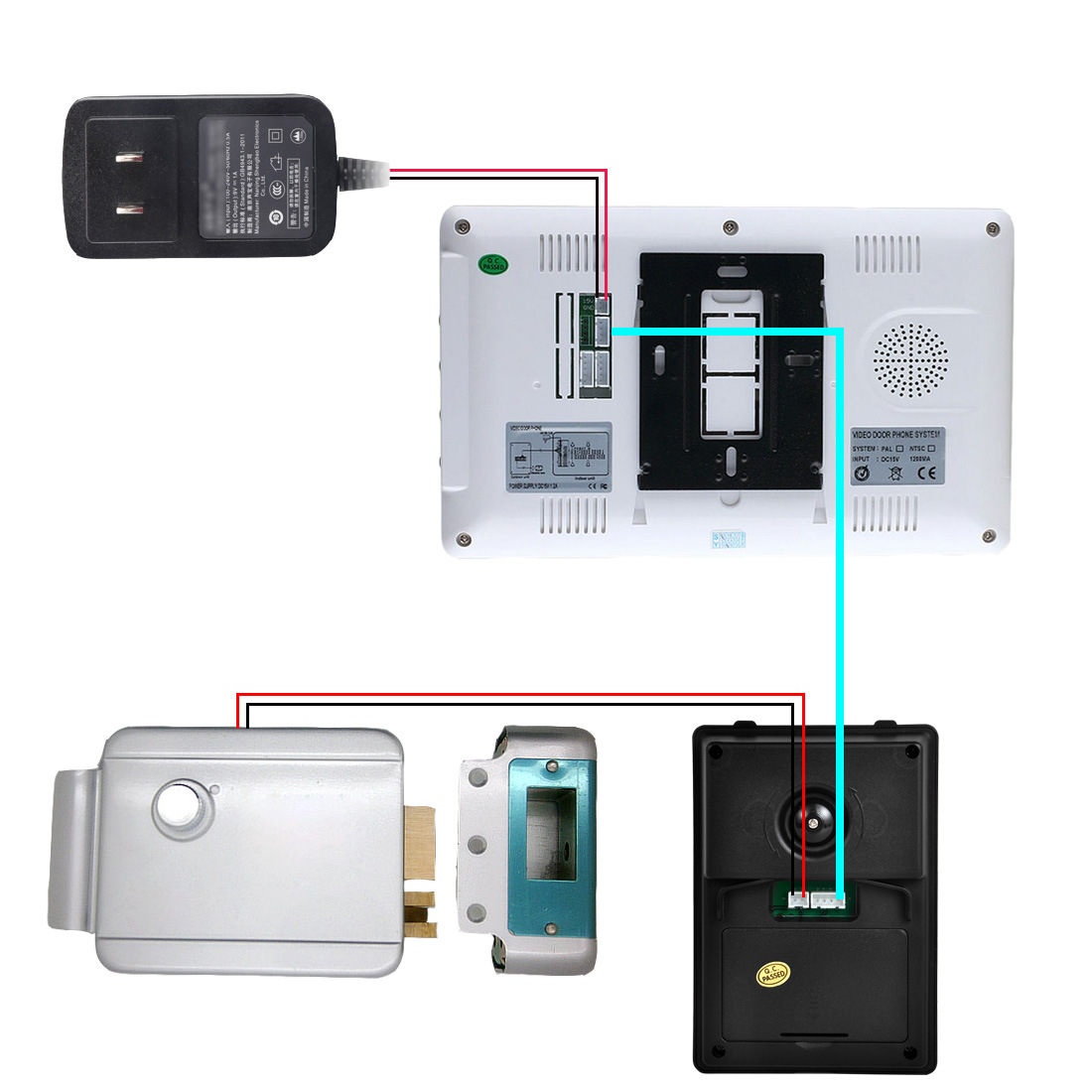

Easy installation by yourself with adapter and cable we provided in this kit.

Specifications:
Screen: 7" TFT
Resolution: 800 * 480
Camera: 1/4"HD color CMOS can reach 700 line
Camera lens: 3.6mm
Camera viewing angle: 92 degrees adjust
Call duration time: 120 Seconds
Monitor duration time: 60 Seconds
Power consumption: Static state <0.5W, calling <10W
Power input: AC 100V-240V 50/60 Hz
Power output: DC15V

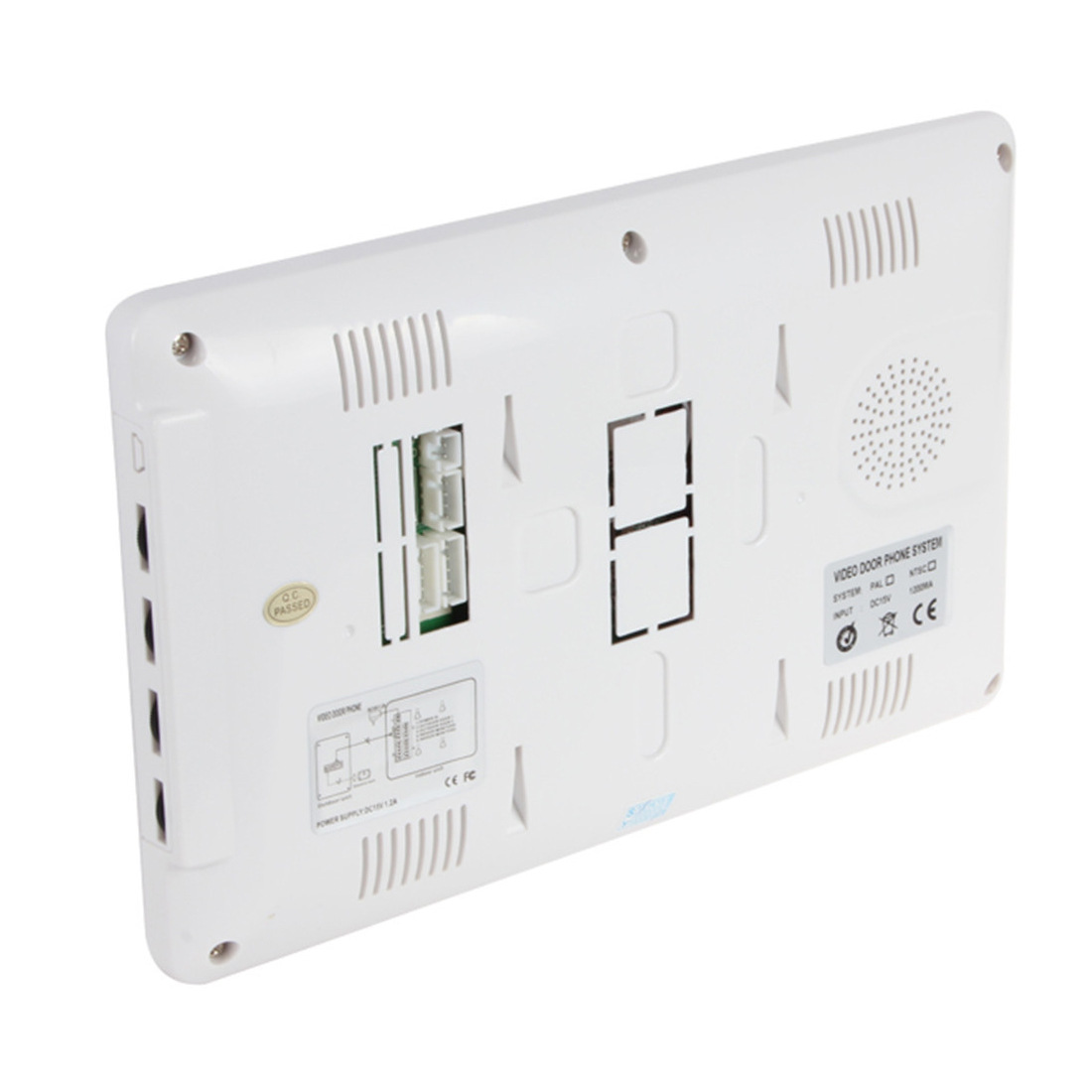

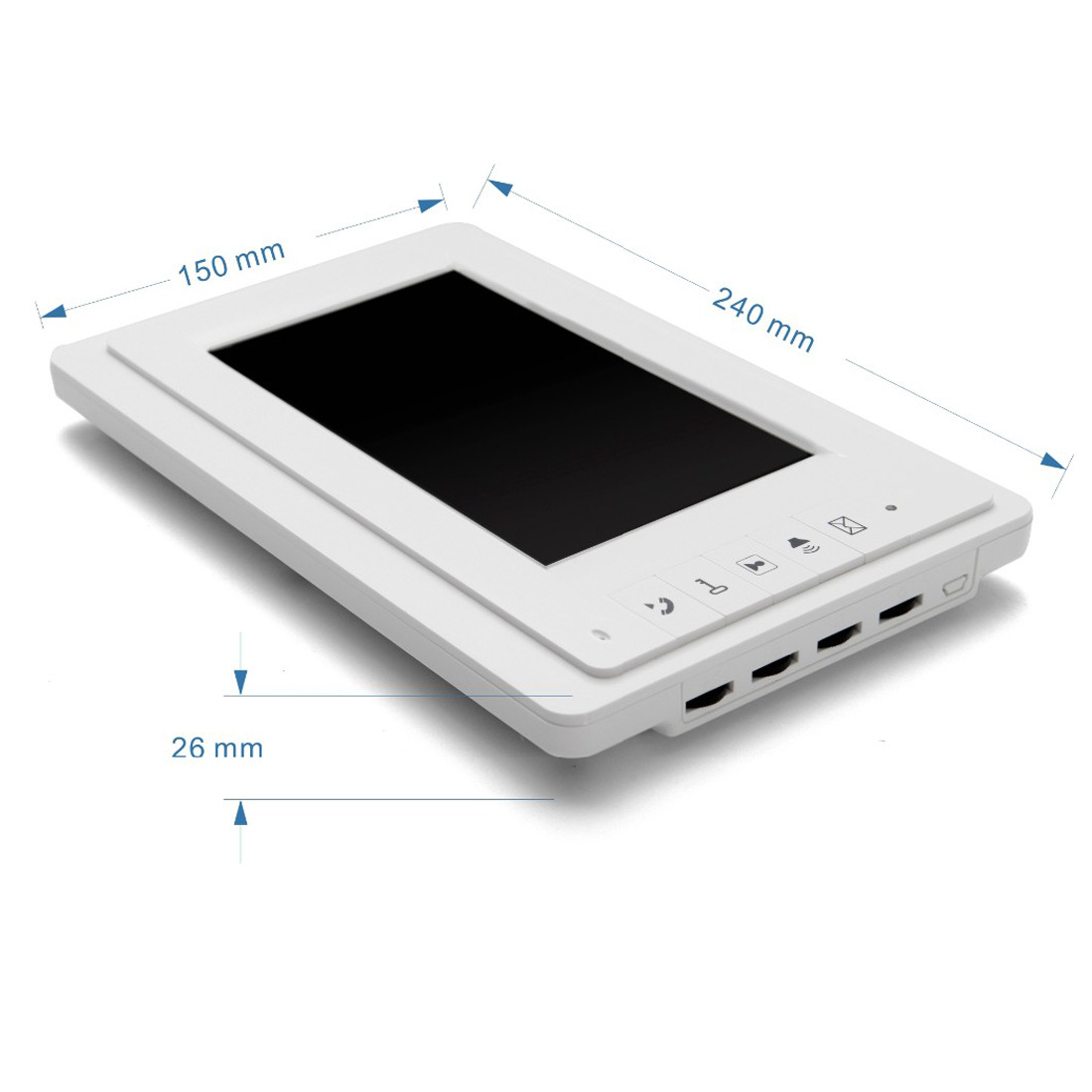

Indoor monitor: 240* 150 * 26mm

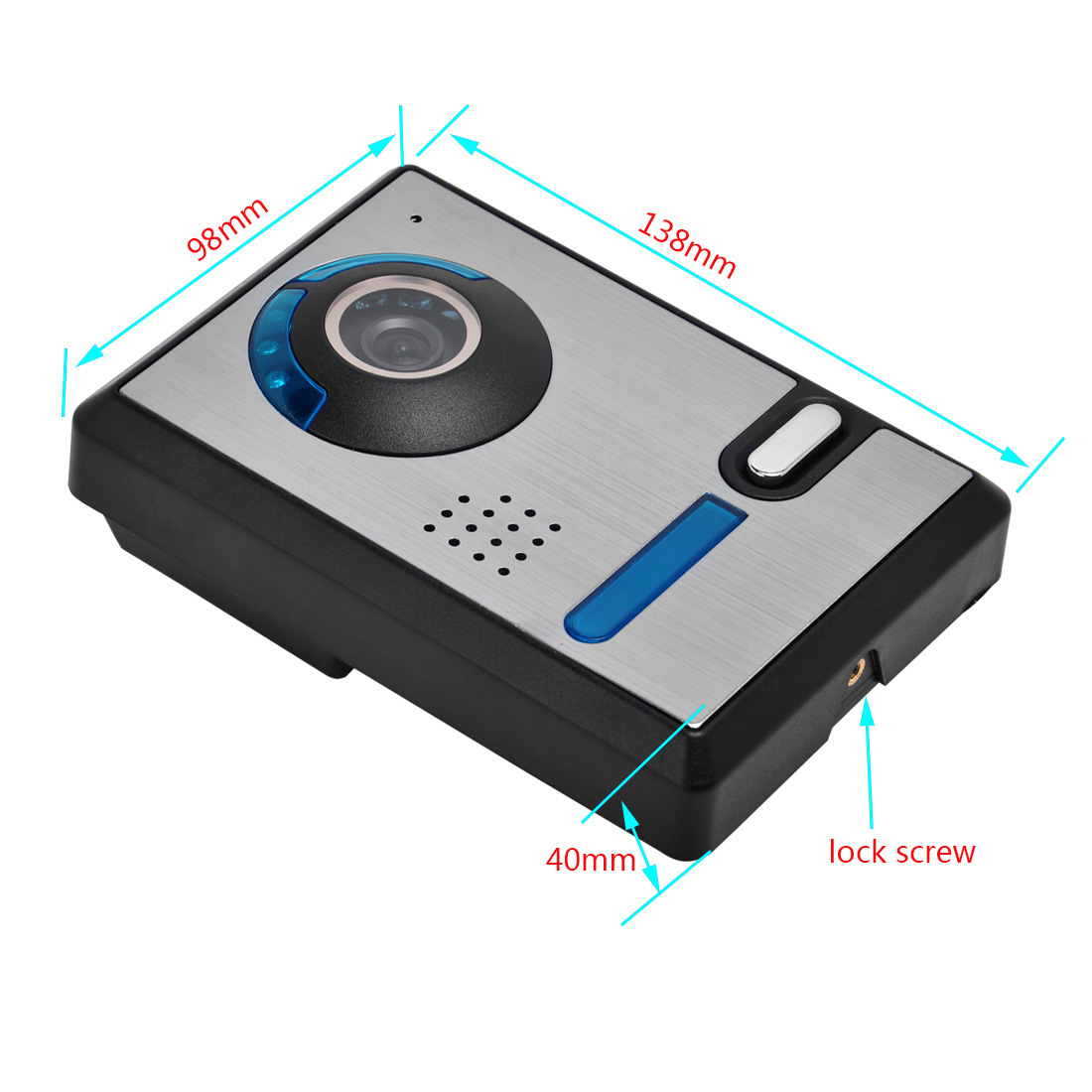

Outdoor camera: 138 * 98* 40mm

Package includes:
1 * Outdoor camera
1 * Indoor monitor
1 * AC adapter
1 * 5m 4-core Connection cable
1 * 2-core Connection cable
1 * Package of screws
1 * User manual – English
